Rear Toe Adjustment (AWD)
The maximum adjustment range of the adjustment screw is 90 degrees to the left or right of center.
Before attempting toe adjustment, perform PRELIMINARY CHECKS .

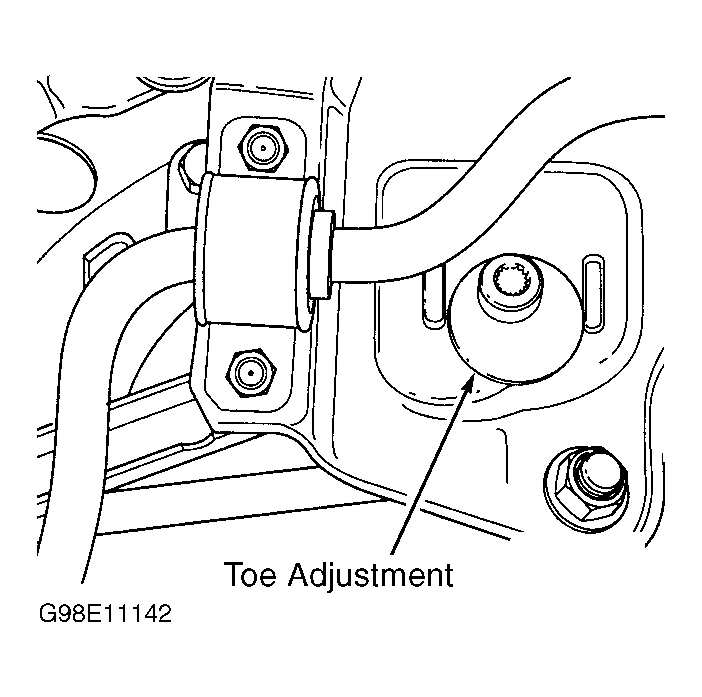

On All-Wheel Drive (AWD) models, loosen toe eccentric nut. Adjust toe by turning eccentric bolt to specified value. See WHEEL ALIGNMENT SPECIFICATIONS . See Fig 1 . Tighten nut, and recheck alignment angles after adjustments.
