Mode 6

Fig 1: Mode 6 Data (2001 1.8L Turbo AUG) (1 Of 10)

G00105218

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Mode 6 Data (2001 1.8L Turbo AUG) (2 Of 10)

G00105219

Courtesy of VOLKSWAGEN UNITED STATES, INC.

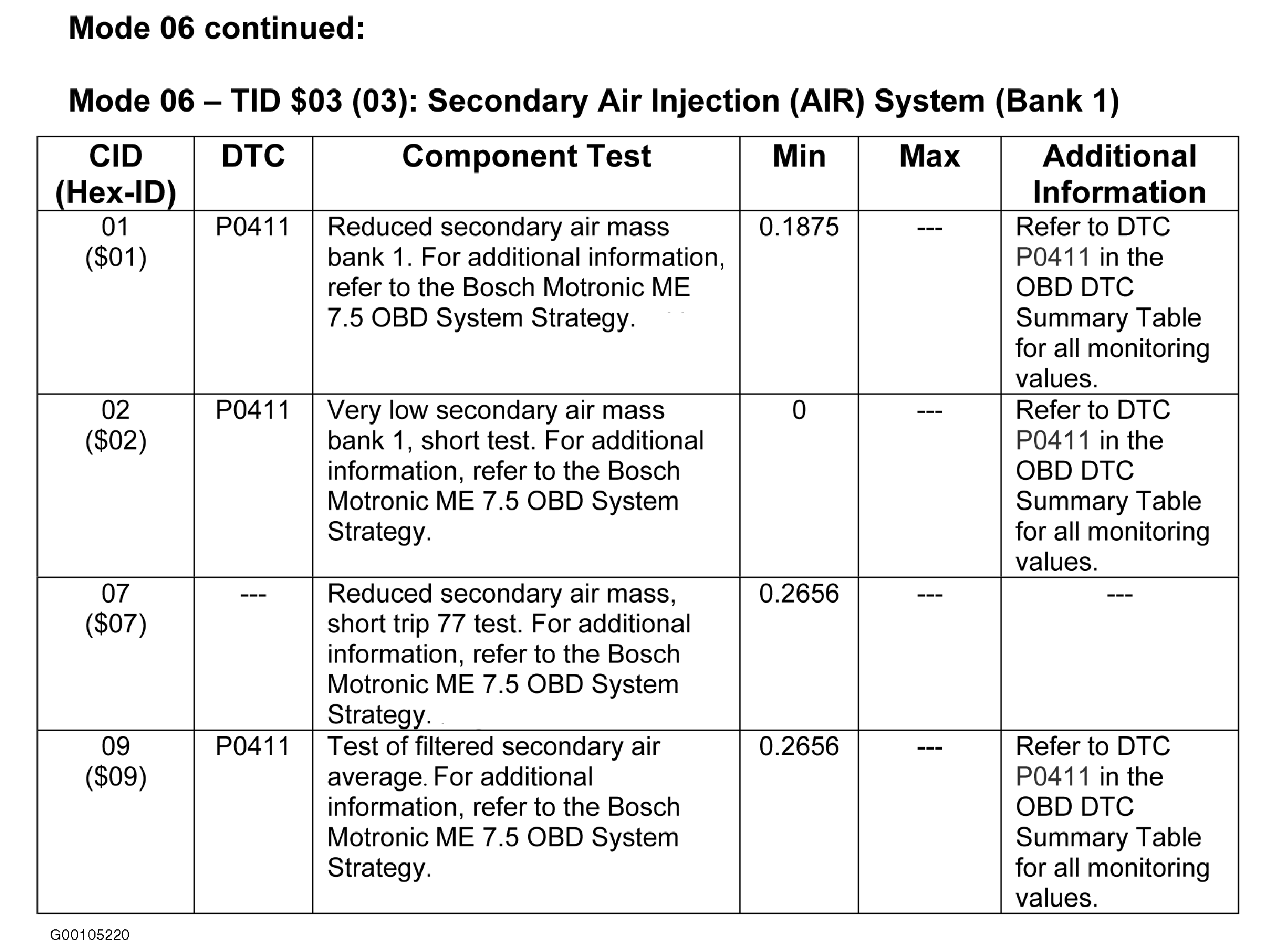

Fig 3: Mode 6 Data (2001 1.8L Turbo AUG) (3 Of 10)

G00105220

Courtesy of VOLKSWAGEN UNITED STATES, INC.

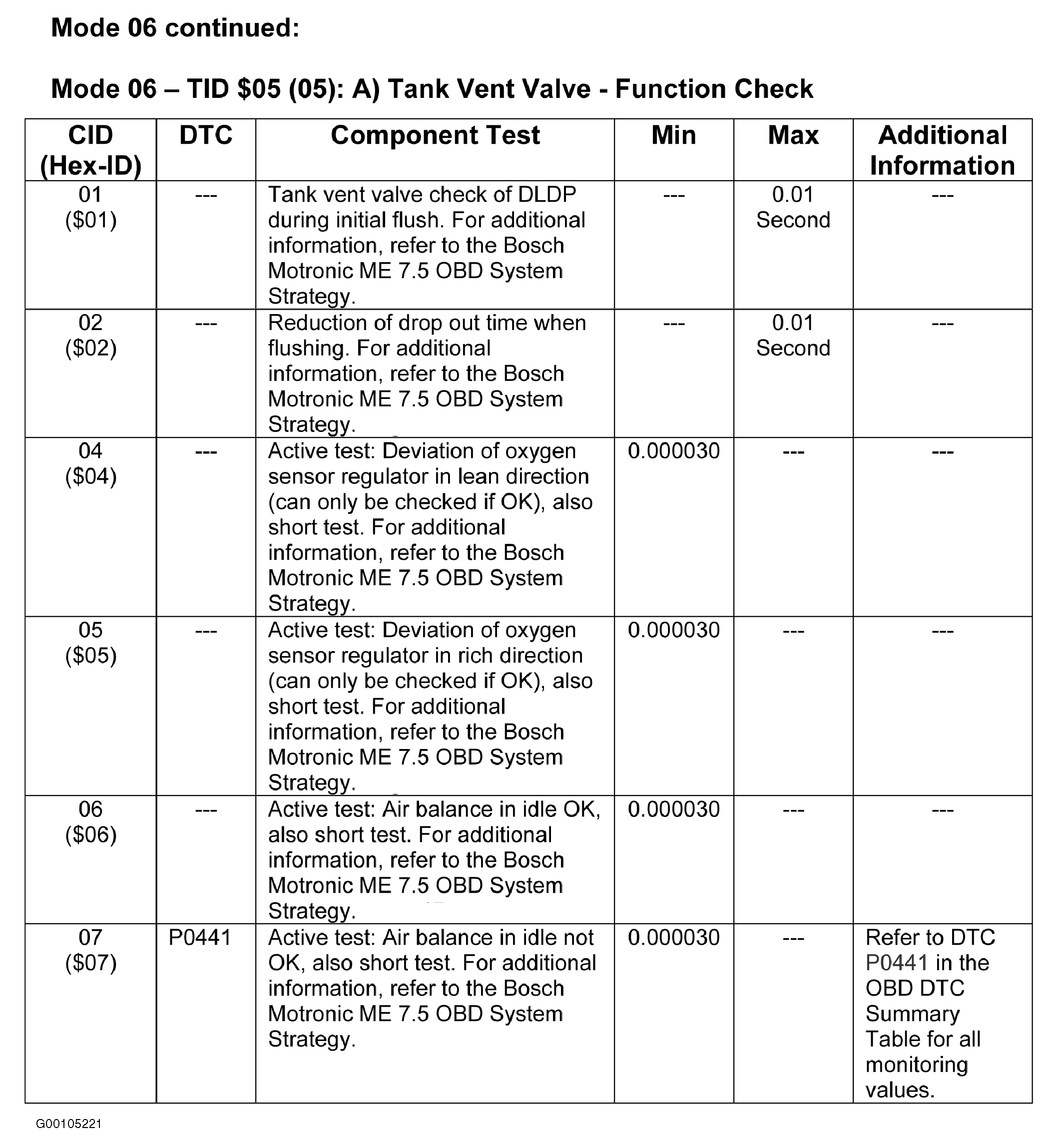

Fig 4: Mode 6 Data (2001 1.8L Turbo AUG) (4 Of 10)

G00105221

Courtesy of VOLKSWAGEN UNITED STATES, INC.

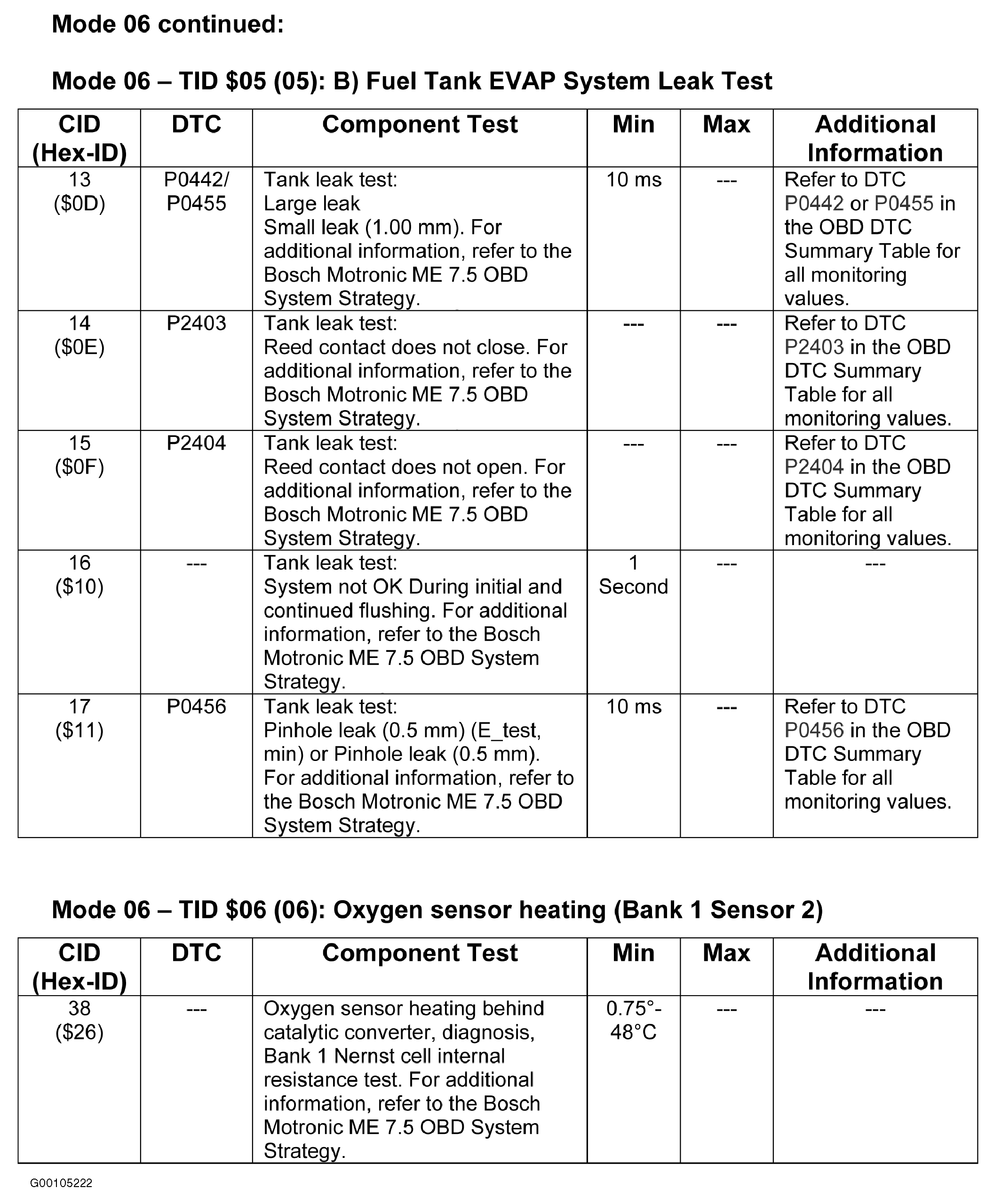

Fig 5: Mode 6 Data (2001 1.8L Turbo AUG) (5 Of 10)

G00105222

Courtesy of VOLKSWAGEN UNITED STATES, INC.

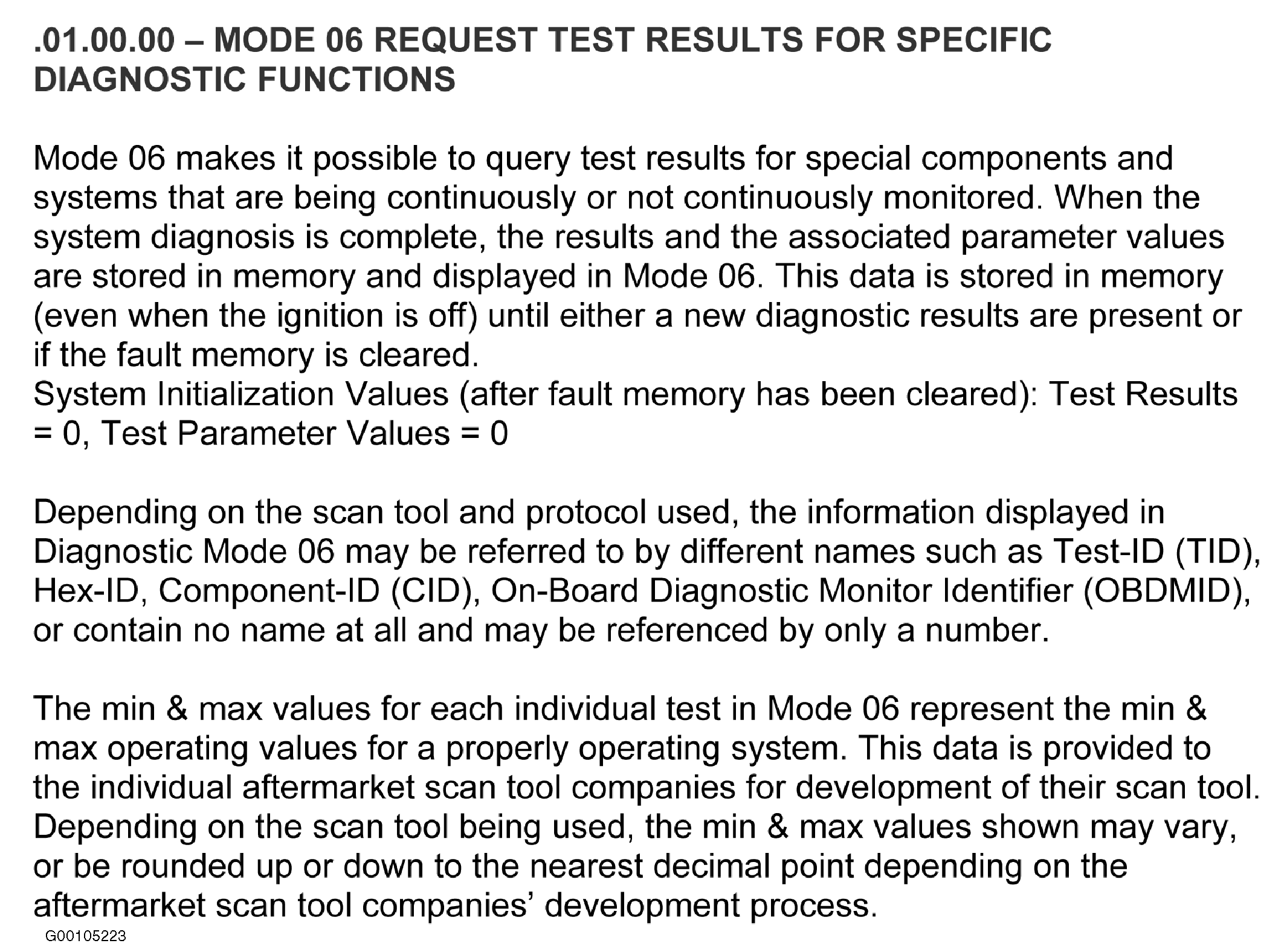

Fig 6: Mode 6 Data (2001 1.8L Turbo AUG) (6 Of 10)

G00105223

Courtesy of VOLKSWAGEN UNITED STATES, INC.

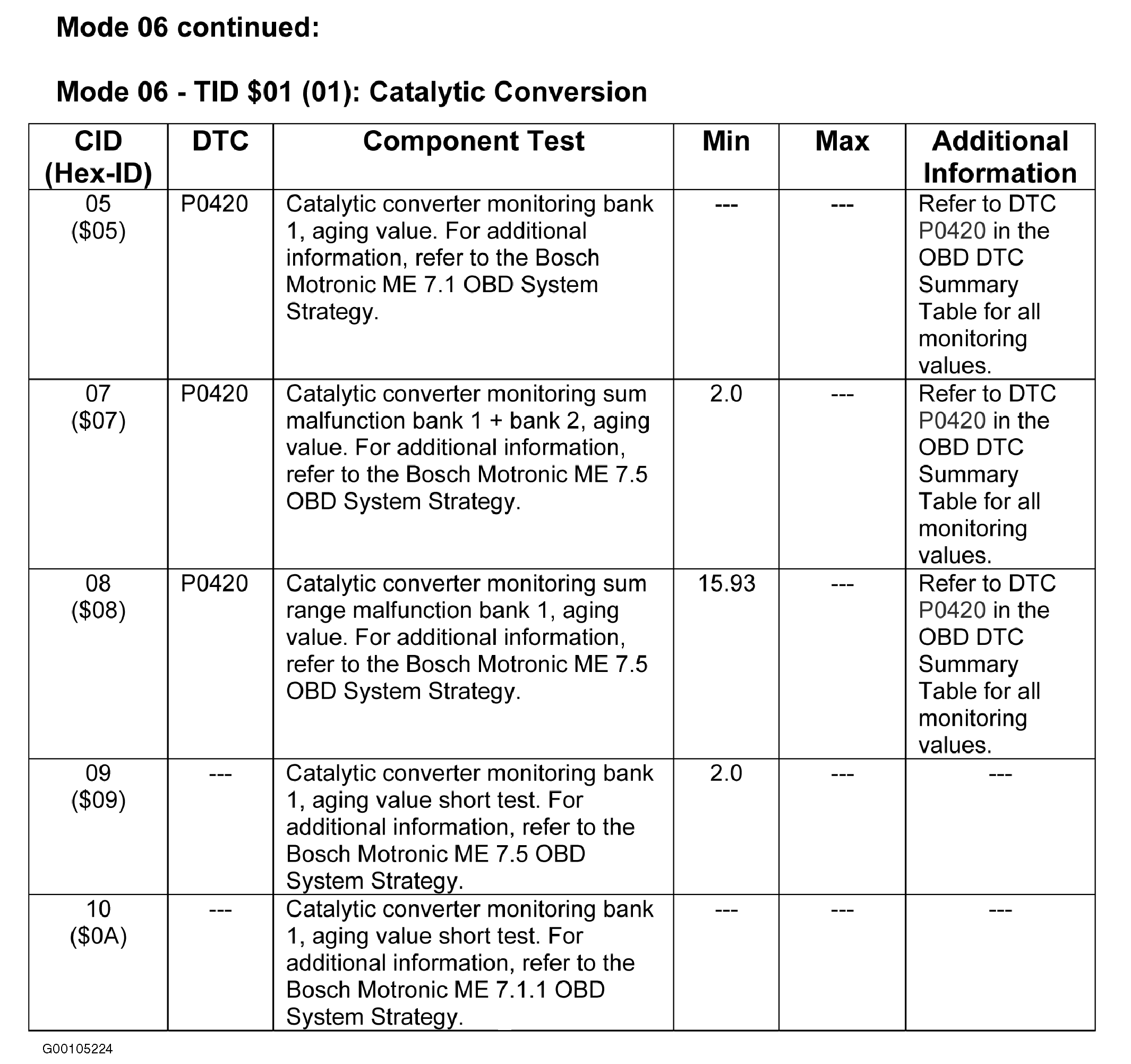

Fig 7: Mode 6 Data (2001 1.8L Turbo AUG) (7 Of 10)

G00105224

Courtesy of VOLKSWAGEN UNITED STATES, INC.

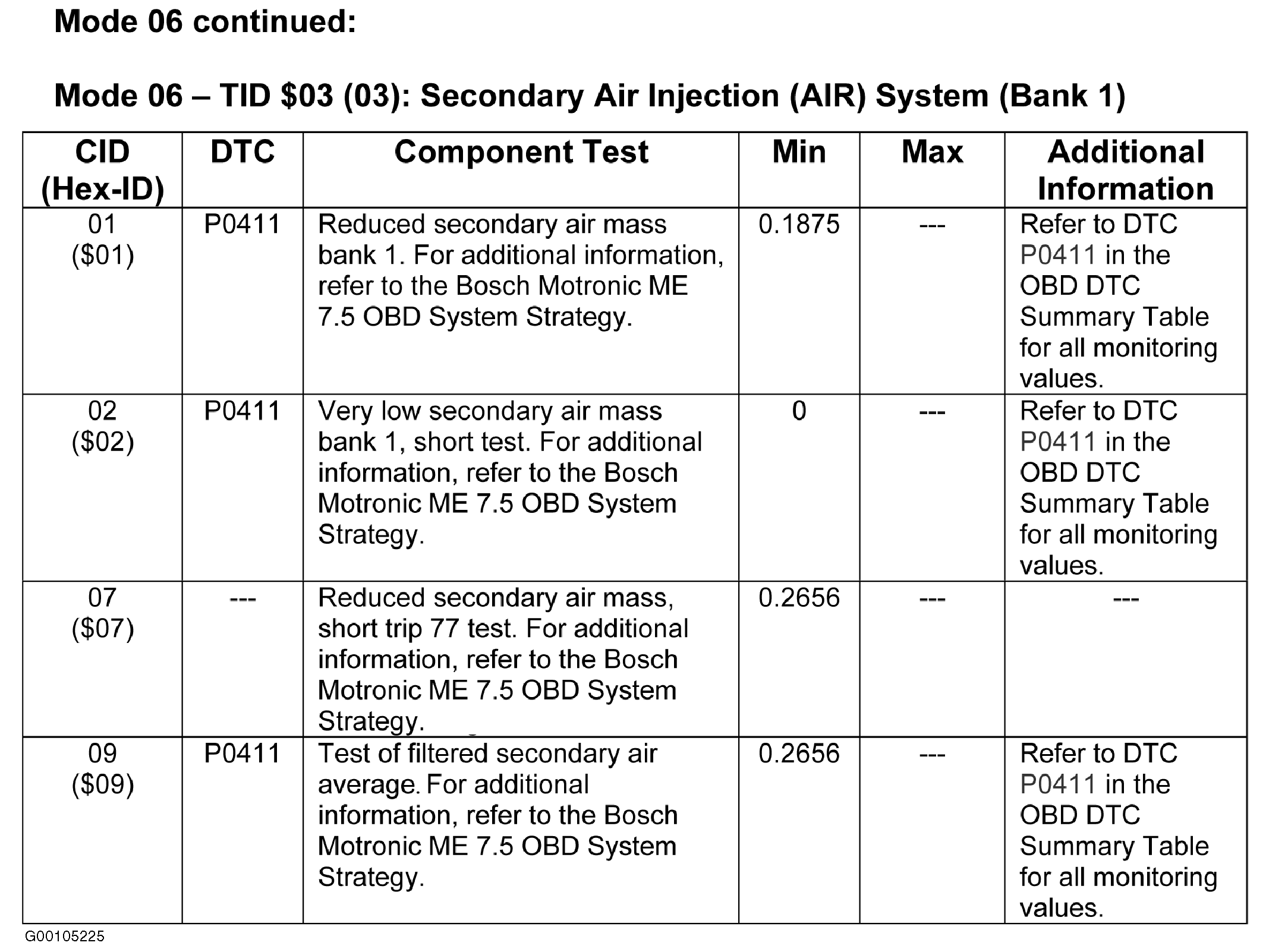

Fig 8: Mode 6 Data (2001 1.8L Turbo AUG) (8 Of 10)

G00105225

Courtesy of VOLKSWAGEN UNITED STATES, INC.

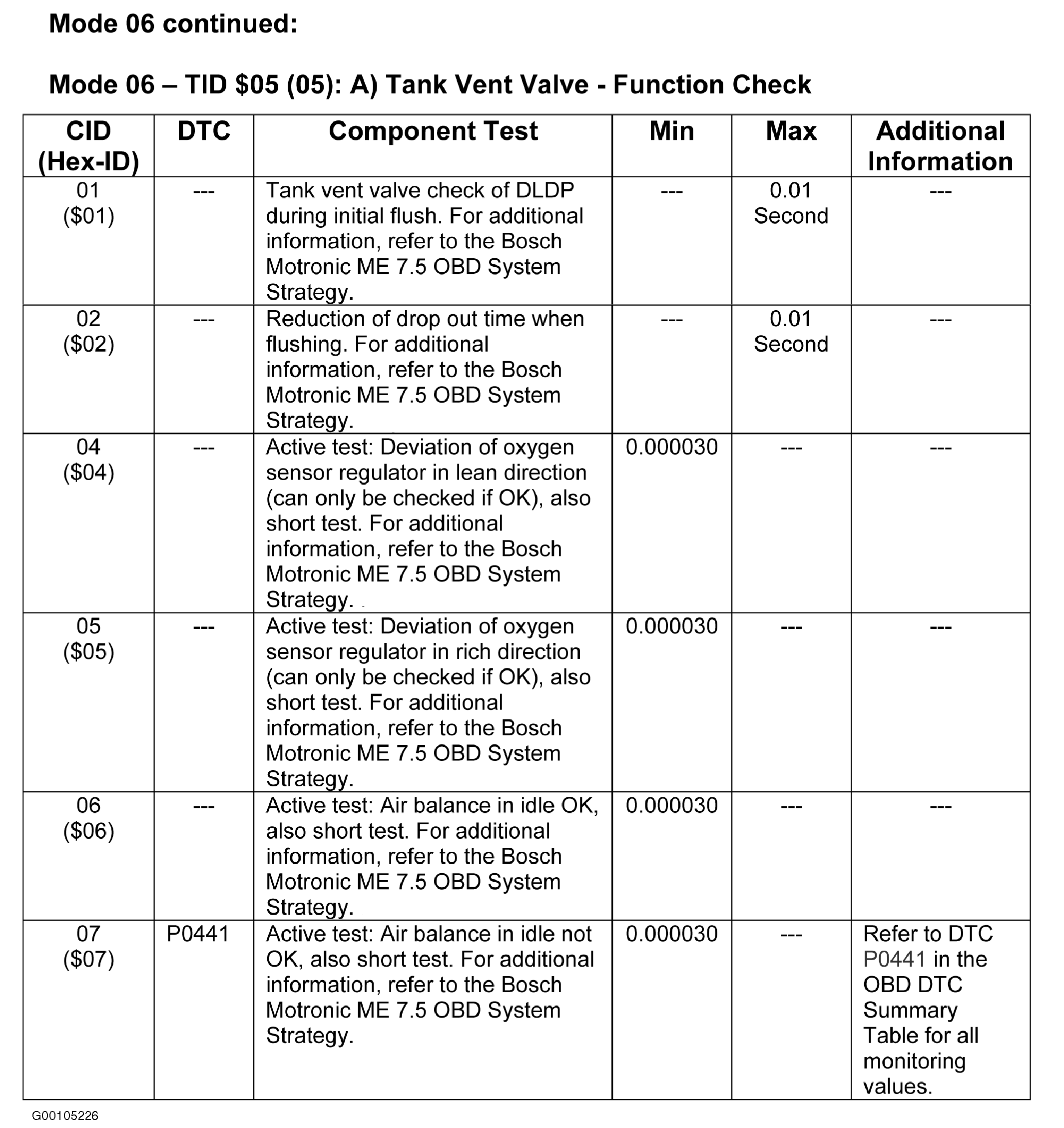

Fig 9: Mode 6 Data (2001 1.8L Turbo AUG) (9 Of 10)

G00105226

Courtesy of VOLKSWAGEN UNITED STATES, INC.

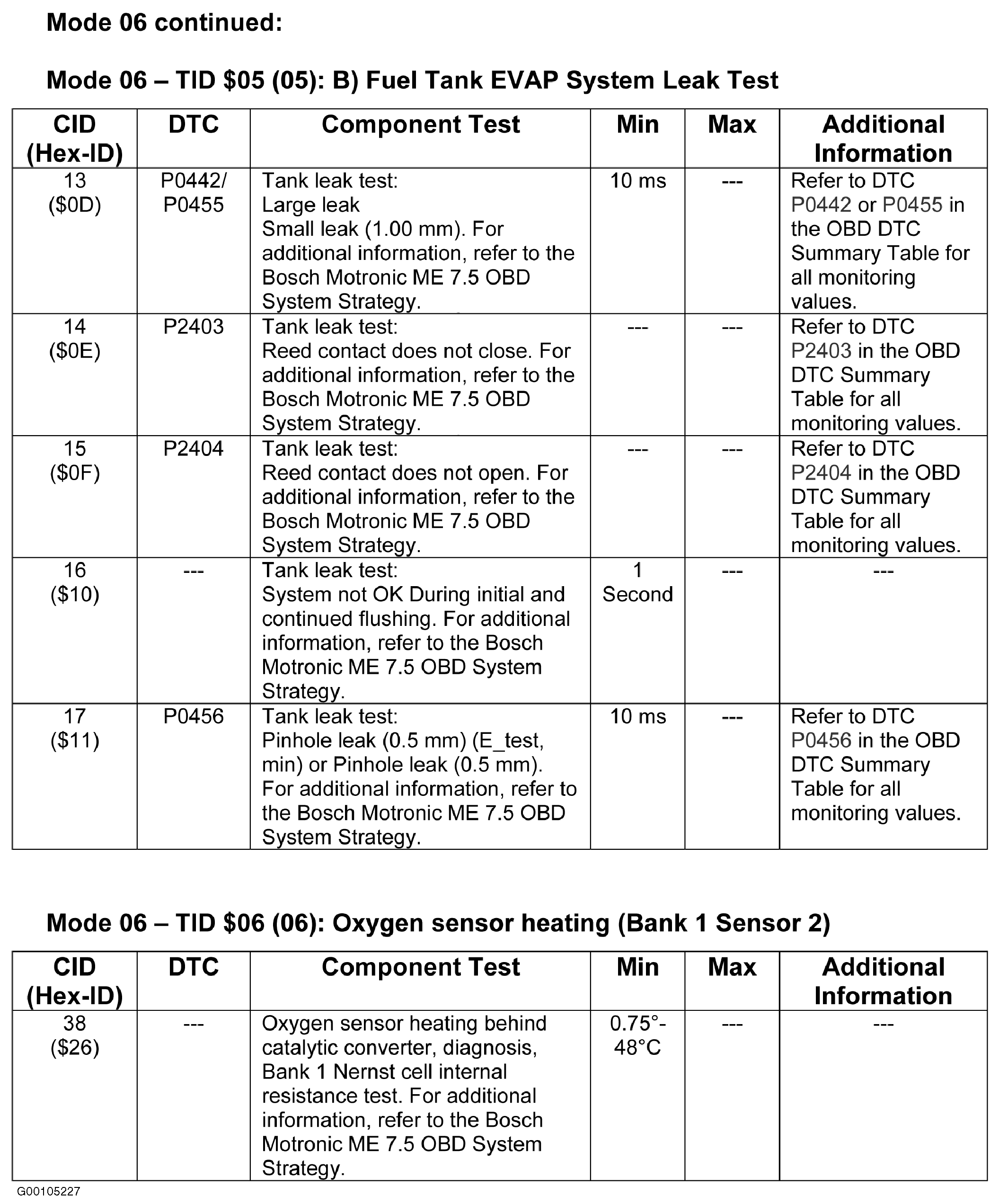

Fig 10: Mode 6 Data (2001 1.8L Turbo AUG) (10 Of 10)

G00105227

Courtesy of VOLKSWAGEN UNITED STATES, INC.

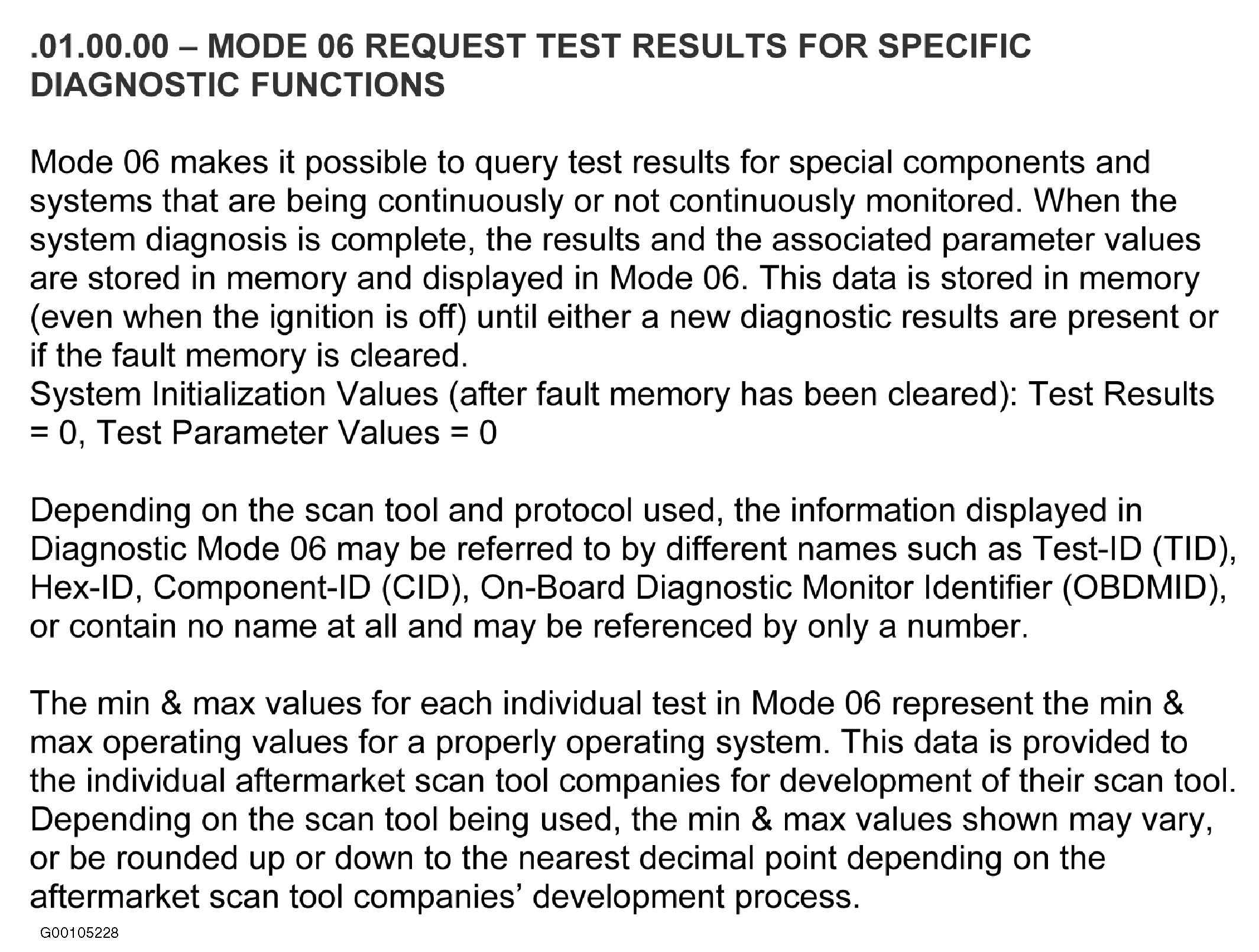

Fig 11: Mode 6 Data (2001-04 1.8L Turbo AWM) (1 Of 5)

G00105228

Courtesy of VOLKSWAGEN UNITED STATES, INC.

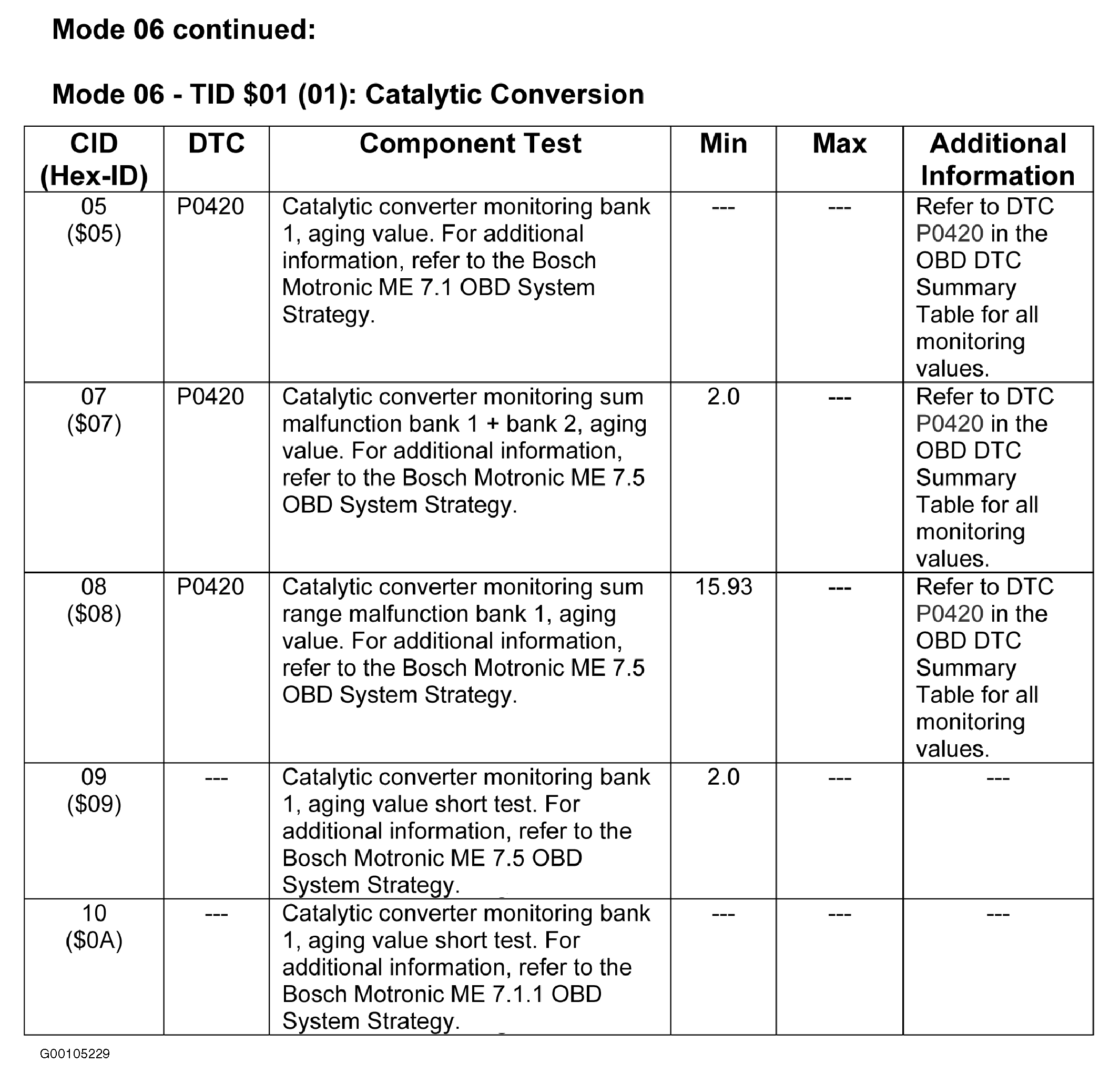

Fig 12: Mode 6 Data (2001-04 1.8L Turbo AWM) (2 Of 5)

G00105229

Courtesy of VOLKSWAGEN UNITED STATES, INC.

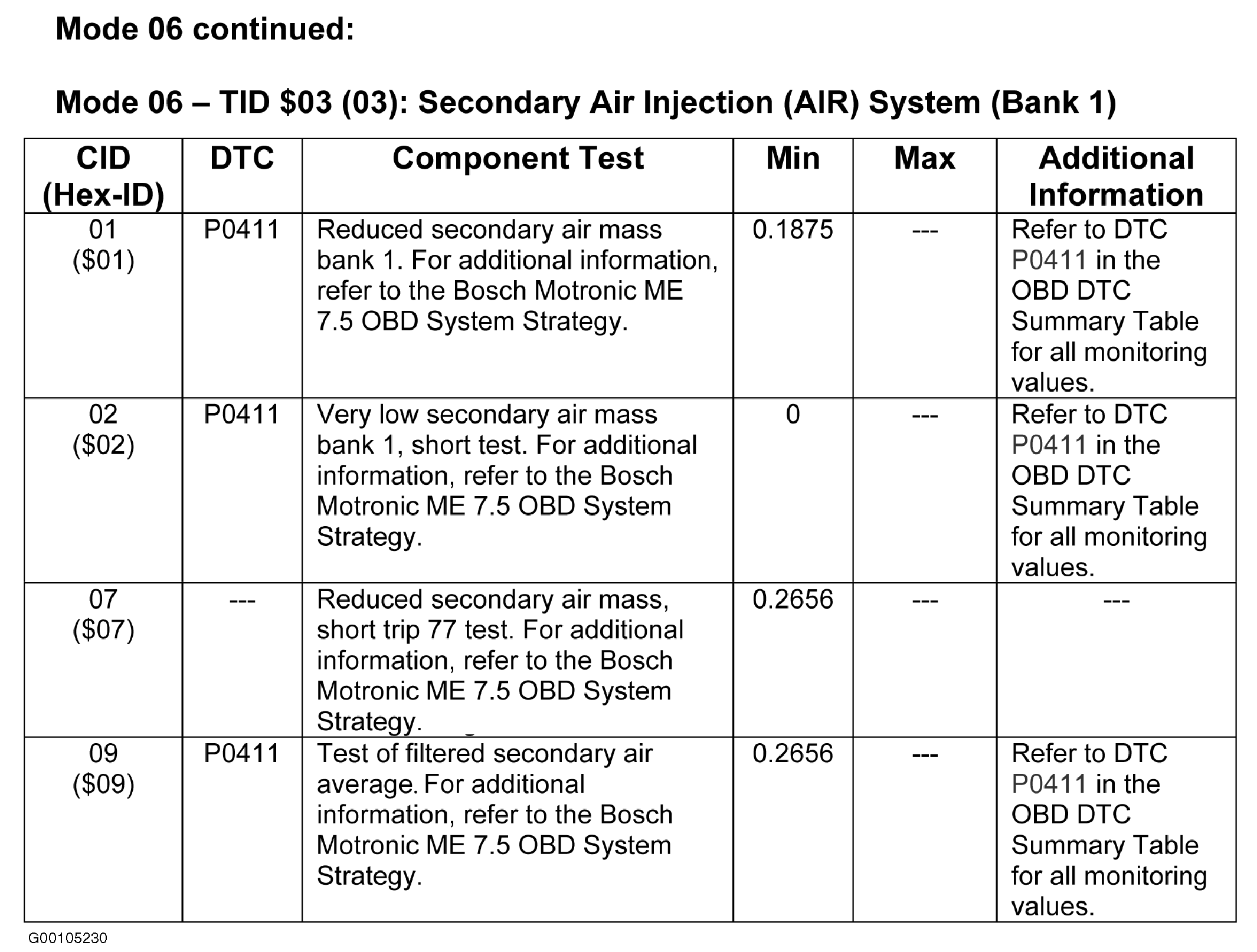

Fig 13: Mode 6 Data (2001-04 1.8L Turbo AWM) (3 Of 5)

G00105230

Courtesy of VOLKSWAGEN UNITED STATES, INC.

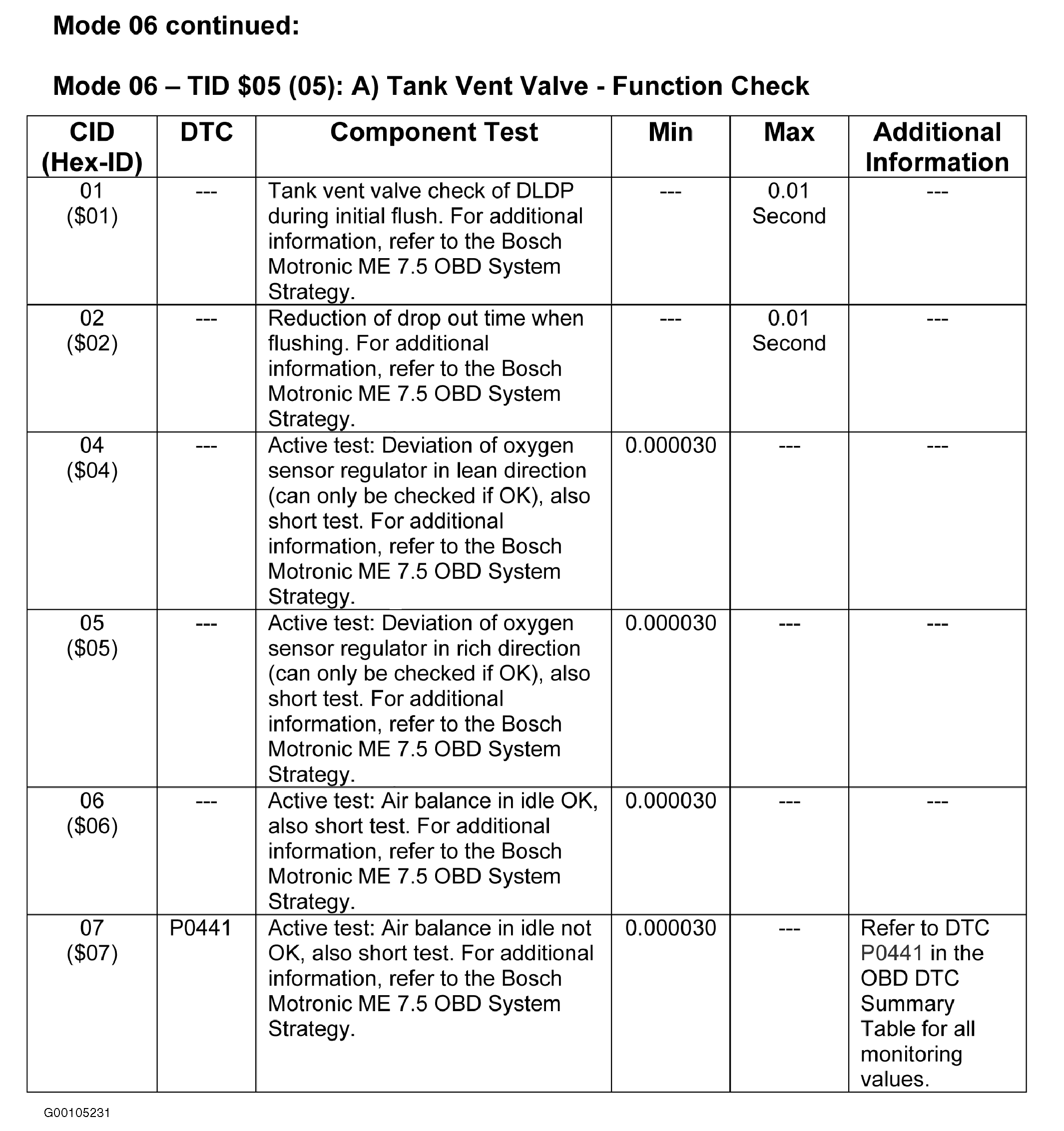

Fig 14: Mode 6 Data (2001-04 1.8L Turbo AWM) (4 Of 5)

G00105231

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 15: Mode 6 Data (2001-04 1.8L Turbo AWM) (5 Of 5)

G00105232

Courtesy of VOLKSWAGEN UNITED STATES, INC.

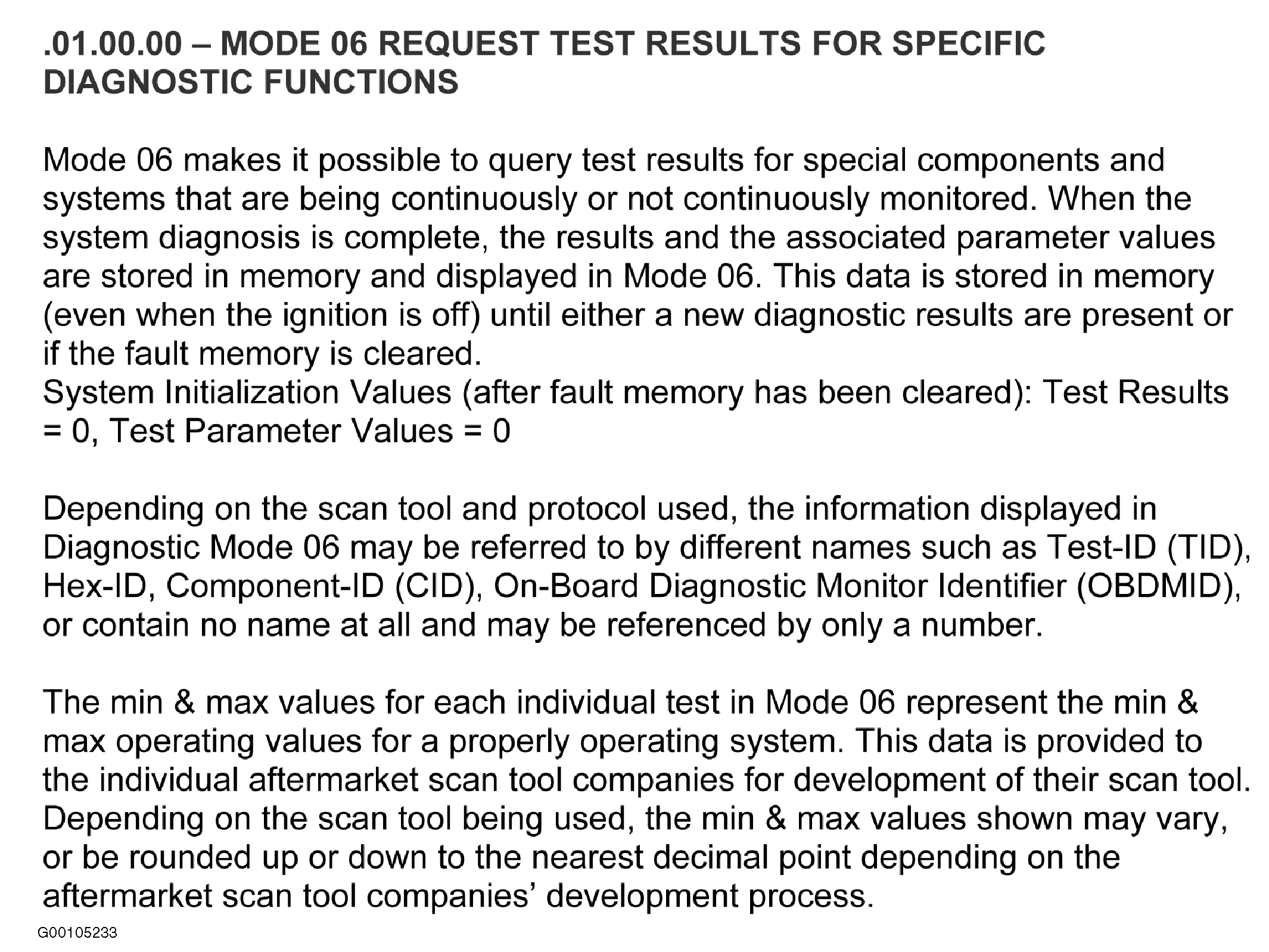

Fig 16: Mode 6 Data (2005 1.8L Turbo AWM) (1 Of 10)

G00105233

Courtesy of VOLKSWAGEN UNITED STATES, INC.

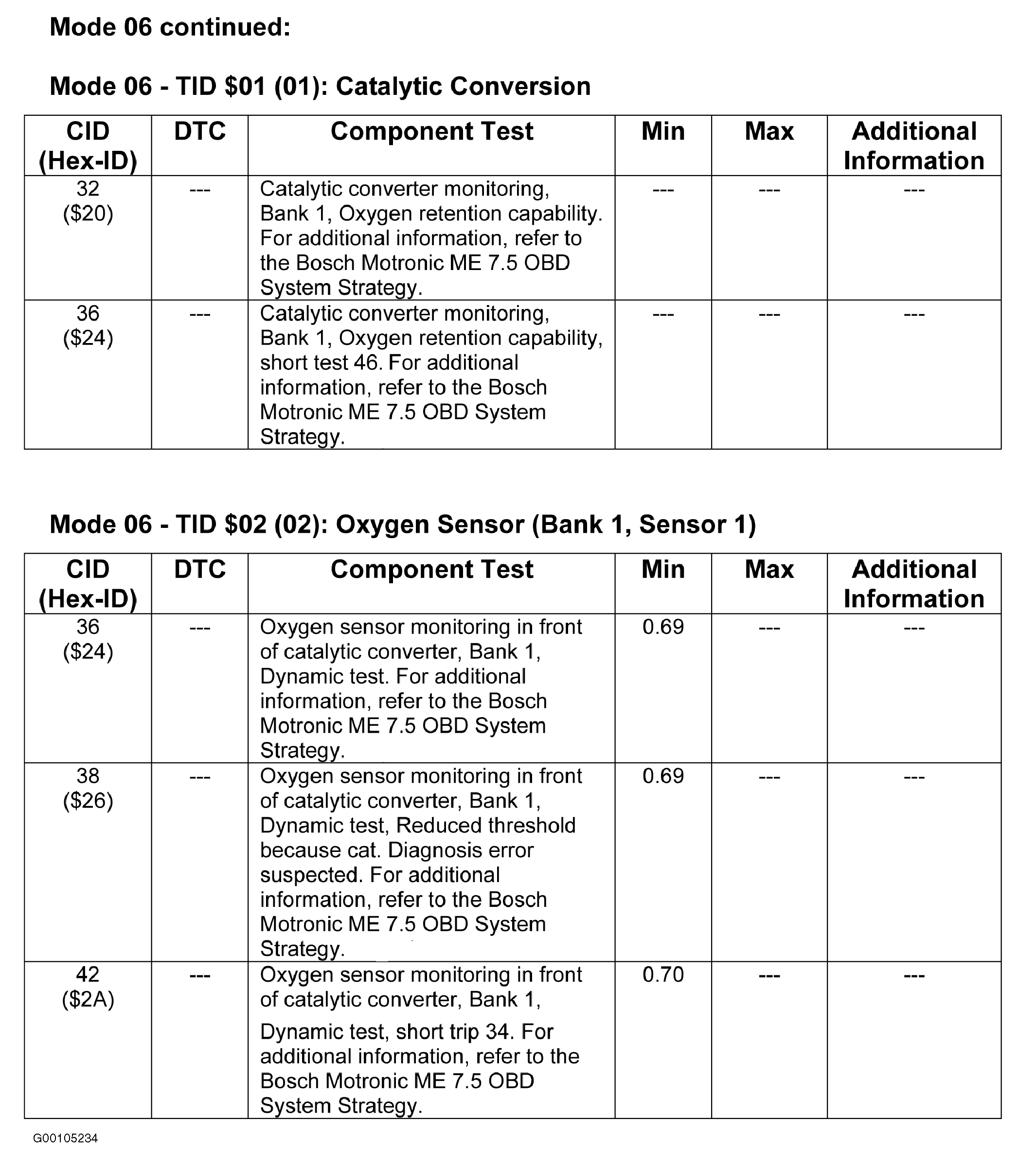

Fig 17: Mode 6 Data (2005 1.8L Turbo AWM) (2 Of 10)

G00105234

Courtesy of VOLKSWAGEN UNITED STATES, INC.

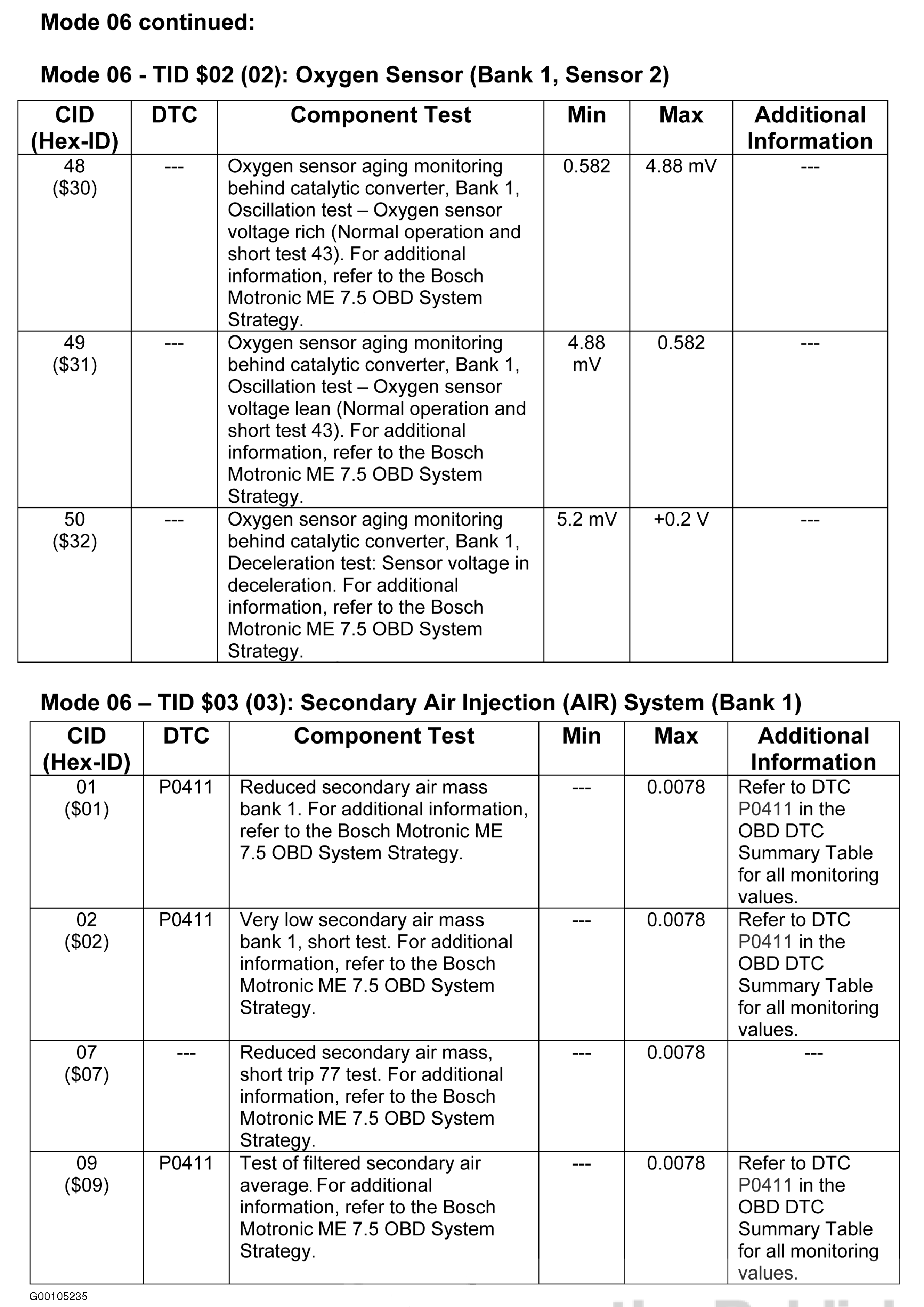

Fig 18: Mode 6 Data (2005 1.8L Turbo AWM) (3 Of 10)

G00105235

Courtesy of VOLKSWAGEN UNITED STATES, INC.

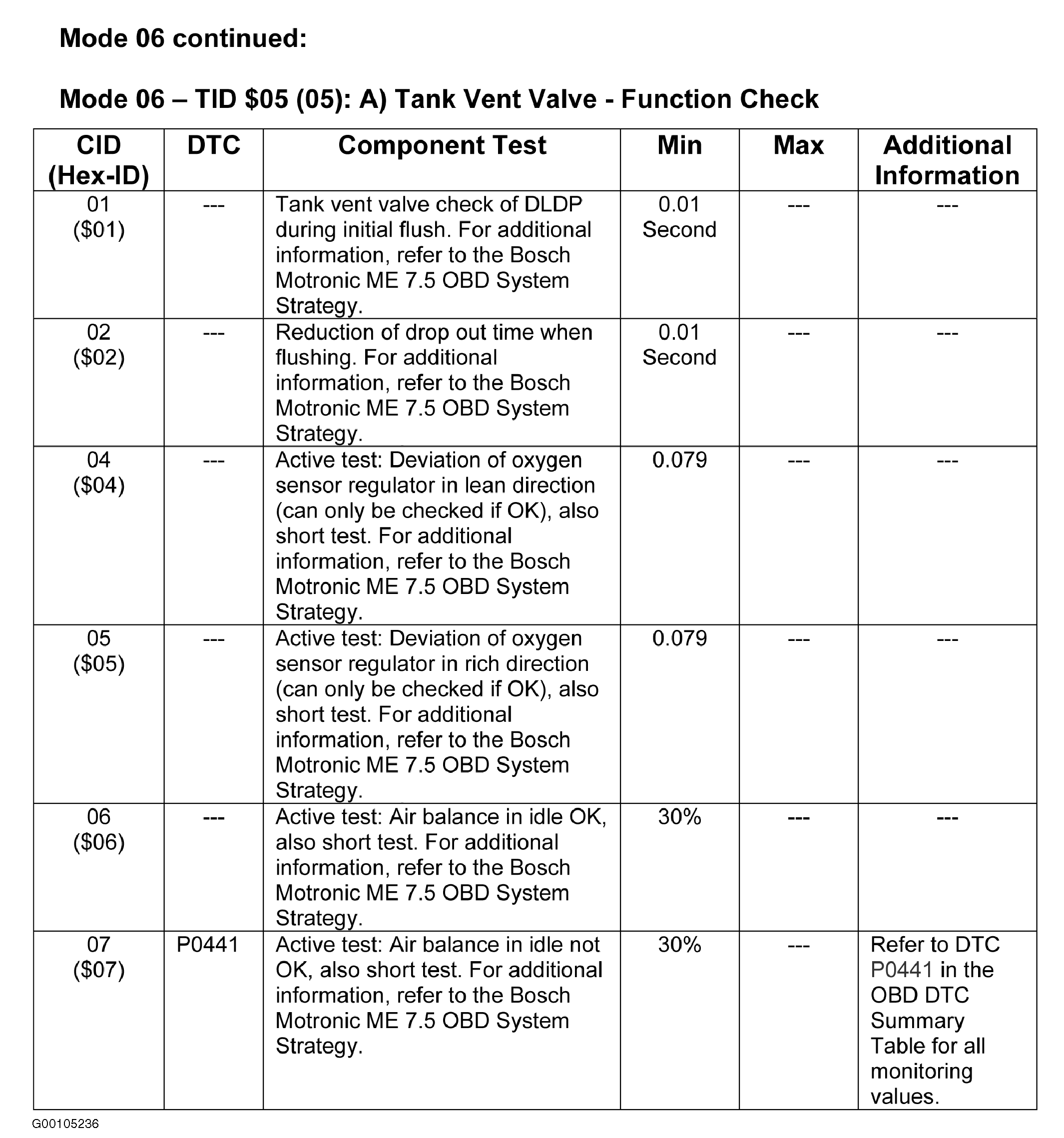

Fig 19: Mode 6 Data (2005 1.8L Turbo AWM) (4 Of 10)

G00105236

Courtesy of VOLKSWAGEN UNITED STATES, INC.

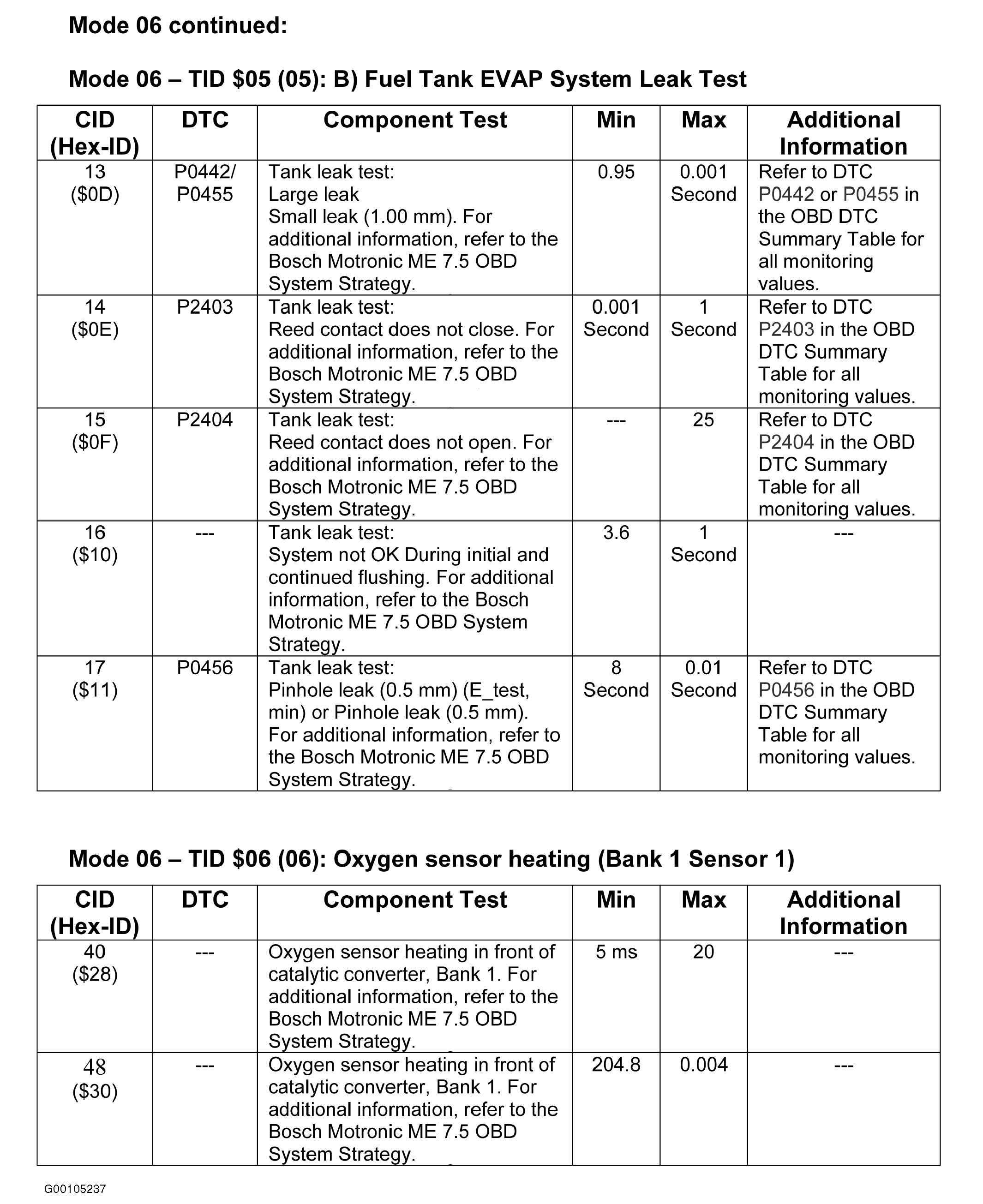

Fig 20: Mode 6 Data (2005 1.8L Turbo AWM) (5 Of 10)

G00105237

Courtesy of VOLKSWAGEN UNITED STATES, INC.

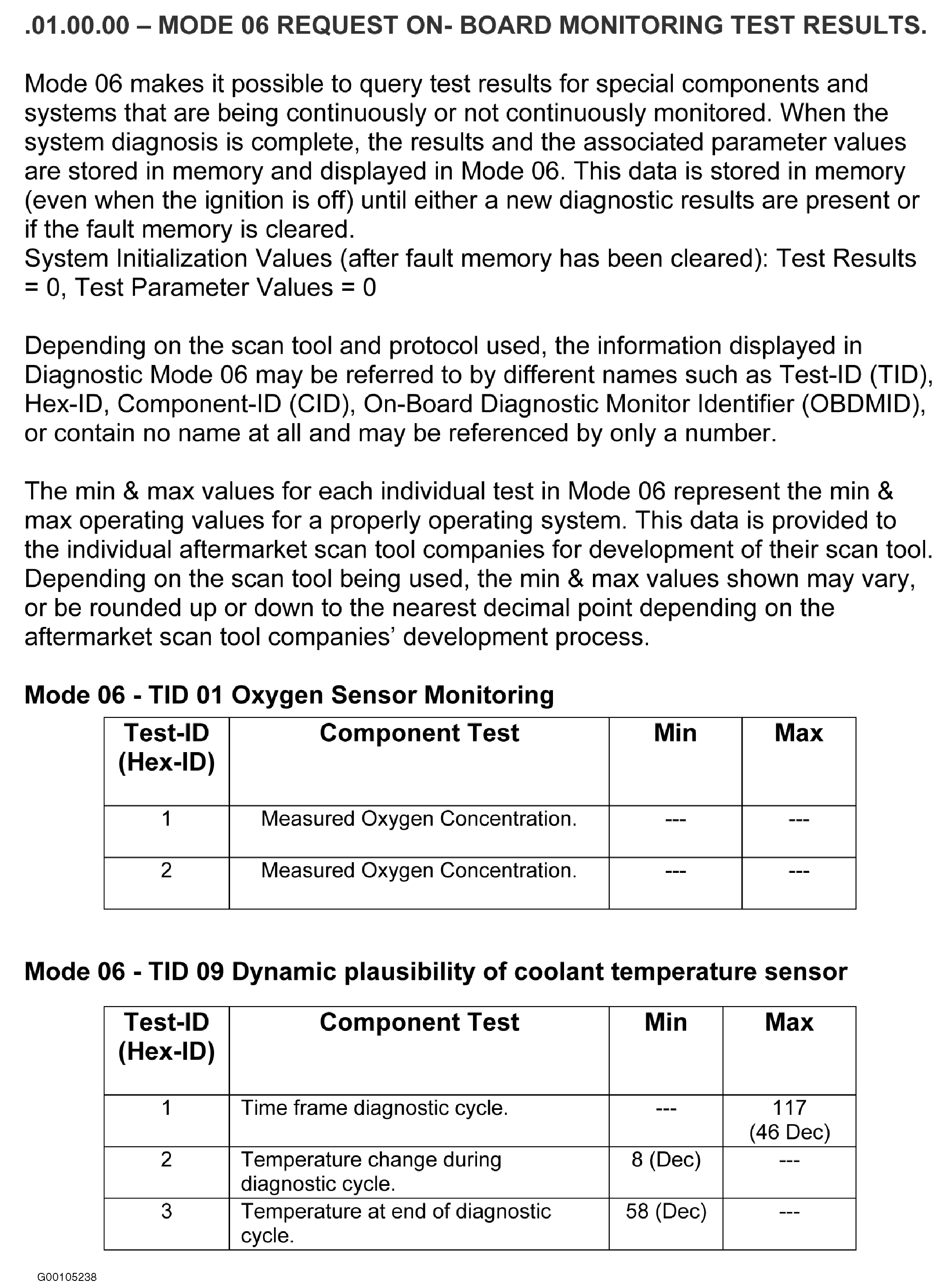

Fig 21: Mode 6 Data (2004-05 2.0L BHW) (1 Of 3)

G00105238

Courtesy of VOLKSWAGEN UNITED STATES, INC.

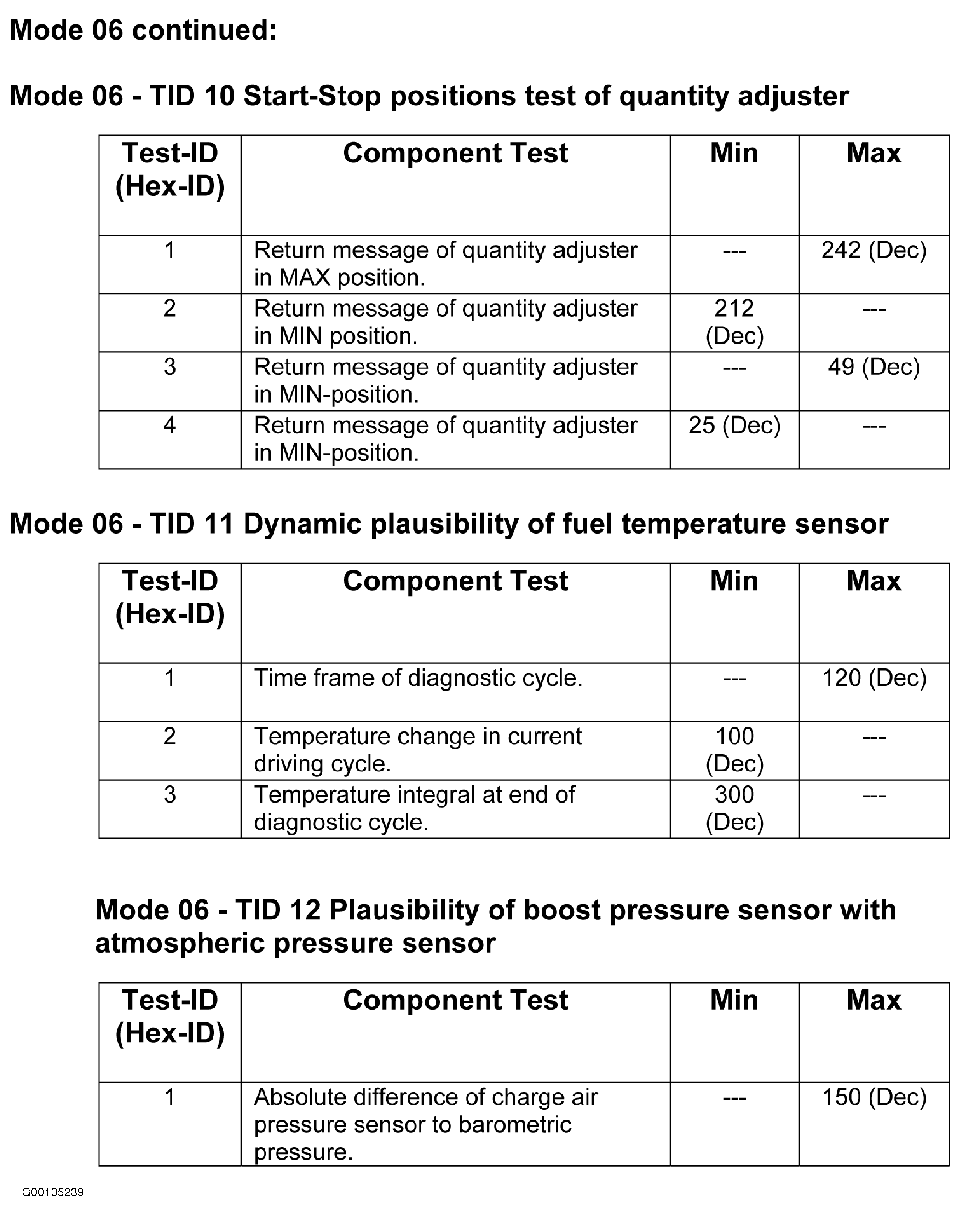

Fig 22: Mode 6 Data (2004-05 2.0L BHW) (2 Of 3)

G00105239

Courtesy of VOLKSWAGEN UNITED STATES, INC.

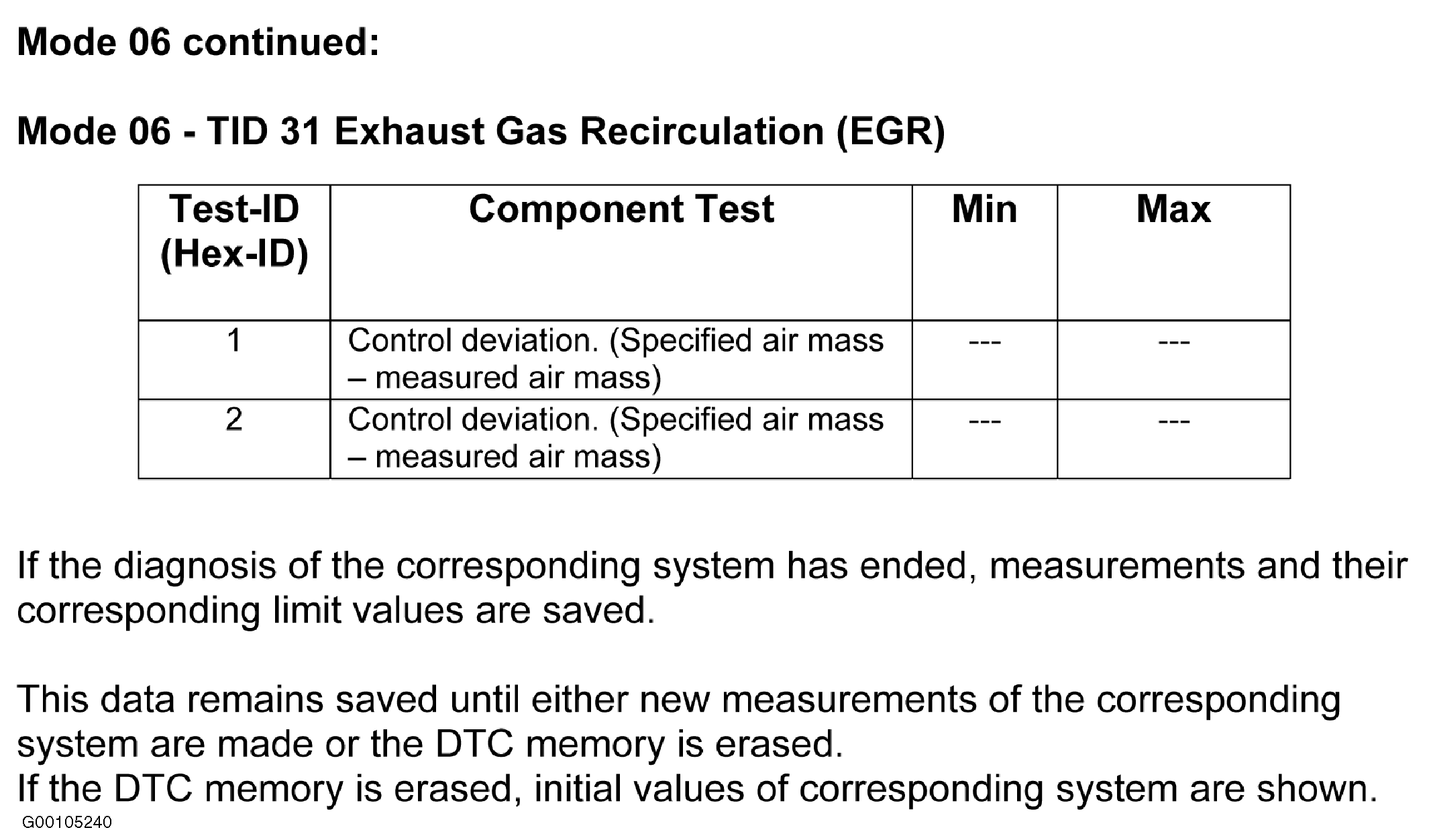

Fig 23: Mode 6 Data (2004-05 2.0L BHW) (3 Of 3)

G00105240

Courtesy of VOLKSWAGEN UNITED STATES, INC.

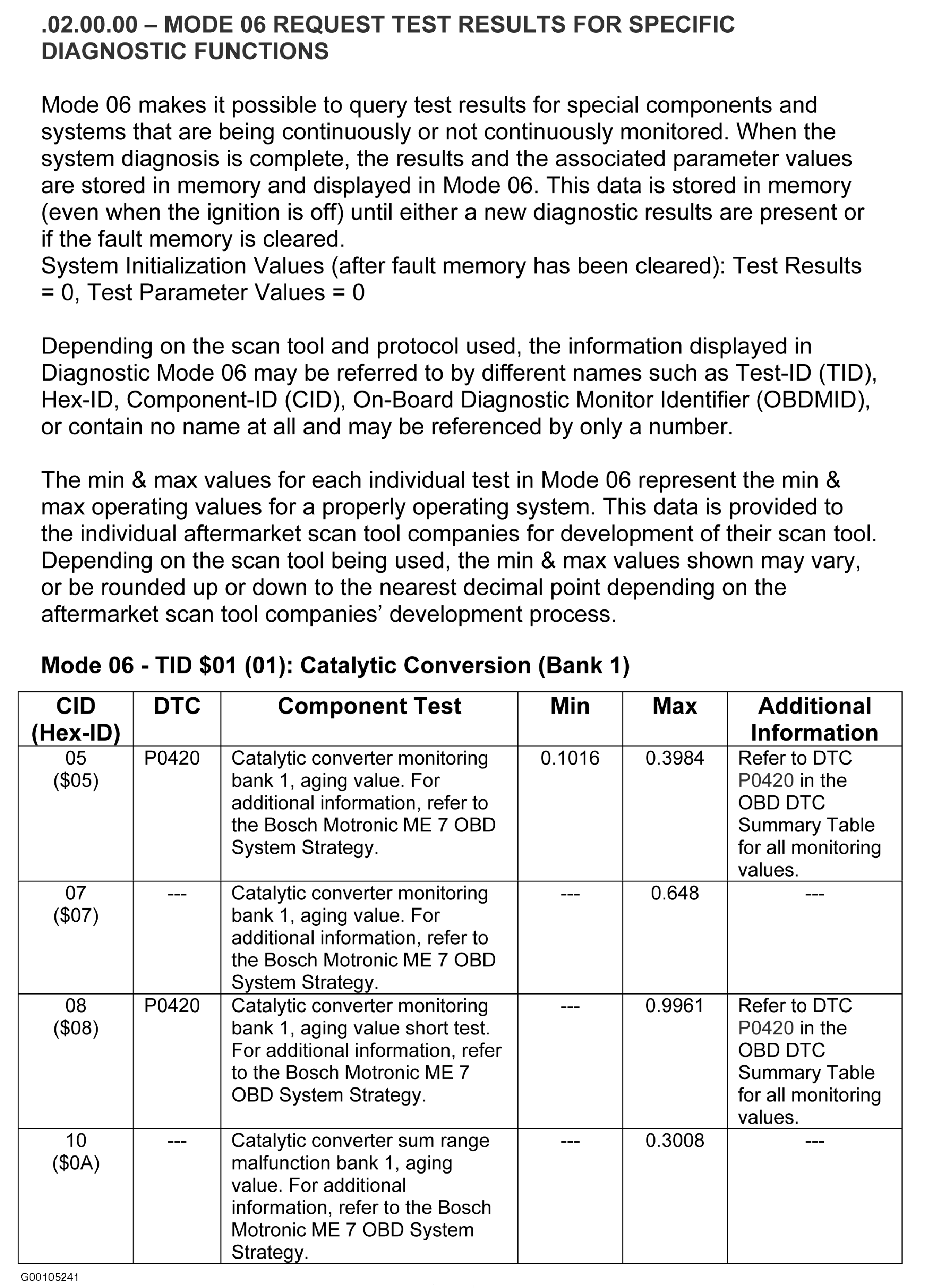

Fig 24: Mode 6 Data (2000-04 4.0L BDP) (1 Of 8)

G00105241

Courtesy of VOLKSWAGEN UNITED STATES, INC.

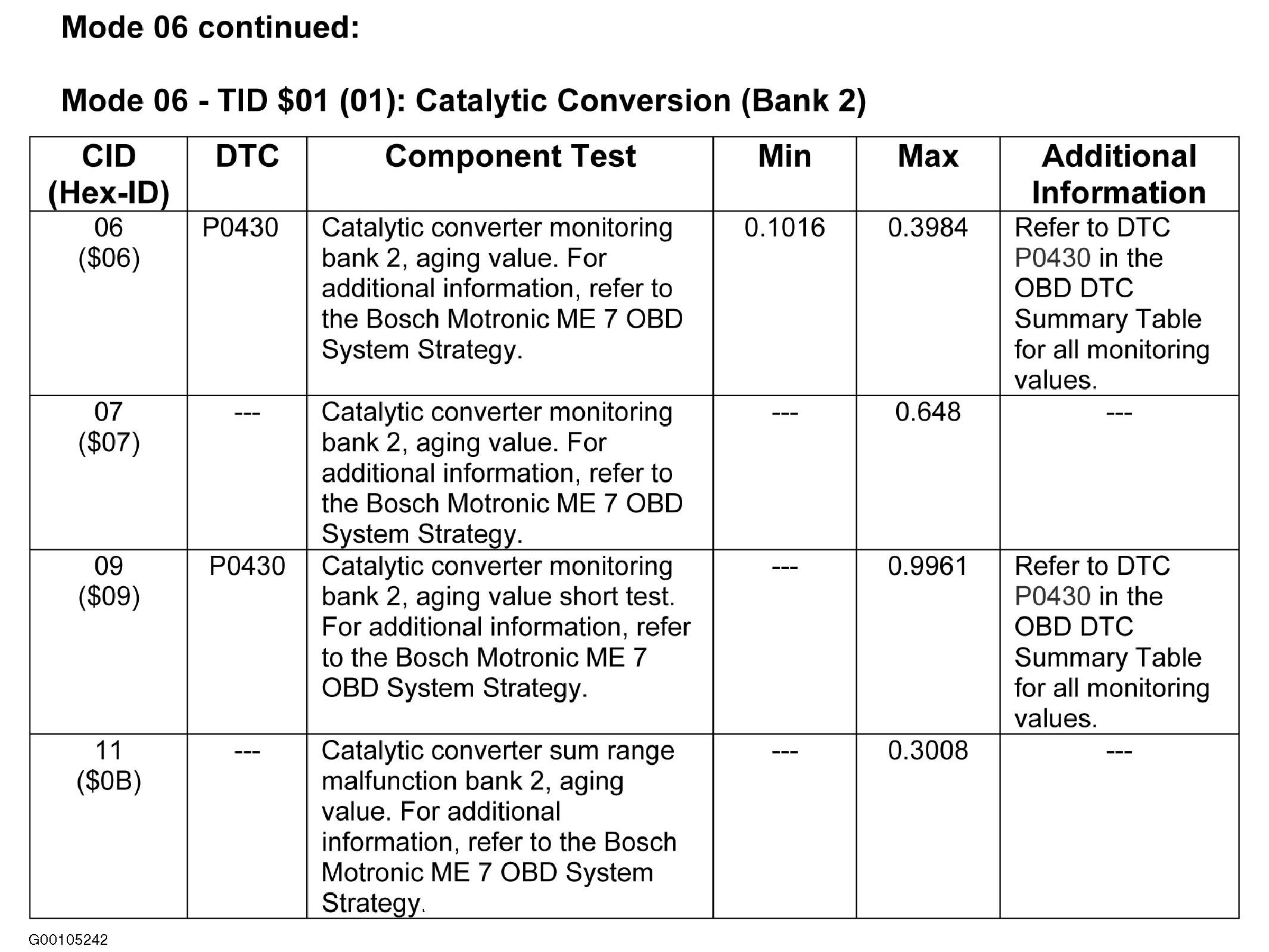

Fig 25: Mode 6 Data (2000-04 4.0L BDP) (2 Of 8)

G00105242

Courtesy of VOLKSWAGEN UNITED STATES, INC.

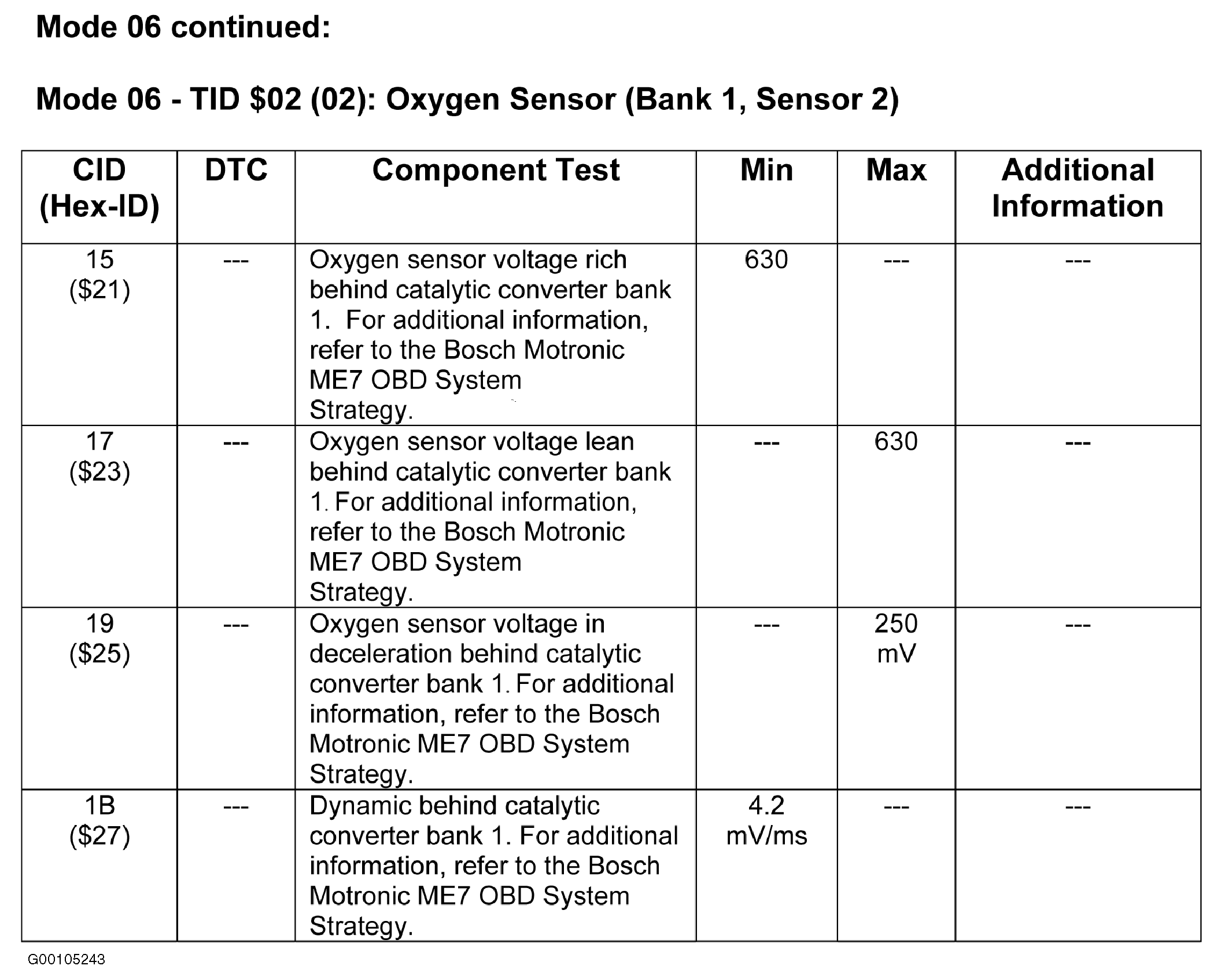

Fig 26: Mode 6 Data (2000-04 4.0L BDP) (3 Of 8)

G00105243

Courtesy of VOLKSWAGEN UNITED STATES, INC.

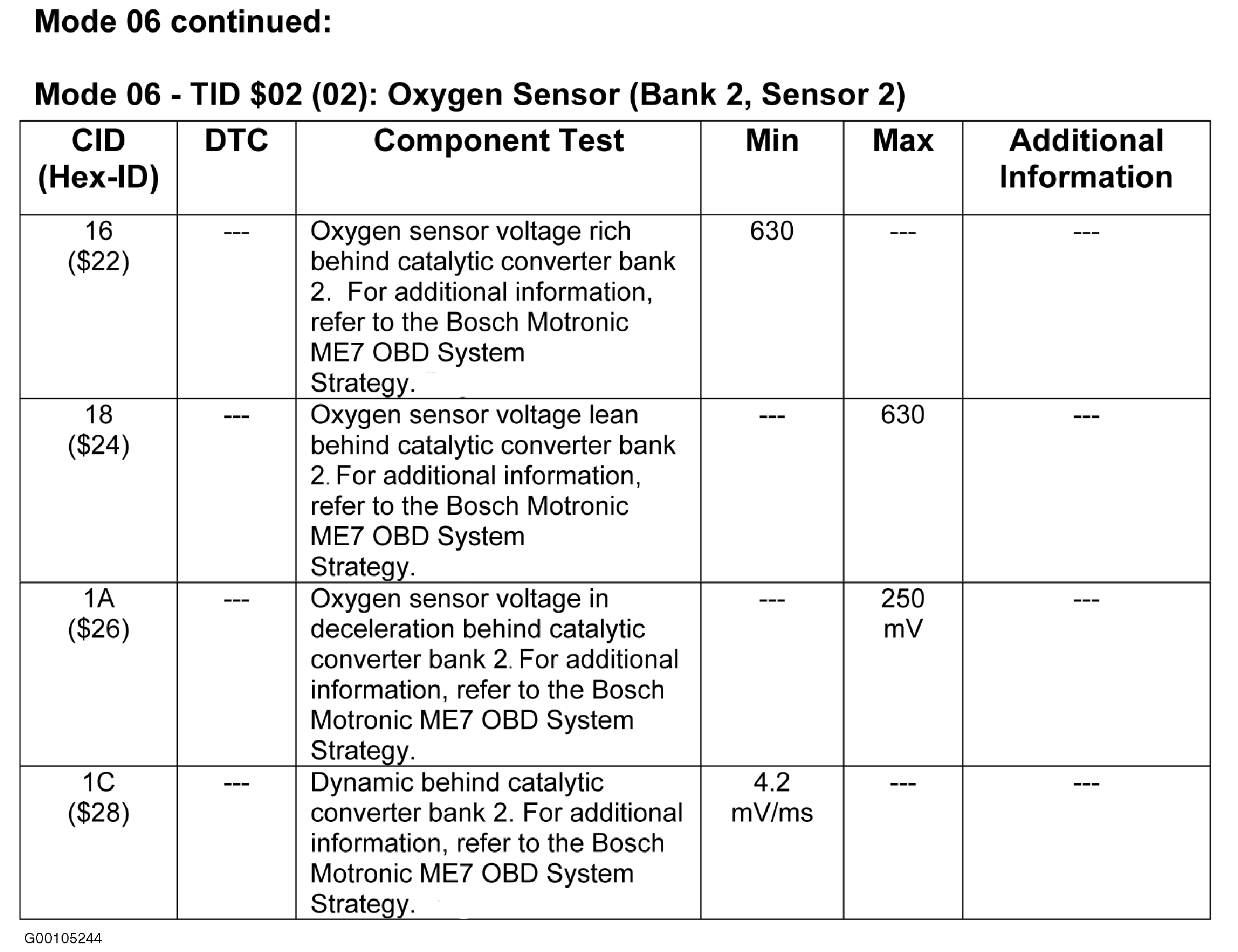

Fig 27: Mode 6 Data (2000-04 4.0L BDP) (4 Of 8)

G00105244

Courtesy of VOLKSWAGEN UNITED STATES, INC.

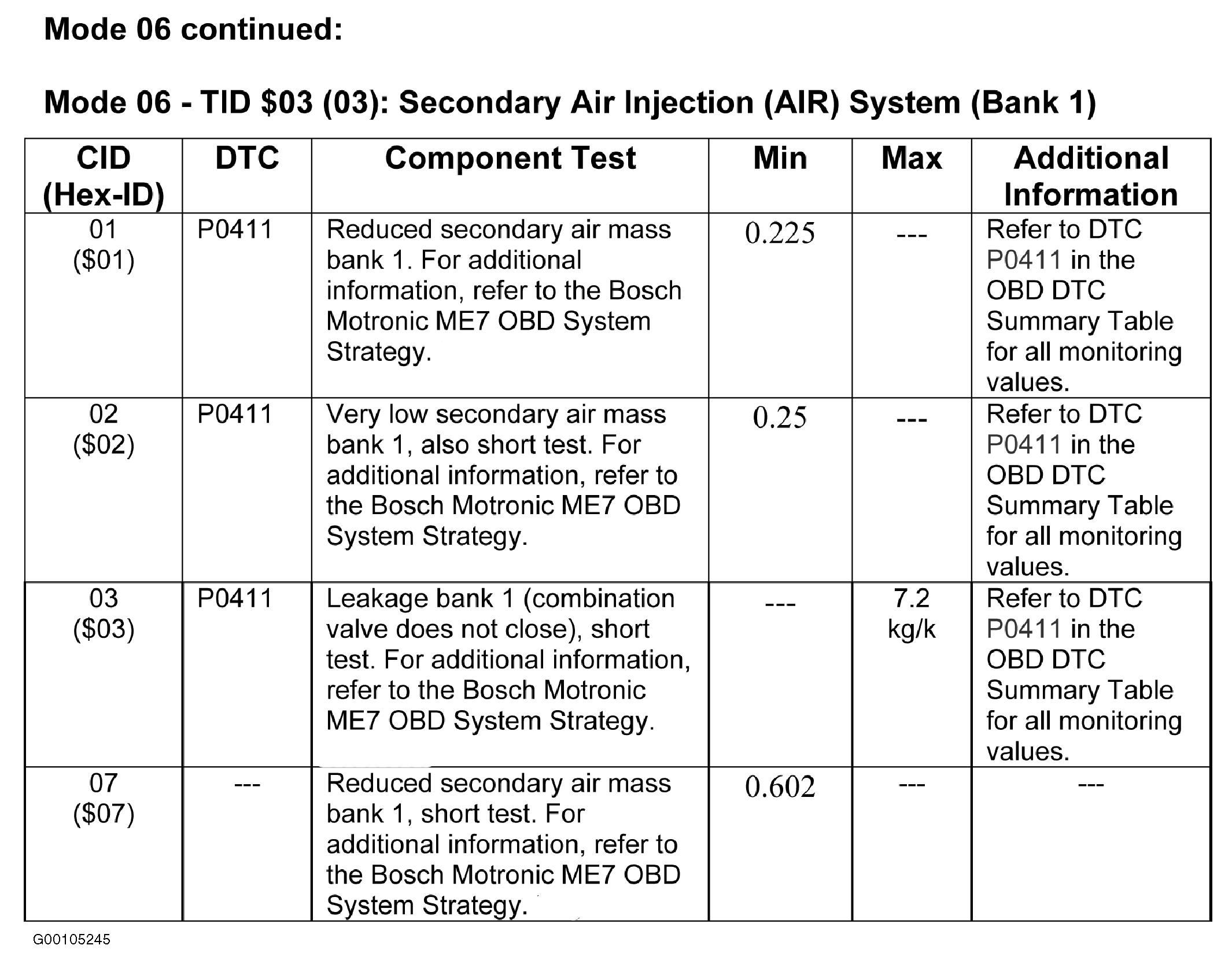

Fig 28: Mode 6 Data (2000-04 4.0L BDP) (5 Of 8)

G00105245

Courtesy of VOLKSWAGEN UNITED STATES, INC.

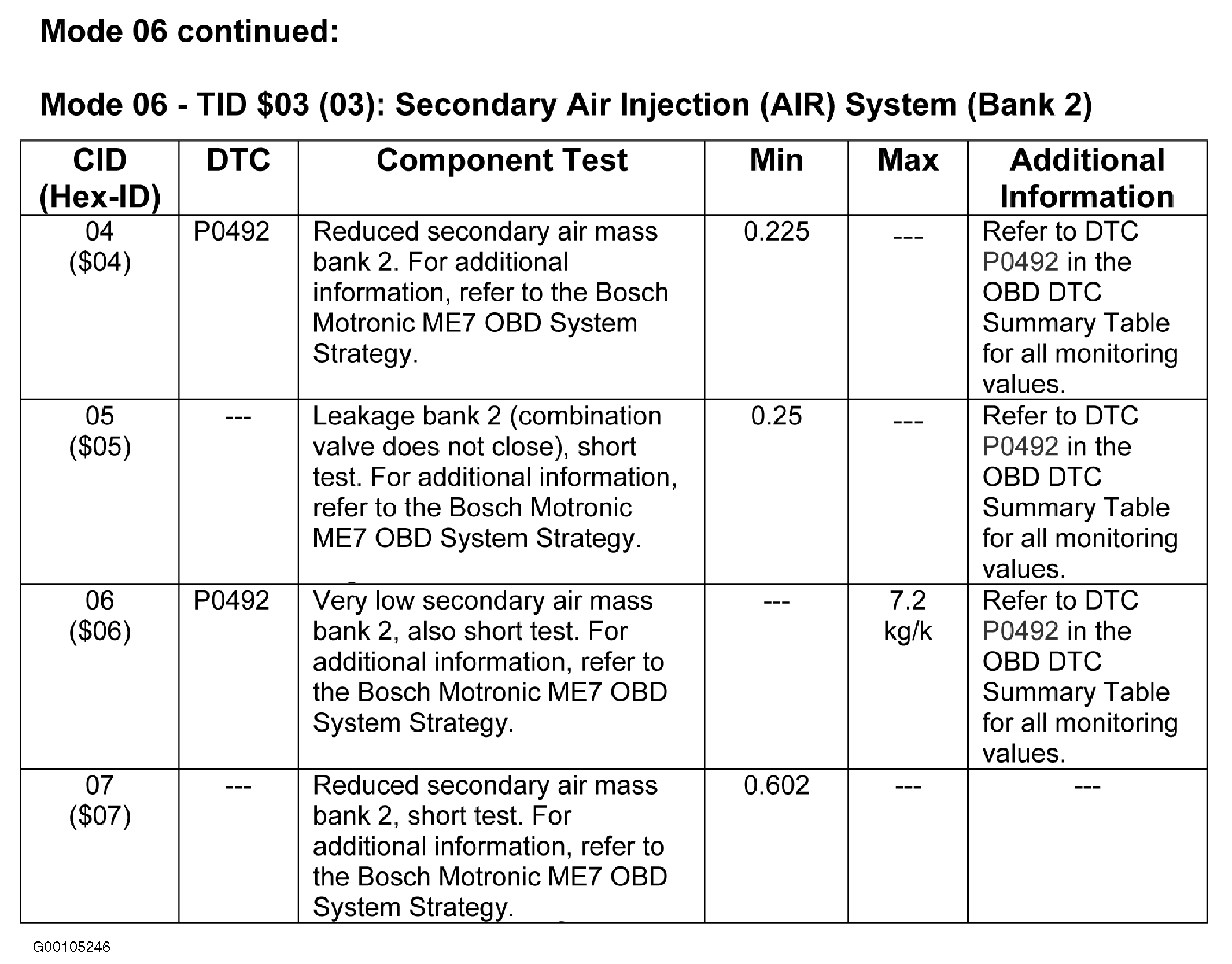

Fig 29: Mode 6 Data (2000-04 4.0L BDP) (6 Of 8)

G00105246

Courtesy of VOLKSWAGEN UNITED STATES, INC.

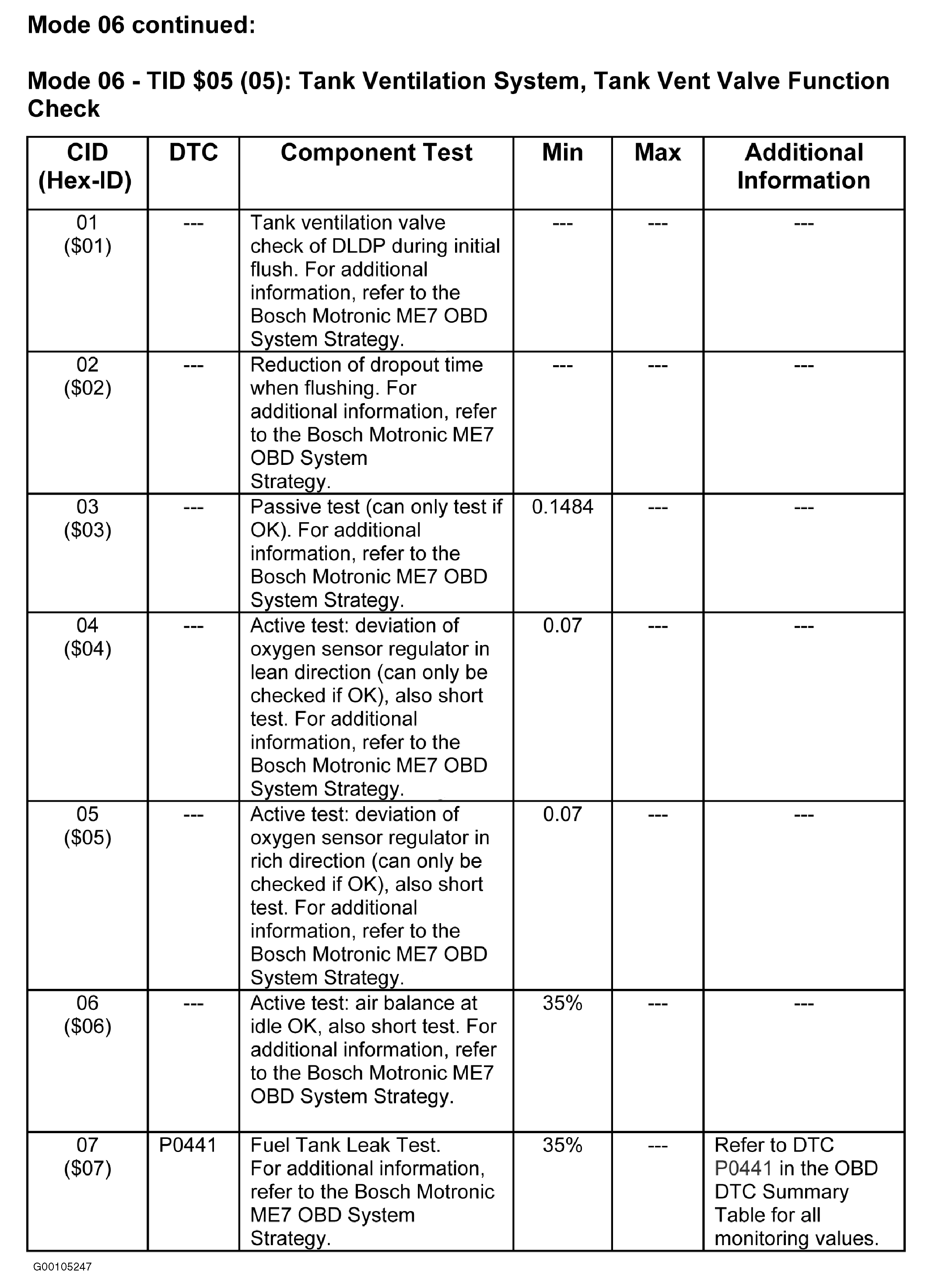

Fig 30: Mode 6 Data (2000-04 4.0L. BDP) (7 Of 8)

G00105247

Courtesy of VOLKSWAGEN UNITED STATES, INC.

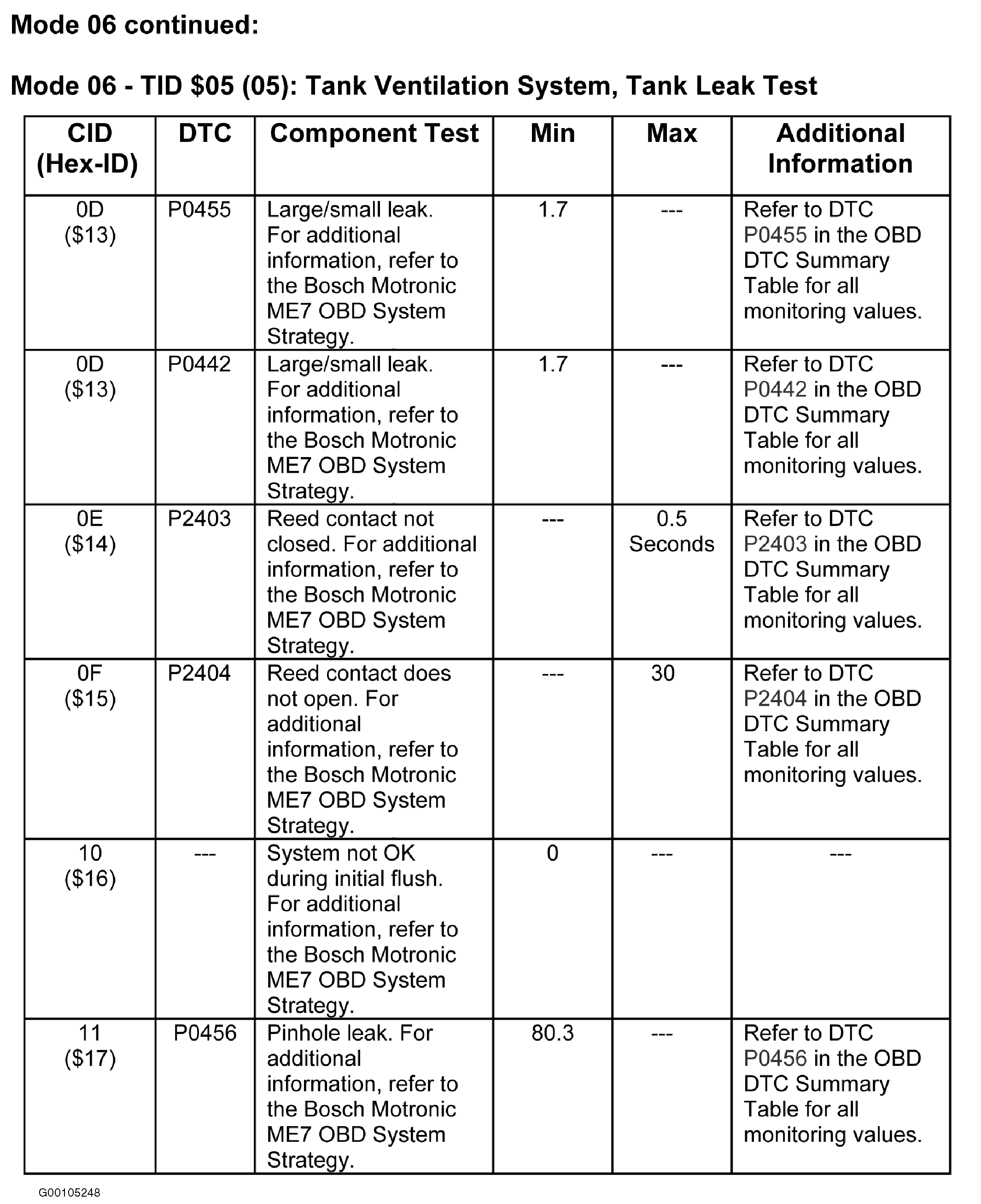

Fig 31: Mode 6 Data (2000-04 4.0L BDP) (8 Of 8)

G00105248

Courtesy of VOLKSWAGEN UNITED STATES, INC.
