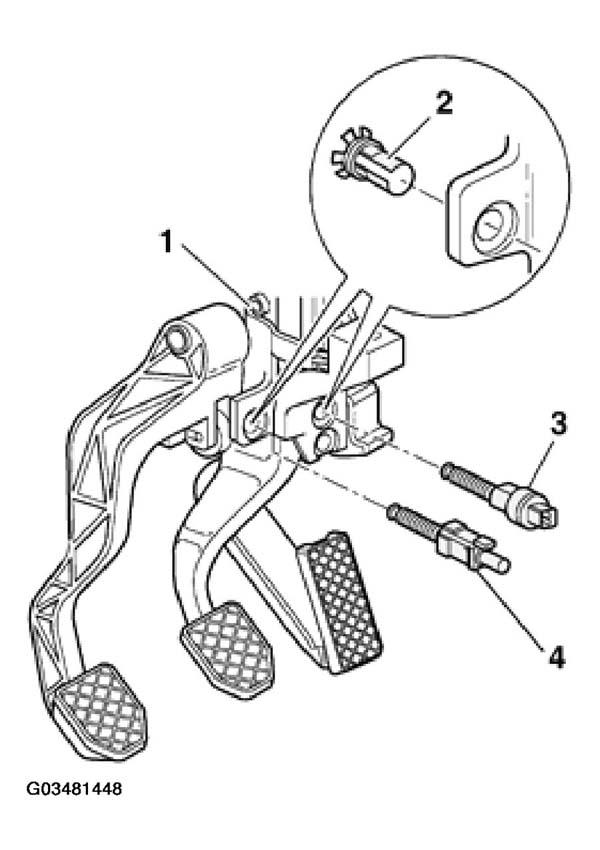

Installing brake light switch
- Clip integrated in mounting bracket
- Brake pedal not depressed
- Guide the switch -3- into the mounted clip -2-.
- Then press it in far enough that the plunger is resting at brake pedal.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
