Installation notes

Fig 1: Applying Adhesive Material All Around Onto Pre-Coating -1-

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply adhesive material all around onto pre-coating - 1 - at right angle to window.

CAUTION: Window must be installed within 10 minutes, otherwise bonding properties of window adhesive will be impaired.

Insert window into window cut out using two Double suction lifters V.A.G 1344, center and press in up to spacer.
Gap dimension of windshield: → Windshield, assembly overview
Rear window gap dimension: → Rear window, assembly overview
Gap dimension of rear window, wagon, 4.5 mm all around.

Secure windshield using Window adjuster 443 845 631 A during curing time.
Plenum chamber cover must always be installed as described: → Plenum chamber cover, removing and installing .
Re-affix any stickers (e.g. for airbag).

Fig 2: Installing Rear View Mirror

Courtesy of VOLKSWAGEN UNITED STATES, INC.

When installing mirror - 1 - , attach at 6090° offset to installation position and turn - arrow - until retaining spring engages.
Install interior mirror: → 68 - INTERIOR EQUIPMENT
Install interior mirror with rain sensor: → 92 - WINDSHIELD WIPER AND WASHER SYSTEM

Secure rear window using adhesive tape during curing time.
If adhesive bead has been applied too thick and adhesive expands onto area of window heating, then excess adhesive must be removed.
First install side window of wagon using securing pins.
When re-using removed window:

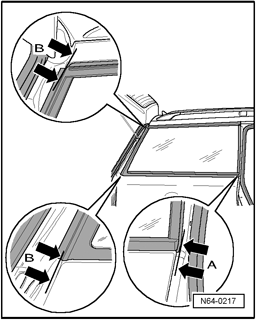

Fig 3: Insert Window Into Body Flange And Align To C-Pillar -A- And D-Pillar -B-

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert window into body flange and align to C-pillar - arrow A - and D-pillar - arrows B -.
