Body, front

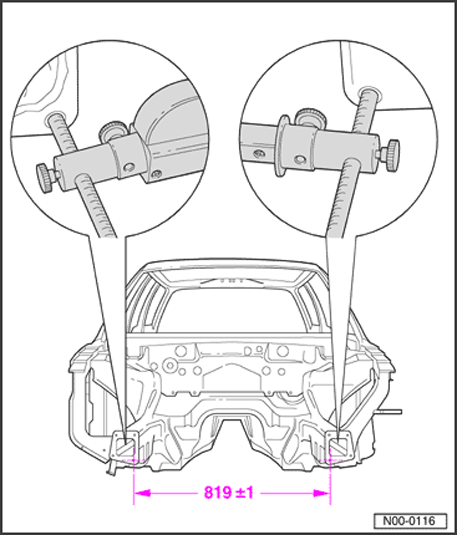

Fig 1: Identifying Distance Between Front Longitudinal Members - Body, Front

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Distance between front longitudinal members

NOTE:

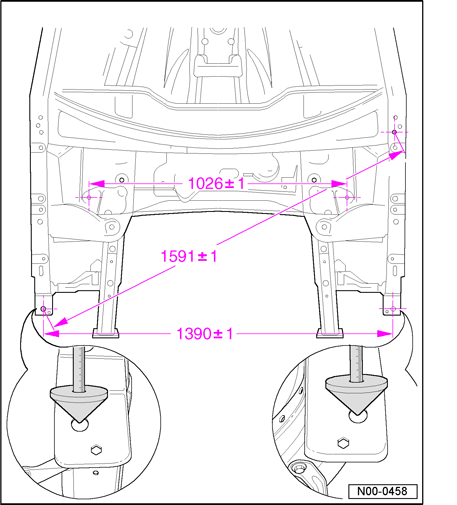

Fig 2: Identifying Distance Between Suspension Strut Mountings - Body, Front

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Distance between suspension strut mountings

Diagonal dimension, hood hinge fastening point - tip of wheel housing

Distance between tips of wheel housings.

NOTE:

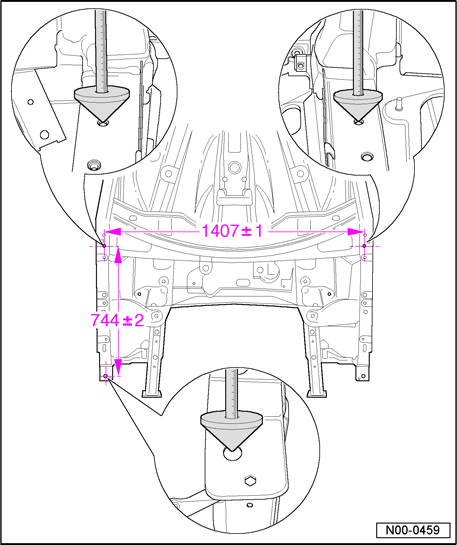

Fig 3: Identifying Distance Between Hood Hinge Fastening Points

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Distance between the hood hinge fastening points

Distance between the hood hinge fastening point and the tip of the wheel housing

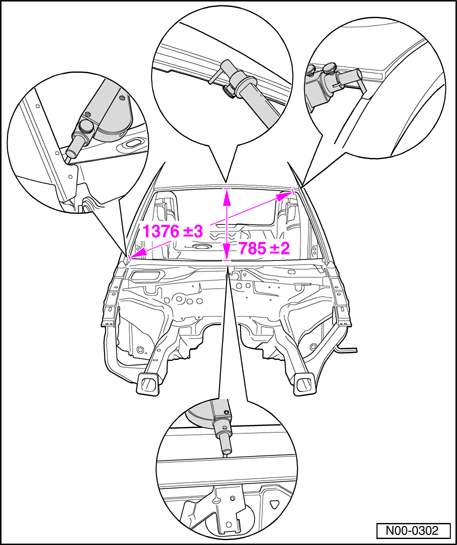

Fig 4: Identifying Diagonal Dimension Of Windshield Opening

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Diagonal dimension of the windshield opening

Distance between plenum chamber flange and roof flange.
