Cargo Net Installing (GROUP 67, NO. 98-01)

Publication date: 1998-05-26
Reference number: GROUP 67, NO. 98-01

CARGO NET INSTALLING

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 67, NO. 98-01, Date of Issue: May 26, 1998

Model(s): 1997-on Volkswagen Cabrio w/Cargo Net. 1998-on Volkswagen Jetta (Wolfsburg Edition) w/Cargo Net

Group: 67 - Dealer Installed Accessories

Bulletin No.: 98-01

Date: May 26, 1998

For vehicles equipped with a cargo net, install as follows:

PARTS INFORMATION

Model	Part Number
Cabrio	1EM 861 691
Jetta	1HM 861 690

CAUTION: Part numbers are for reference only. Always check with your Parts Department for the latest parts information.

- If necessary, remove outer plastic trim cover fasteners -1-. See Fig 1 .

- Install screw/hooks -3- in fastener holes for trim cover -1- (as shown). See Fig 1 .

NOTE: Tighten Screw/hooks by hand until fully seated. Fasteners will expand to the hole size in the sheet metal.

- Install cargo net -2- over hooks as shown. See Fig 1 .

- Verify net remains in place.

NOTE: This procedure should be completed as part of the PDI. DO NOT submit for extra labor.

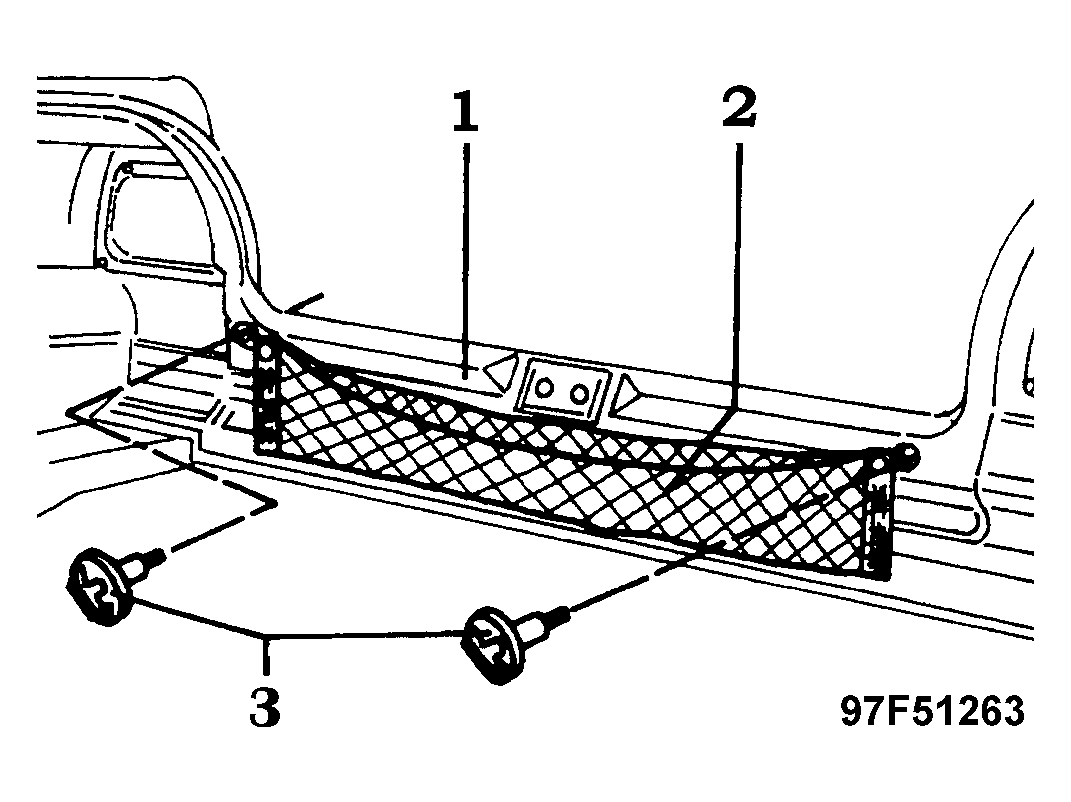

Fig 1: Cargo Net Installation
