Generator (GEN), Mounting
Generator (GEN), Mounting And Ribbed Belt Routing

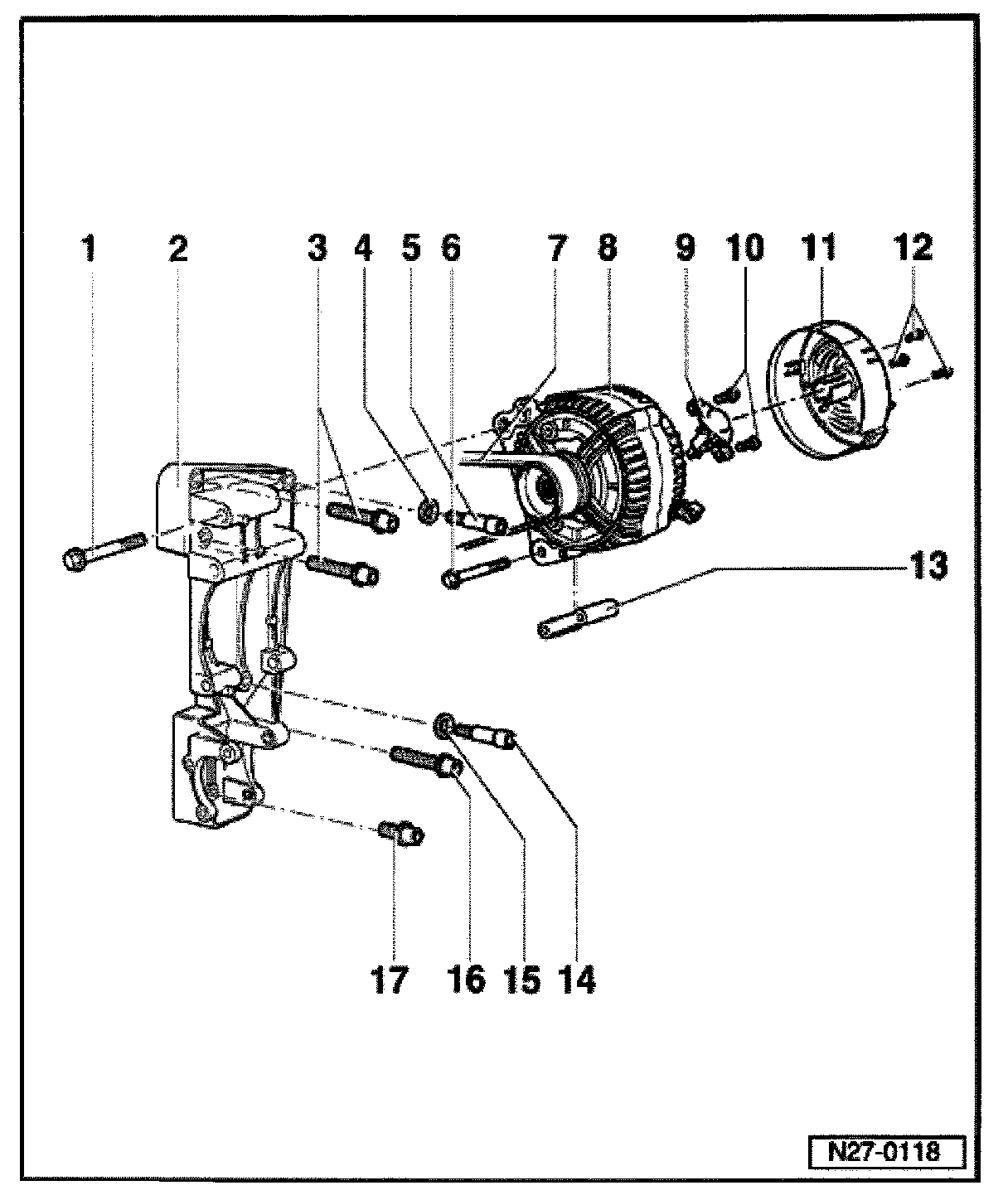

Generator (GEN), Mounting 6-Cyl. engine
1 - Hex bolt M8
- 25 Nm
2 - Bracket
3 - Allen combibolts M8 x 60
- 25 Nm
4 - Washer
5 - Guide bolt M8 x 60
- 25 Nm
6 - Hex bolt M8
- 25 Nm
7 - Ribbed belt
8 - Generator
9 - Voltage regulator
- Removing components 12, 11 & 10
10 - Screws M4 x 25
11 - Protective cap
12 - Screws
13 - Generator / compressor bracket
14 - Guide bolt M8 x 60
- 25 Nm
15 - Washer
16 - Allen combi-bolt M8 x 60
- 25 Nm
17 - Allen combi-bolt M8 x 20
- 25 Nm
