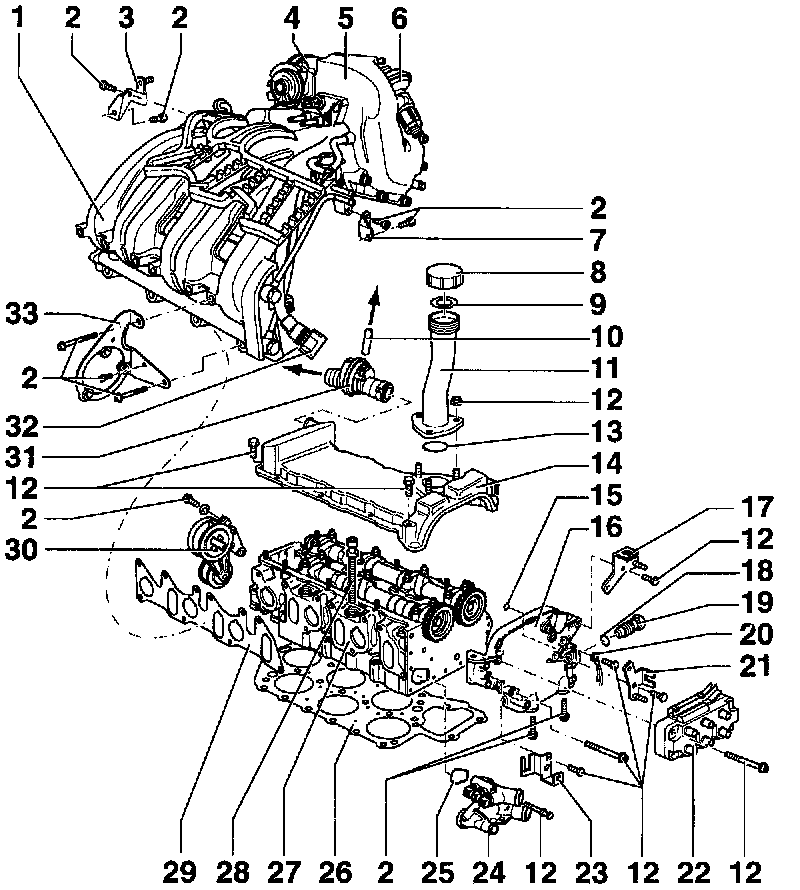

Part 2

Legend
2 Bolt 25 Nm (18 ft lb)
12 Nut 10 Nm (7 ft lb)
19 Chain tensioner: 30 Nm (22 ft lb)
28 Cylinder head bolt
- Always replace
- Follow sequence when loosening and tightening, refer to Replacement. Service and Repair
