Engine Specifications and Clearances

2.8L (AES) Engine Specifications

Engine Overview:

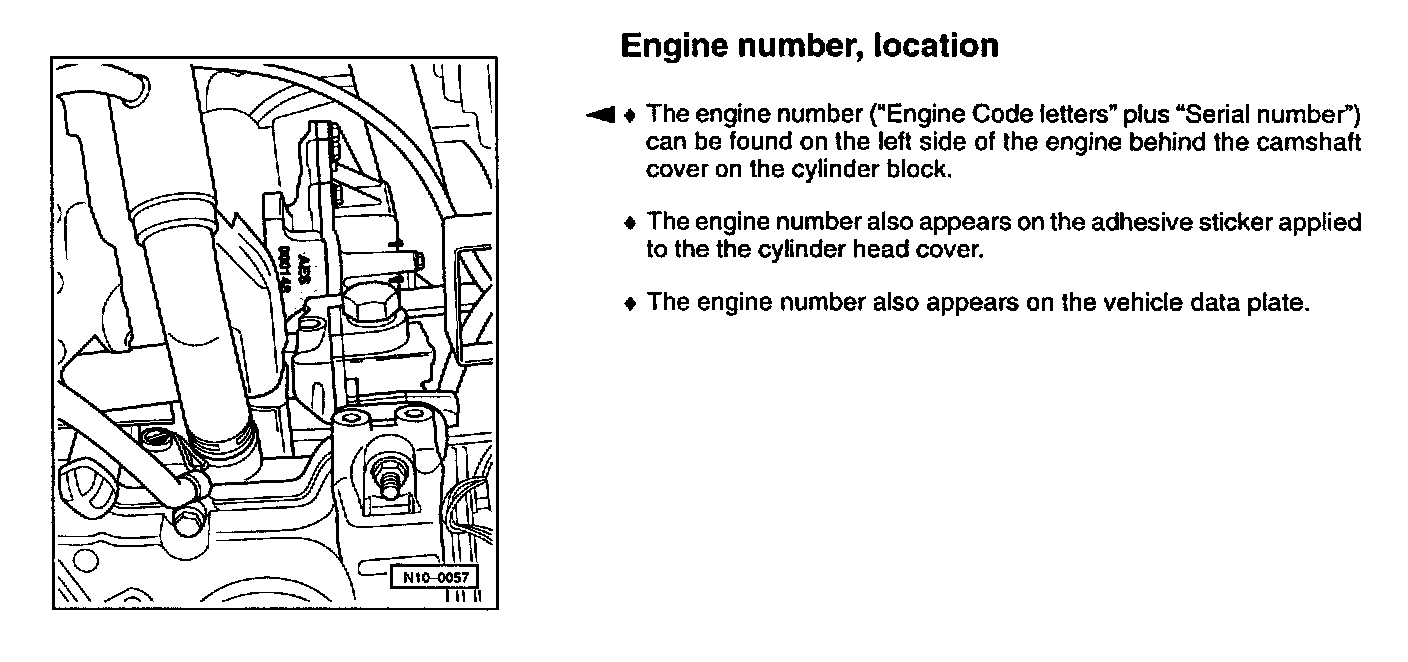

Engine Number Stamp Location:





Engine Technical Data:

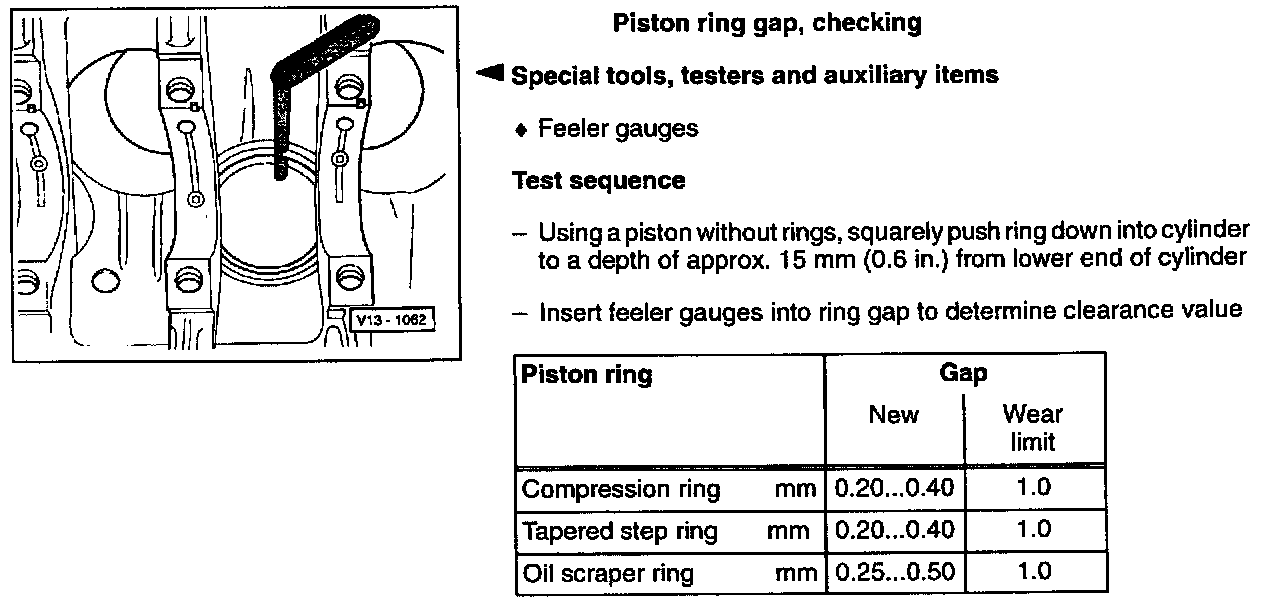

Piston Ring End Gap Specifications:

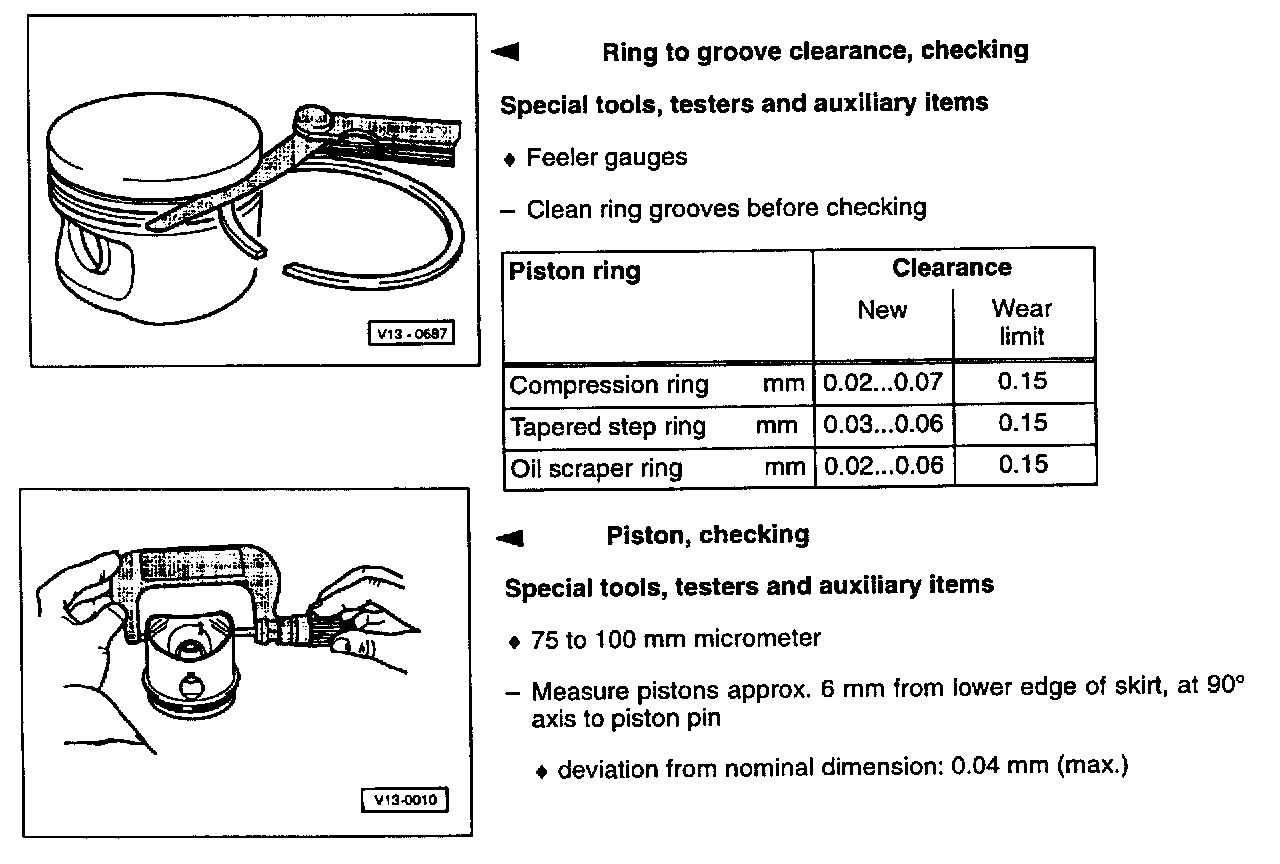

Piston And Ring Groove Side Clearance Specifications:





Piston And Cylinder Dimensions:

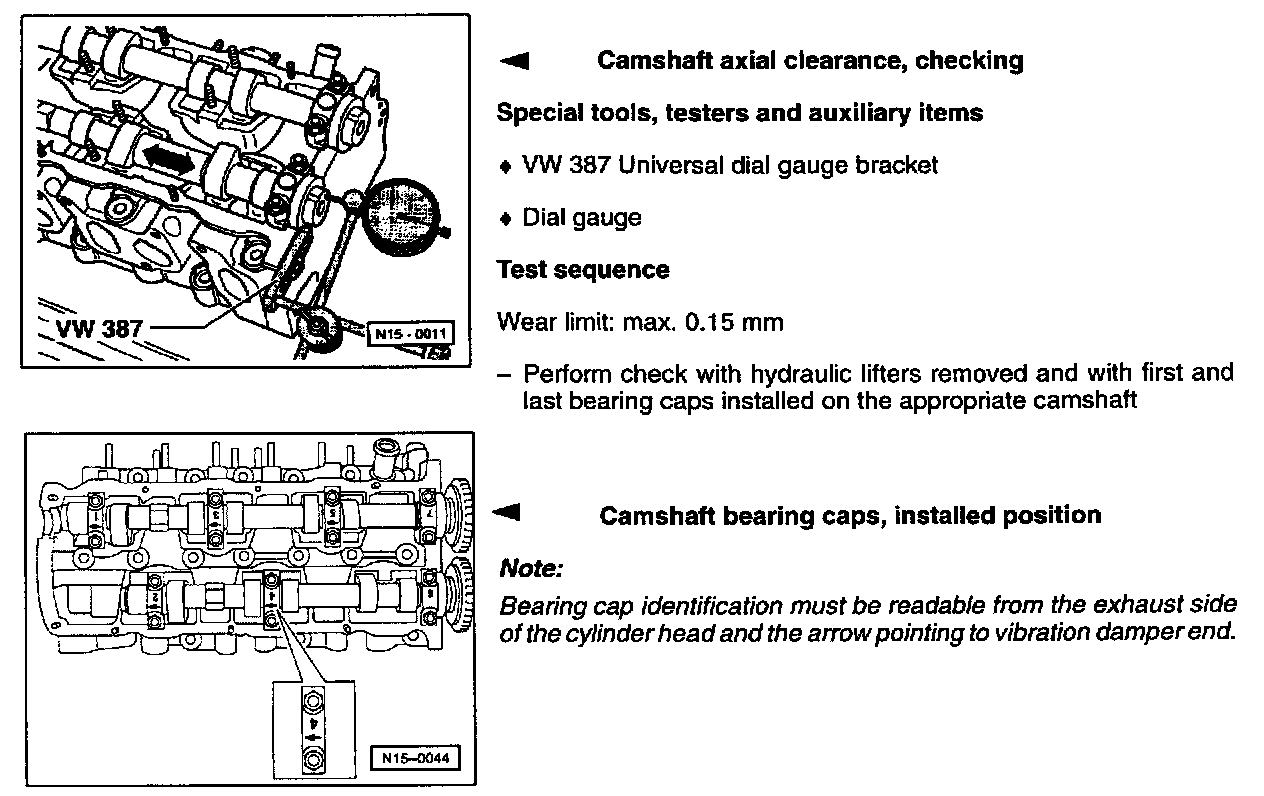

Camshaft Clearance And Specifications:





Valve Dimensions:

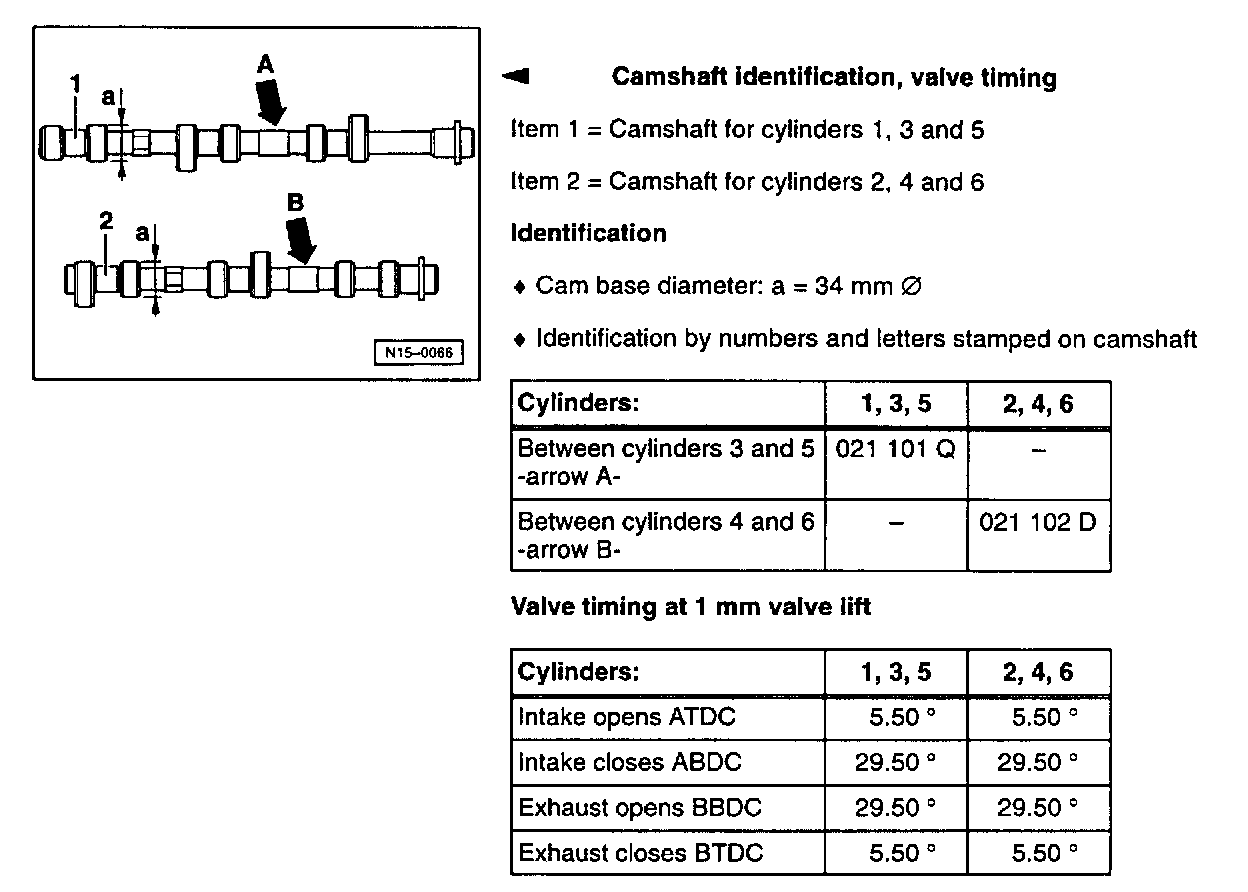

Camshaft Identification Valve Timing:

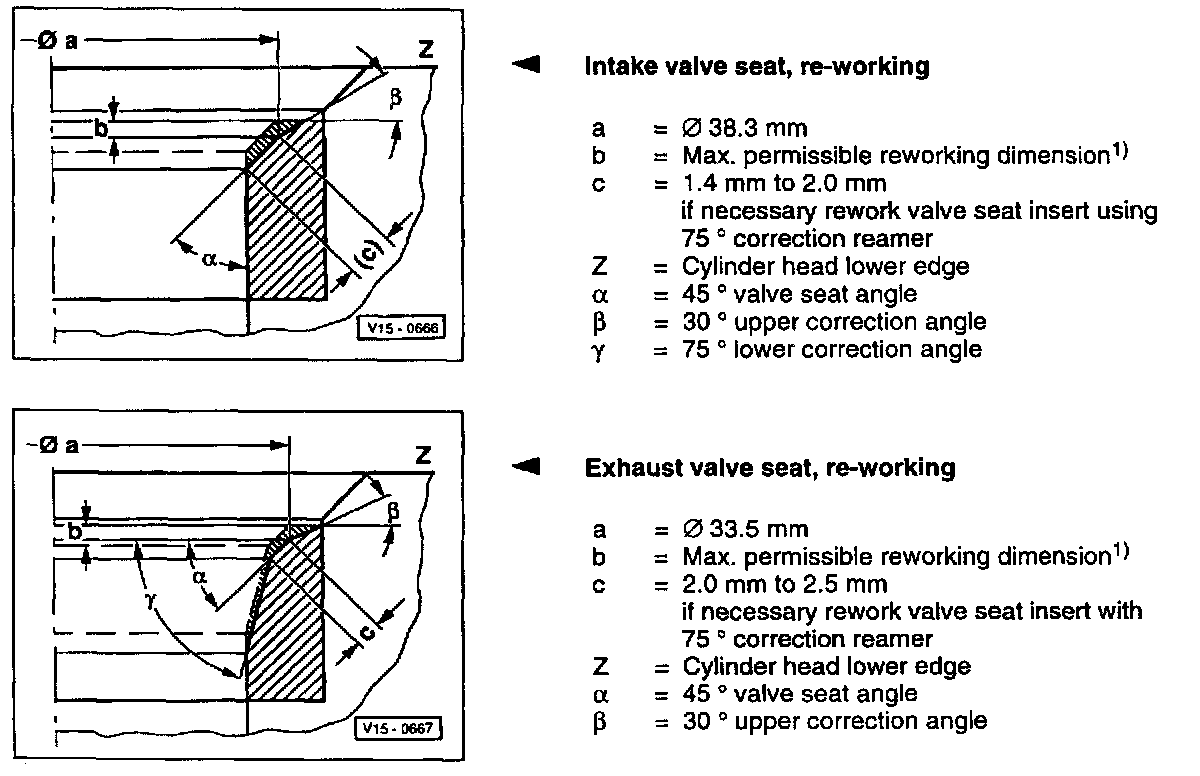

Valve Seat Dimensions:
