098 Automatic Transmission

CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT

- 098 Transmission -



Transmissions for vehicles with Transmission Range (TR) Program Switch -E122-

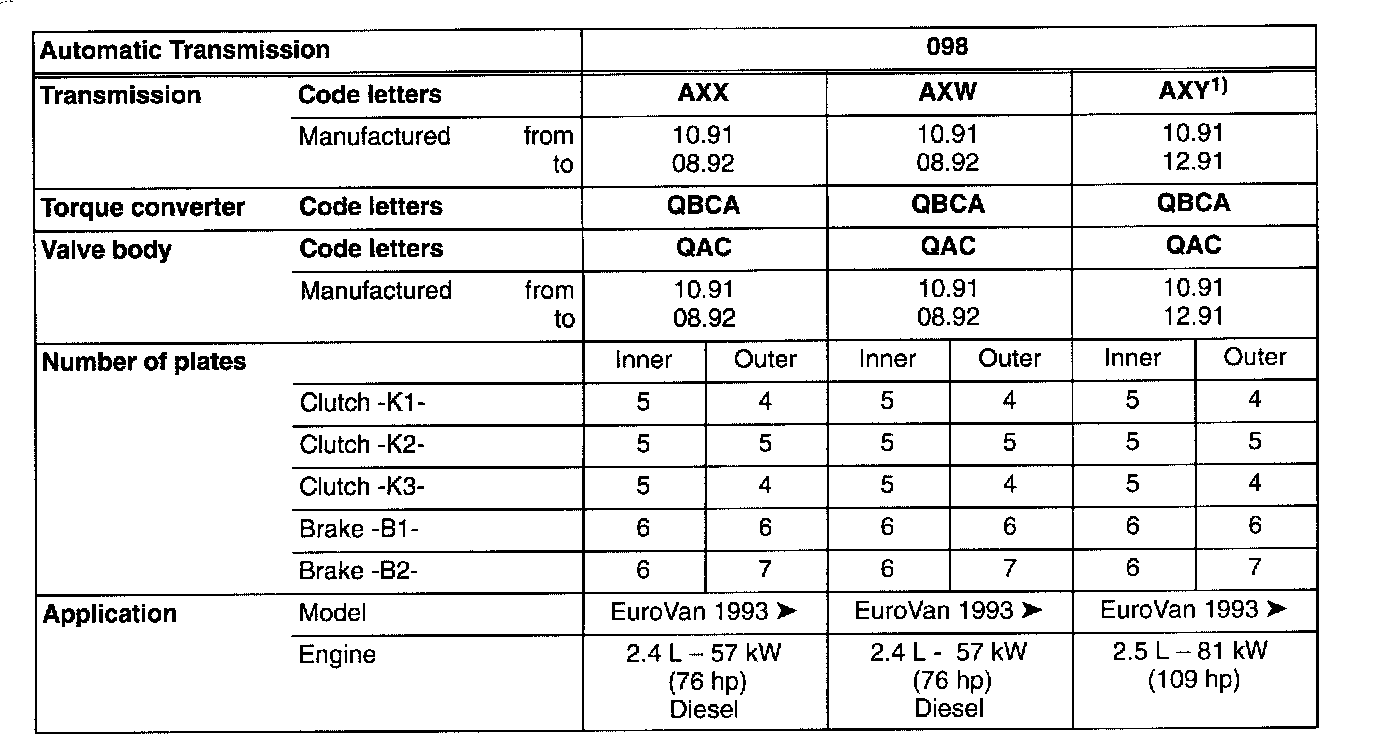

automatic Transmission Code Letter AXX, AXW, AXY:

1) Transmission CEU can be used to replace AXY. If CEU is used, the drive plate with modified TDC marking must be installed = Removing and installing drive plate.

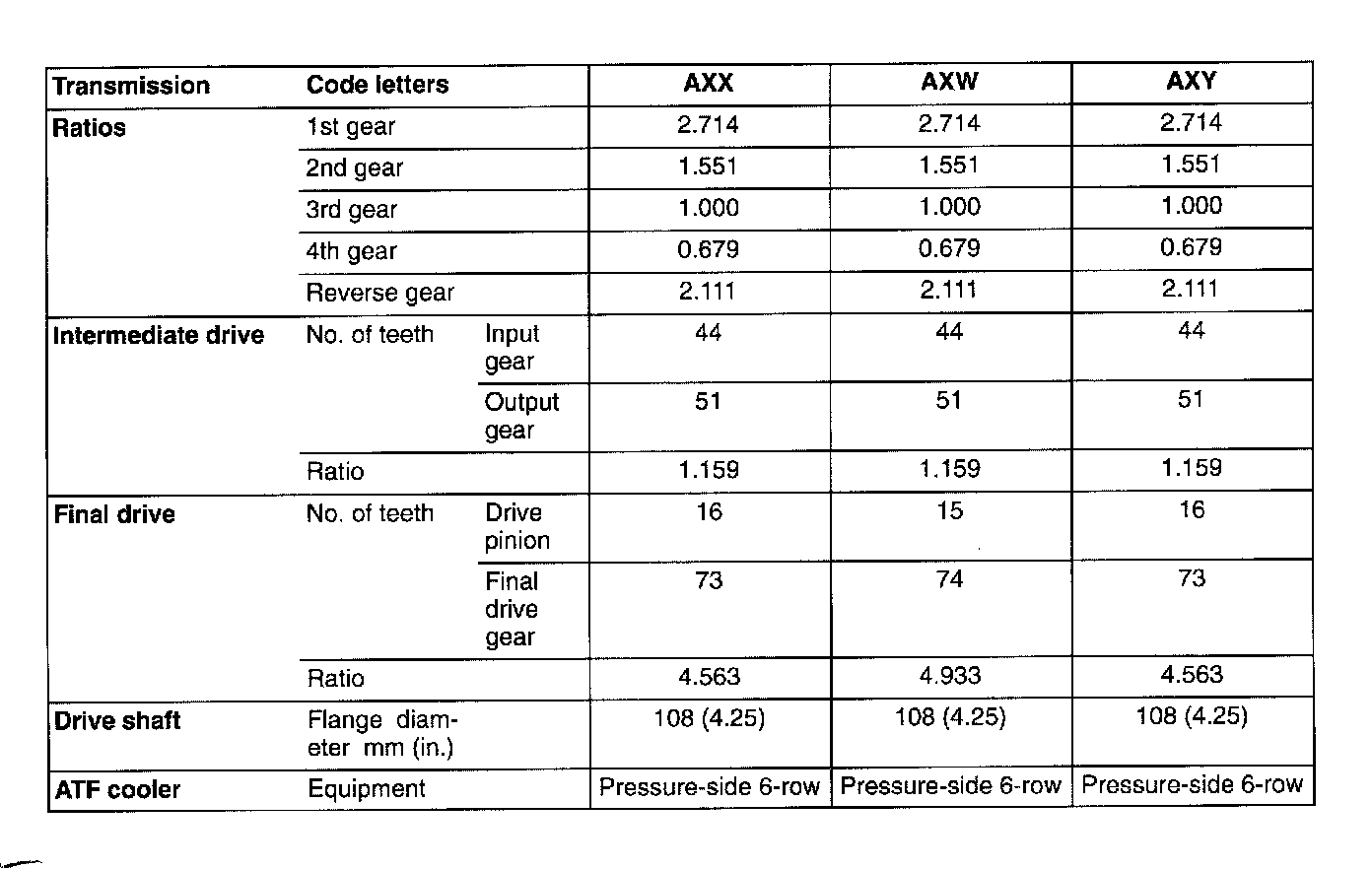

Ratios Code Letter AXX, AXW, AXY:

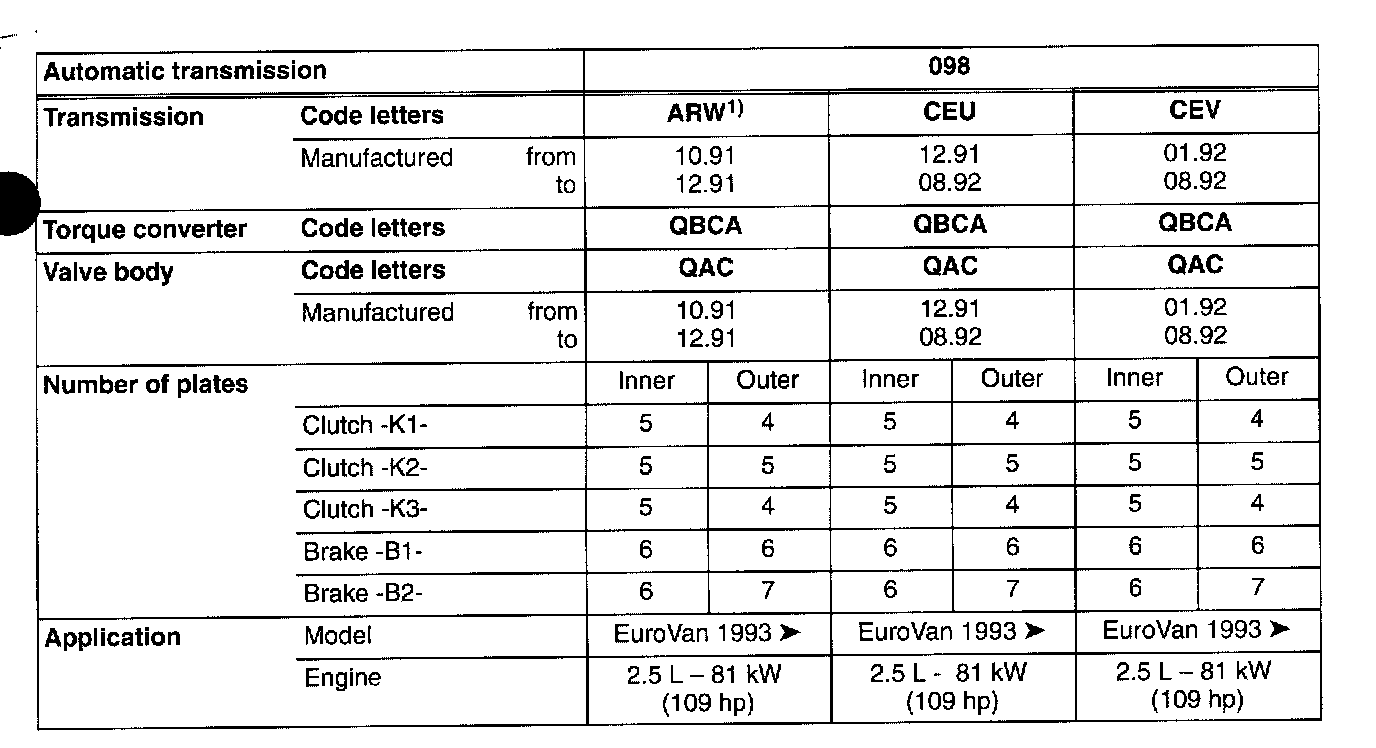

Automatic Transmission Code Letter ARW, CEU, CEV:

1) Transmission CEV can be used to replace ARW. If CEV is used, the drive plate with modified TDC marking must be installed = Removing and installing drive plate.

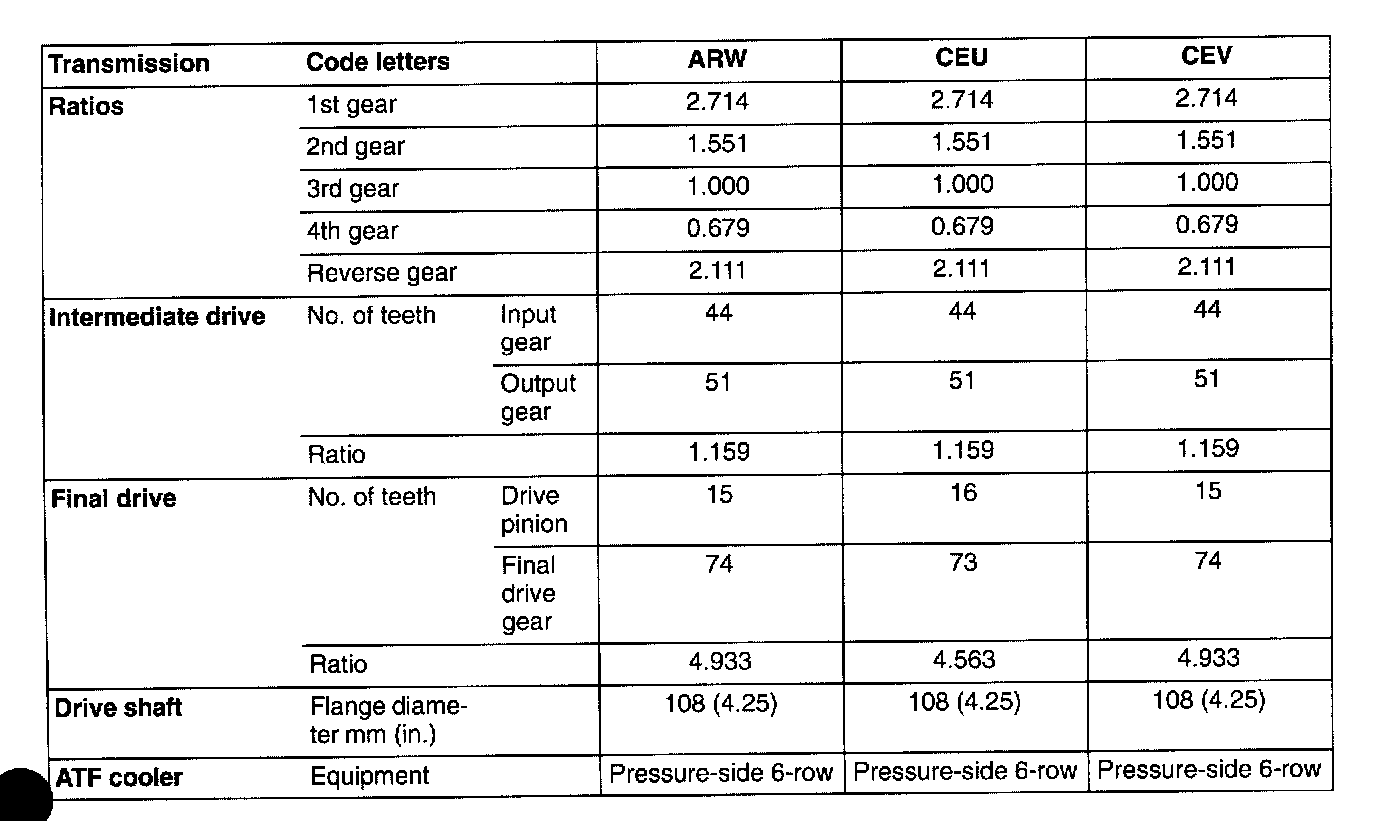

Ratios Code Letter ARW, CEU, CEV:

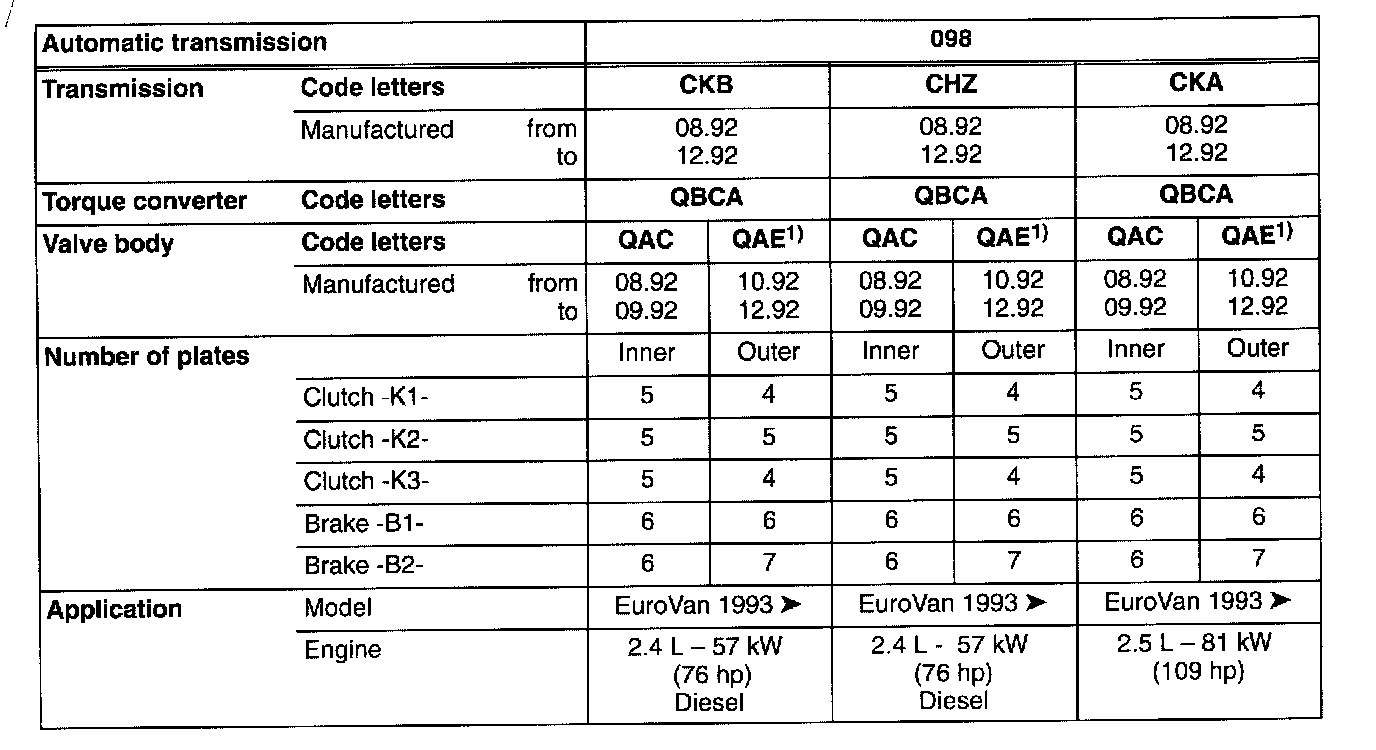

Automatic Transmission Code Letter CKB, CHZ, CKA:

1) From transmission build date 01 10 2, the valve body QAE can be installed if wiring is effected by a conductor strip.

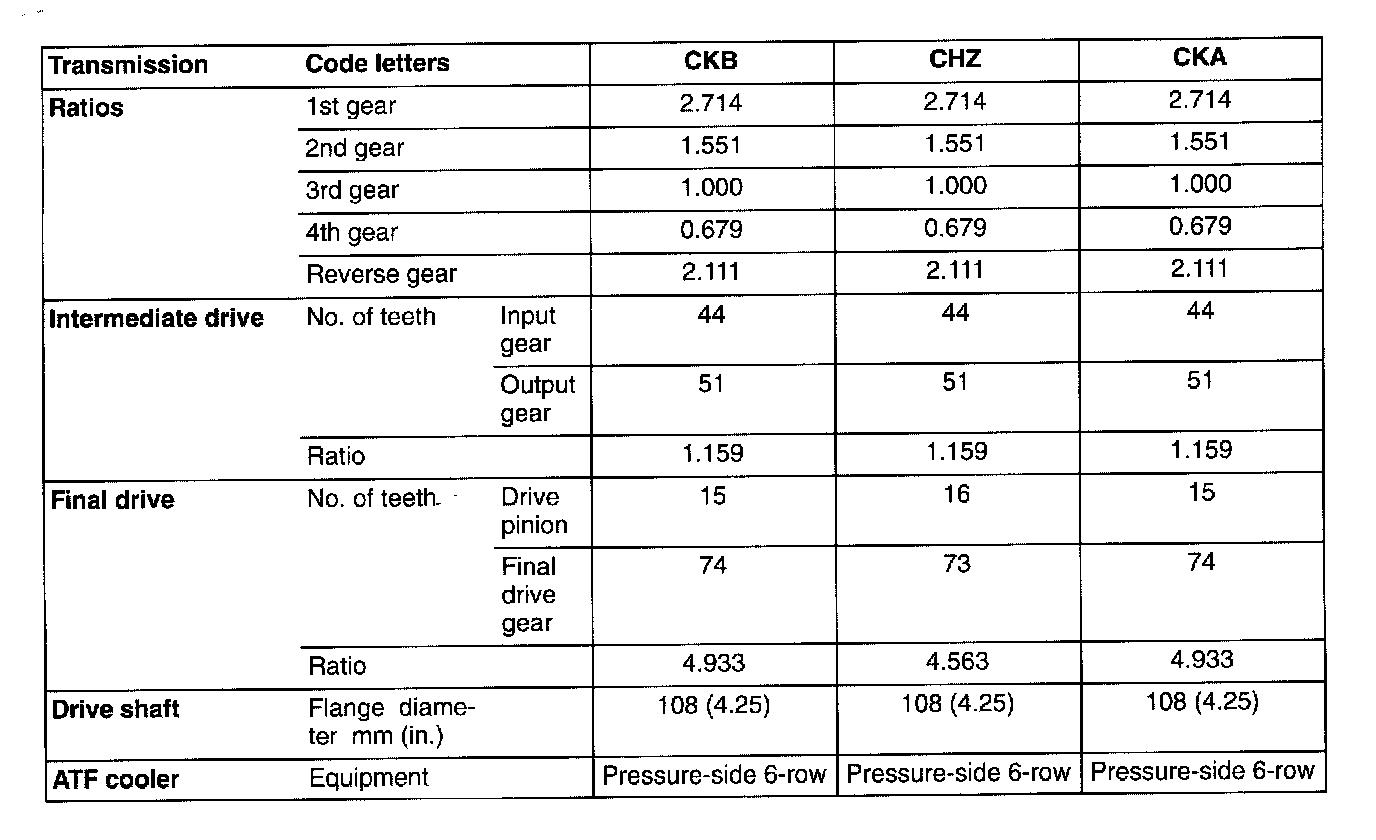

Ratios Code Letter CKB, CHZ, CKA:

Automatic Transmission Code Letter CHY:

1) From transmission build date 01 10 2 the valve body QAE can be effected by a conductor strip.

Ratios Code Letter CHY:

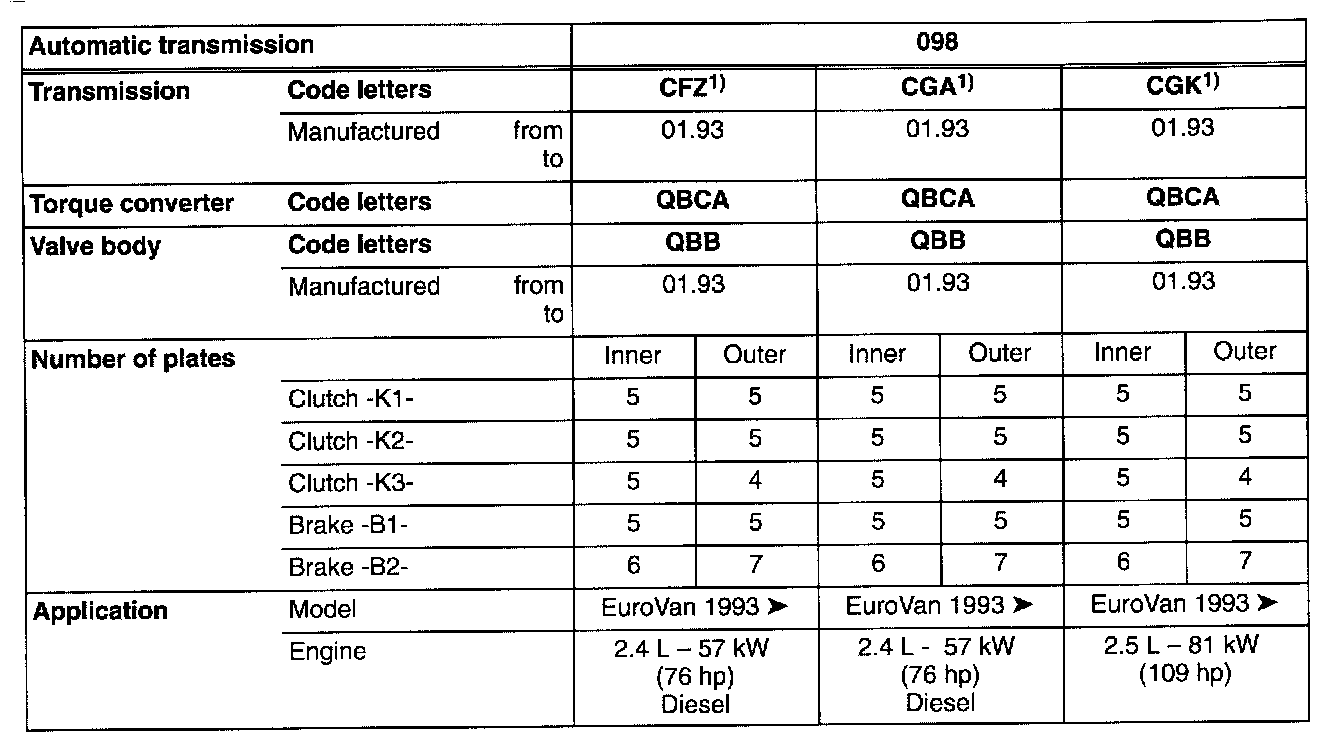

Automatic Transmission Code Letter CFZ, CGA, CGK:

1) On vehicles with modified shift elements, planetary gearbox, gear program switch, and electronic shift program in Transmission Control Module (TCM) - J217 - the Transmission Range (TR) Program Switch - E122 - on the instrument panel has been discontinued.

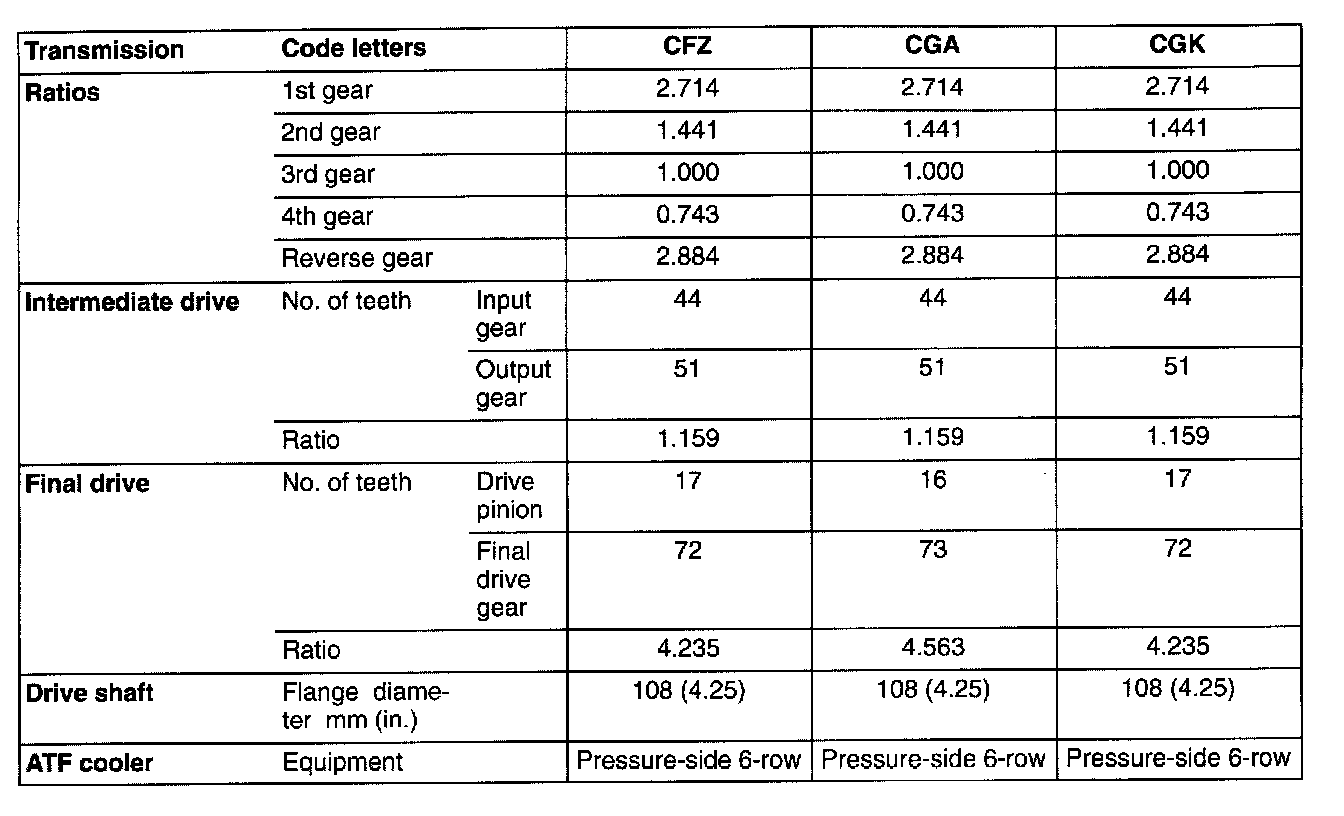

Ratios Code Letter CFZ, CGA, CGK:

Automatic Transmission Code Letter CGH, CTL:

1) On vehicles with modified shift elements, planetary gearbox, gear shift program, and electronic shift program in Transmission Control Module (TCM) - J217 - the Transmission Range (TR) Program Switch - E122 - on the instrument panel has been discontinued.

Ratios Code Letter CGH, CTL:
