Evaluating Measuring Value Blocks

Display group, overview







If one of the specifications not obtained See evaluating display group 000

For additional steps, see repair procedures

To terminate "Read measuring value block":
- Press -> button.

After terminating "Read measuring value block":
- Press buttons -0- and -6- to select "End output" function 06.
- Press -Q- button to enter selection.

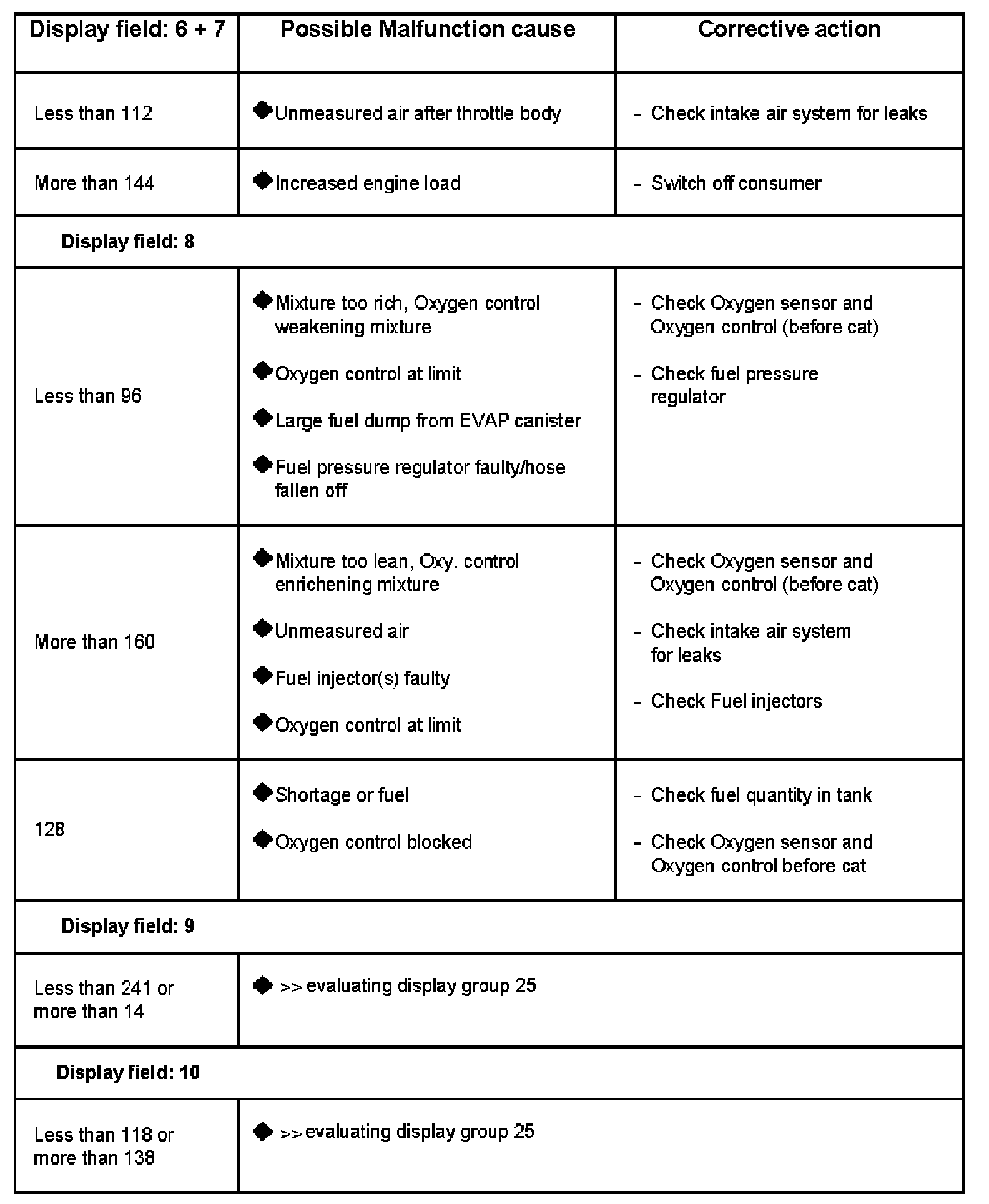

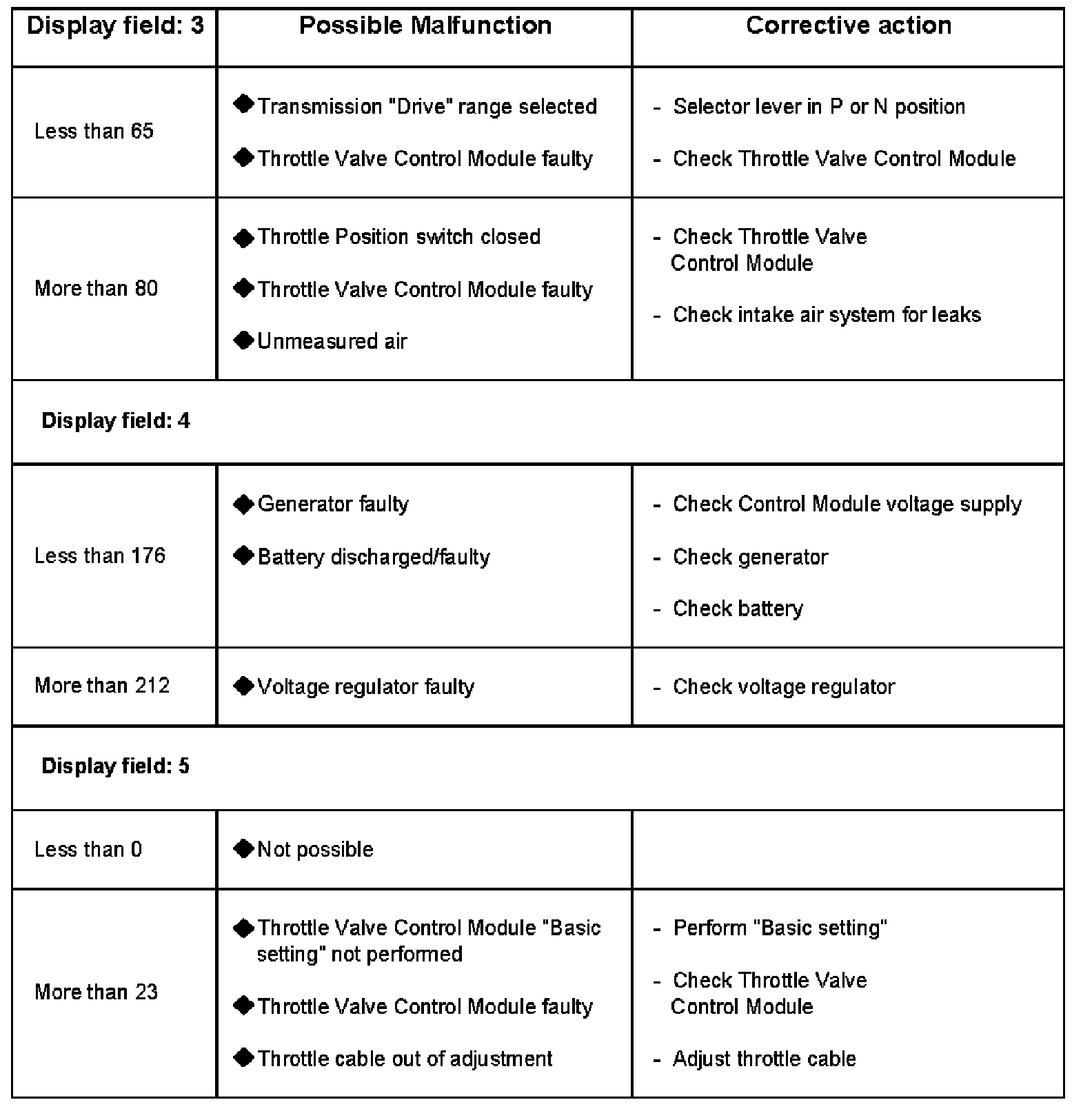

Evaluating display group 000
