Climatronic Control Module -J255-, Removing



Climatronic Components In Passenger Compartment, Servicing

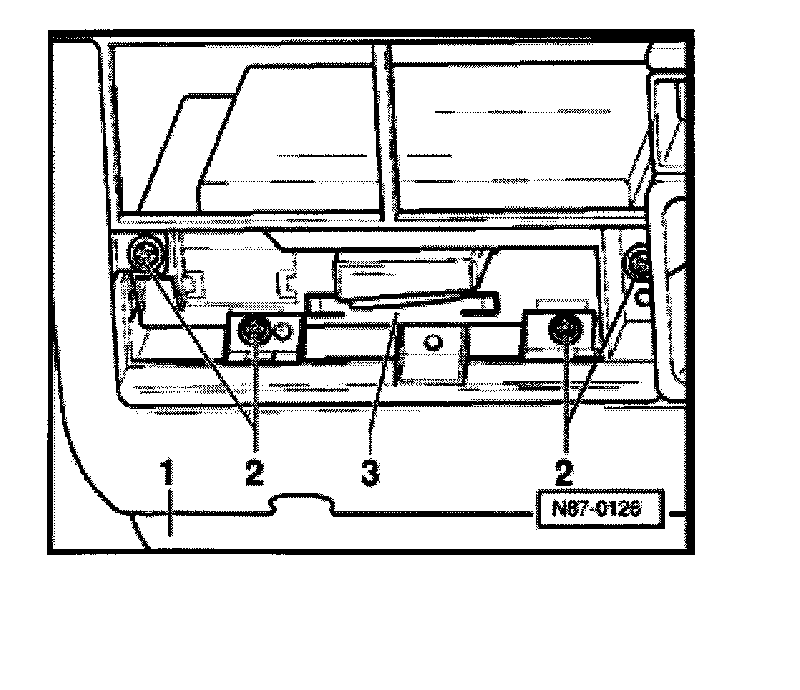

Climatronic Control Module -J255-, removing Up To 09.98






- Remove lower trim -1-.
- Remove screws -2-.
- Disconnect electrical connector and remove unit -3- downwards.
