Transmission Torque Specifications

Torque specifications

Manual Transmission 02A

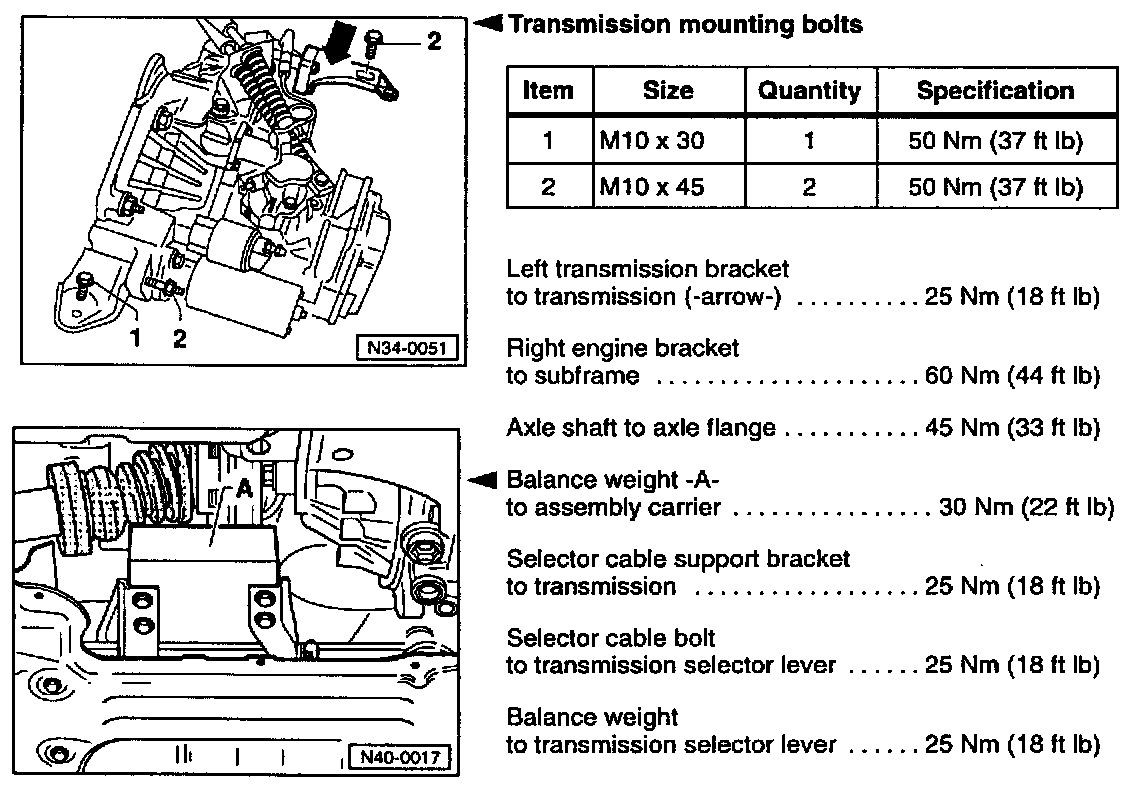

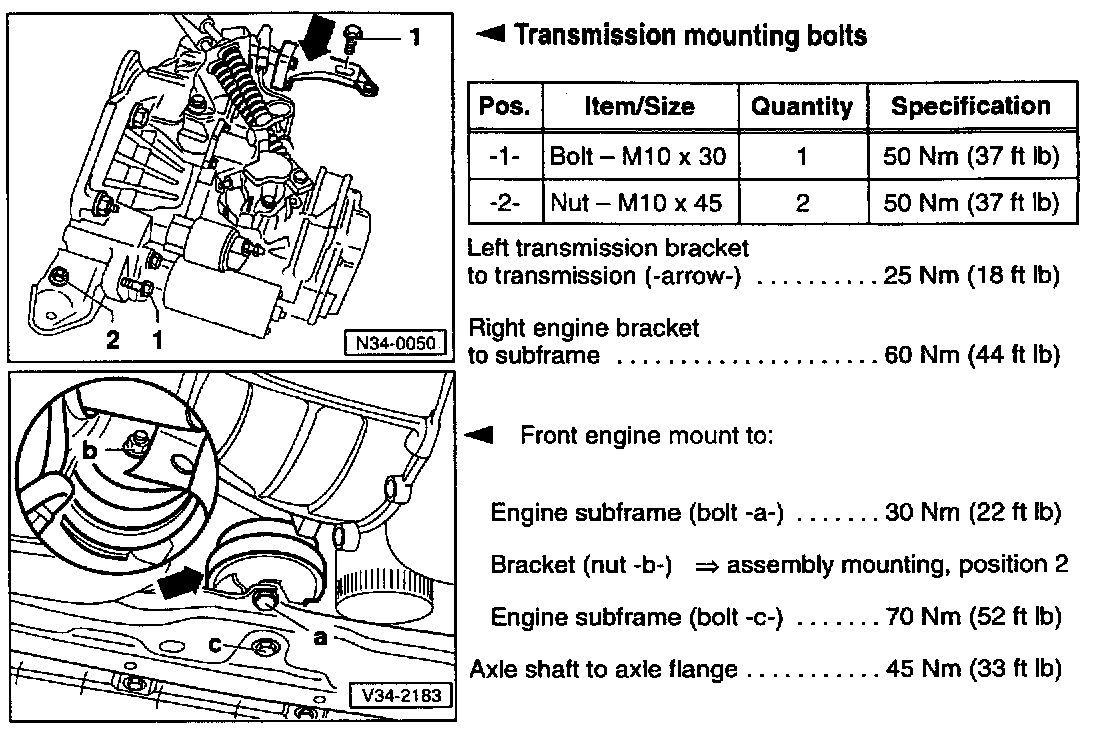

Transmission To Engine Torque Specifications:





Torque Specifications:





Torque Specifications:





Torque Specifications:





Bearing Torque Specifications:
