Engine Specifications and Clearances

2.0L ABA, Engine Specifications

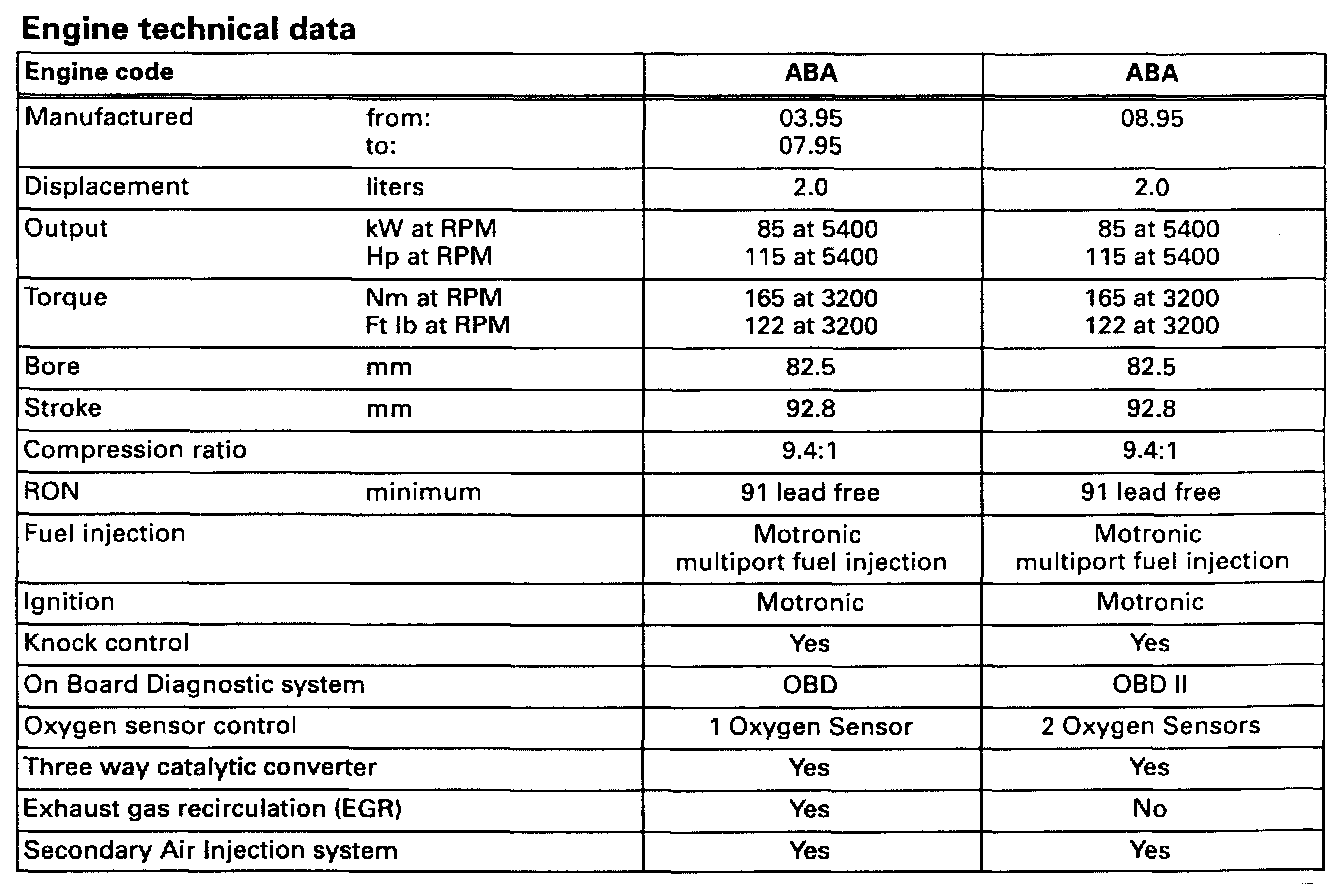

Engine Technical Data:

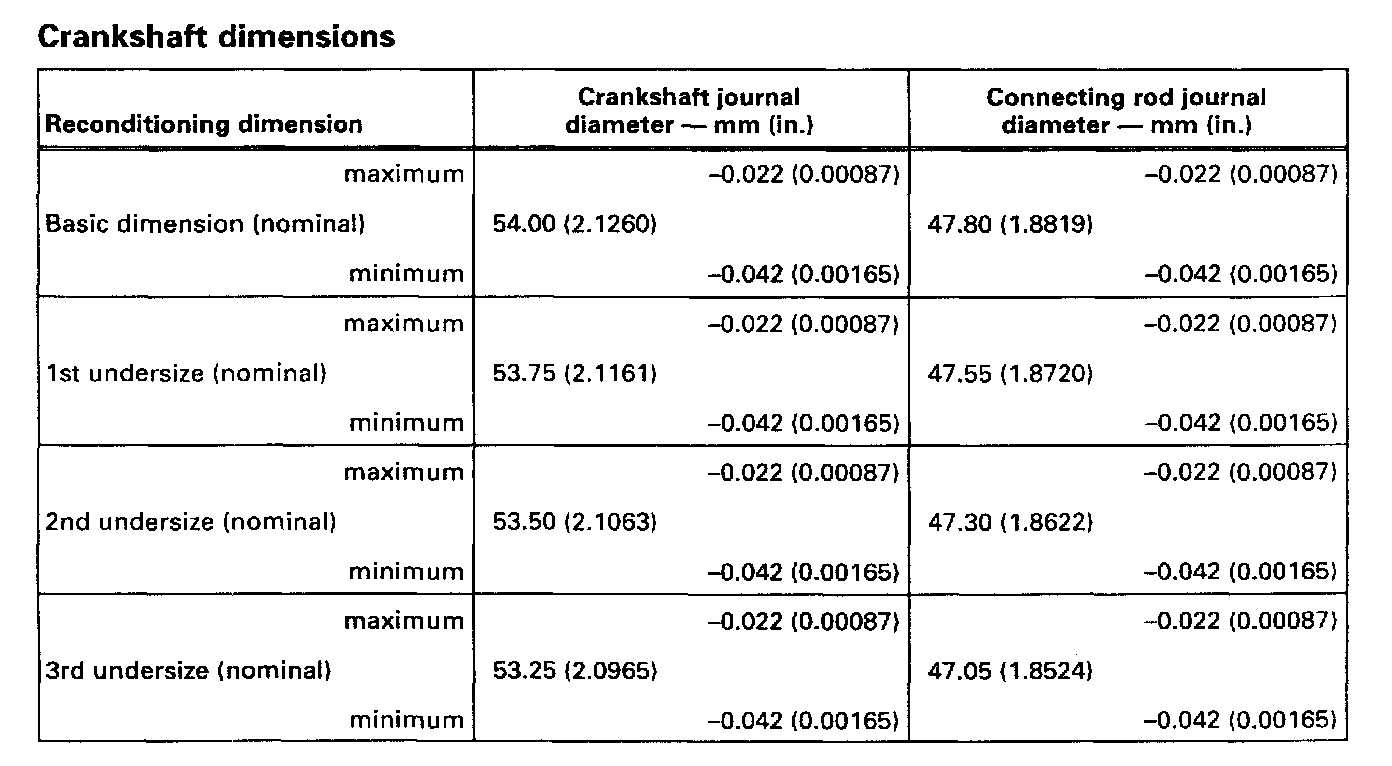

Crankshaft Specifications:

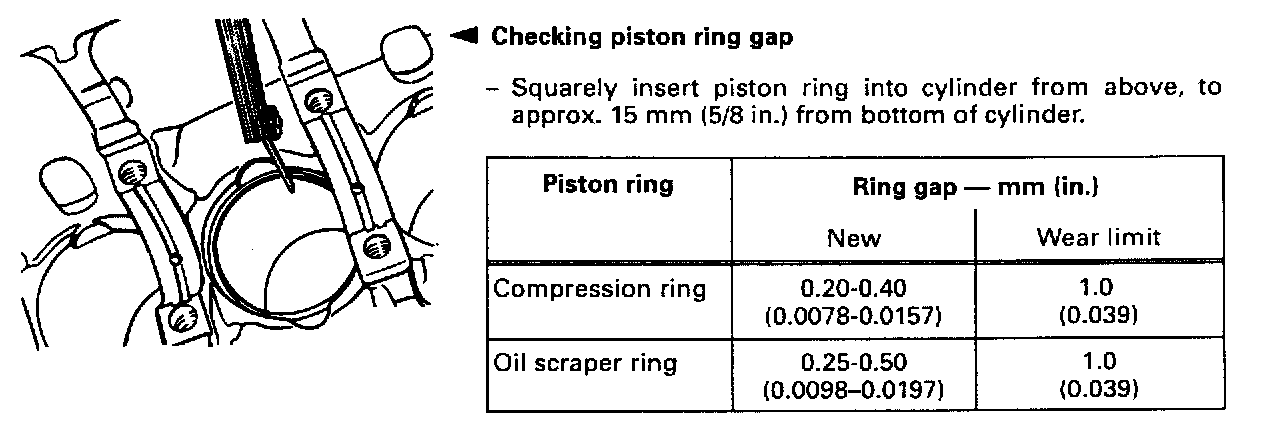

Piston Ring Gap Specifications:

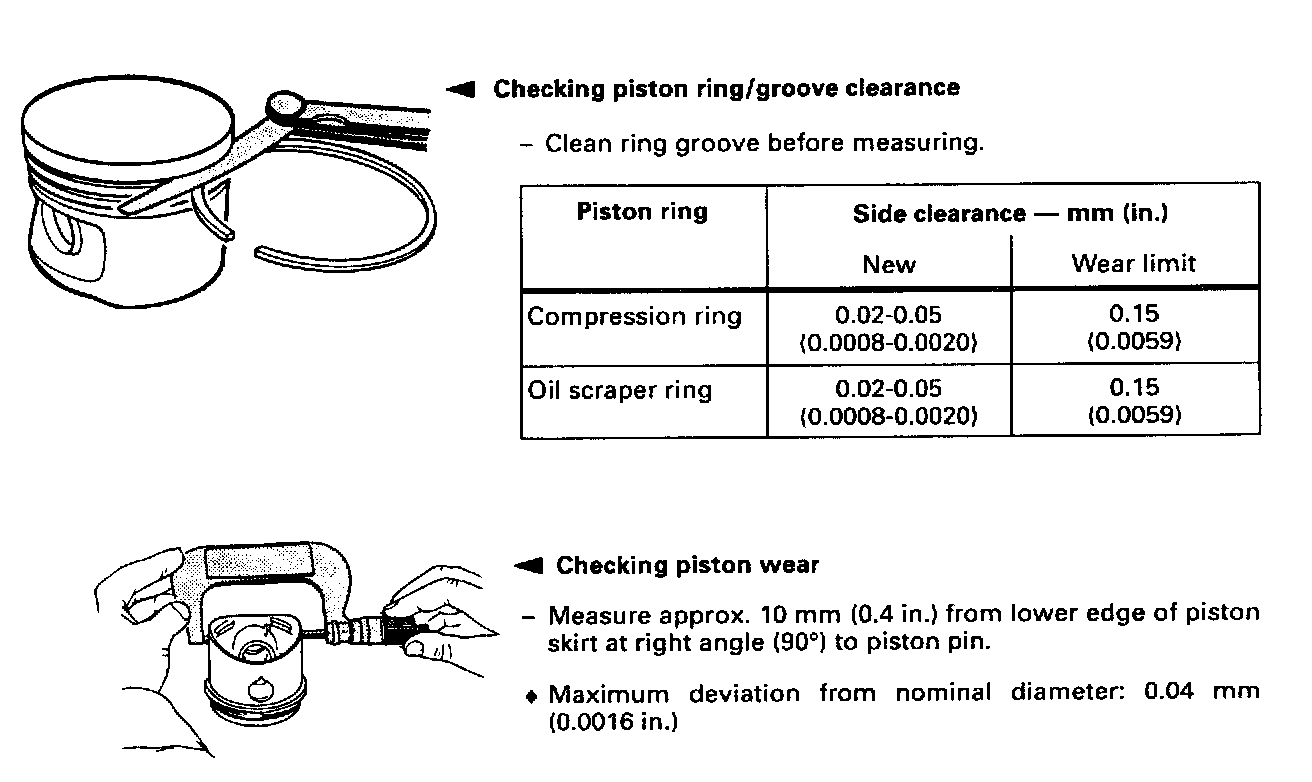

Piston Specifications:

Piston Specifications:

Cylinder Bore Specifications:

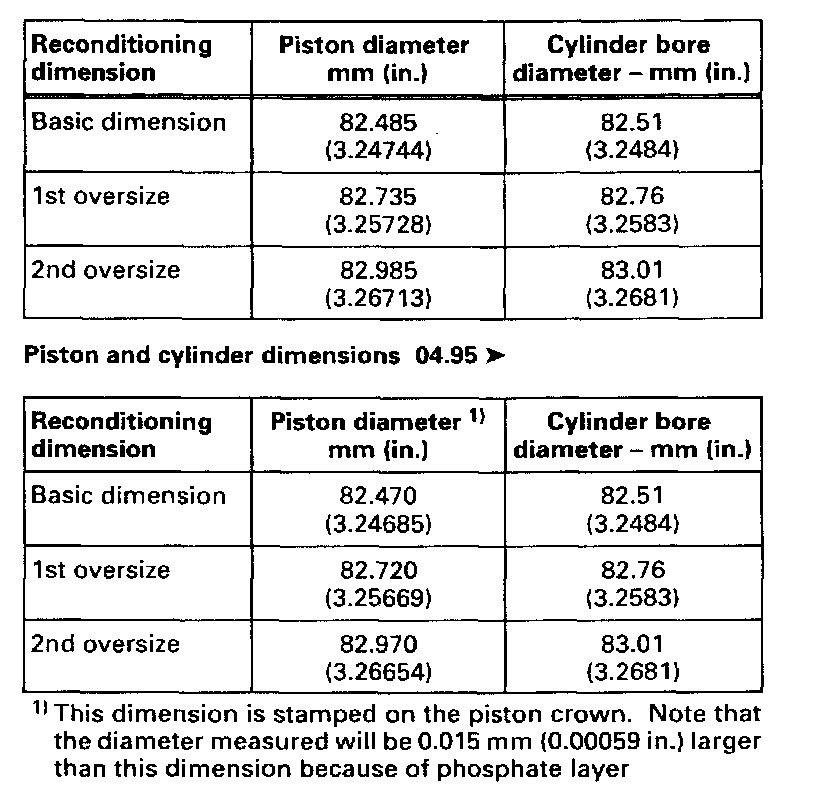

Piston/Cylinder Dimensions:

Camshaft Axial Play Specifications:

Camshaft Specifications:

Valve Dimensions:

Camshaft ID And Valve Timing:

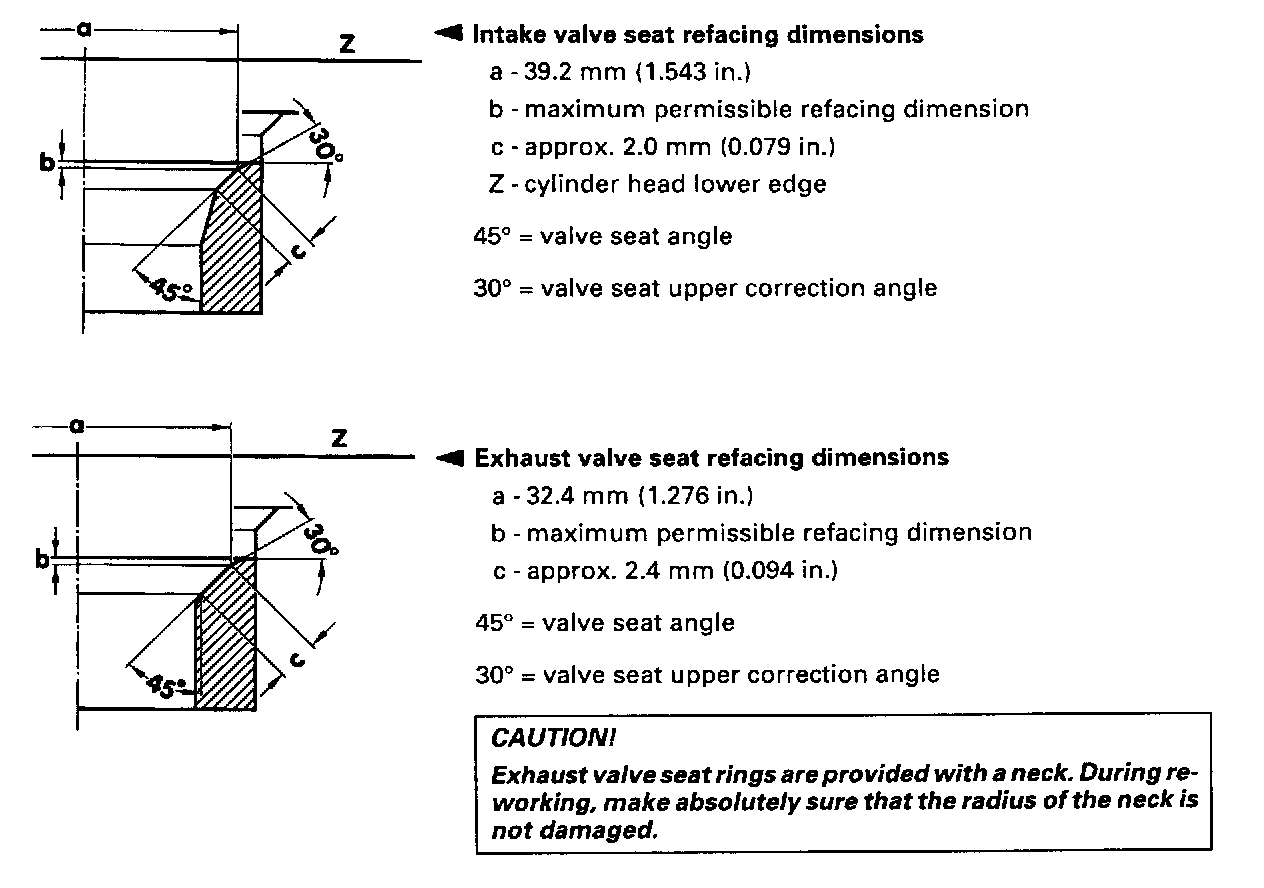

Intake And Exhaust Valve Seat Specifications:
