Readiness Code, Reading (Function 15)

Readiness code, reading (function 15)

Special tools, testers and auxiliary items

- VAG 1551/1552 scan tool with VAG 1551/3 adapter cable

Work sequence

- Connect VAG 1551/1552 scan tool and, with ignition switched on, select "Engine Electronics" address word 01.

Rapid data transfer HELP
Select function XX

Indicated on display

- Press buttons -1- and -5- to select "Readiness Code" function 15 and press -Q- button to confirm input.

- Must appear on display when all diagnosis functions have been successfully completed:

Readiness Code
00000000 - Test complete

Indicated on display

- Press -> button.

- Press buttons -0- and -6- to select "End Output" function 06 and press -Q- button to confirm input.

Readiness Code
01101101 - Test not complete

Indicated on display (possible example)

If one of the diagnostic checks has not run through successfully:

- Press -> button.

- Create readiness code.

- Read readiness code. If DTC memory has been erased, repair must be verified via appropriate display group, Readiness code, creating.

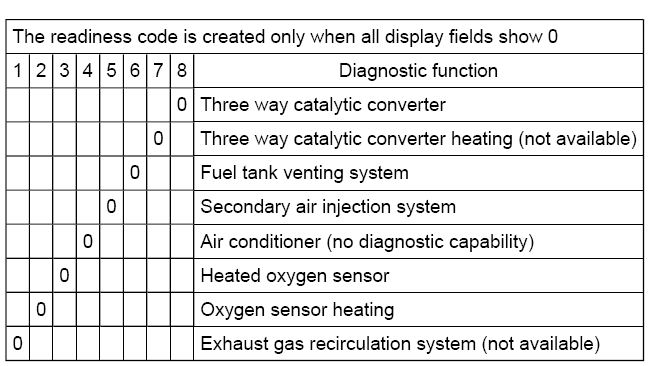

Relevance Of 8-digit Number Block For Readiness Code:
