Secondary Air Injection System, Components

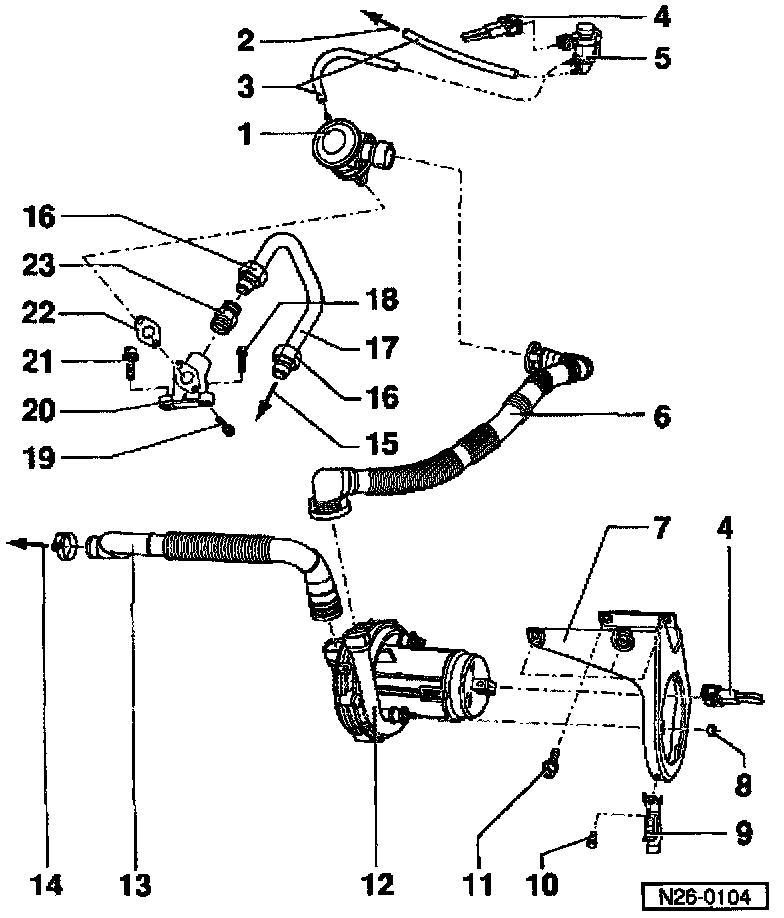

SECONDARY AIR INJECTION SYSTEM, COMPONENTS





1 - Combi-valve
2 - To connection on line to brake vacuum booster
3 - Vacuum hose
4 - Connector
- 2-pin
5 - Secondary Air Injection (AIR) solenoid valve -N112-
6 - Pressure hose
- Check for secure fit
7 - Bracket
- For secondary air injection pump
8 - 10 Nm (7 ft lb)
9 - Bracket
- For A/C line
10 - 10 Nm (7 ft lb)
11 - 25 Nm (18 ft lb)
12 - Secondary Air Injection (AIR) pump motor -V101-
13 - Intake hose
- For secondary air injection pump
14 - To air cleaner
15 - To connection on exhaust manifold
16 - 30 Nm (22 ft lb)
17 - Line
18 - 10 Nm (7 ft lb)
19 - 10 Nm (7 ft lb)
20 - Bracket
- For combi-valve
21 - 25 Nm (18 ft lb)
22 - Gasket
- Always replace
23 - Union
