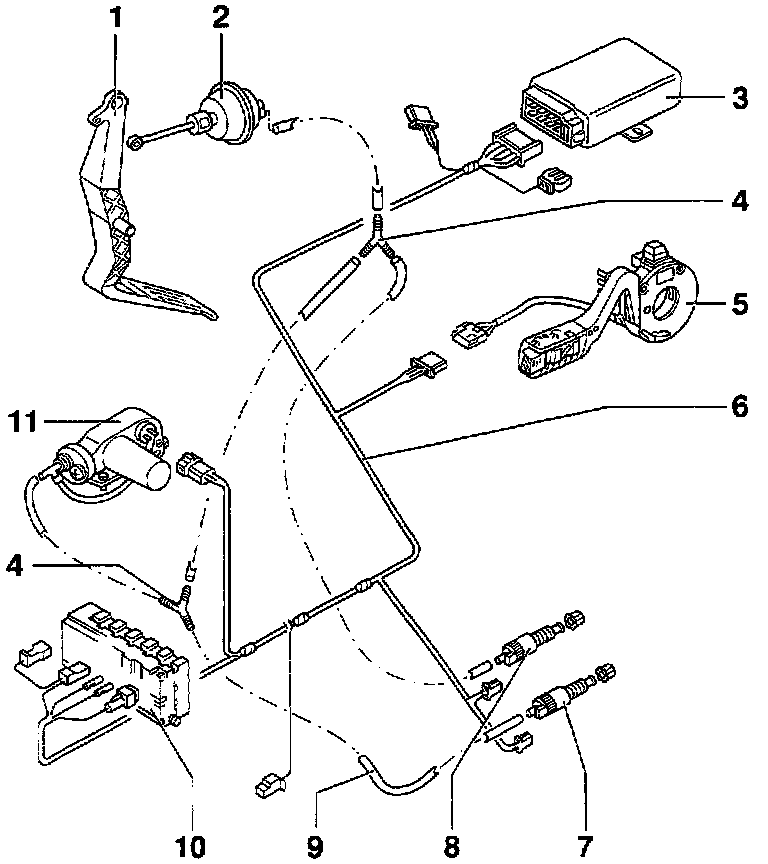

Exploded Views

1- Accelerator pedal
2- Throttle control element on accelerator pedal
3- Cruise control switch (CCS)
- Behind center console
4- Y connector
5- CCS switch (E45)
6- CCS wire harness
7- Vent valve with clutch pedal switch (F36)
8- Vent valve with brake pedal position (BPP) switch (F47)
9- Vacuum hose
10- Relay panel
11- Cruise control (CCS) vacuum pump (V18)
