Fuel System: Turbocharger: Removal

WARNING: This page is about a different variant/trim than selected.

Turn ignition off. Disconnect negative battery cable. See BATTERY DISCONNECT PRECAUTIONS .

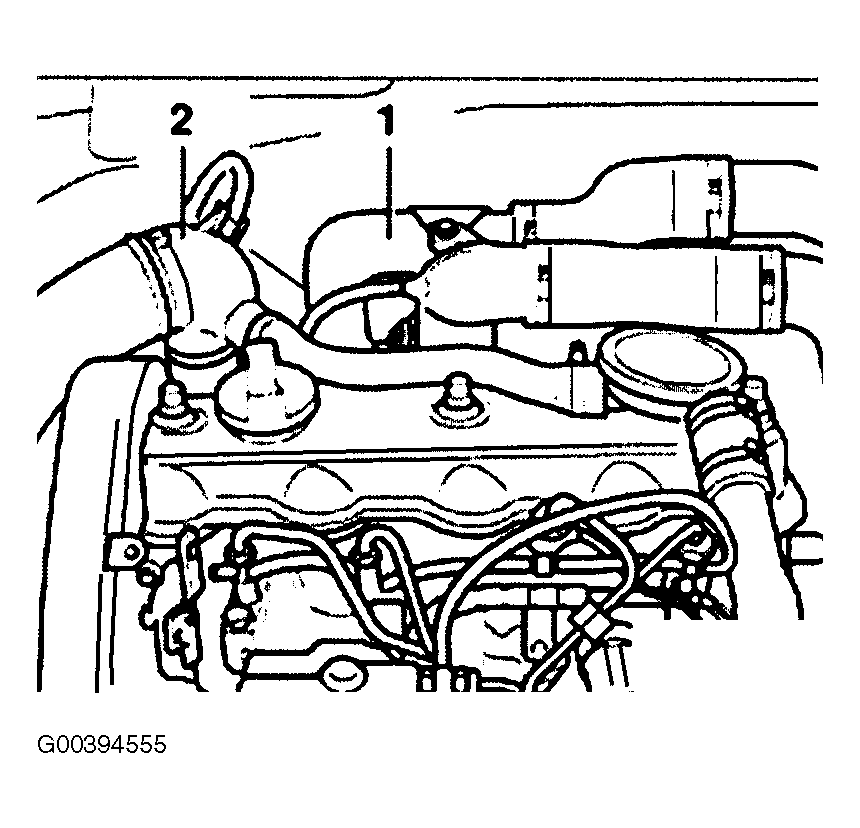

Remove hoses between intake manifold to turbocharger -1- and turbocharger to Air Cleaner -2-. See Fig 1 .

Fig 1: Locating Turbocharger Hose Connections
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Pull off red hose (or remove banjo bolt) for Wastegate Bypass Regulator valve -N75- on turbocharger. Disconnect exhaust pipe from turbocharger. Disconnect oil supply line from turbocharger and mounting clip from intake manifold.
Remove turbocharger/engine support. Remove nut -1- from below ad bolts -2- from above. See Fig 2 . Lift turbocharger out and upward. Disconnect blue hose from wastegate.

Fig 2: Locating Turbocharger Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
