Turbocharger Cooling System

WARNING: This page is about a different variant/trim than selected.

Manufacturer does not provide specific removal and installation procedures for turbocharger cooling system. As an aid, see Fig 1 .

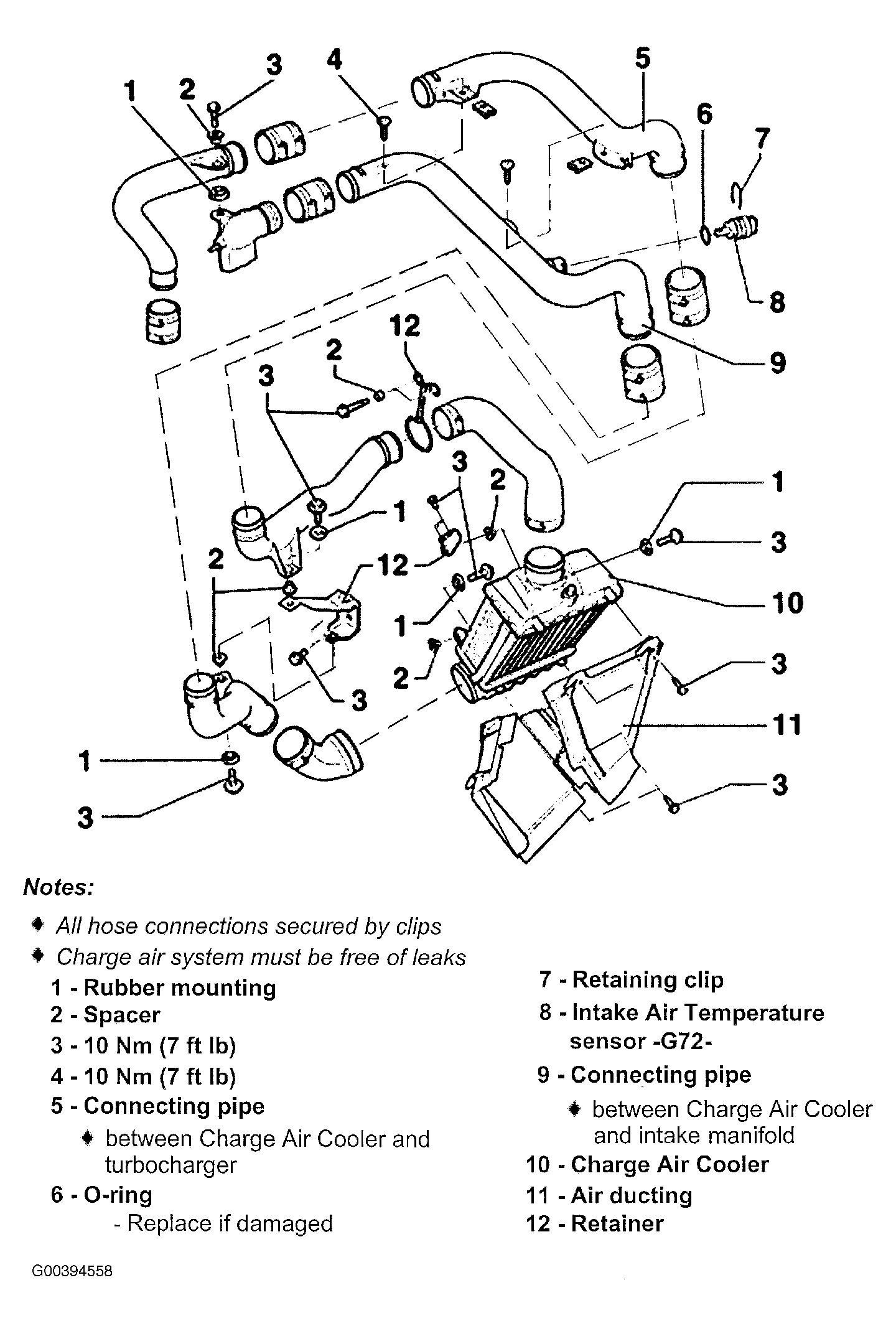

Fig 1: Exploded View Of Turbocharger Cooling System
G00394558Courtesy of VOLKSWAGEN UNITED STATES, INC.
