Fuel Gauge Sender

WARNING: This page is about a different variant/trim than selected.

Marking on sender -1- must align with fuel tank marking -2-. See Fig 1 . Fuel gauge sender may be removed with fuel tank installed in vehicle. Access cover is in trunk, under trunk liner.

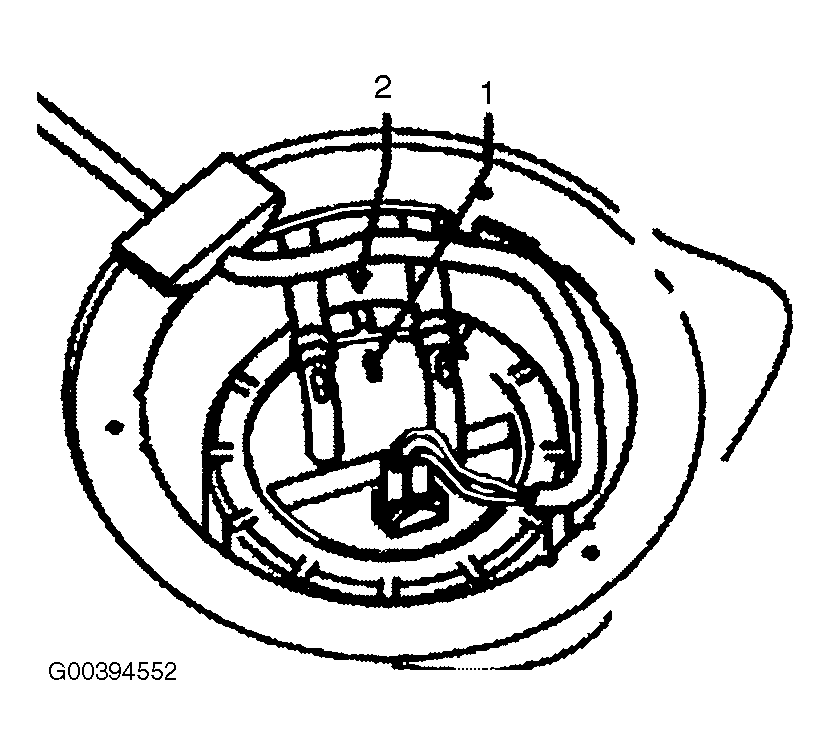

Fig 1: Installation Position Of Fuel Gauge Sender

Courtesy of VOLKSWAGEN UNITED STATES, INC.
