Diesel Fuel Injection Pump

WARNING: This page is about a different variant/trim than selected.

Manufacturer does not provide specific servicing procedures for diesel fuel injection pump. As an aid, see Fig 1 . For removal and installation procedures, see appropriate 1.9L engine article.

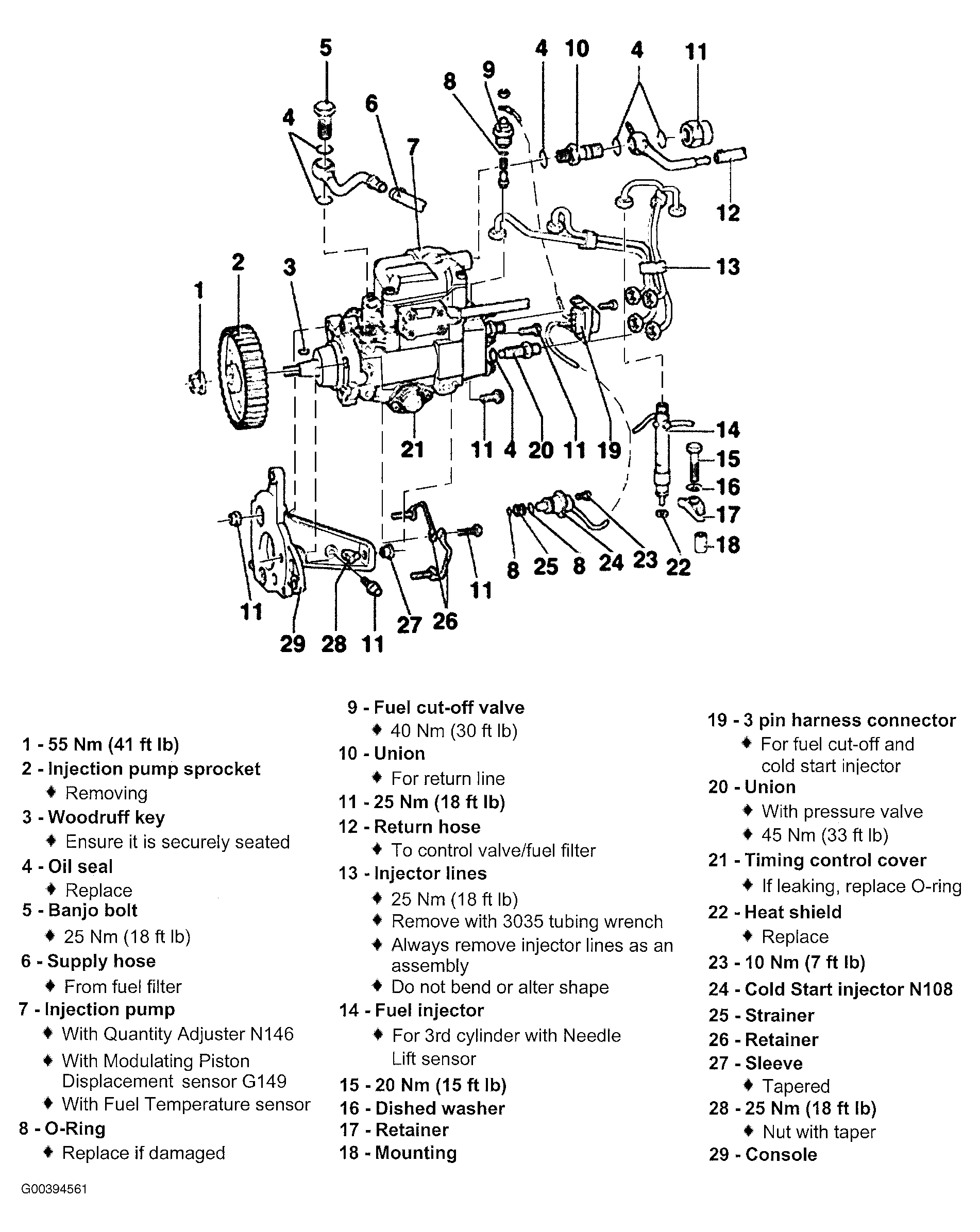

Fig 1: Exploded View Of Diesel Injection Pump

Courtesy of VOLKSWAGEN UNITED STATES, INC.
