Mode 6

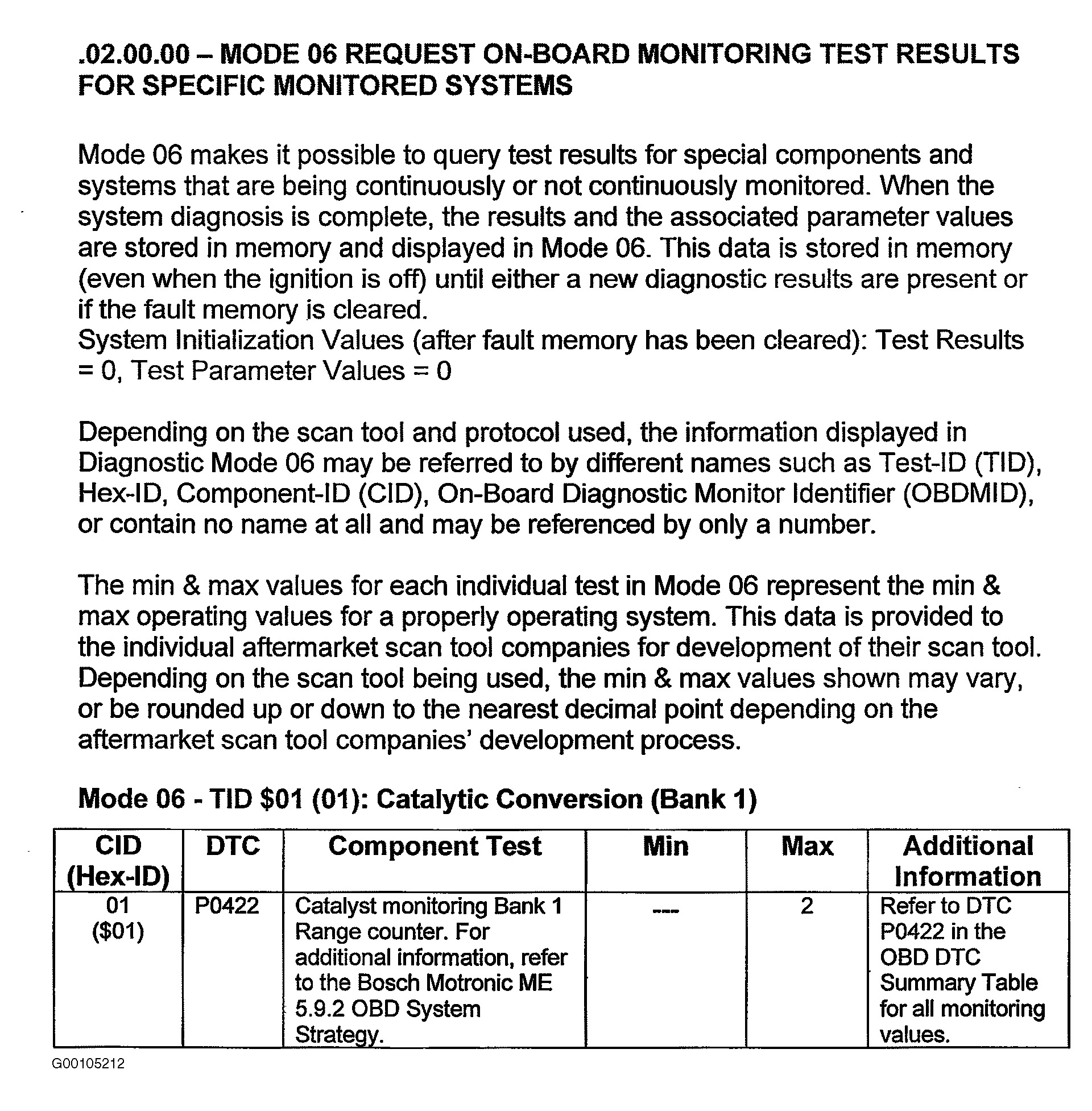

Fig 1: Mode 6 Data (2.0L) (1 Of 3)

G00105212

Courtesy of VOLKSWAGEN UNITED STATES, INC.

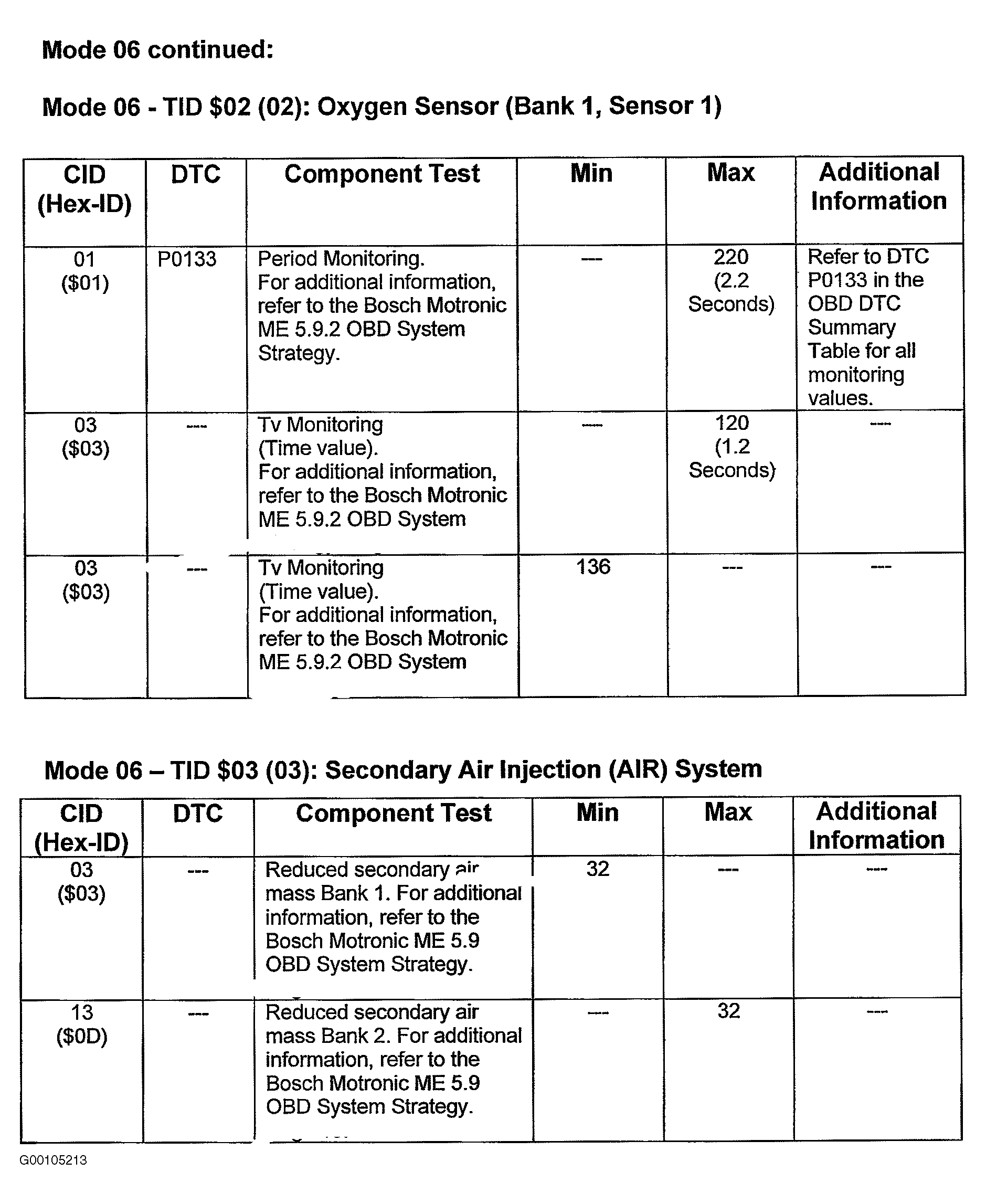

Fig 2: Mode 6 Data (2.0L) (2 Of 3)

G00105213

Courtesy of VOLKSWAGEN UNITED STATES, INC.

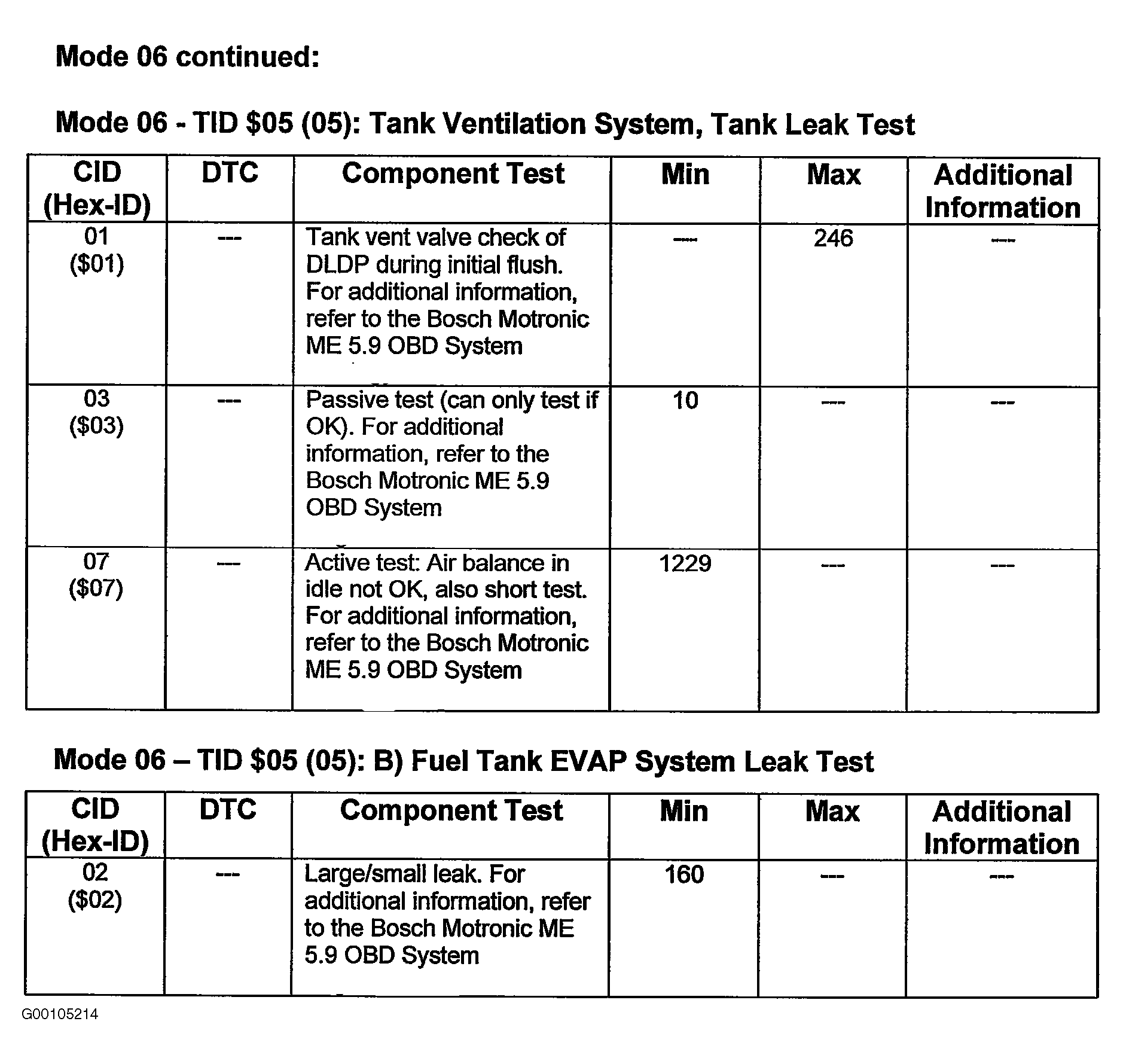

Fig 3: Mode 6 Data (2.0L) (3 Of 3)

G00105214

Courtesy of VOLKSWAGEN UNITED STATES, INC.

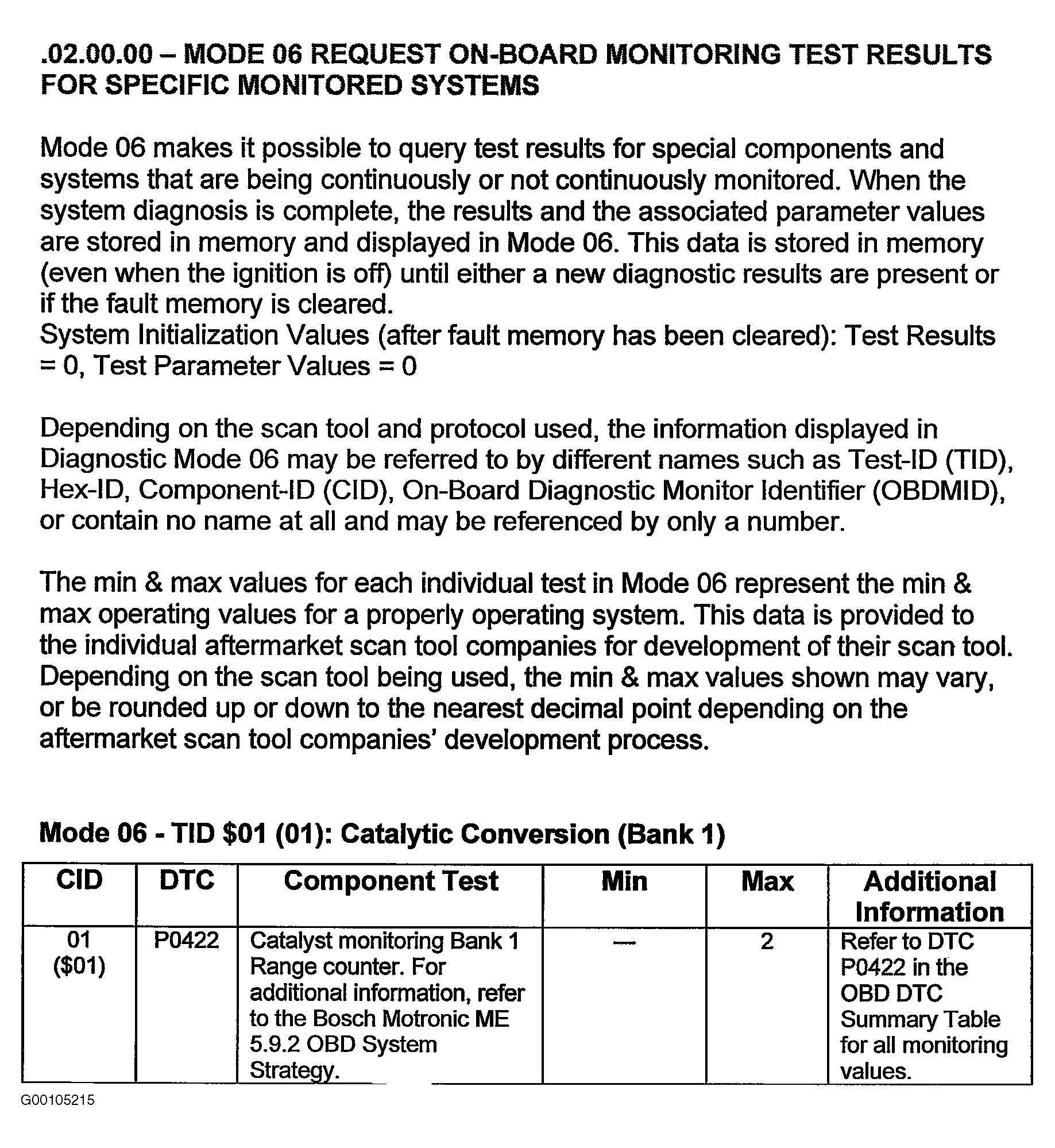

Fig 4: Mode 6 Data (2.8L) (1 Of 3)

G00105215

Courtesy of VOLKSWAGEN UNITED STATES, INC.

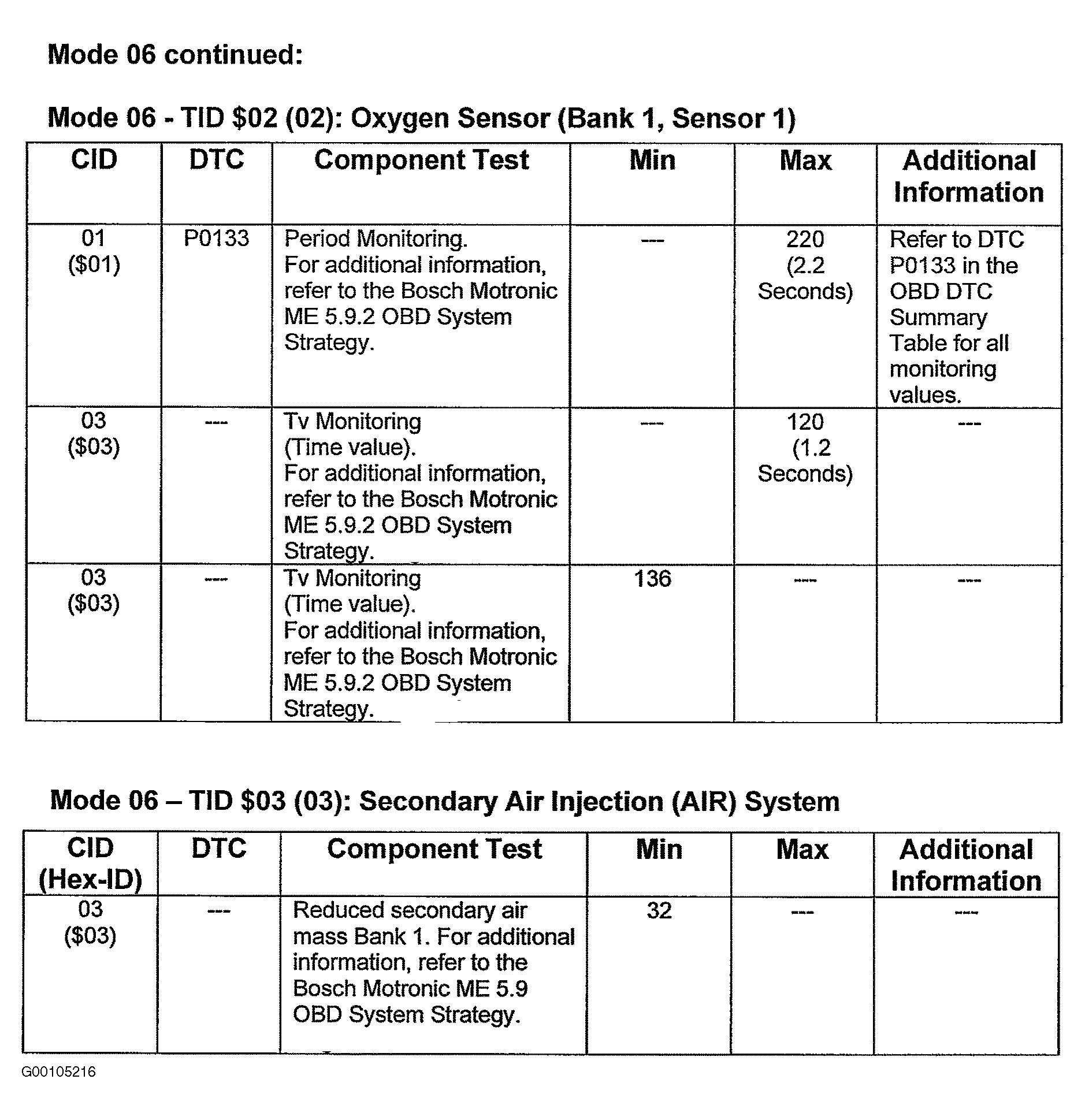

Fig 5: Mode 6 Data (2.8L) (2 Of 3)

G00105216

Courtesy of VOLKSWAGEN UNITED STATES, INC.

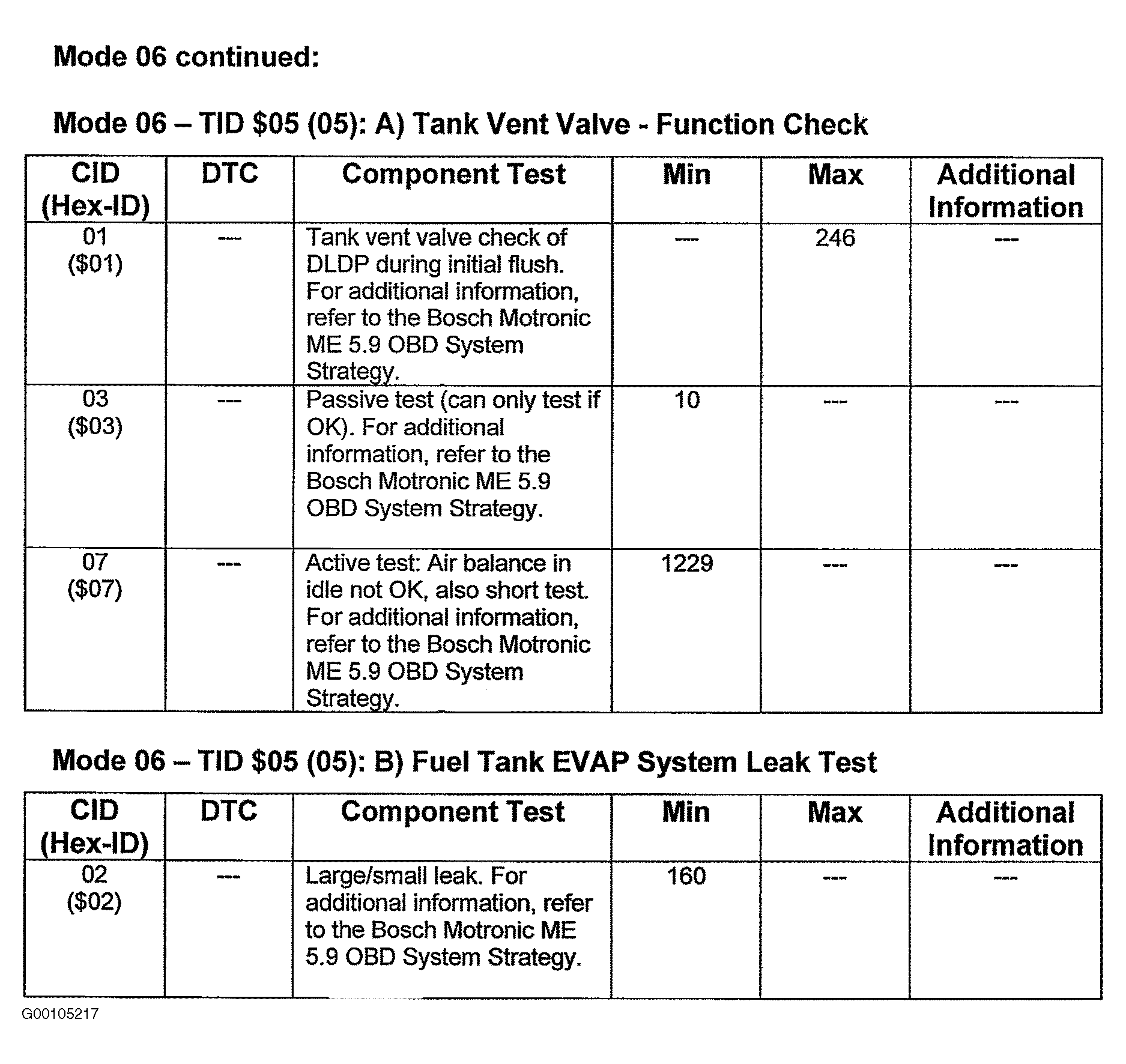

Fig 6: Mode 6 Data (2.8L) (3 Of 3)

G00105217

Courtesy of VOLKSWAGEN UNITED STATES, INC.
