Removal & Installation

Remove 6 bolts from window regulator and push window glass upward. See Fig 1 . Secure glass in upward position. Disconnect wiring harness form power window motor. Remove bolts securing window regulator. Raise window regulator until lugs disengage, then pull window regulator out downward through opening. To install, reverse removal procedure.

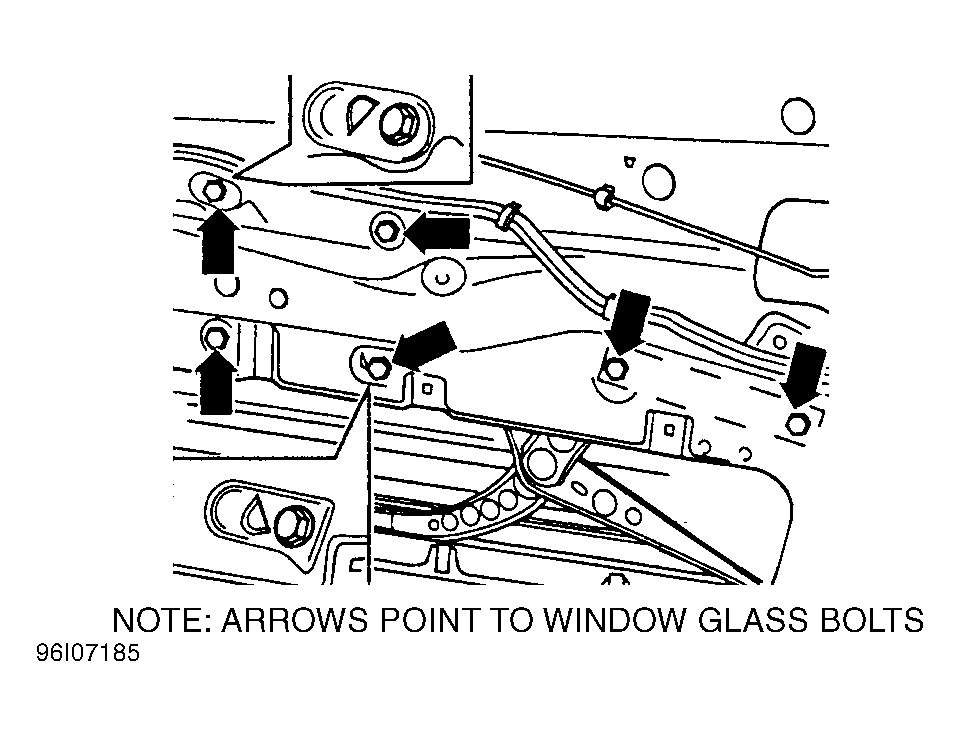

Fig 1: Removing Power Window Regulator
G96I07185
