Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse/Relay Panel	Behind Left Side Of Dash
Mirror Assembly	Outside Of Front Door, See Fig 2
Power Mirror Switch	On Door Trim Panel, See Fig 3

Fig 1: Identifying Fuse Panel Components

G50A11965

Courtesy of VOLKSWAGEN UNITED STATES, INC.

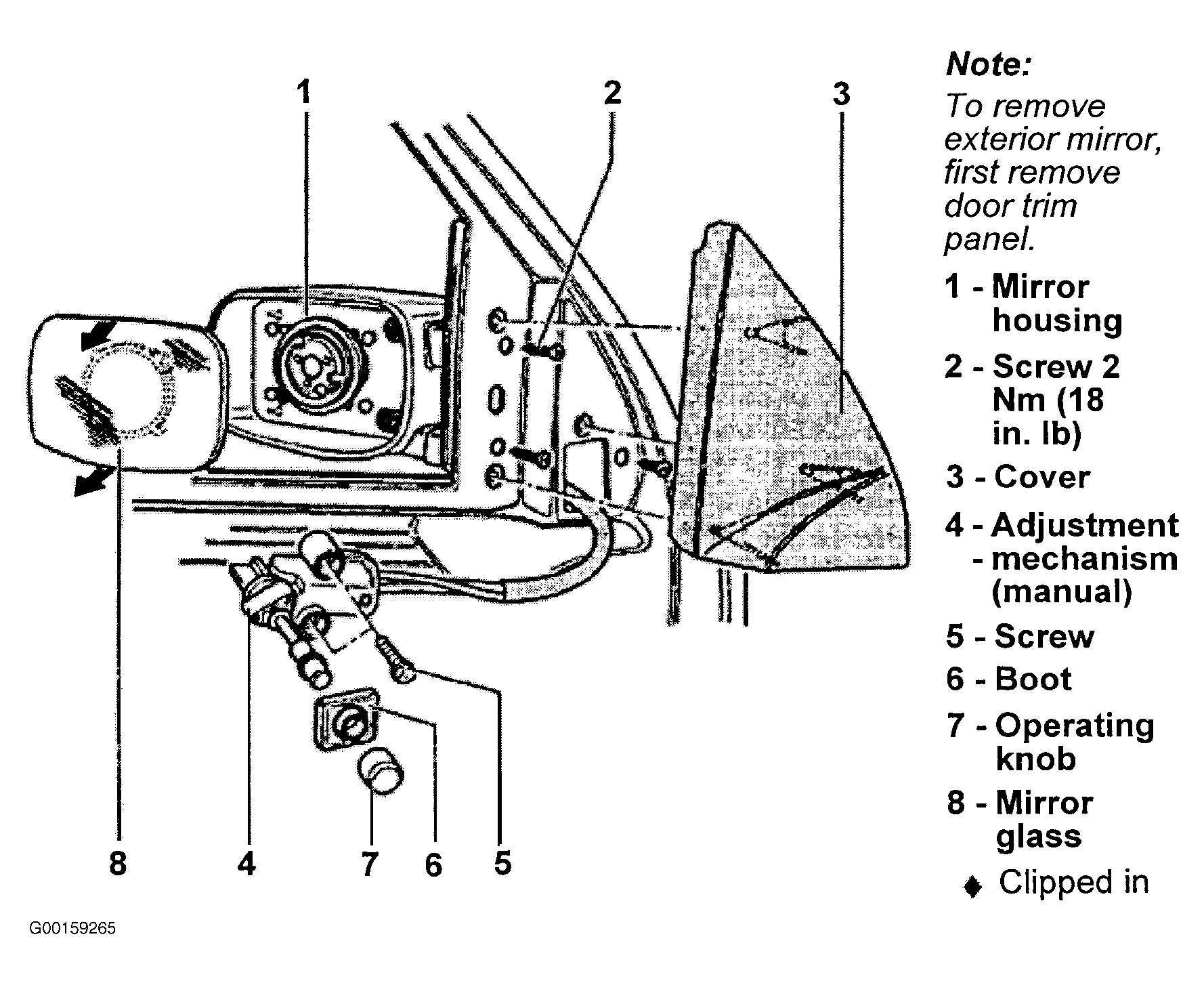

Fig 2: Exploded View Of Mirror Assembly

G00159265

Courtesy of VOLKSWAGEN UNITED STATES, INC.

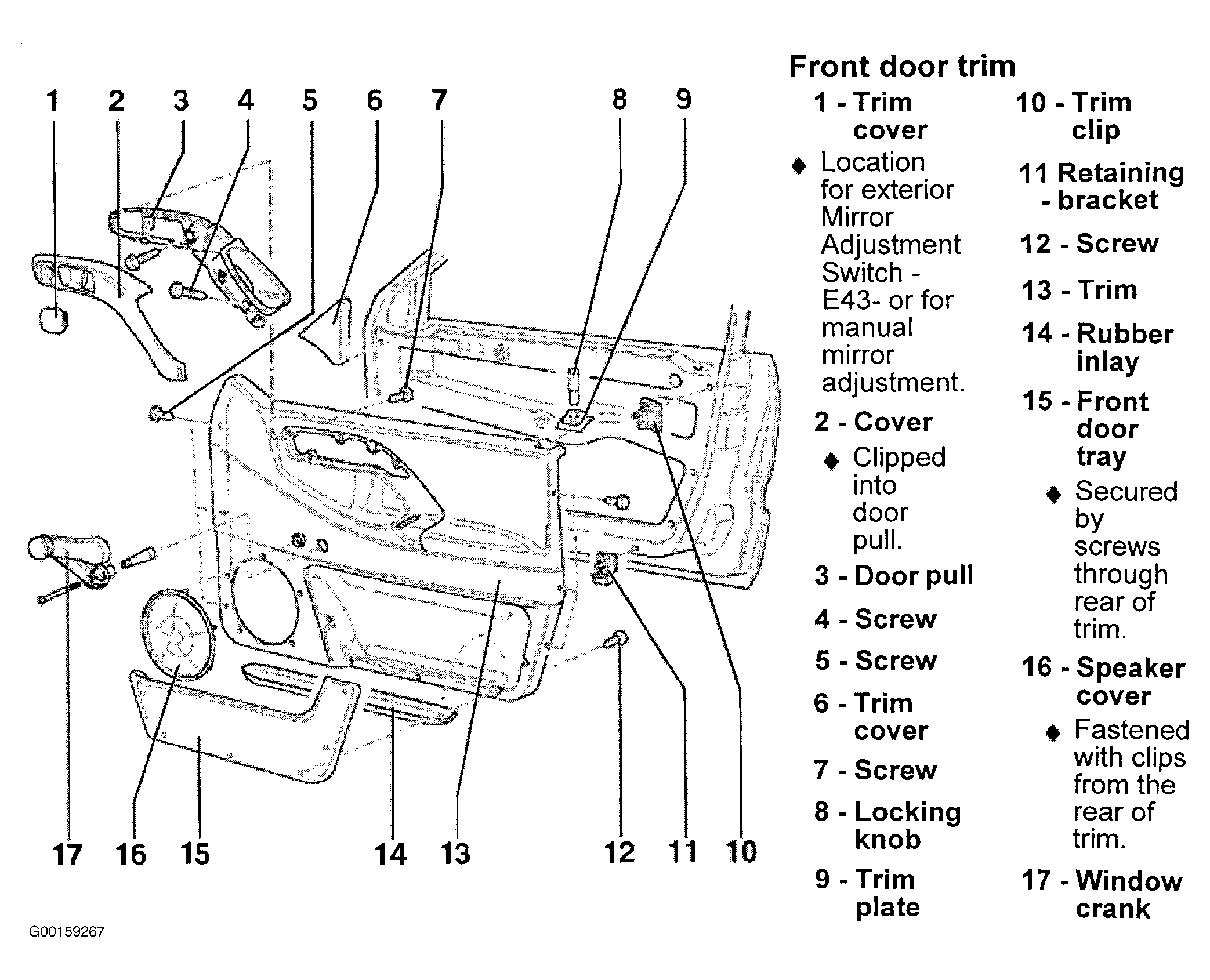

Fig 3: Exploded View Of Door Trim Components

G00159267

Courtesy of VOLKSWAGEN UNITED STATES, INC.
