Vacuum Diagrams - Gasoline: Introduction

This article contains underhood views or schematics of vacuum hose routing. Vacuum diagrams are an excellent tool for identifying improperly routed vacuum hoses. Improperly routed vacuum hoses cause driveability and computer-indicated malfunctions.

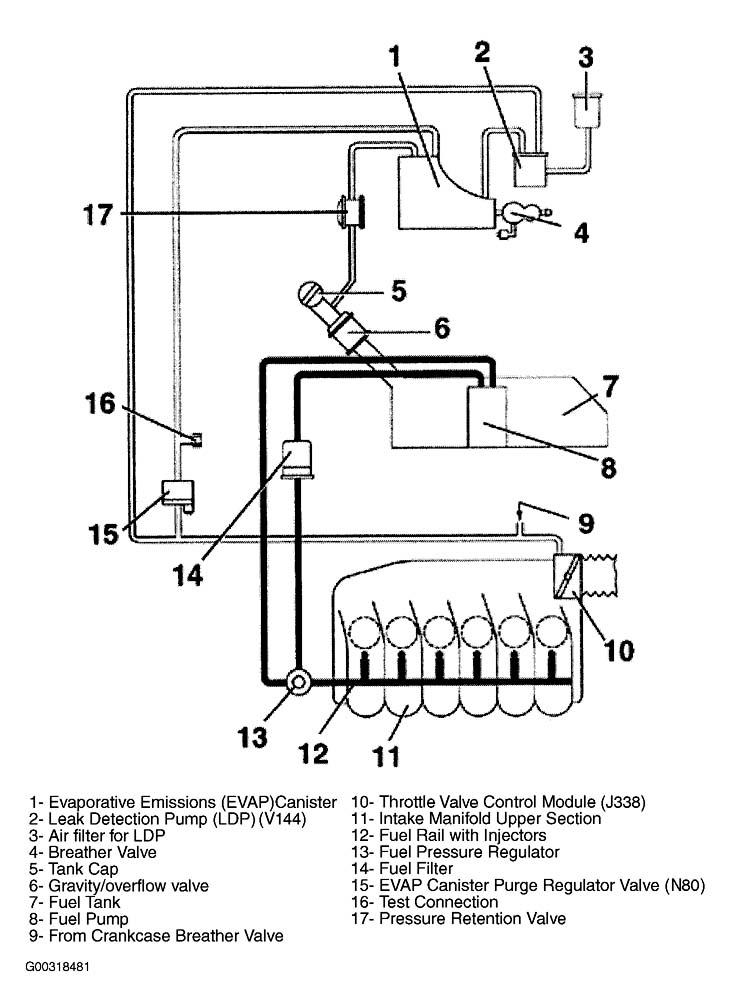

Fig 1: Vacuum Diagram EVAP System, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

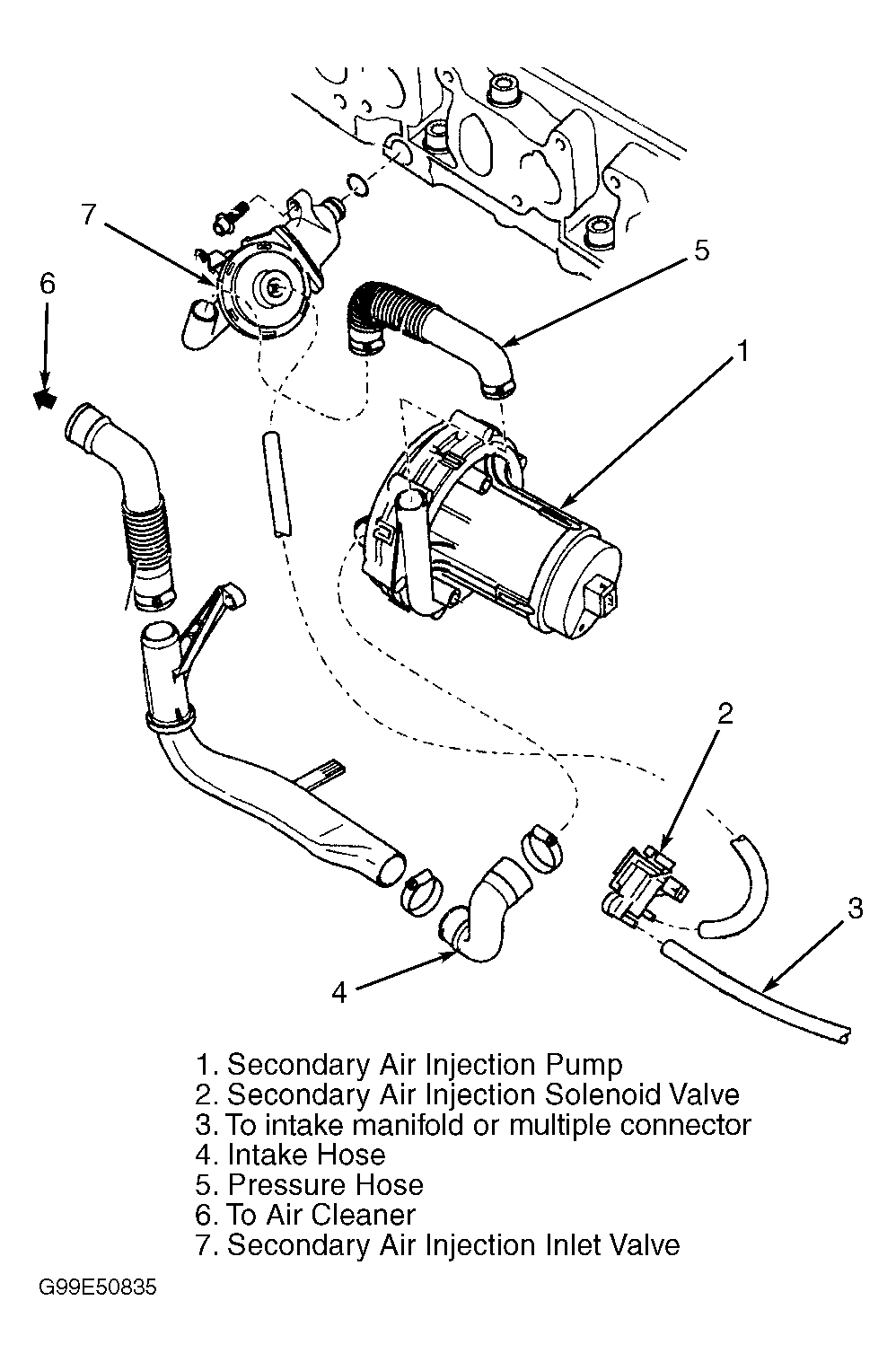

Fig 2: Vacuum Diagram Secondary Air Injection System (2.0L)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Vacuum Diagram EVAP System (GTI, Jetta & Passat: 2.8L VR6)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Vacuum Diagram Secondary Air Injection System (GTI, Jetta & Passat: 2.8L VR6)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Vacuum Diagram EGR System (EuroVan: 2.5L 5 Cyl. - Early Production)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Vacuum Diagram EGR System (EuroVan: 2.5L 5 Cyl. - Late Production)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 7: Vacuum Diagram EVAP System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Vacuum Diagram Intake Manifold (EuroVan: 2.5L 5 Cyl.)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Vacuum Diagram Secondary Air Injection System (EuroVan: 2.5L 5 Cyl.)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 10: Vacuum Diagram Connecting Piece For Intake Manifold (EuroVan: 2.8L VR6, Engine Code AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 11: Vacuum Diagram EGR System (EuroVan: 2.8L VR6, Engine Code AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Vacuum Diagram Fuel Pressure Regulator & Secondary Air Injection Valve (N112) (EuroVan: 2.8L VR6, Engine Code AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
