Glow Plug System Wiring Diagrams
Fig 1: Glow Plug System Wiring Diagram (1 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

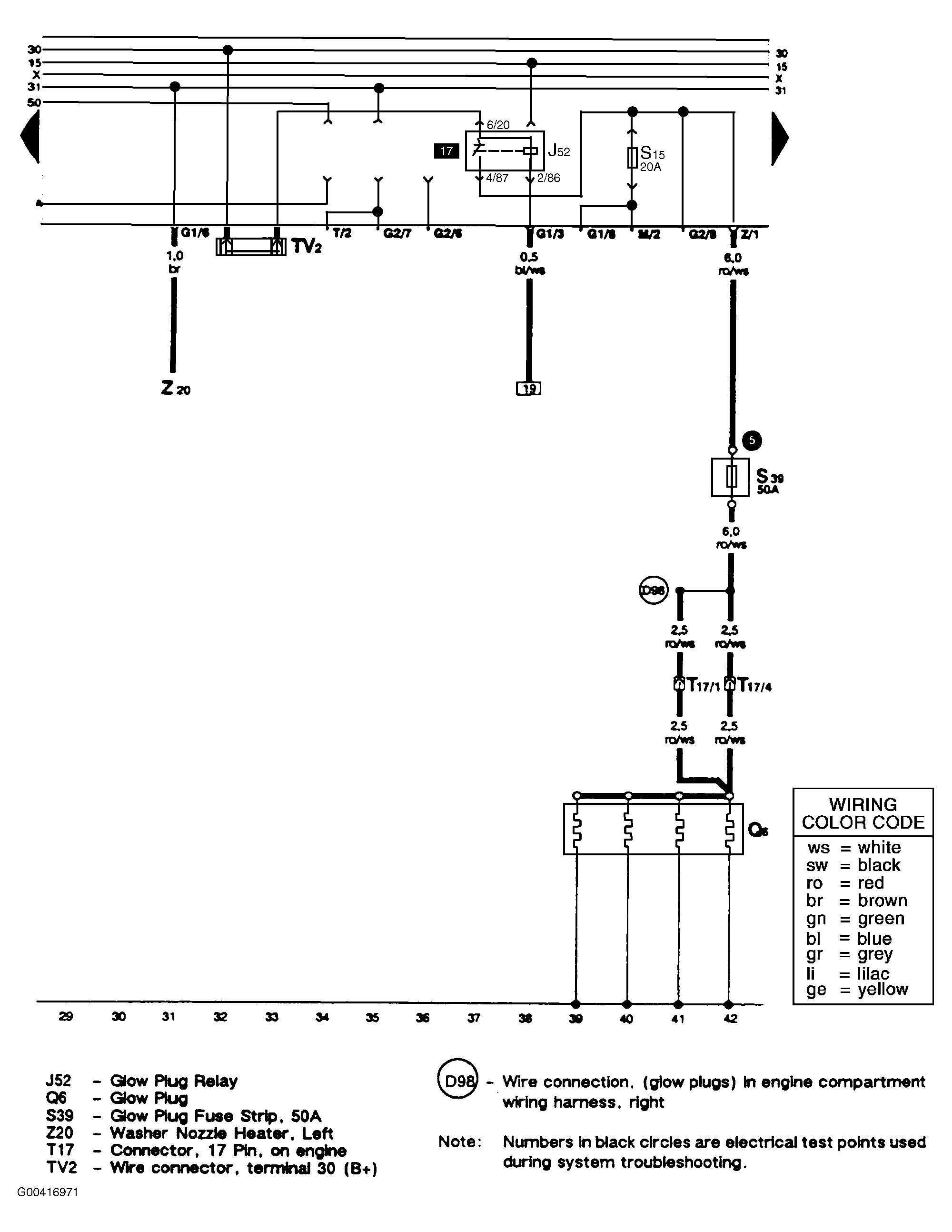

Fig 2: Glow Plug System Wiring Diagram (2 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

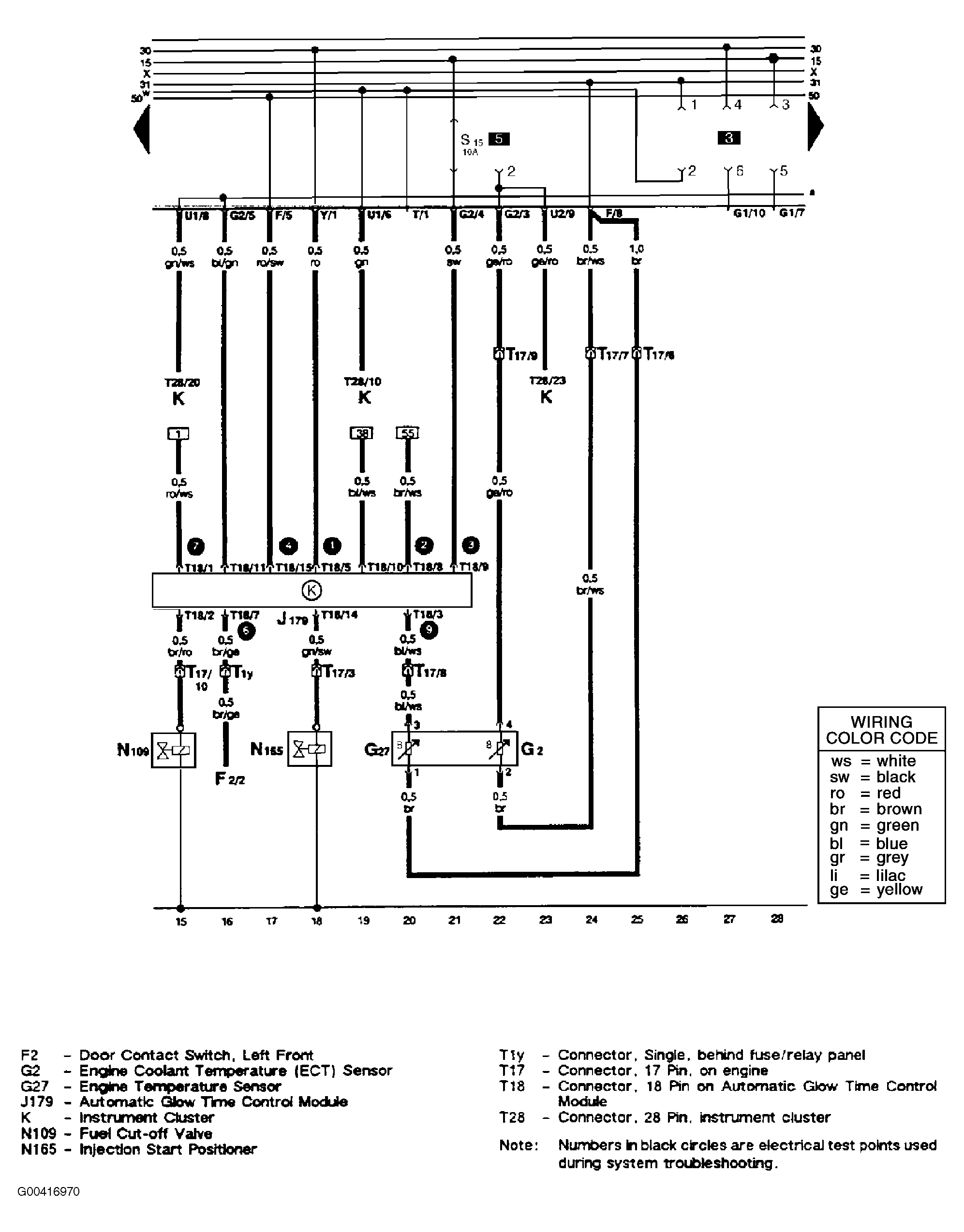

Fig 3: Glow Plug System Wiring Diagram (3 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

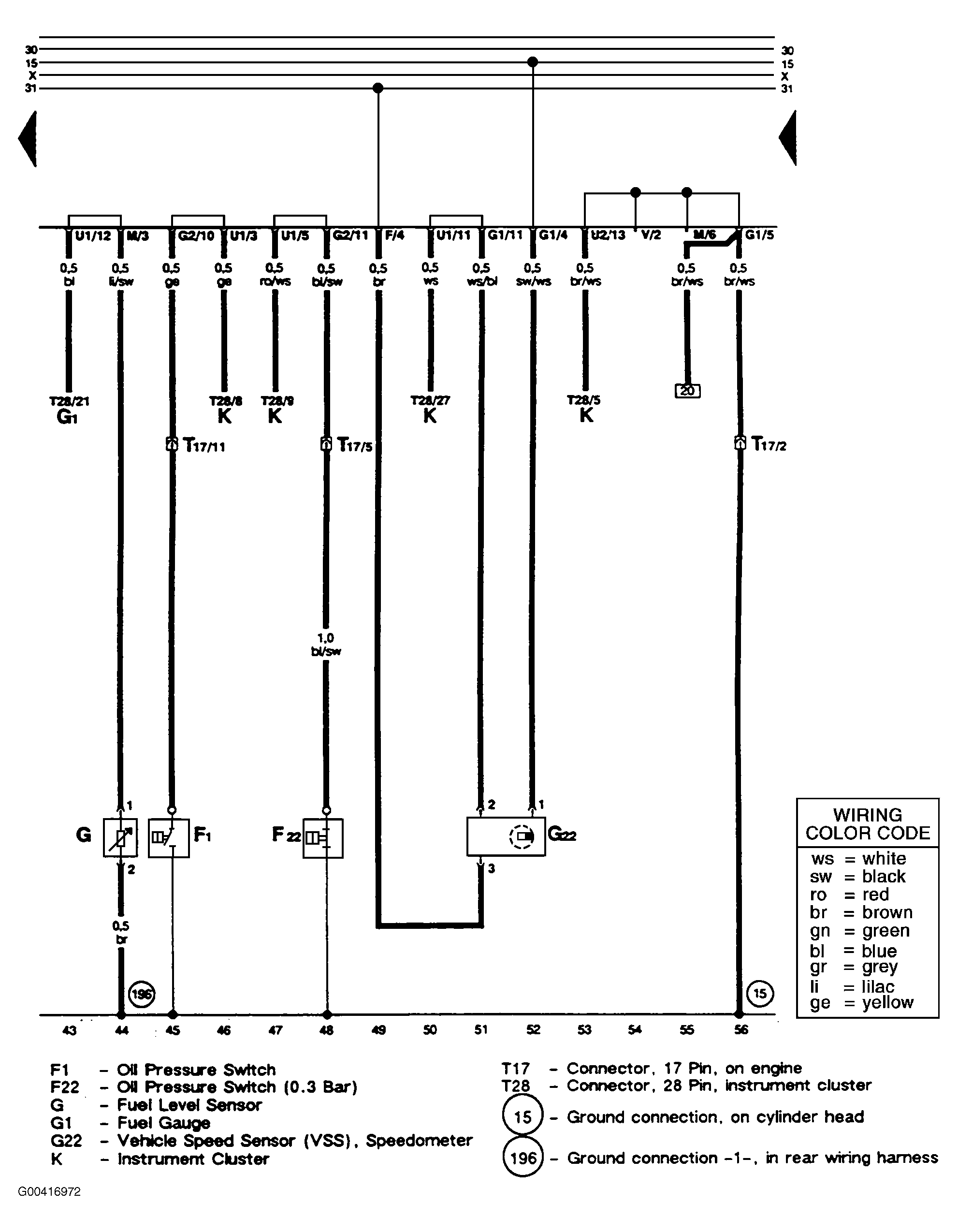

Fig 4: Glow Plug System Wiring Diagram (4 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
