Glow Plug System Troubleshooting

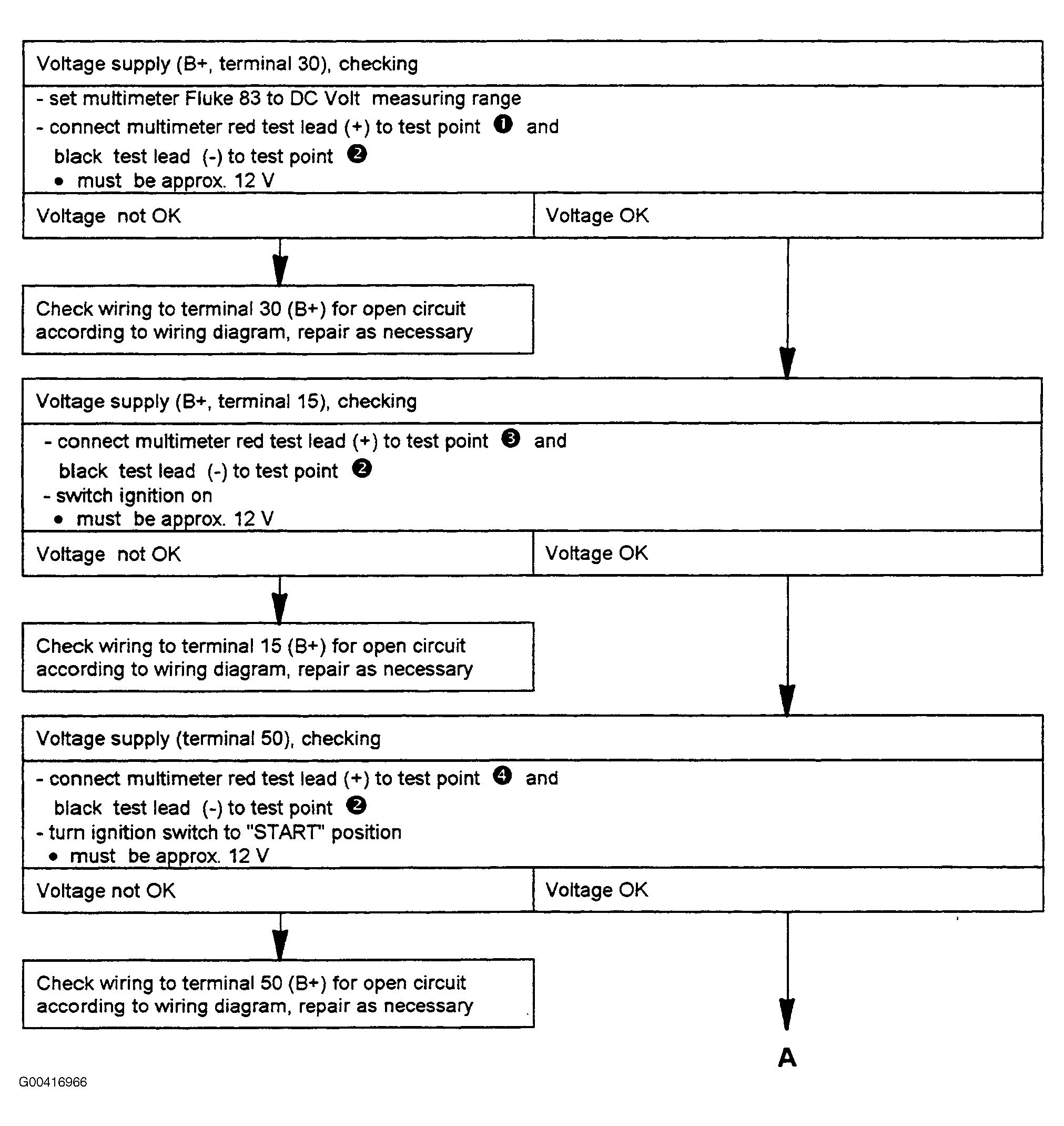

Fig 1: Glow Plug System Troubleshooting (1 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

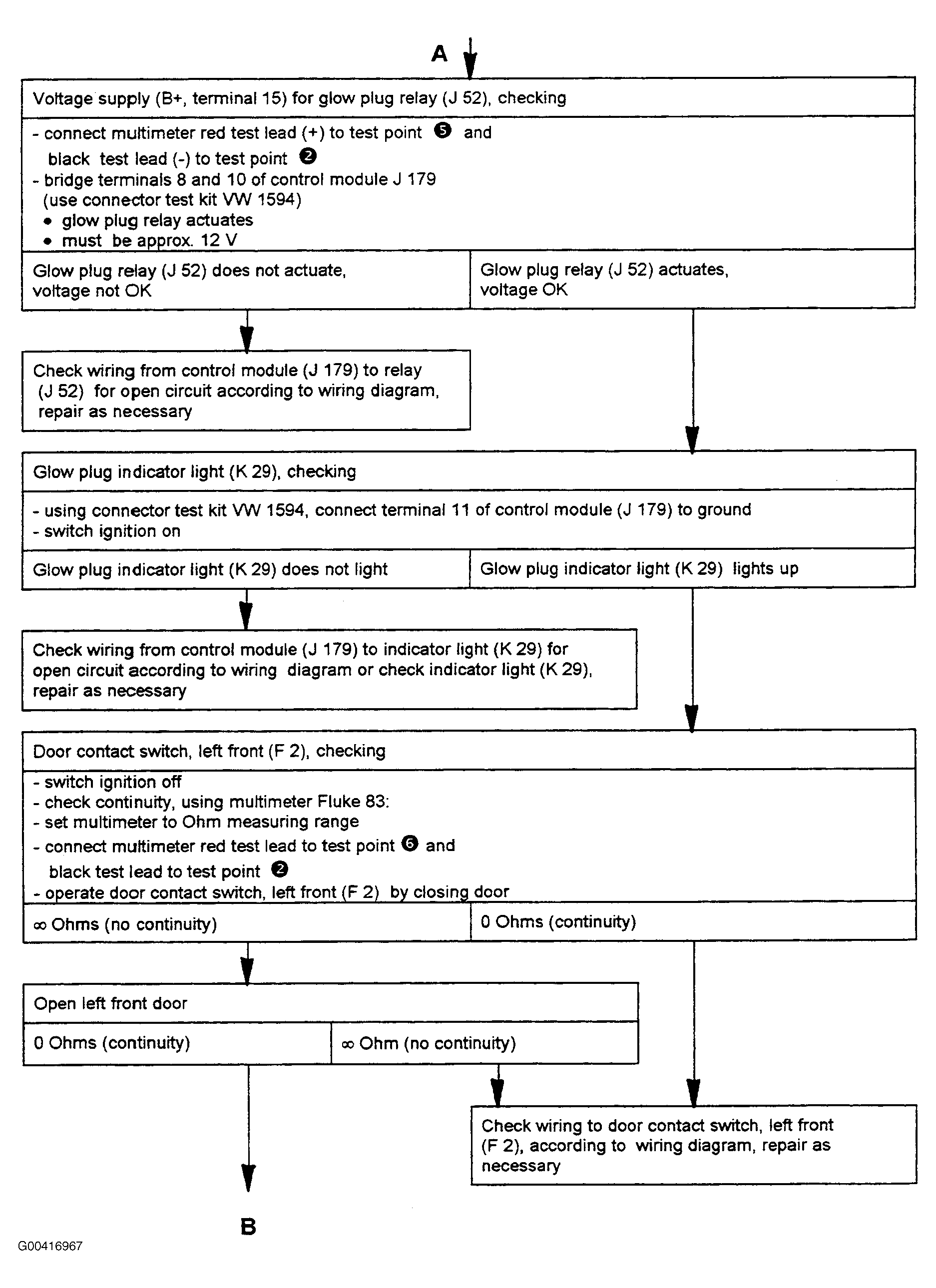

Fig 2: Glow Plug System Troubleshooting (2 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

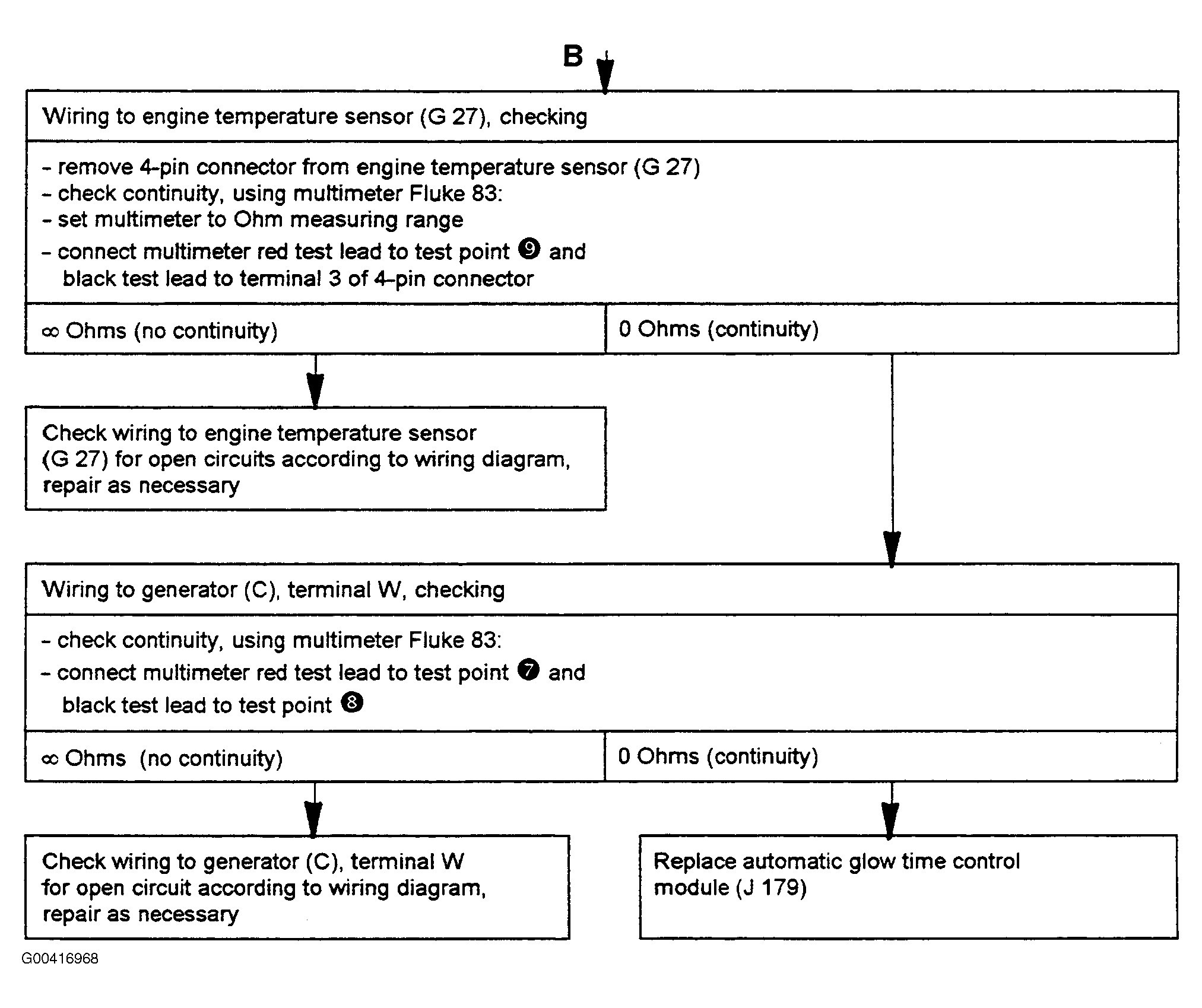

Fig 3: Glow Plug System Troubleshooting (3 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
