DIGIMAT Transmission Control Module Replacing - 49S (GROUP 00, NO. 97-01)

Publication date: 1997-01-29
Reference number: GROUP 00, NO. 97-01
Supersedes refnos: GROUP 00, NO. 96-03

DIGIMAT TRANSMISSION CONTROL MODULE REPLACING - 49S

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 00, NO. 96-03, GROUP 00, NO. 97-01, Date of Issue: January 29, 1997
Superceded Bulletin(s): GROUP 00, NO. 96-03, Date of Issue: December 20, 1996

DIGIMAT TRANSMISSION CONTROL MODULE, REPLACING

Model(s): 1993-on Volkswagen Golf, Jetta, Cabrio 49-State

Group: 00 - General

Bulletin No.: 97-01

Date: January 29, 1997

NOTE: This bulletin supersedes Technical Bulletin Group 00, No. 96-03 dated December 20, 1996.

SERVICE PROCEDURE

Use the chart shown in Fig 1 to determine which Transmission Control Modules (TCM) are available for various 49-state ECM/TCM combinations.

NOTE: * When replacing a TCM for any reason, the choice of Part No. is limited to those TCMs which can be paired with the Engine Control Module (ECM) of the vehicle in question according to the chart.

Vehicle Identification Numbers (VIN) are for general reference only. Most VINs shown are approximate.
When multiple TCM Part Numbers are listed for a particular ECM/TCM combination, these are shown in order of development, i.e. the earliest TCM at the top with later TCMs following below.

CAUTION: Part numbers are for reference only. Always check with your Parts Department for the latest information.

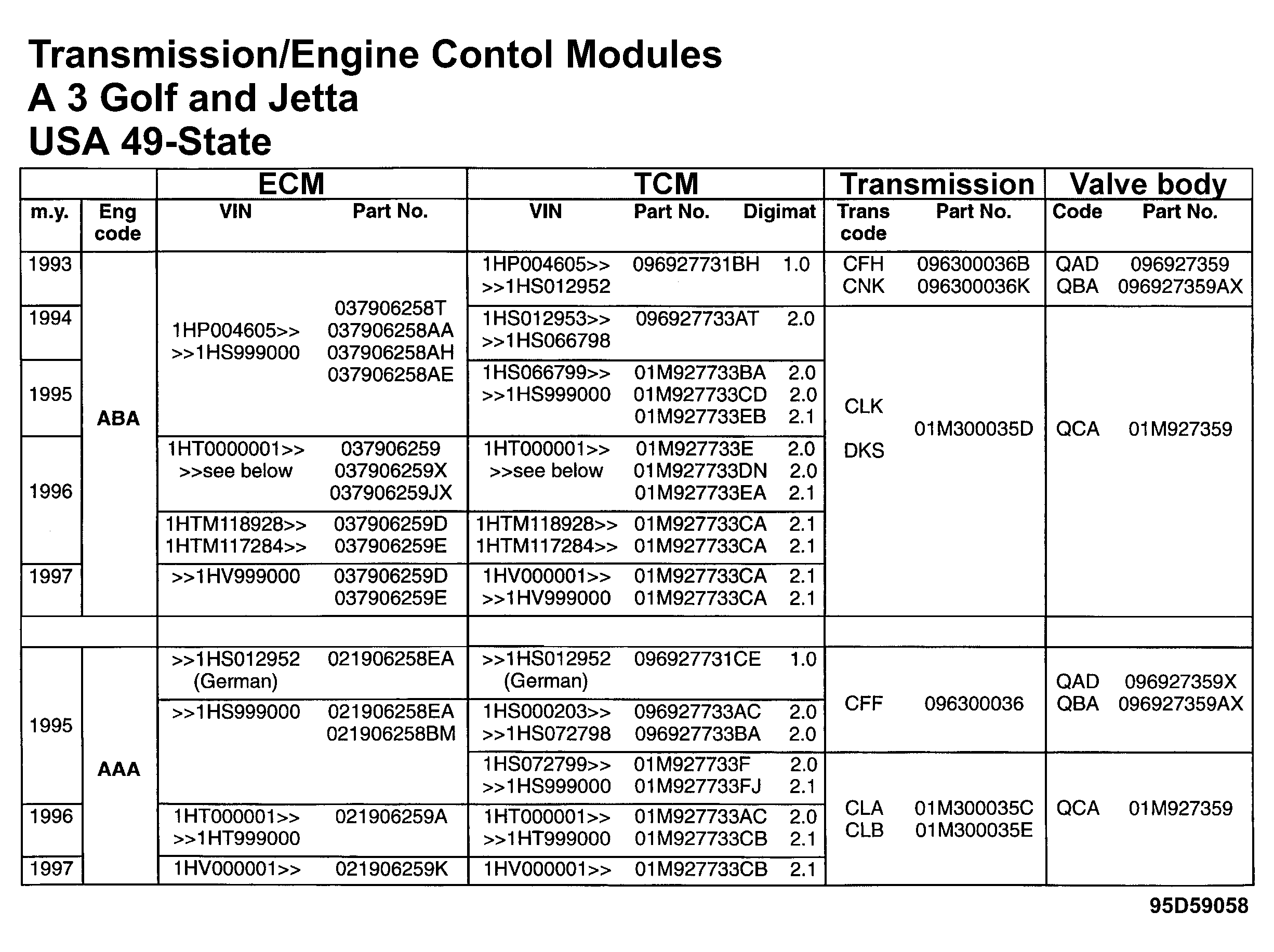

Fig 1: Transmission/Engine Control Module Application Chart
