Engine Specifications and Clearances

Engine specifications, 6-Cyl

Engine And Transmission Codes:





Valve Specifications AAA Engine:

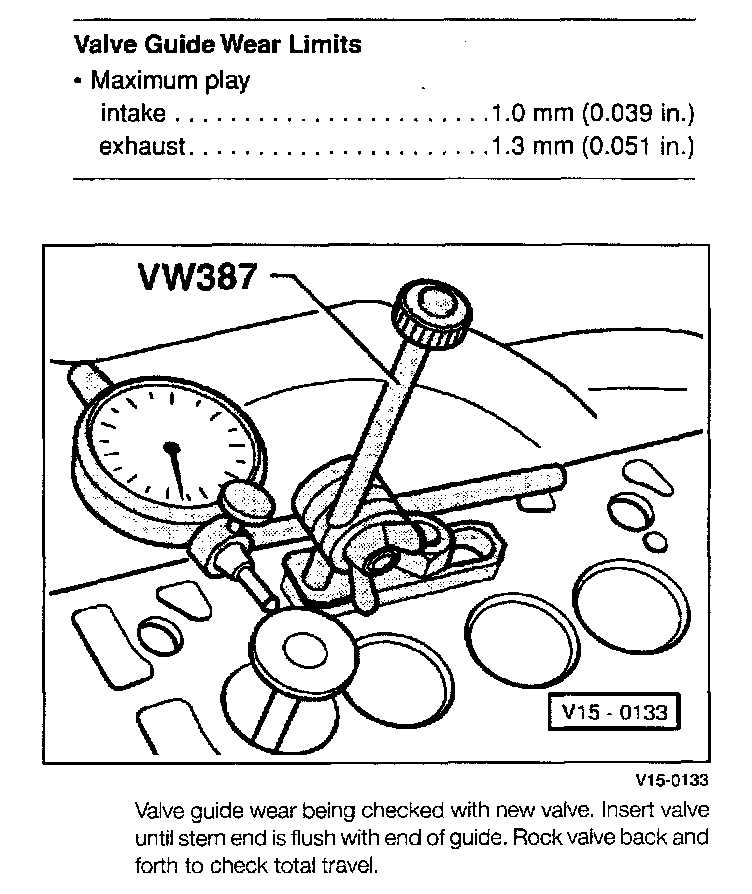

Valve Guide Specifications:

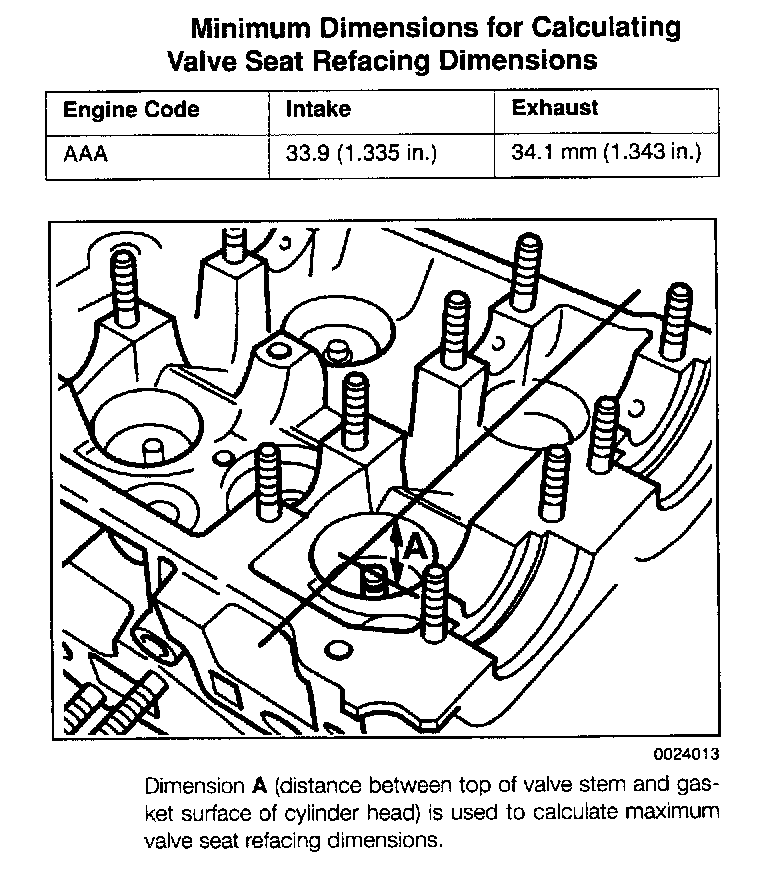

Valve Seat Specifications AAA Engine:

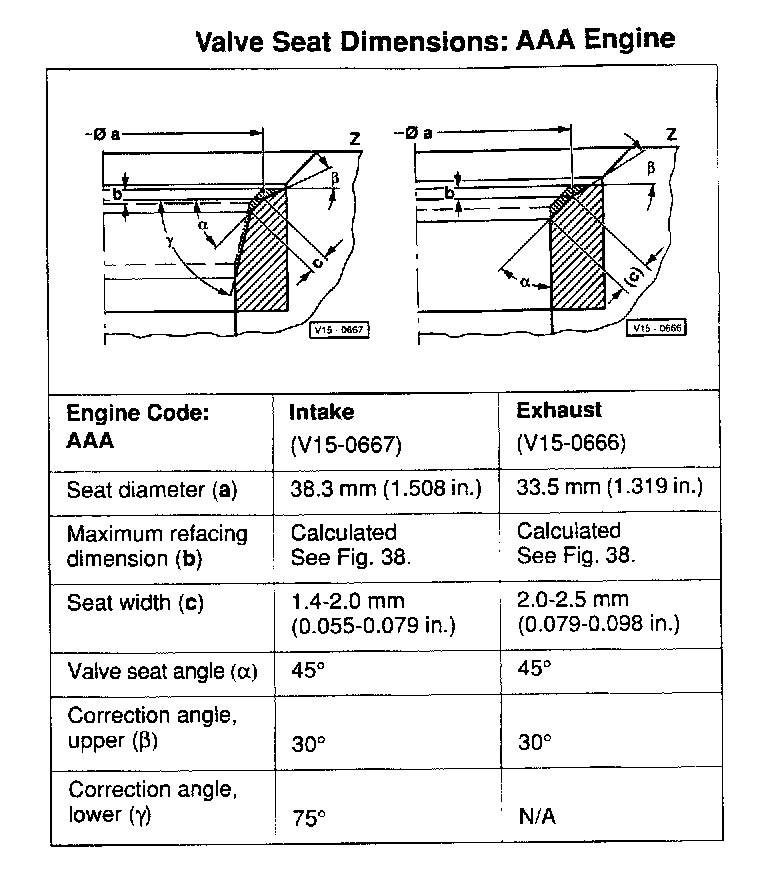

Valve Seat Dimensions AAA Engines:
