Transmission Vehicle Speed Sensor

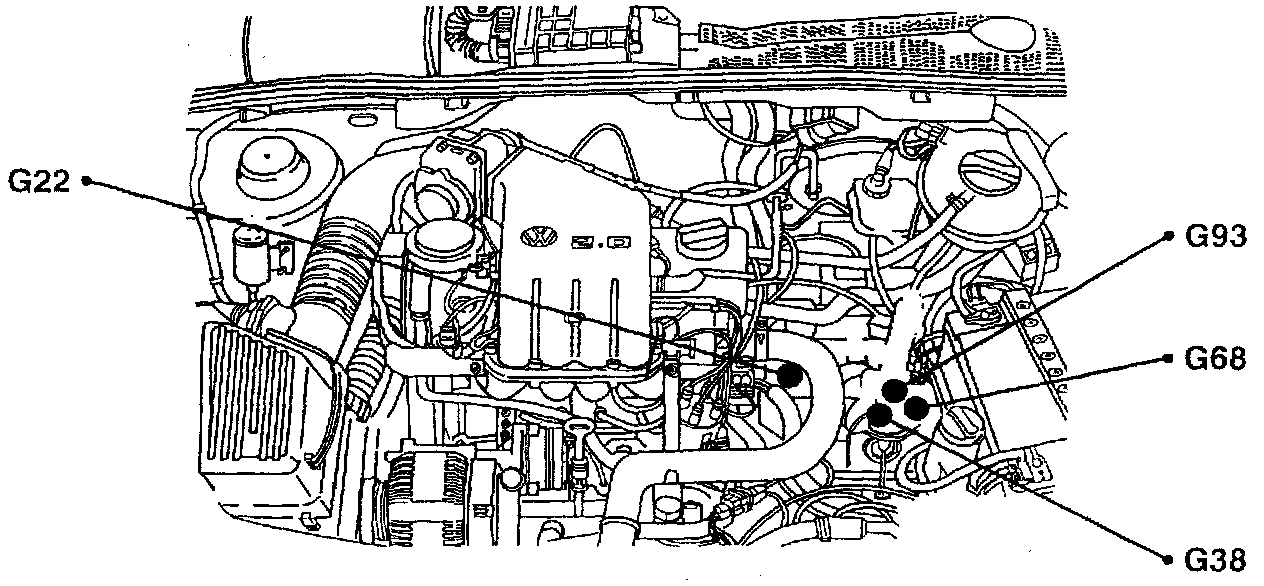

G22, G68, G38, G93:






Component Location View


G38:






Component View

G38 Transmission Vehicle Speed Sensor (VSS)
- Top of transmission, near ATF heat exchanger
