Engine Controls - OBD II System Revisions

Group: 24

Number: 96-01

Date: Apr. 12, 1996

Subject:
OBD II Fuel Injection & Ignition, Air Cleaner, MAF Sensor, PCV Heating Element

Model(s):
Golf/GTI/Jetta w/2.8L VR6 engine 1996 -->

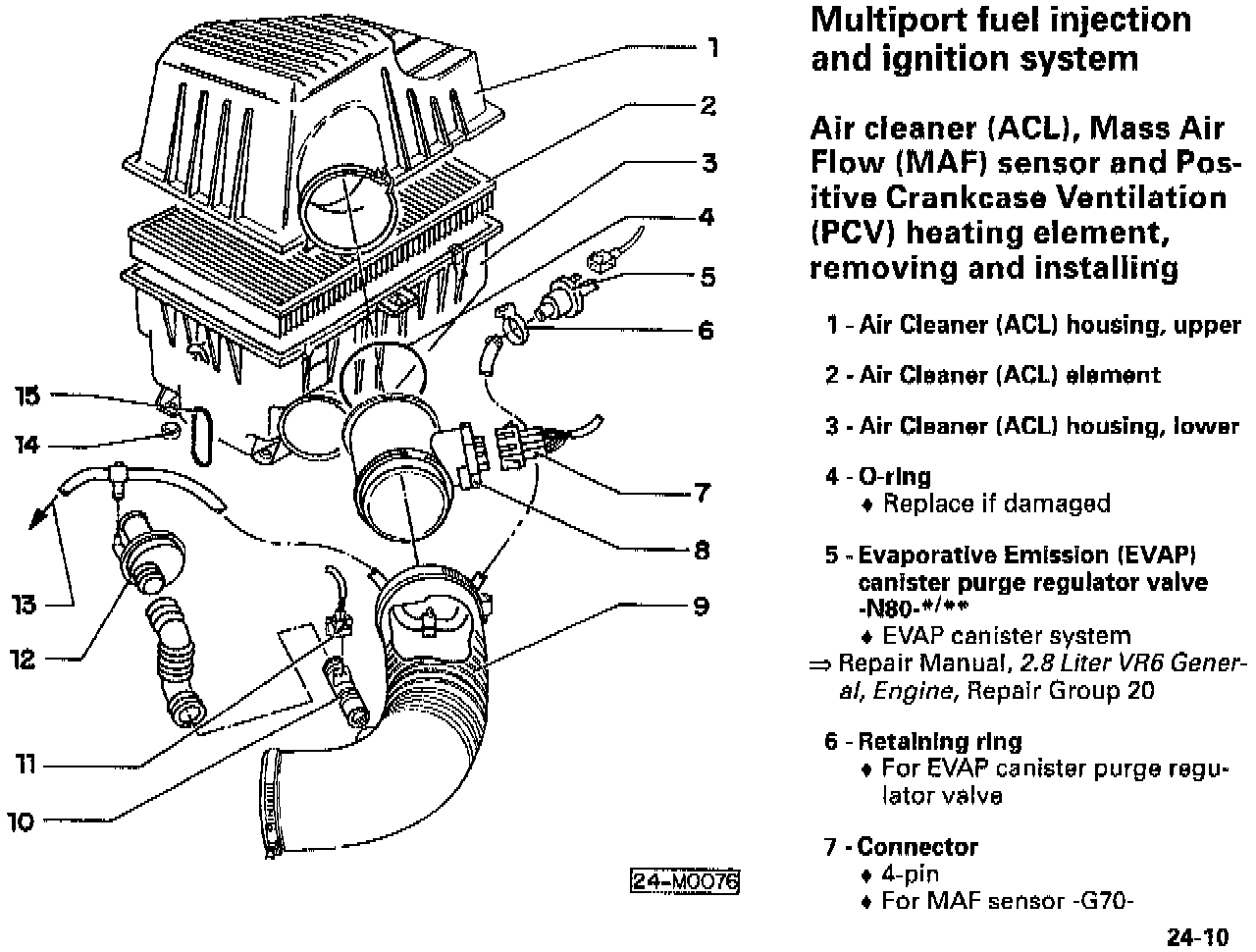

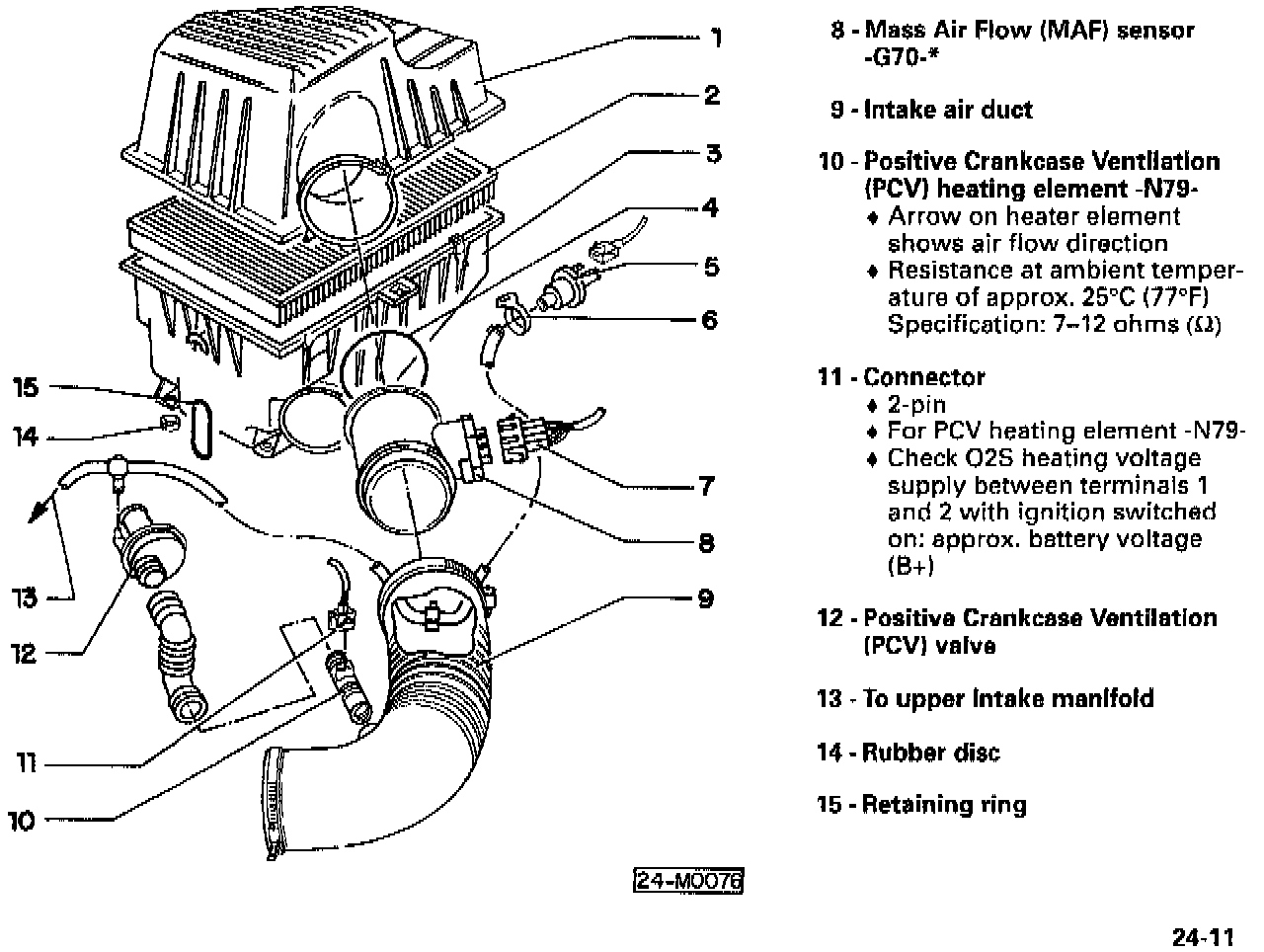

The following Repair Manual pages are to correct an error in the current edition, which included an incorrect illustration.








These pages replace pages 24-10 and 24-11 in the current edition Repair Manual, 2.8 Liter VR6 OBD II VAG 1551 Fuel Injection & Ignition (W42 011 294 123), and will be integrated with the next Repair Manual update.
