Connector Locations

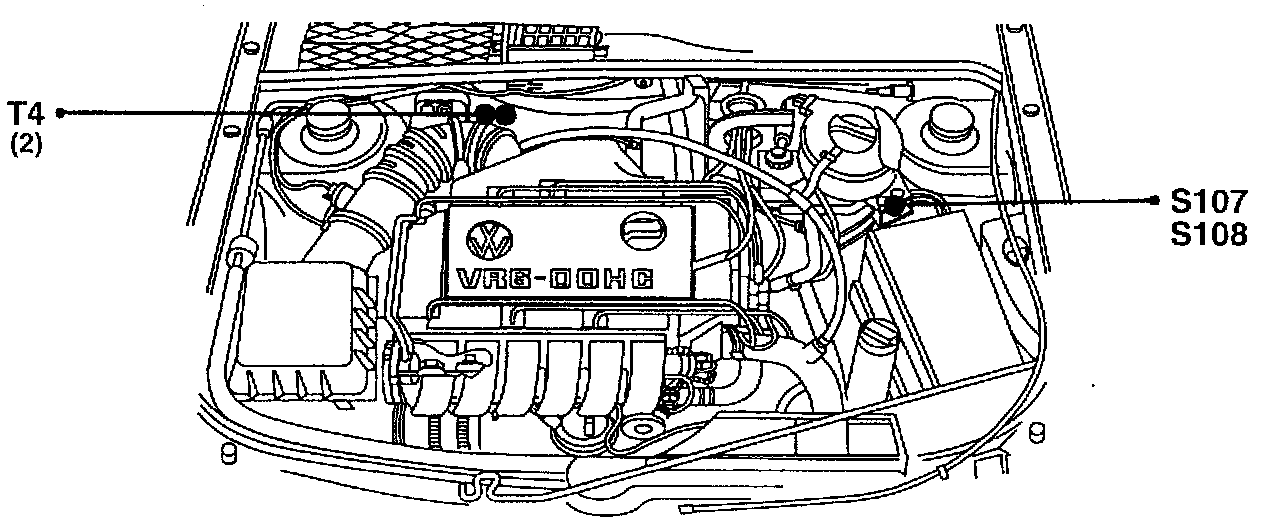

S107, S108, T4:

Component Location View

T4:

Component View


T4 4-pin connector
- Black Above Steering Gear
- For heated oxygen sensor, G39

S107, S108, T4:

Component Location View

T4:

Component View

T4 4-pin connector
- Brown, Above Steering Gear
- For heated oxygen sensor 2, G108
