Engine Mount

Engine/transmission mounts, tightening torques

- Specifications are for lightly oiled bolts.

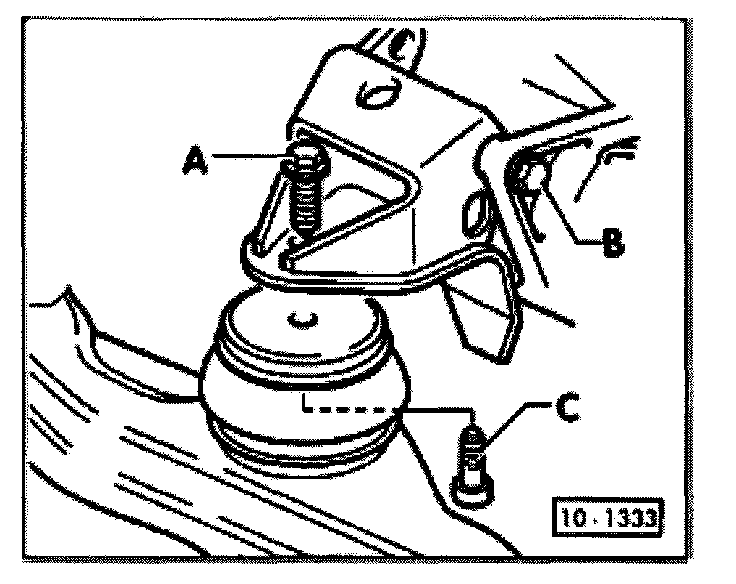

Front engine/transmission mount




A 55 Nm (41 ft lb)
B 55 Nm (41 ft lb)
C 55 Nm (41 ft lb)

Right rear engine/transmission mount




A 25 Nm (l8 ft lb)
B 60 Nm (44 ft lb)
C 25 Nm (l8 ft lb)

Right engine/transmission mount (Cabrio only)




A 50 Nm (37 ft lb)
B 35 Nm (26 ft lb)
C 25 Nm (l8 ft lb)

Left rear engine/transmission mount




A 6O Nm (44 ft lb)
C 3O Nm (22 ft lb)
D 25 Nm (18 ft lb)

Front cross member to Body

Bolt 50 Nm (37 ft lb)
