Radiator Cooling Fan Control Module: Locations

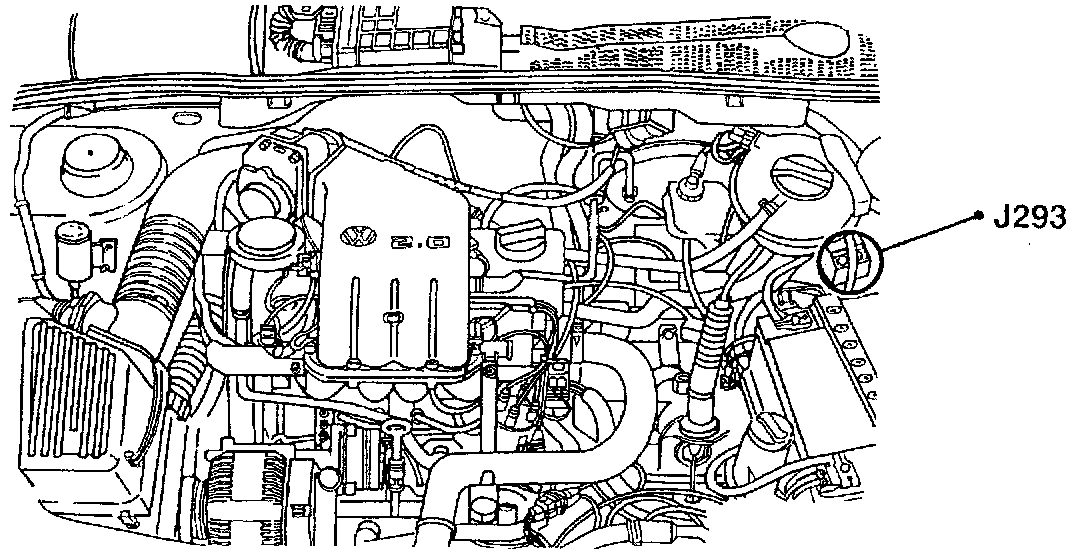

J293:






Component Location View


J293:






Component View

J293 Coolant fan control module
- Engine compartment, left-side, behind battery and below coolant expansion tank; black housing
