Ignition Power Stage: Locations

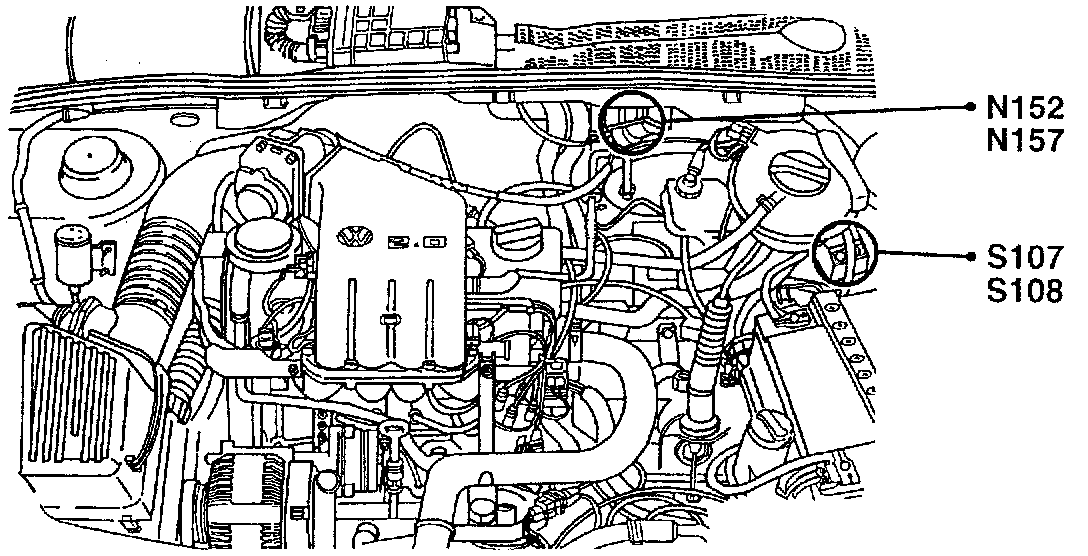

N152, S107, S108, N157:
Component Location View
N157:
Component View
N157 Ignition Coil Power Output Stage
- Part of assembly including ignition coil N152 (above); 3-pin connector
Component Location View
Component View
N157 Ignition Coil Power Output Stage
- Part of assembly including ignition coil N152 (above); 3-pin connector
