Connector Locations
T4, T28a, T4, V144:

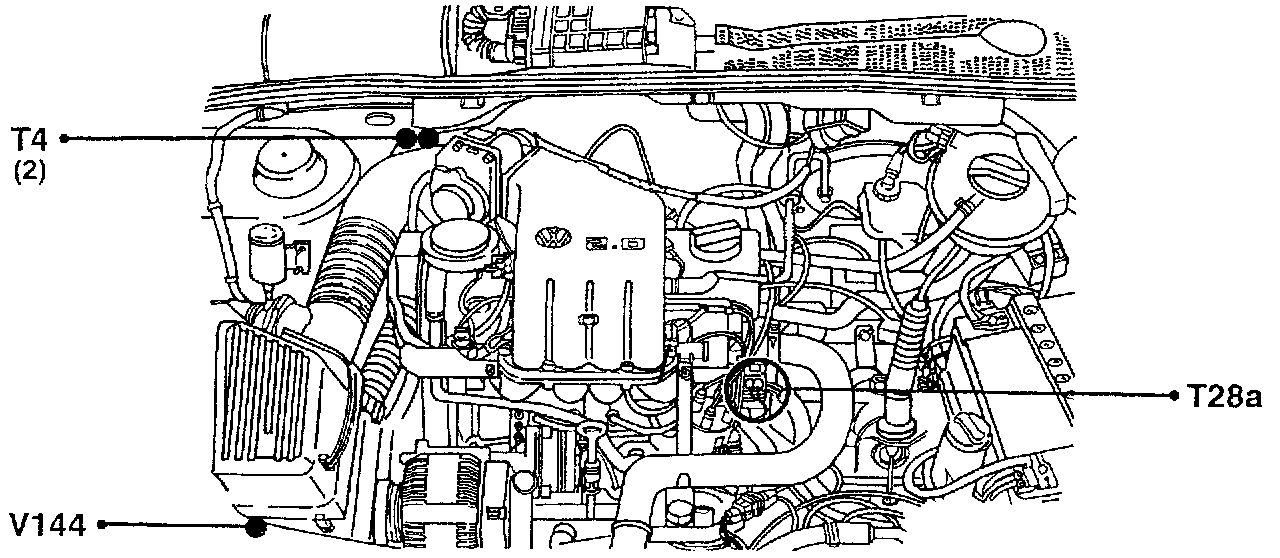

Component Location View
T4:
Component View
T4 4-Pin Connector
- Black, above steering gear
- For heated oxygen sensor, G39
T4, T28a, T4, V144:
Component Location View
T4:
Component View
T4 4-Pin Connector
- Green, above steering gear
- For heated oxygen sensor 2, G108
