V69 Central Locking System Pump and Control Module




Component View:

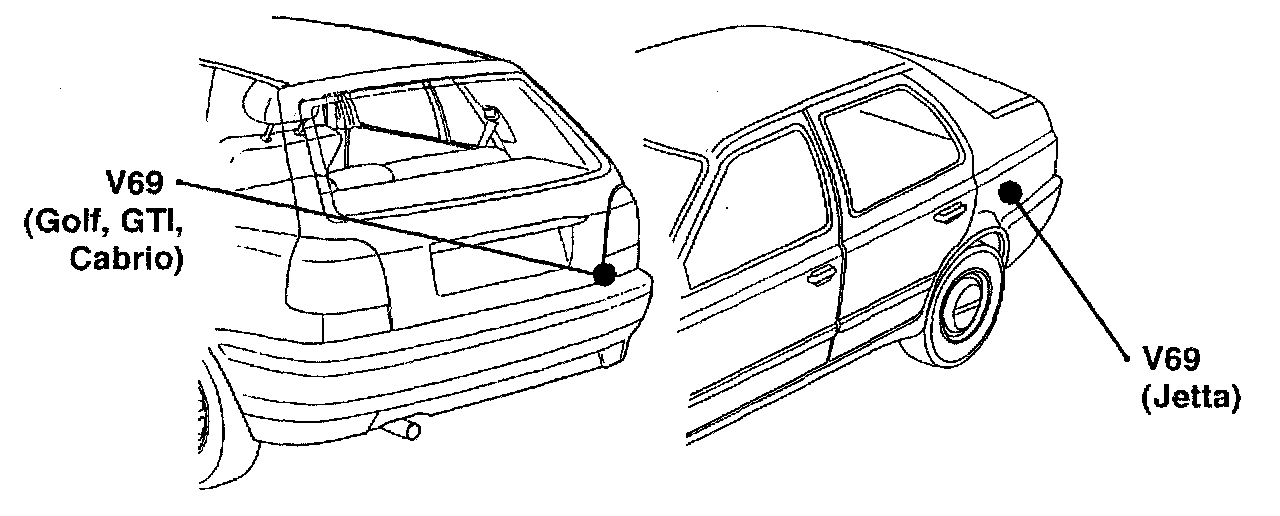

Central Locking System Pump and Control Module (Golf, GTI, Cabrio) V69

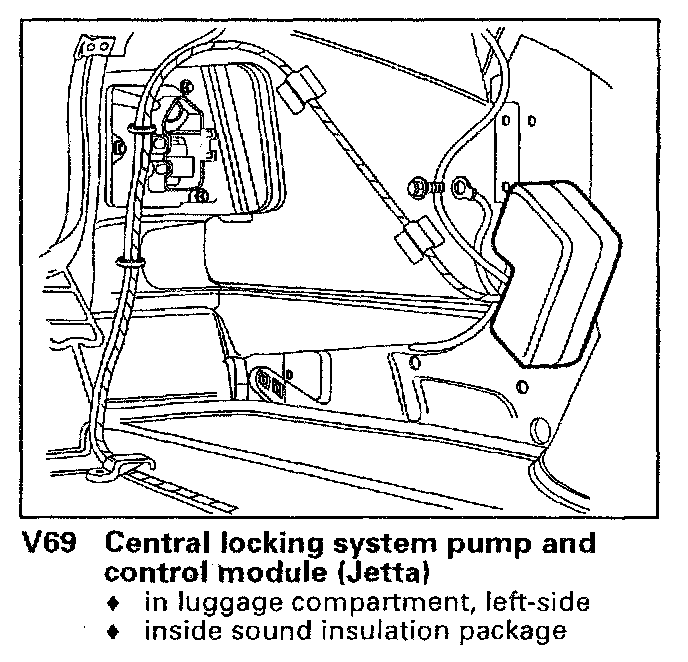

Central Locking System Pump and Control Module (Jetta) V69
