01M

Vehicle speed sensor -G68-

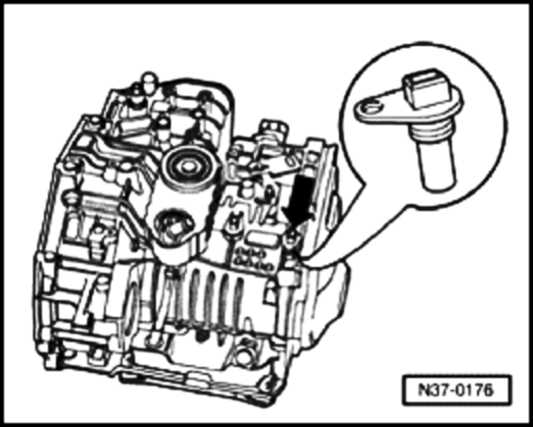

Location: On top of transmission -arrow-






Removing and installing

- Switch ignition off
- Disconnect black connector from sensor
- Remove bolt and pull sensor out
- Replace seal

Install in reverse order of removal

- Tighten bolt to 10 Nm (7 ft lb)
