Primary & Secondary Windings

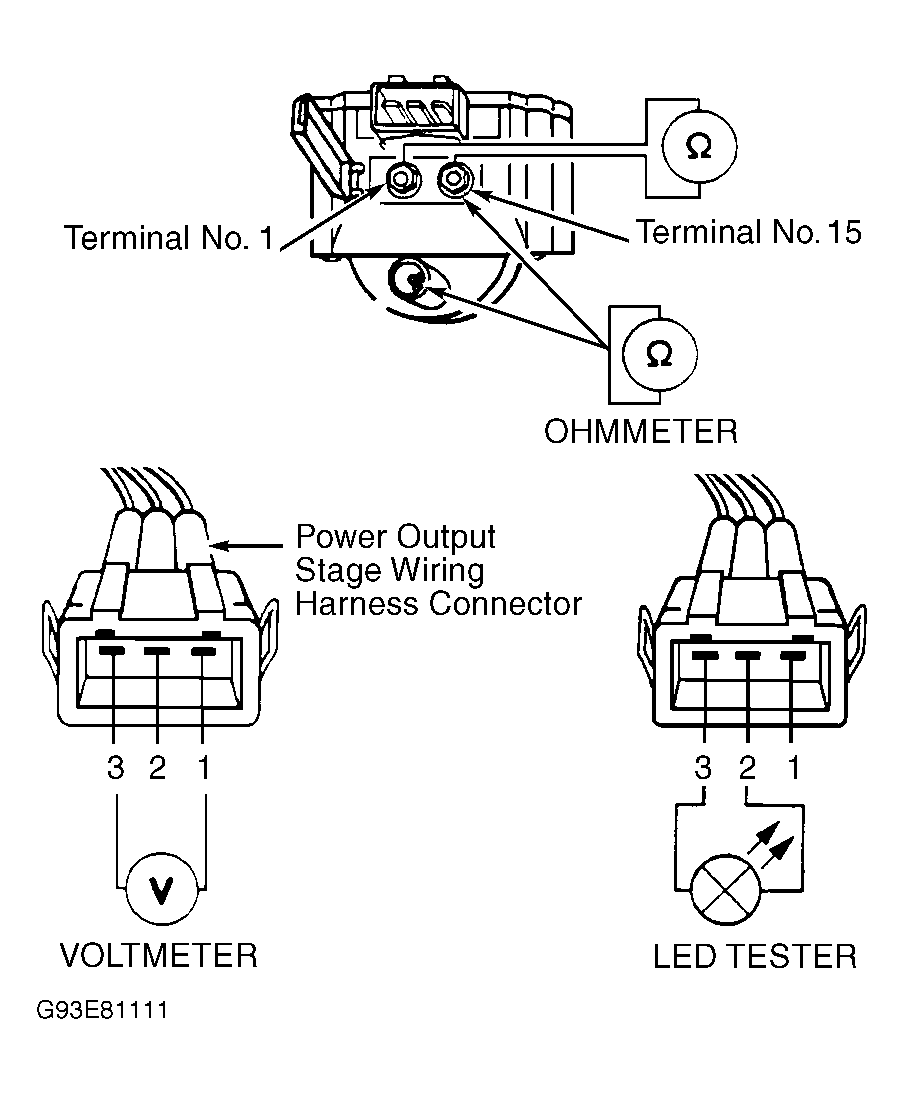

  1. Connect Digital Volt-Ohmmeter (DVOM) between coil terminals No. 1 and 15. See Figure . Primary coil resistance should be 0.5-0.7 ohm.
  2. Connect DVOM between coil tower and terminal No. 15. Secondary coil resistance should be 3000-4000 ohms. If resistance values are incorrect, remove ignition coil. Remove ignition coil power output stage from coil and repeat test.
