Vacuum Diagrams - 2.8L: Introduction

This article contains underhood views or schematics of vacuum hose routing. Vacuum diagrams are an excellent tool for identifying improperly routed vacuum hoses. Improperly routed vacuum hoses cause driveability and computer-indicated malfunctions.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label vacuum hose routing.

Fig 1: Vacuum Diagram EGR System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Vacuum Diagram EVAP System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

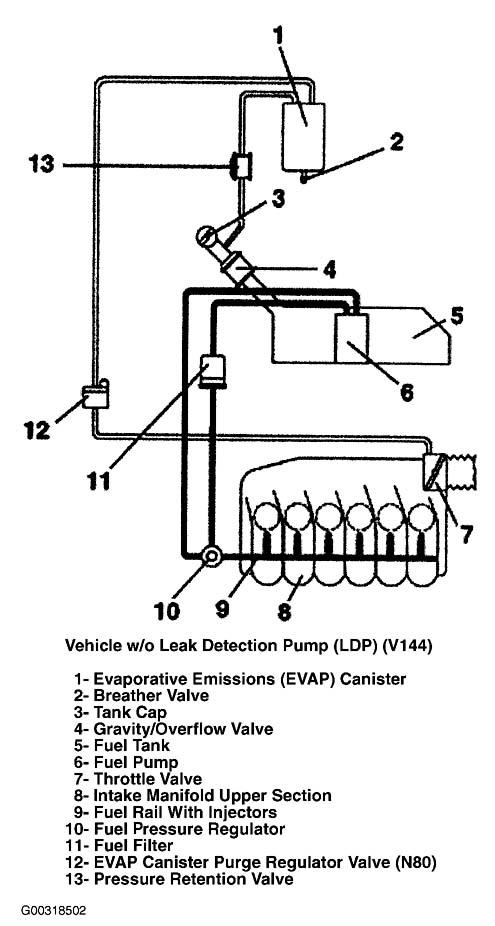

Fig 3: Vacuum Diagram EVAP System, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Vacuum Diagram Secondary Air Injection System

Courtesy of VOLKSWAGEN UNITED STATES, INC.
