Model Identification
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Volkswagen EuroVan, 2002 Volkswagen EuroVan, 2001 Volkswagen EuroVan, 2000 Volkswagen EuroVan, and 1999 Volkswagen EuroVan. However, it is still accessible from the selected car via links, so may be relevant.

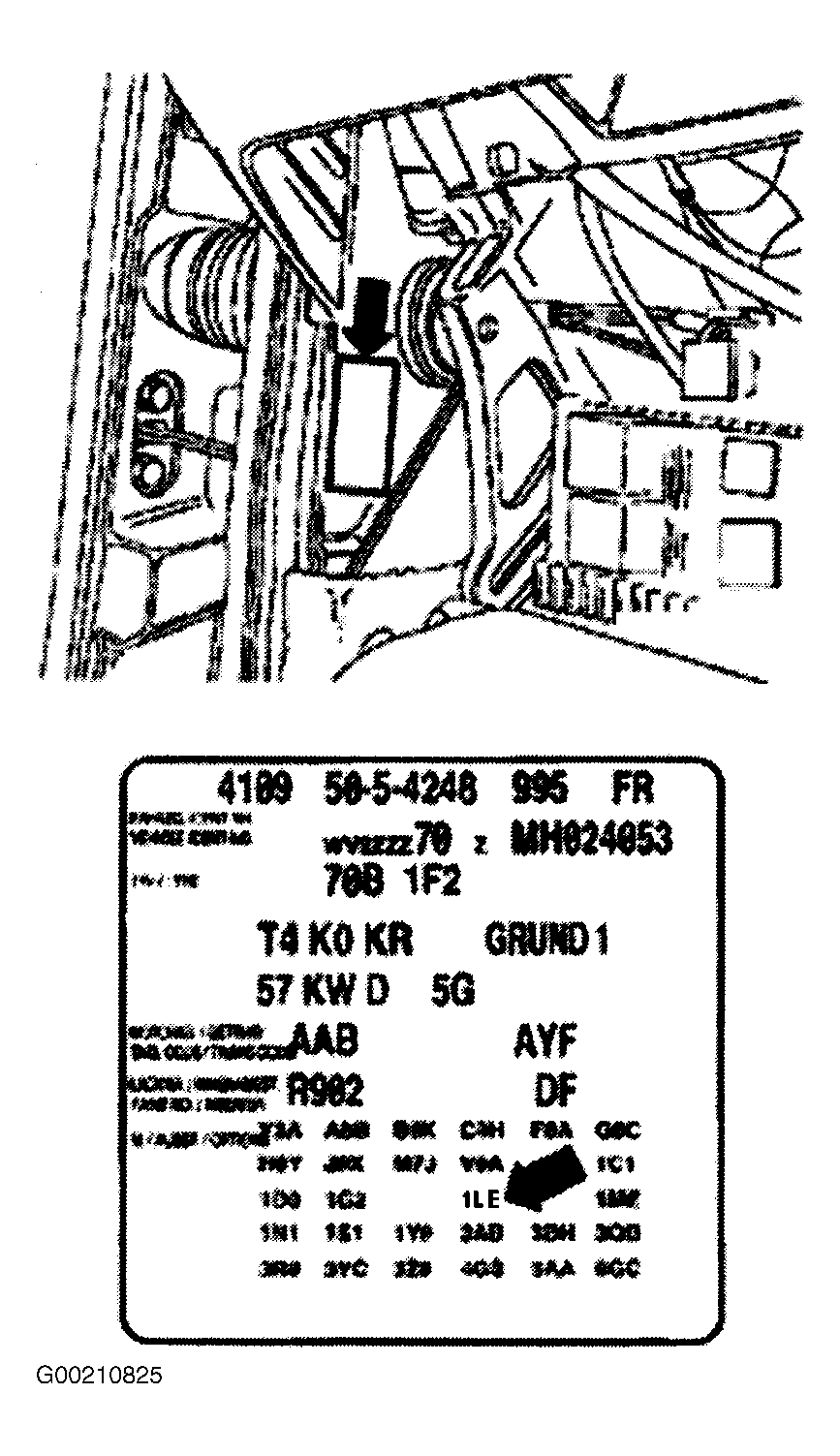

For EuroVan, several different brake versions are used by Volkswagen. Brake systems are differentiated by "M" number located on vehicle data plate. Vehicle data plate is located on left "A" pillar, next to central electronics, (on vehicles with knee padding, vehicle data plate is located under central electric cover. See Fig 1
. To identify brake systems, see EUROVAN BRAKE SYSTEM IDENTIFICATION

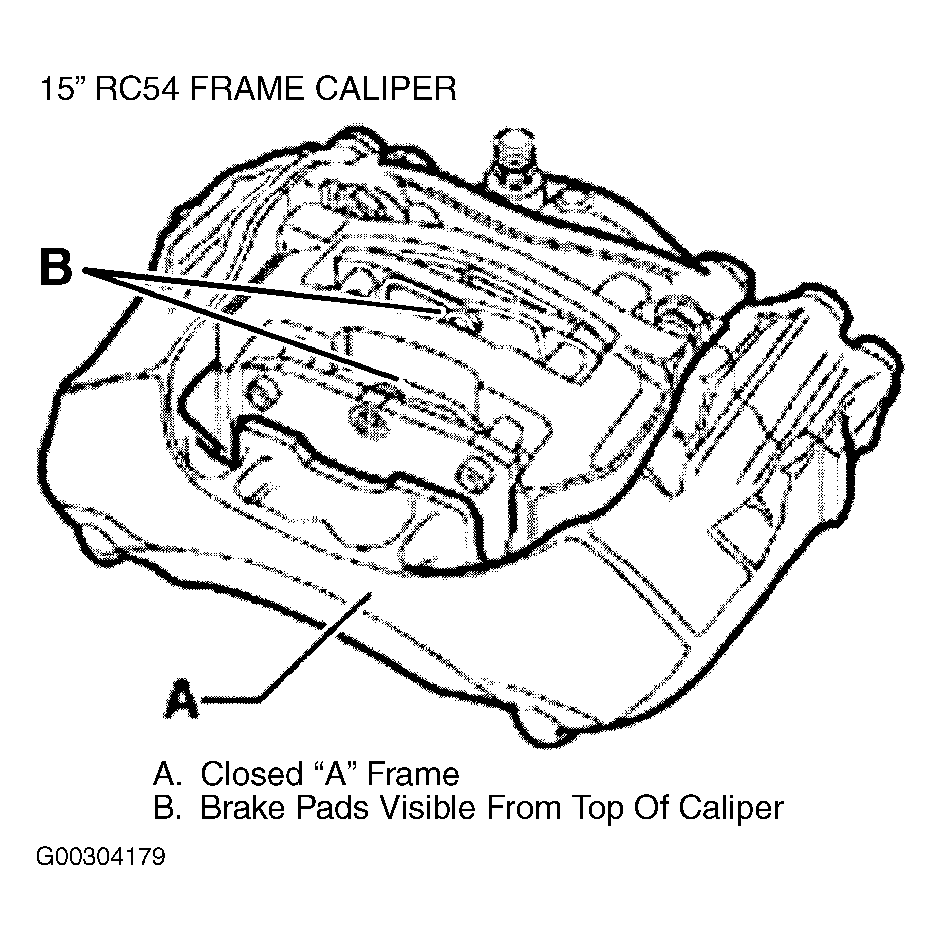

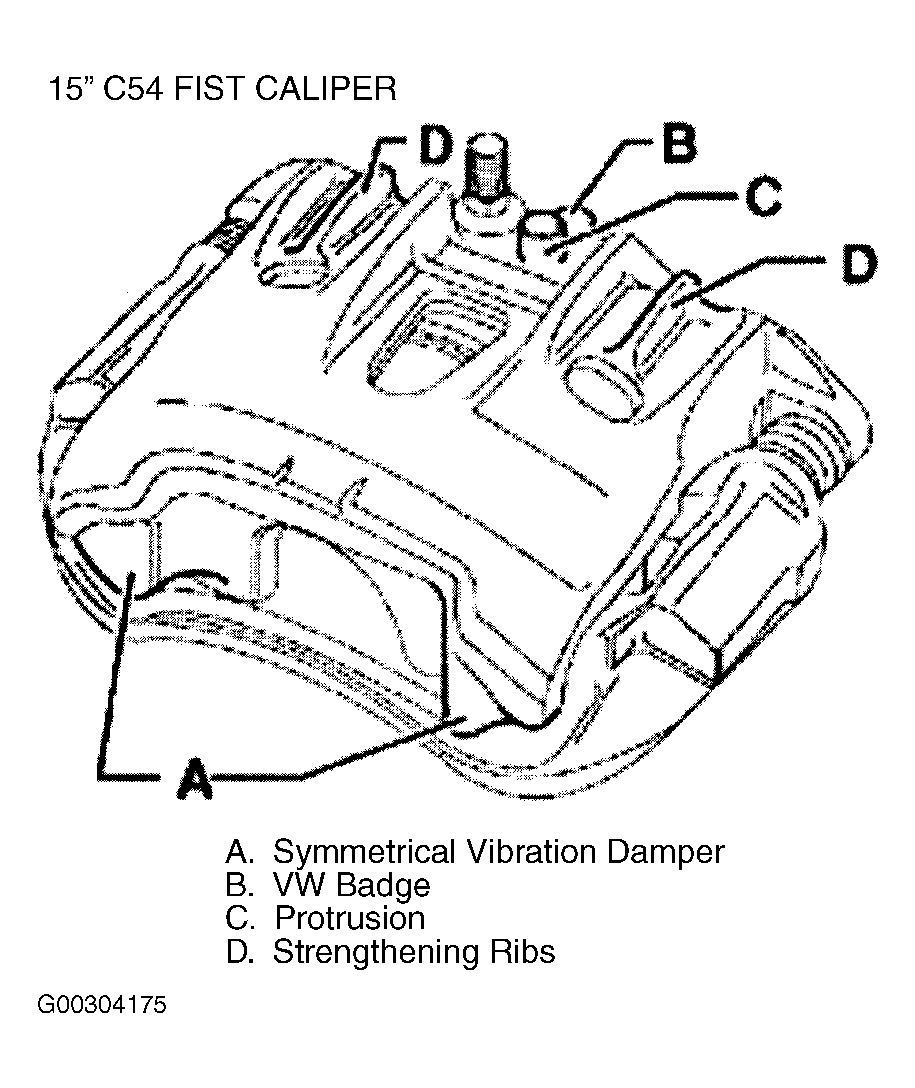

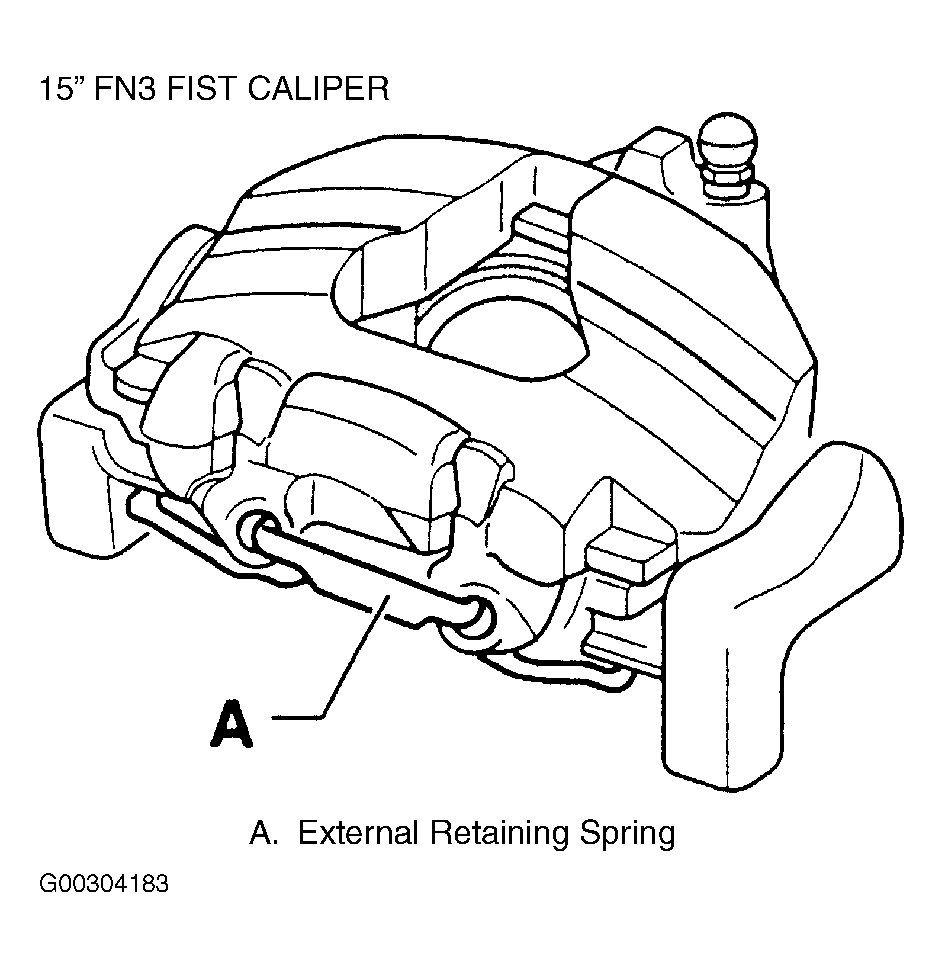

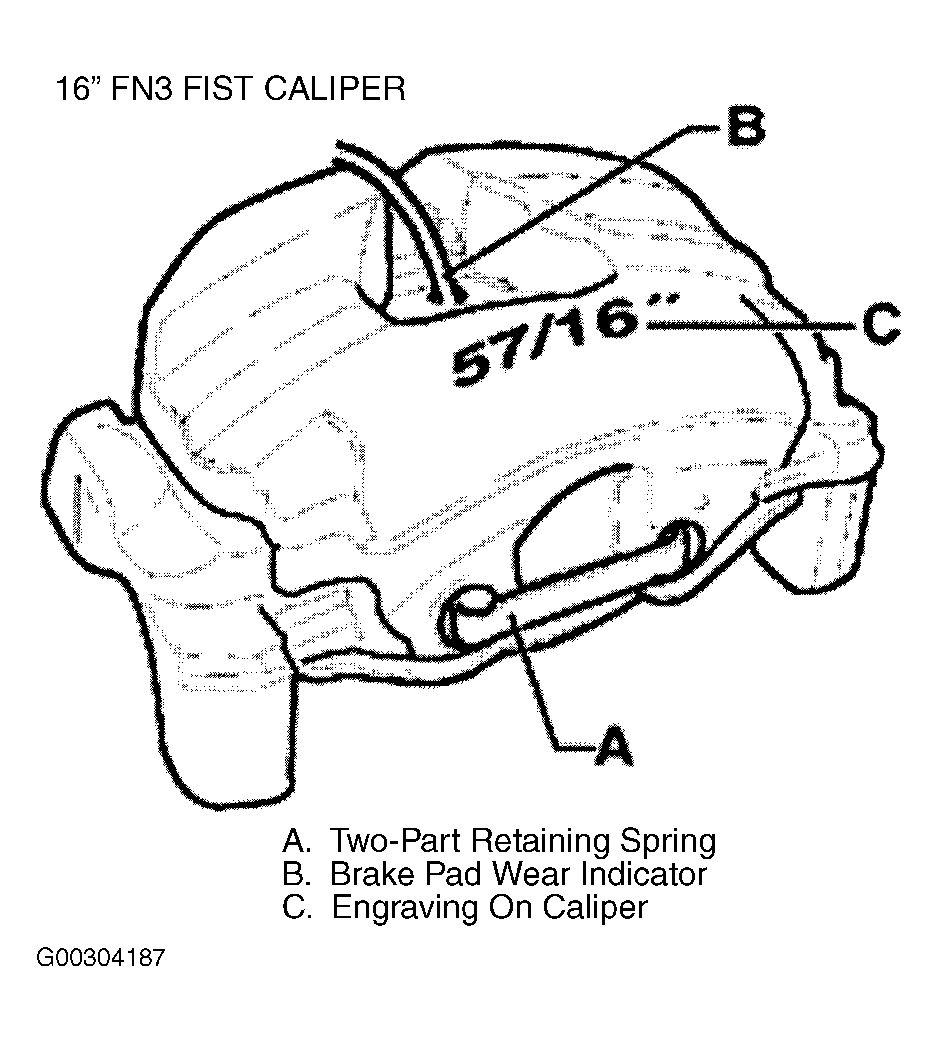

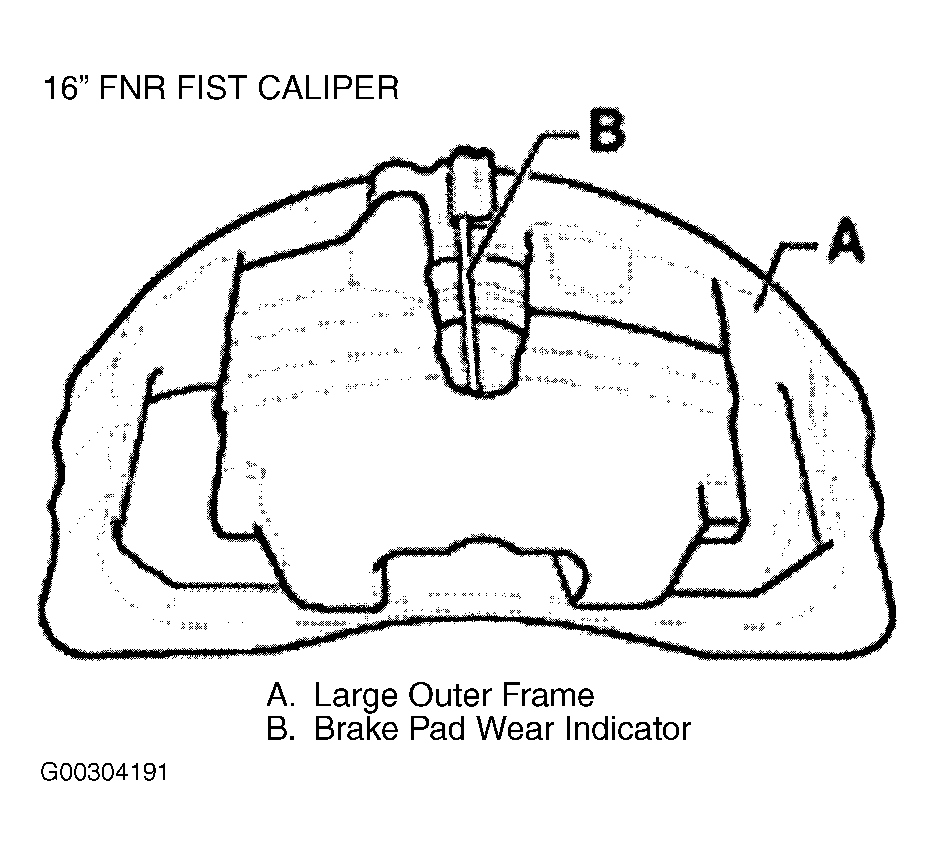

table. For visual identification of brake systems, see Fig 2
-Fig 6
.
EUROVAN BRAKE SYSTEM IDENTIFICATION
| "M" Number |
Brake System |
| 1LU With 15" Wheels |
FN3 |
| 1LP With 15" Wheels |
C54 |
| 1LE With 15" Wheels |
RC54 |
| 1LB With 16" Wheels |
FN3 Or FNR |
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
