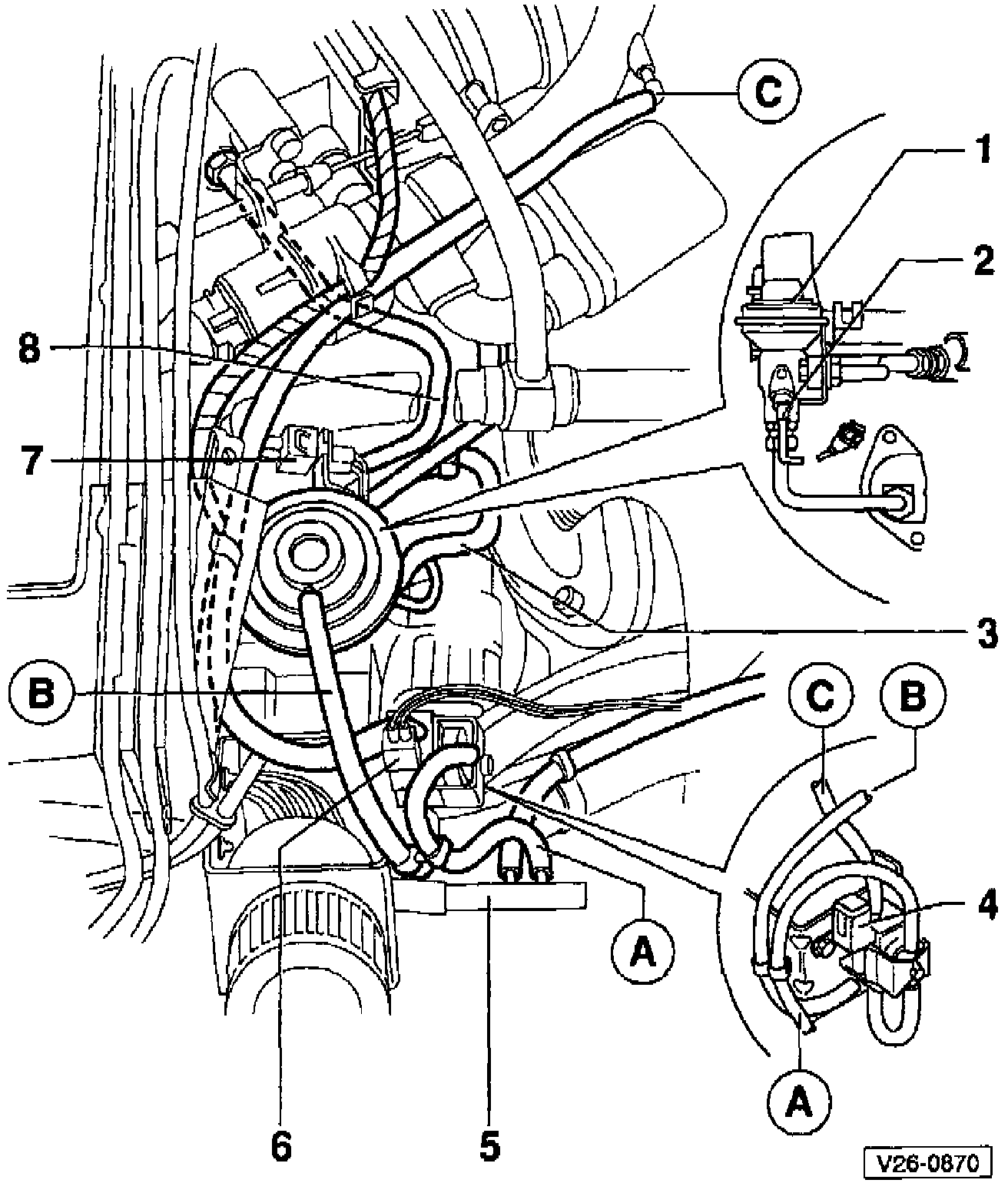

EGR System

1 - EGR valve
2 - EGR temperature sensor
^ tightening torque: 20 Nm (15 ft lb).

3 - Pipe
^ for exhaust gas inlet

4 - EGR Vacuum Regulator Solenoid Valve N18
^ two-way valve

5 - Collective vacuum collection
^ for intake manifold vacuum

6 - Connector
^ 2-pin
^ for EGR Vacuum Regulator Solenoid Valve N18

7 - Connector
^ 2-pin
^ for EGR temperature sensor G98

8 - Pipe
^ for exhaust gas outlet
