Engine Specifications and Clearances

Engine Specifications

Engine And Transmission Codes:





Connecting Rod Specifications:





Piston Ring Specifications:

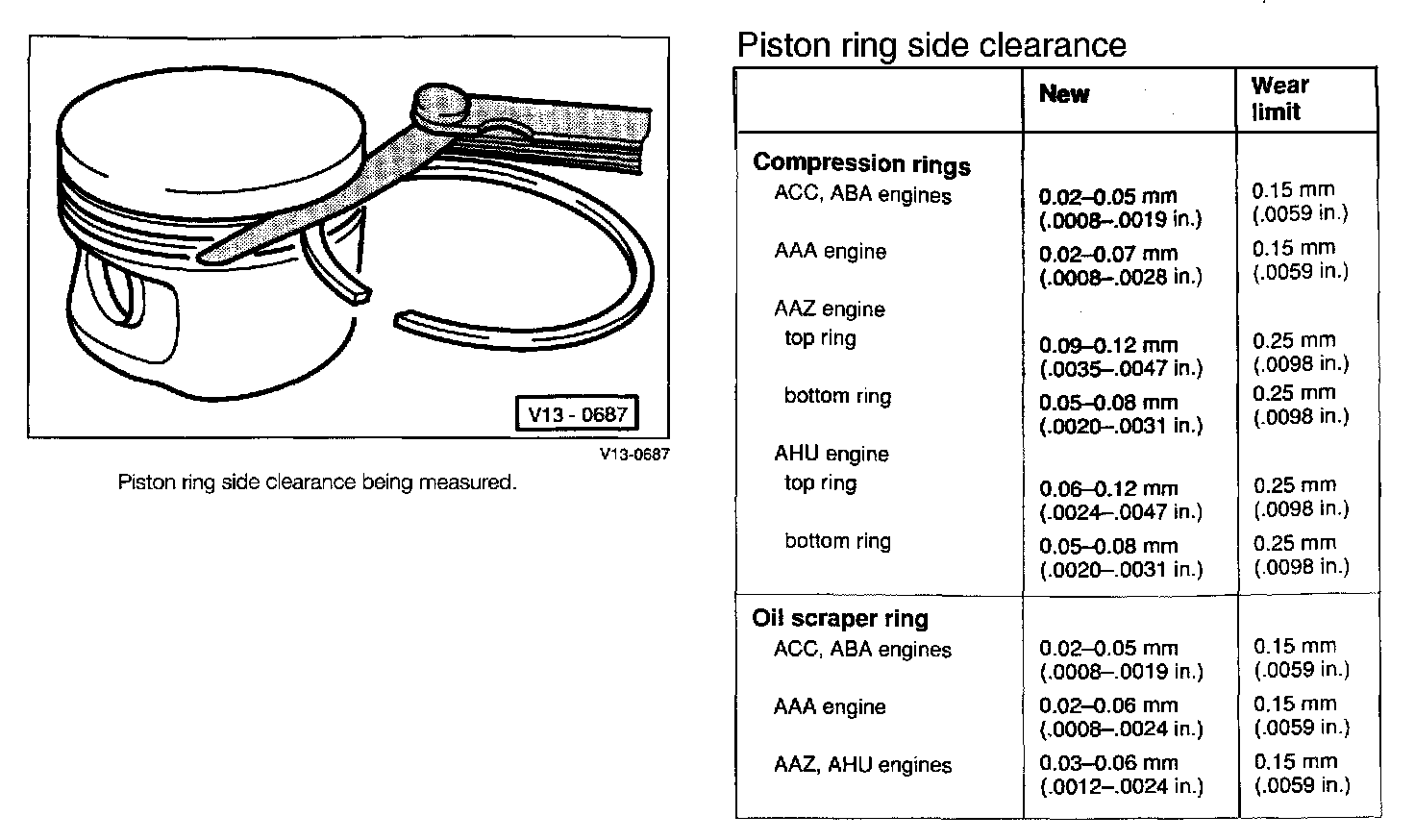

Piston Ring Side Clearance Specifications:

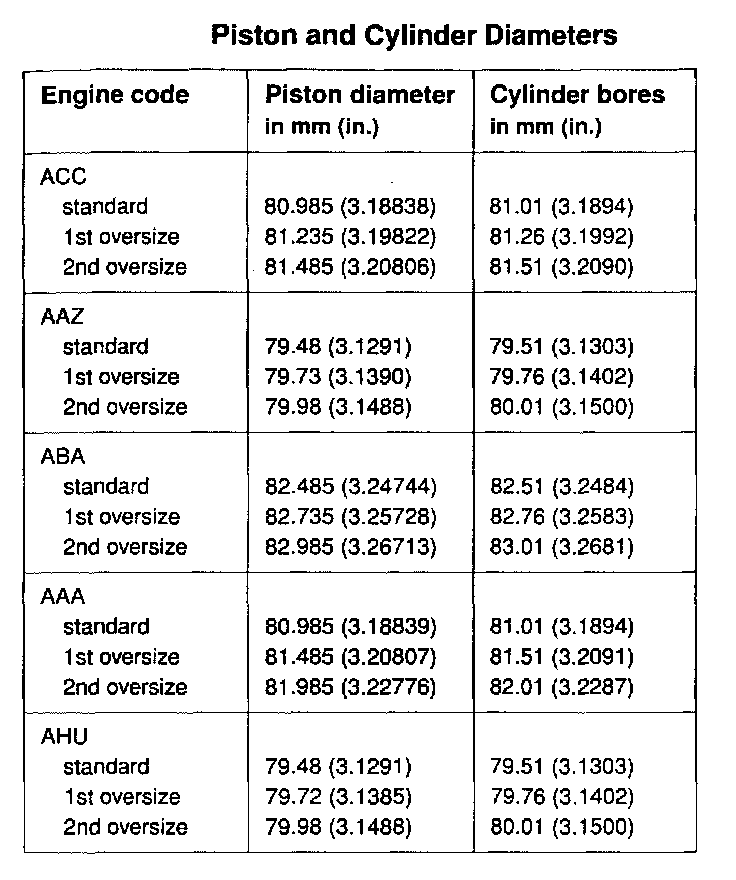

Piston And Cylinder Diameters Specifications:

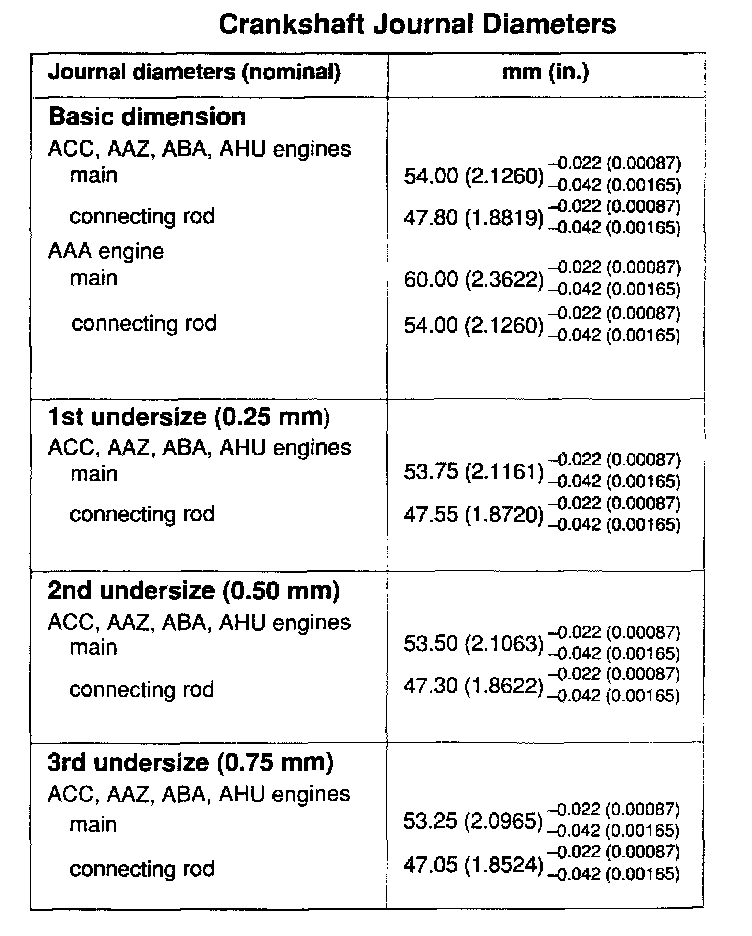

Crankshaft Journal Specifications:

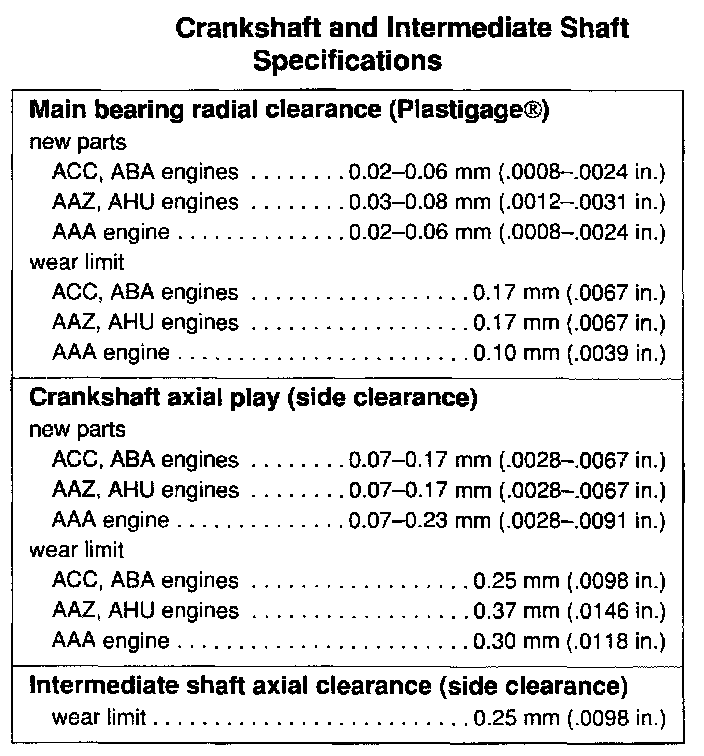

Crankshaft And Intermediate Shaft Specifications:





Four Cylinder Engines

Compression Specifications:

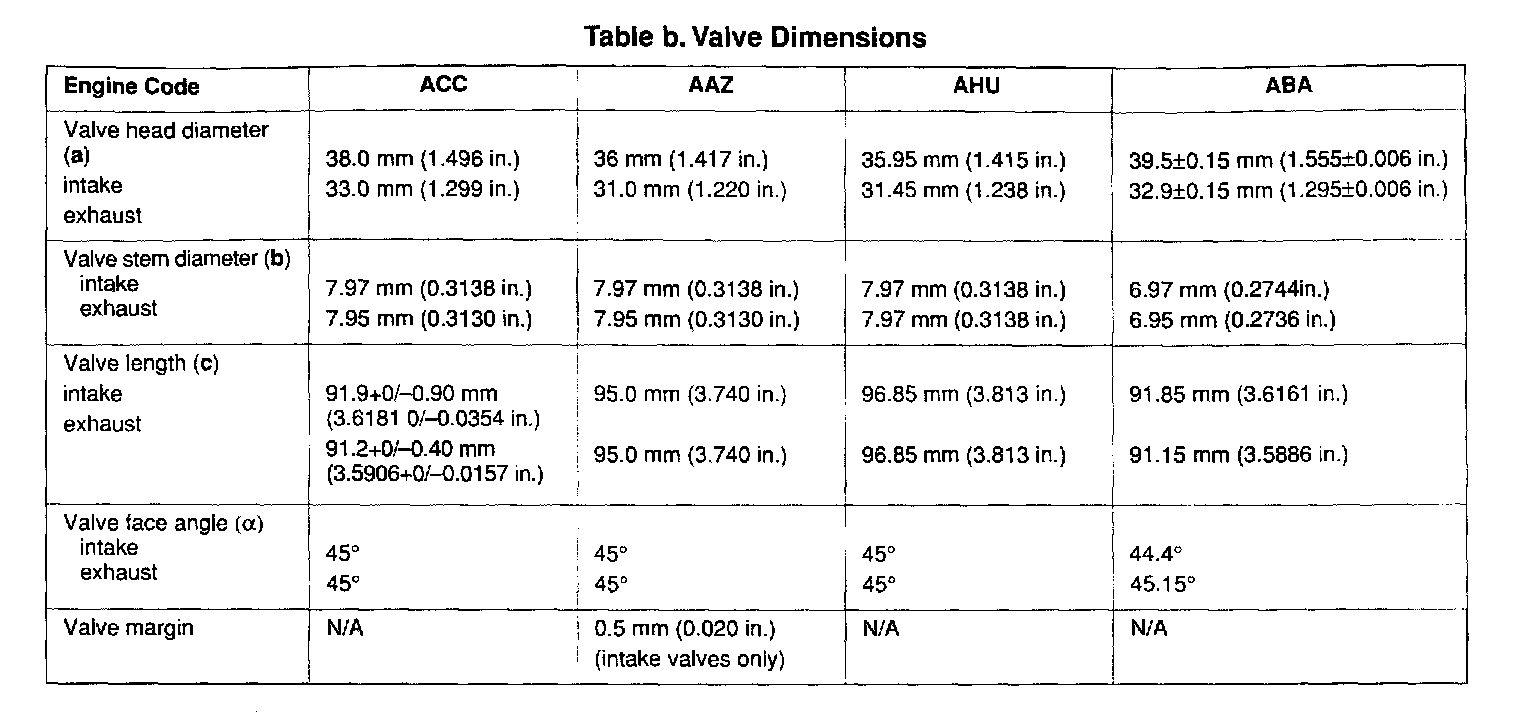

Valve Dimension Specifications:





Valve:




Valve Wear Specifications:





Valve Seat Dimensions ; ACC Engines:





Valve Seat Dimensions;AAZ Engines:





Valve Seat Dimensions ; ABA Engines:





Valve Seat Dimensions ; AHU Engines:
