Component Locations

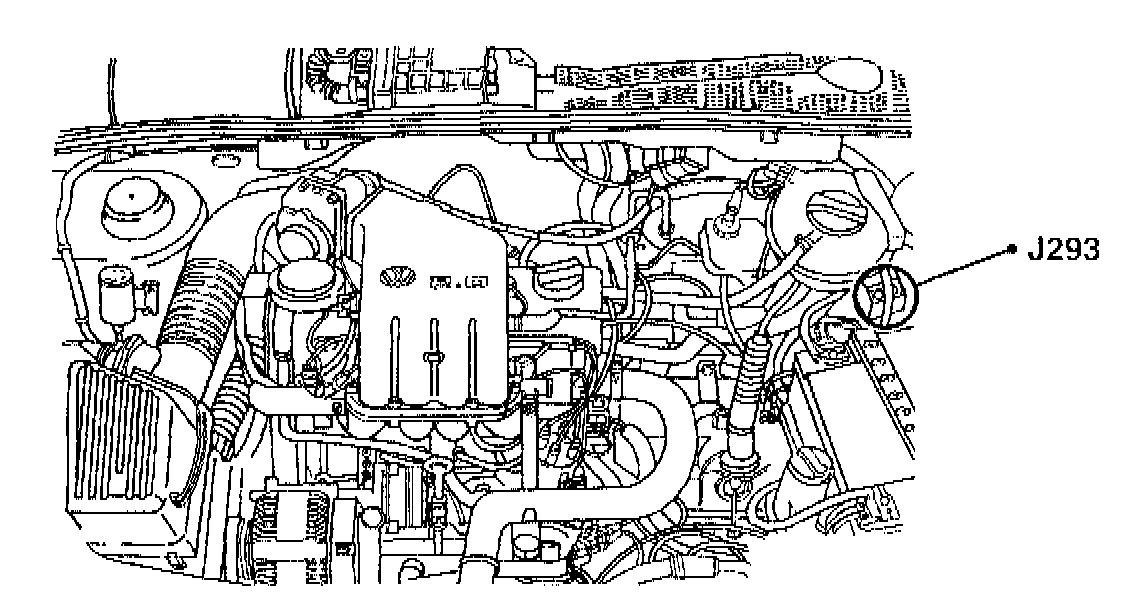

J293 COOLANT FAN CONTROL MODULE








J293 Coolant fan control module
^ engine compartment, leftside, behind battery and below coolant expansion tank; black housing
