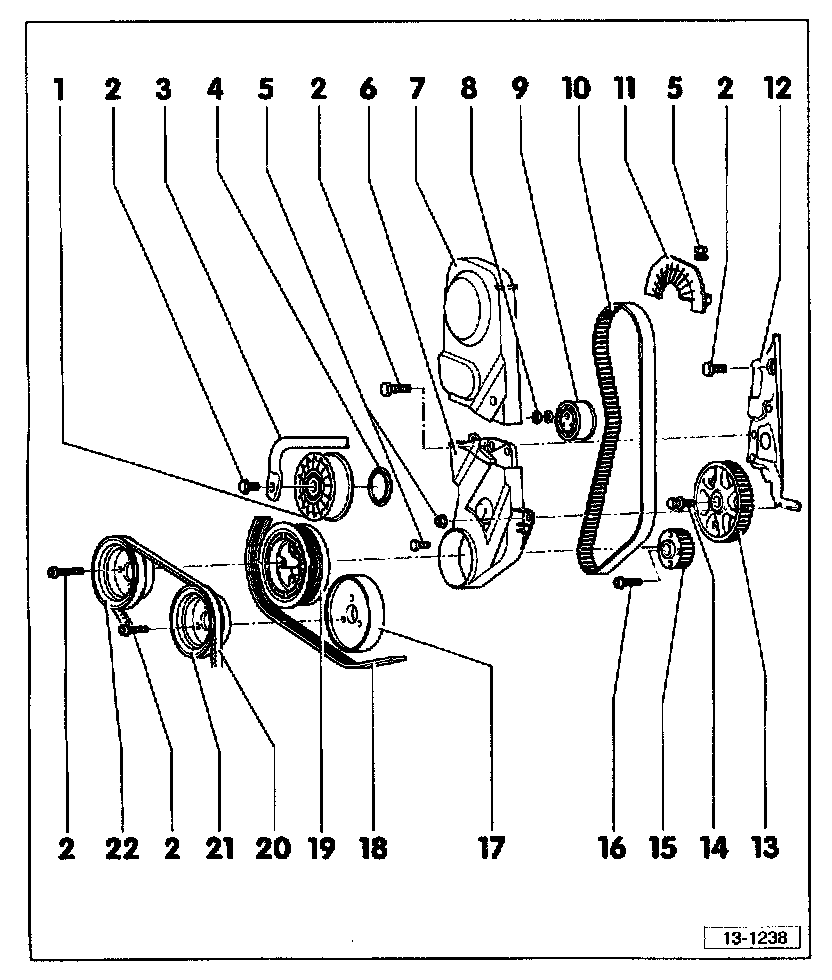

System Diagram

1 - Belt tensioner
2 - 20 Nm (15 ft lb)
3 - Tensioner lever
4 - Dust seal
5 - 10 Nm (7 ft lb)
6 - Drive belt guard, lower
7 - Drive belt guard, upper
8 - 45 Nm (33 ft lb)
9 - Belt tensioner
10 - Drive belt
11 - Drive belt guard
12 - Drive belt guard, rear
13 - Drive belt sprocket, intermediate shaft
14 - 80 Nm (59 ft lb)
15 - Drive belt sprocket, crankshaft
16 - 90 Nm (66 ft lb) + 1/4 turn (90°)
17 - Pulley, coolant pump
18 - Poly-ribbed belt
19 - Vibration damper
20 - V-Belt
21 - Pulley, coolant pump
