Symptom Related Diagnostic Procedures

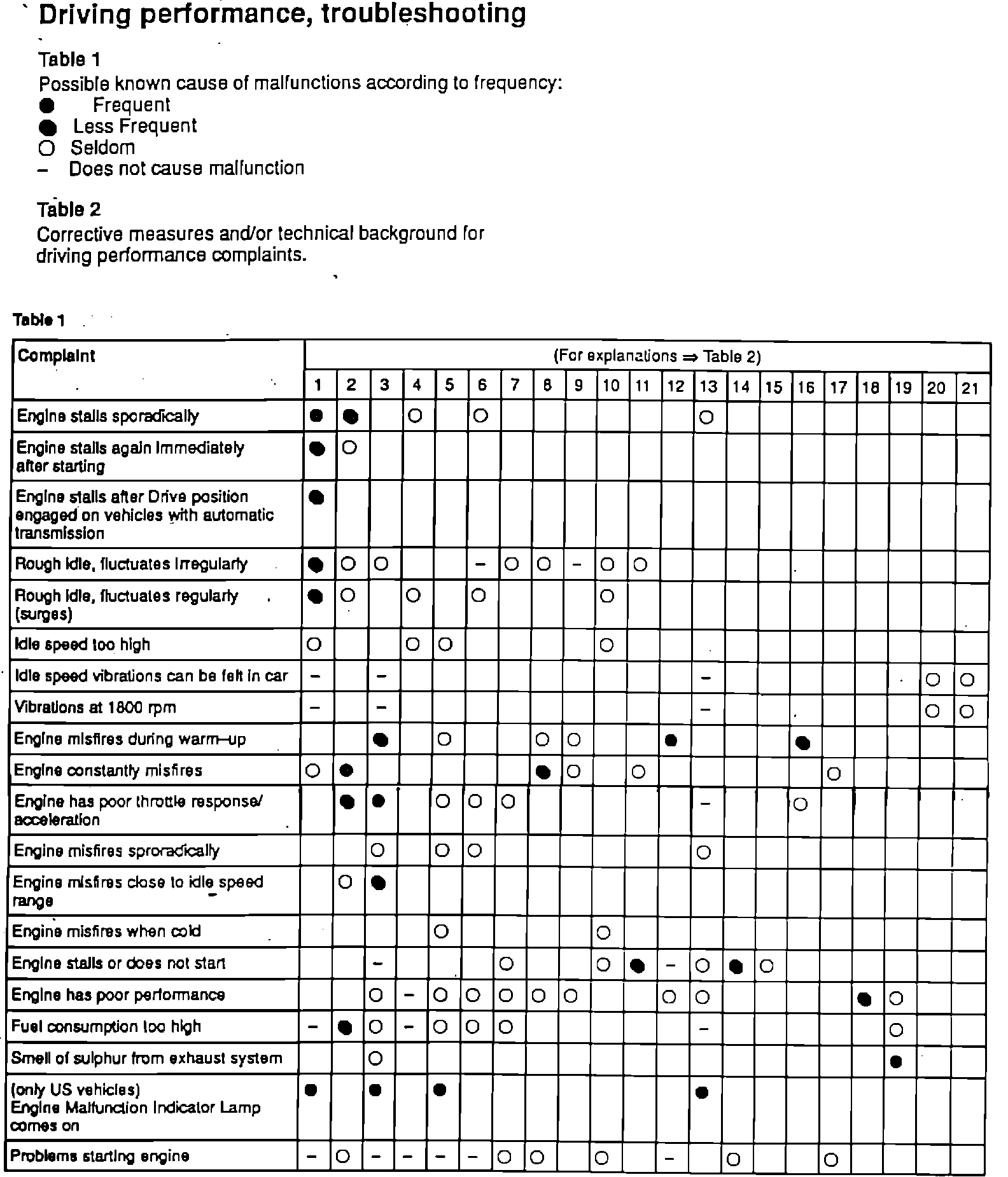

Diagnosis By Symptom Table 1:





TABLE 1 SYMPTOM INDEX / LIST

TABLE 2 POSSIBLE CAUSE AND CORRECTIVE MEASURES

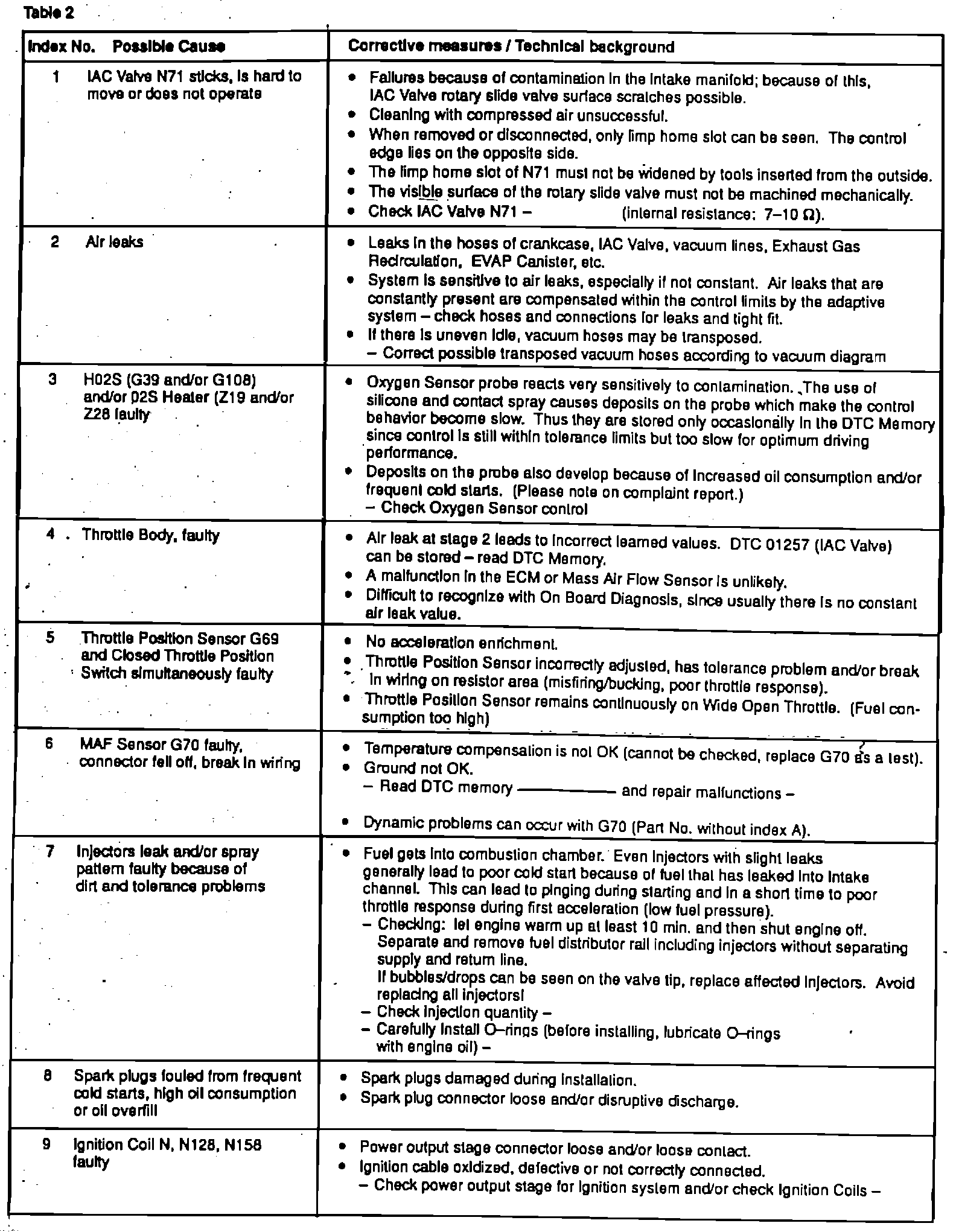

Diagnosis By Symptom Table 2 #1 - 9:





TABLE 2 #1 THRU #9

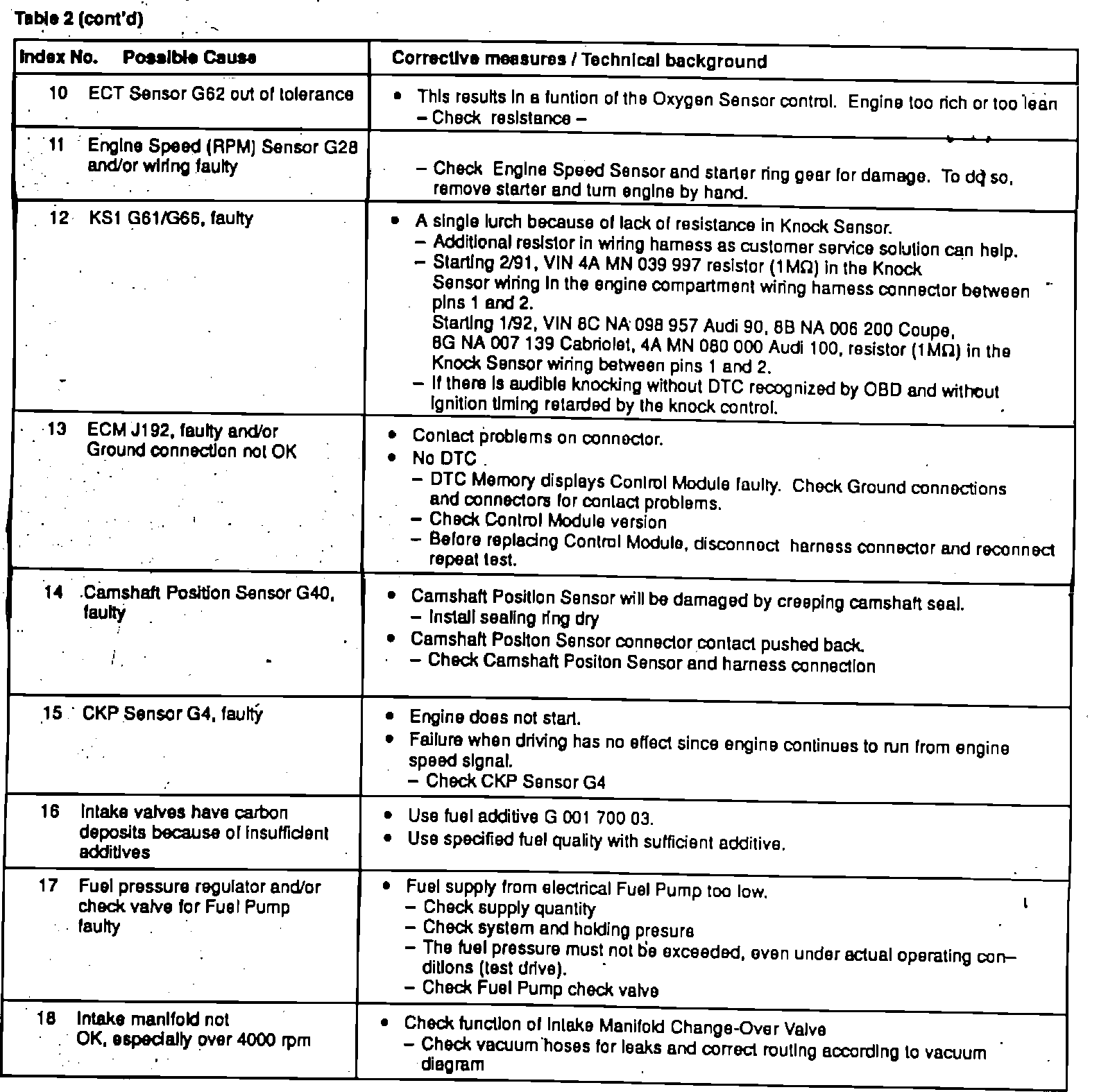

Diagnosis By Symptom Table 2 #10 - 18:





TABLE 2 #10 THRU #18

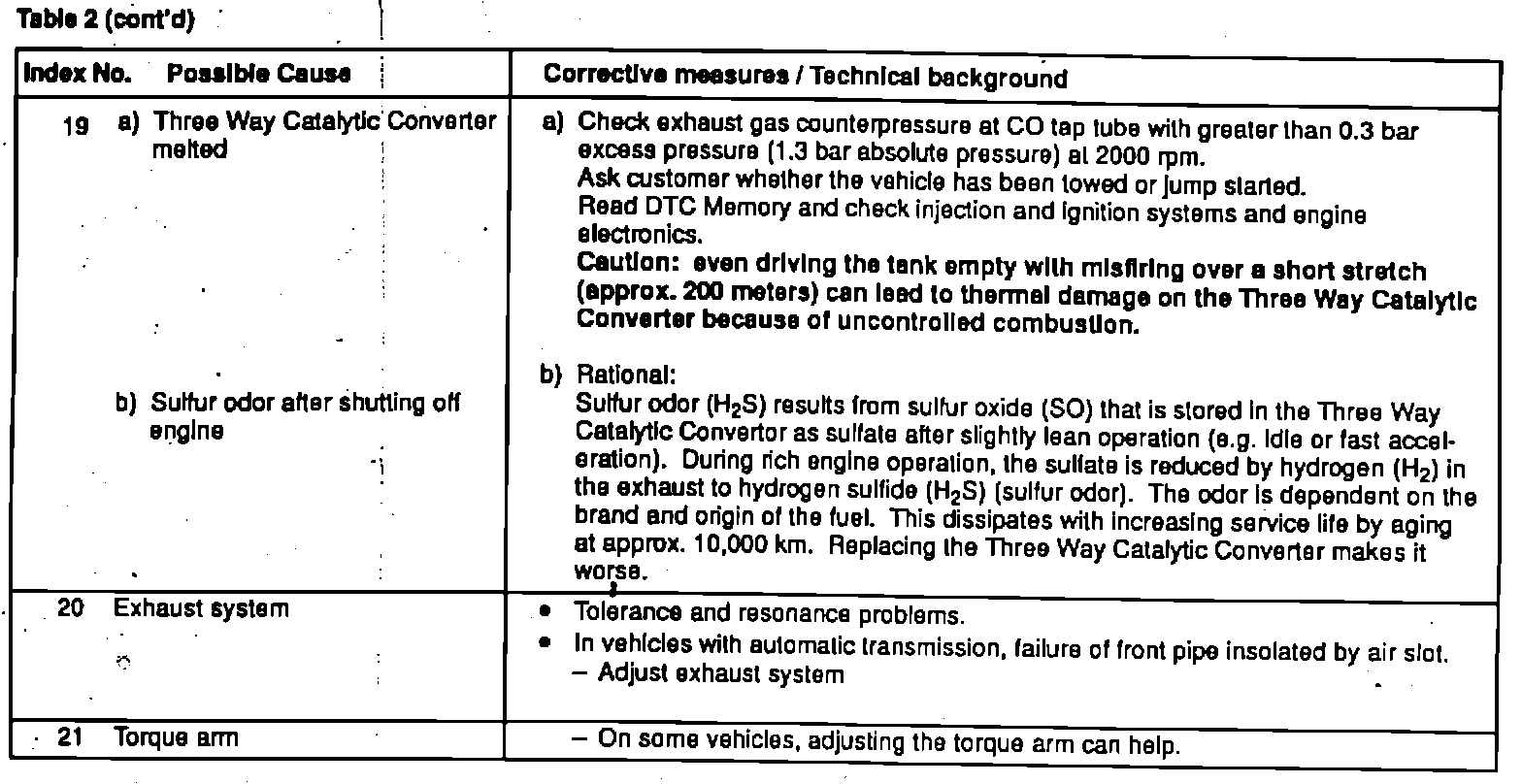

Diagnosis By Symptom Table 2 #19 - 21:





TABLE 2 #19 THRU #21
