Compressor HVAC: Service and Repair

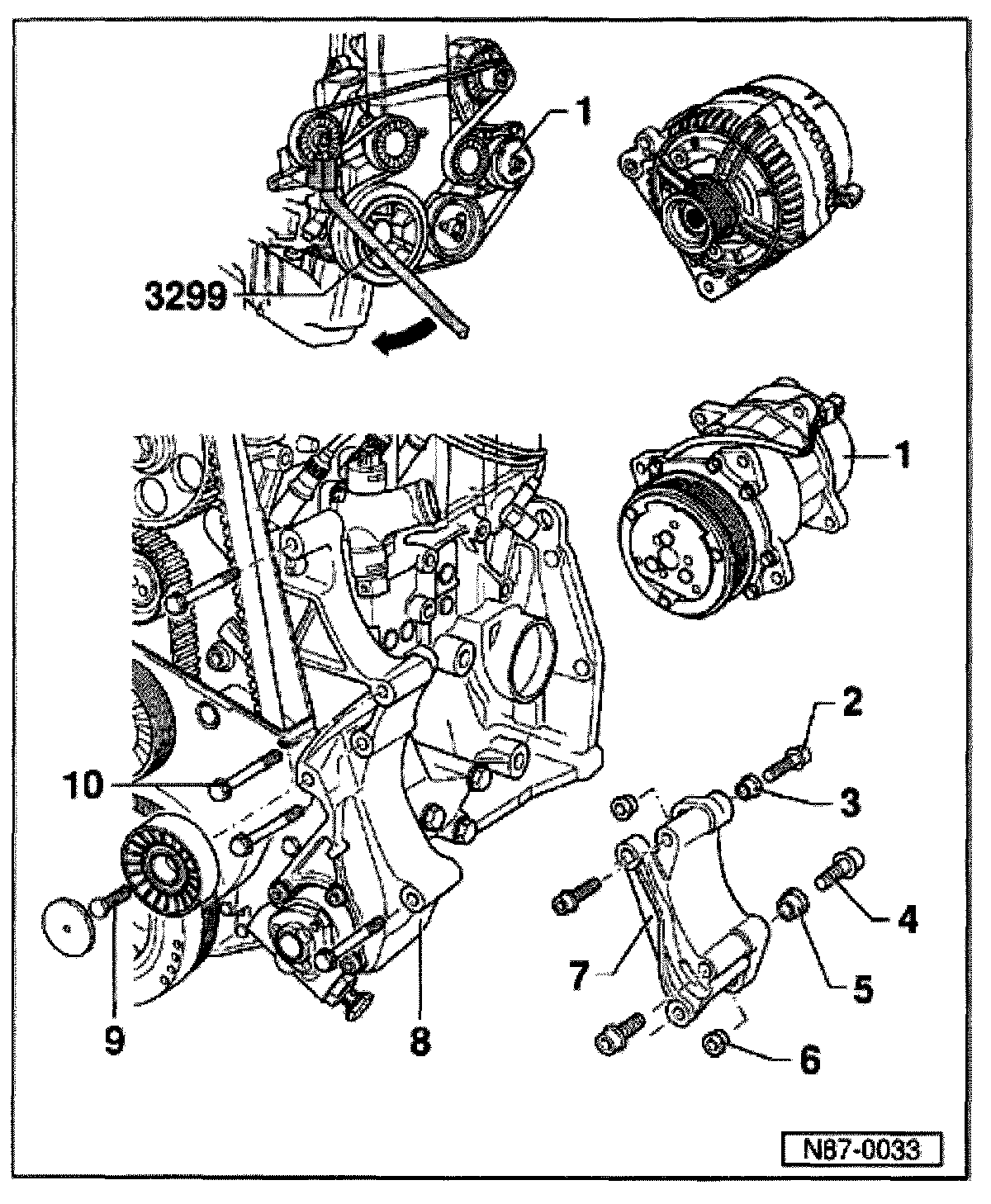

Compressor Bracket, Removing And Installing (5-cyl. Gas Engine 08.91 >)


NOTE: The compressor mounting bracket can be removed and installed without discharging the A/C refrigerant system.







1 - Compressor
- Compressor mounts to bracket so oil filler/drain plug faces up
2 - Hex socket combination screw
- 2 part- 25 Nm (18 ft lb)
3 - Bushing
- M8 thread
4 - Hex socket combination screw (M10 x 35)
- 2 part 45 Nm (33 ft lb)
5 - Bushing
- M 10 thread
6 - Bushing
- 2 part - M8 thread
7 - Compressor bracket
8 - Generator (GEN) bracket
9 - Hex bolt M8 x 40
- 10 Nm (0.4 in. lb)
10 - Hex bolt M8 x 85 (4x)
- 20 Nm (0.8 in. lb)
