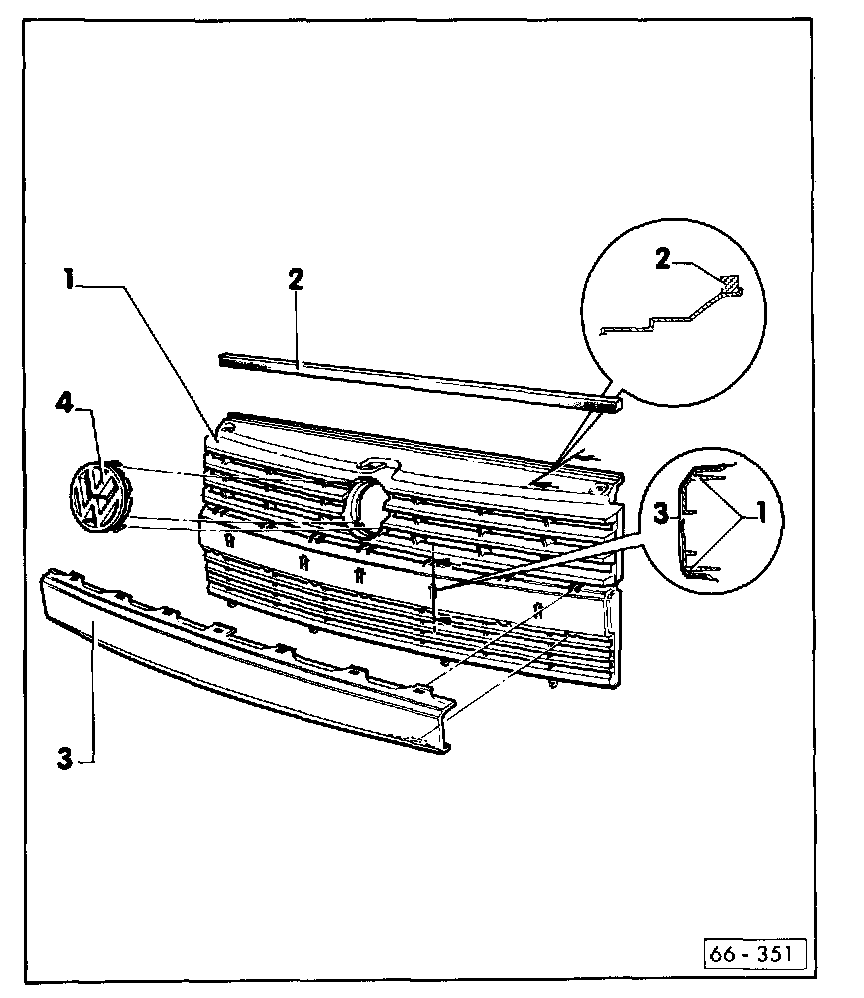

Grille

1 - Radiator grille
- Removing See 'Service and Repair.' Service and Repair
2 - Seal
- Self-adhesive
3 - Trim
- Removing: remove radiator grille
See 'Service and Repair.' Service and Repair and unclip from back side.
4 - Emblem
- Fastened with clip
