Functional Check
- With ignition key removed, ensure gear selector cannot be moved from Park. Insert key in ignition switch.
- Turn ignition switch on. Ensure gear selector can only be moved with brake pedal pressed down. Move gear selector to Neutral position.
- Without pressing brake pedal, ensure gear selector cannot move out of Neutral. Press brake pedal down. Ensure it is now possible to move gear selector.

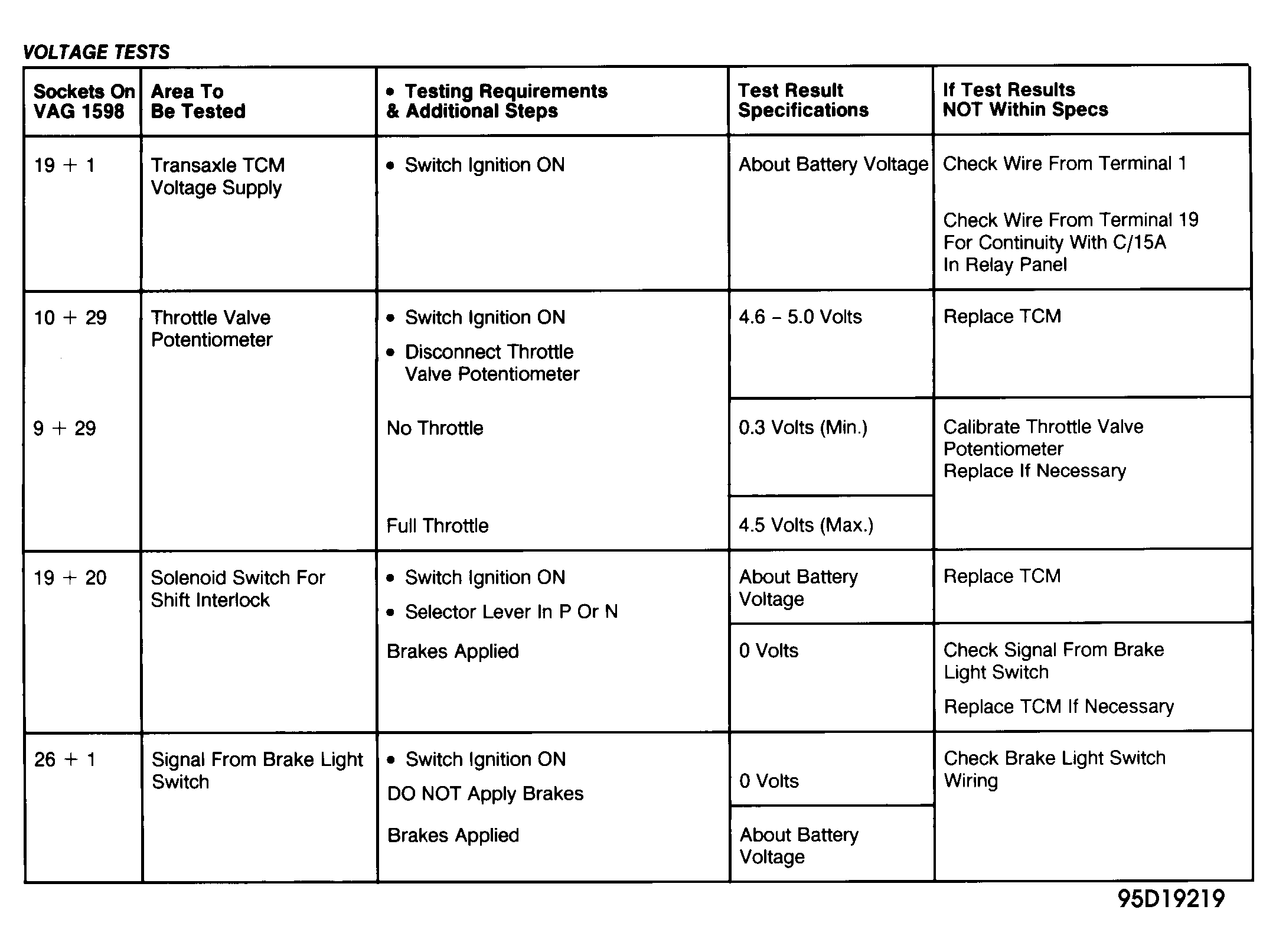

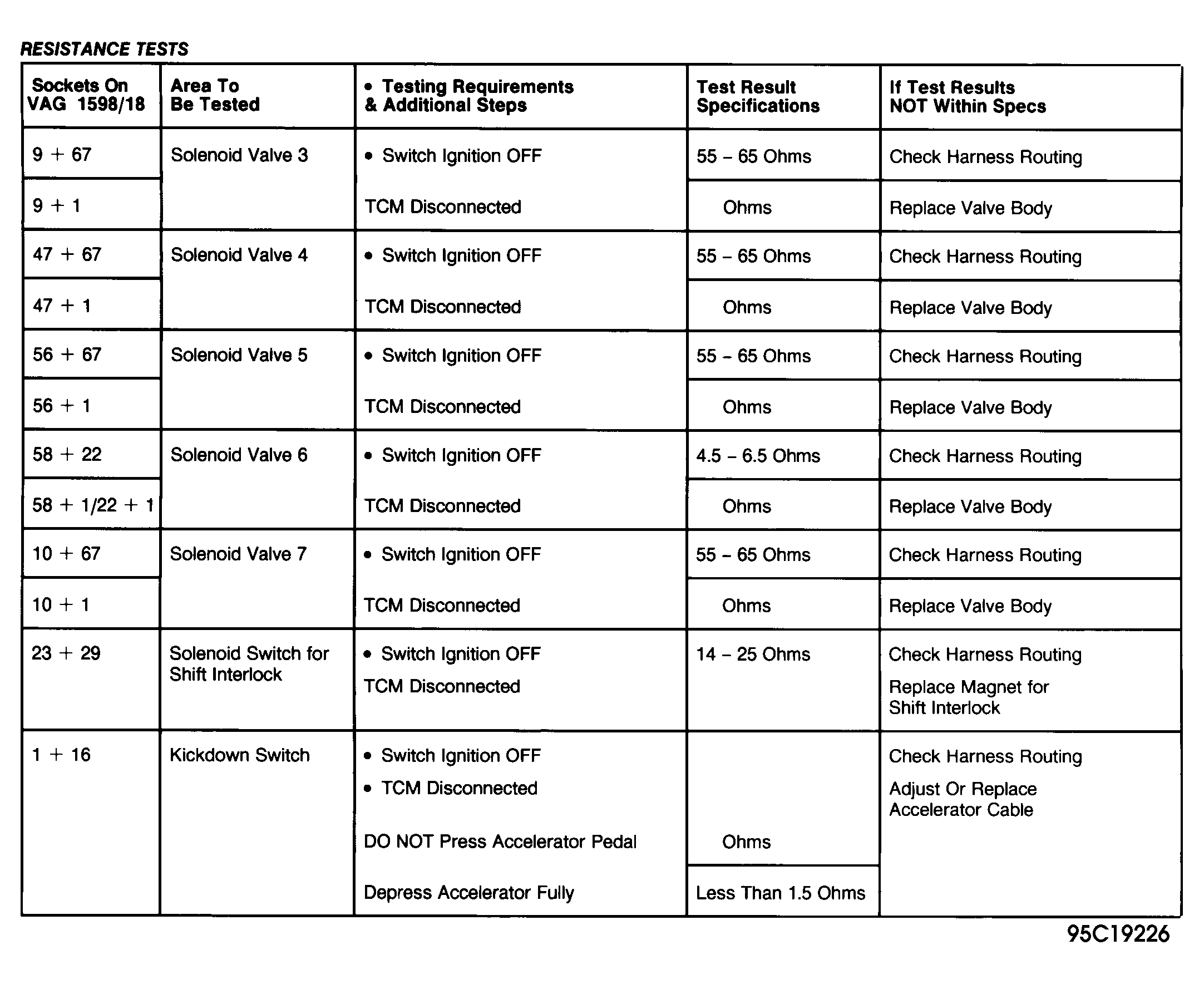

- If shift lock system does not operate as described, adjust gear selector, solenoid and control cable. If shift lock system does not operate after adjustments are made, check electrical system of shift lock system with Tester (VAG 1551/1).

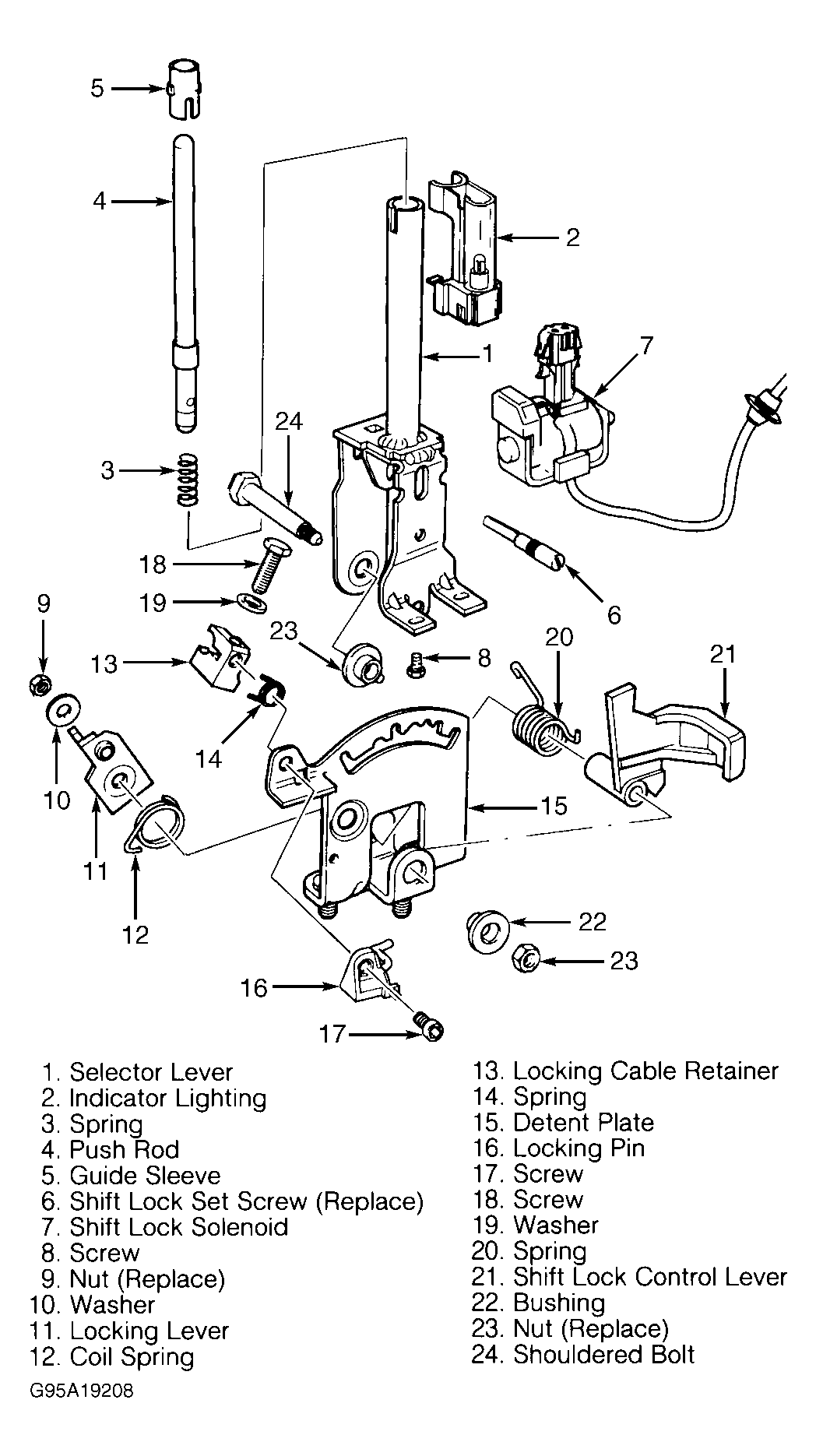

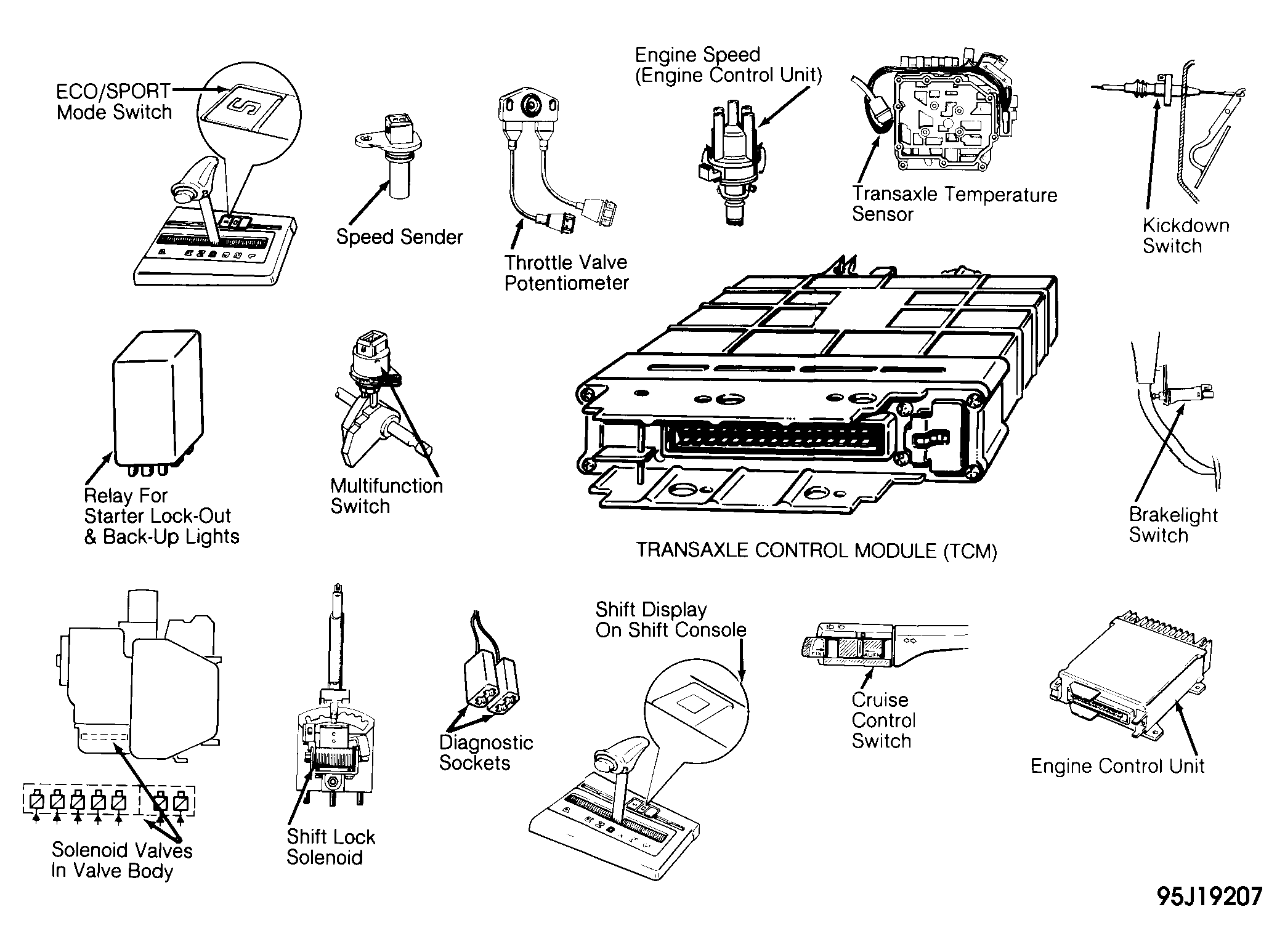

- See testing information under ELECTRONIC SELF-DIAGNOSTICS . See Figure-Figure . If any problems are found, service harness or components. If no problems are found, TCM may be defective. If shift lock system still does not operate correctly, check for worn or damaged parts and replace as necessary. See Figure and Fig 1 .
NOTE:
Perform the following adjustments in order given.
