System Testing (With Traction Control)

Ensure related fuses are good. Use V.A.G. 1551 to retrieve any stored codes. Check for disconnected or damaged wires at sensors, grounds and battery feed circuits. Turn ignition off. Disconnect ABS ECU harness connector. Install Breakout Box V.A.G. 1598. Measure voltage (with ignition on) or resistance (with ignition off) as indicated in test charts. If necessary, use appropriate wiring diagram to isolate circuit related problems.

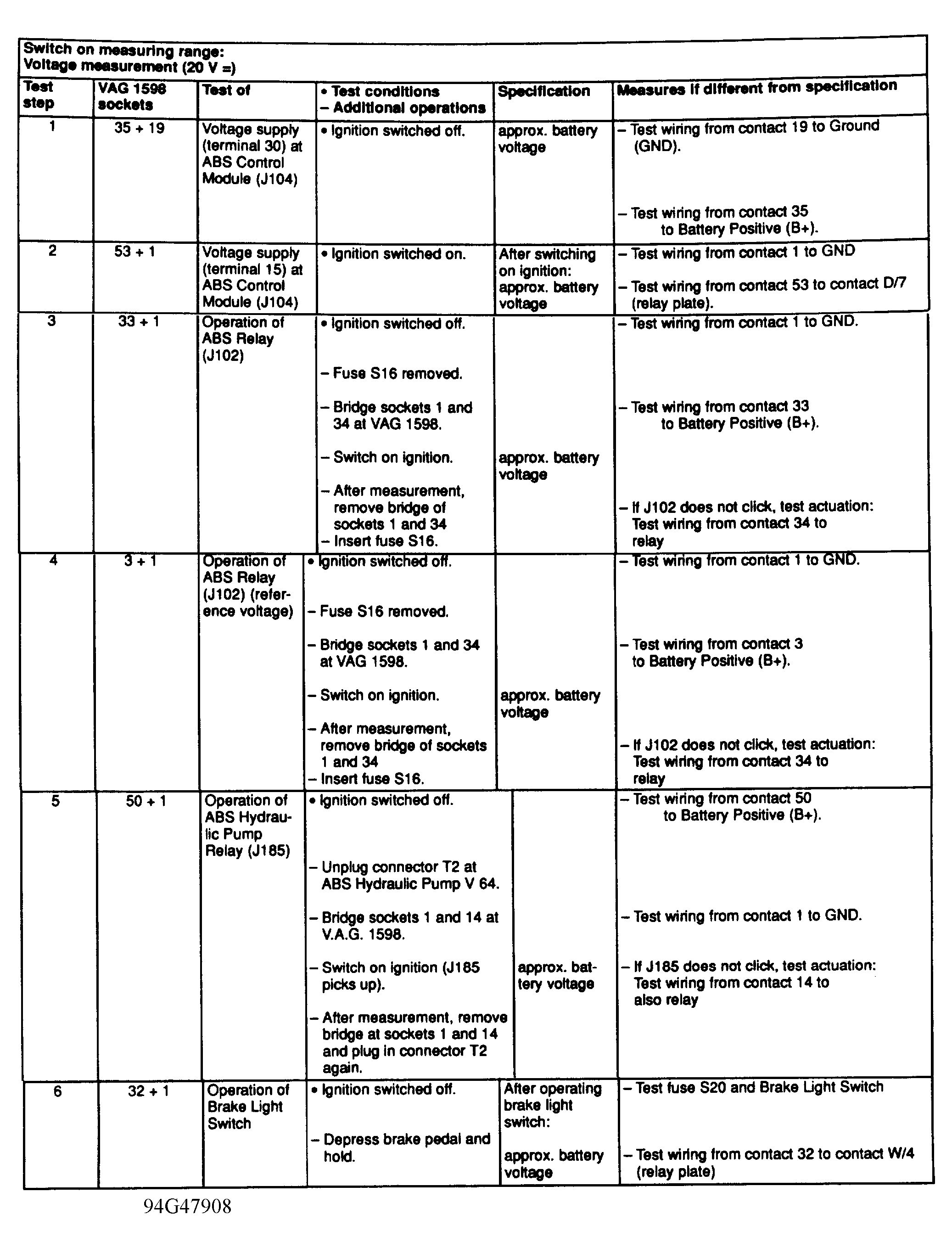

Fig 1: Test Steps 1-6 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

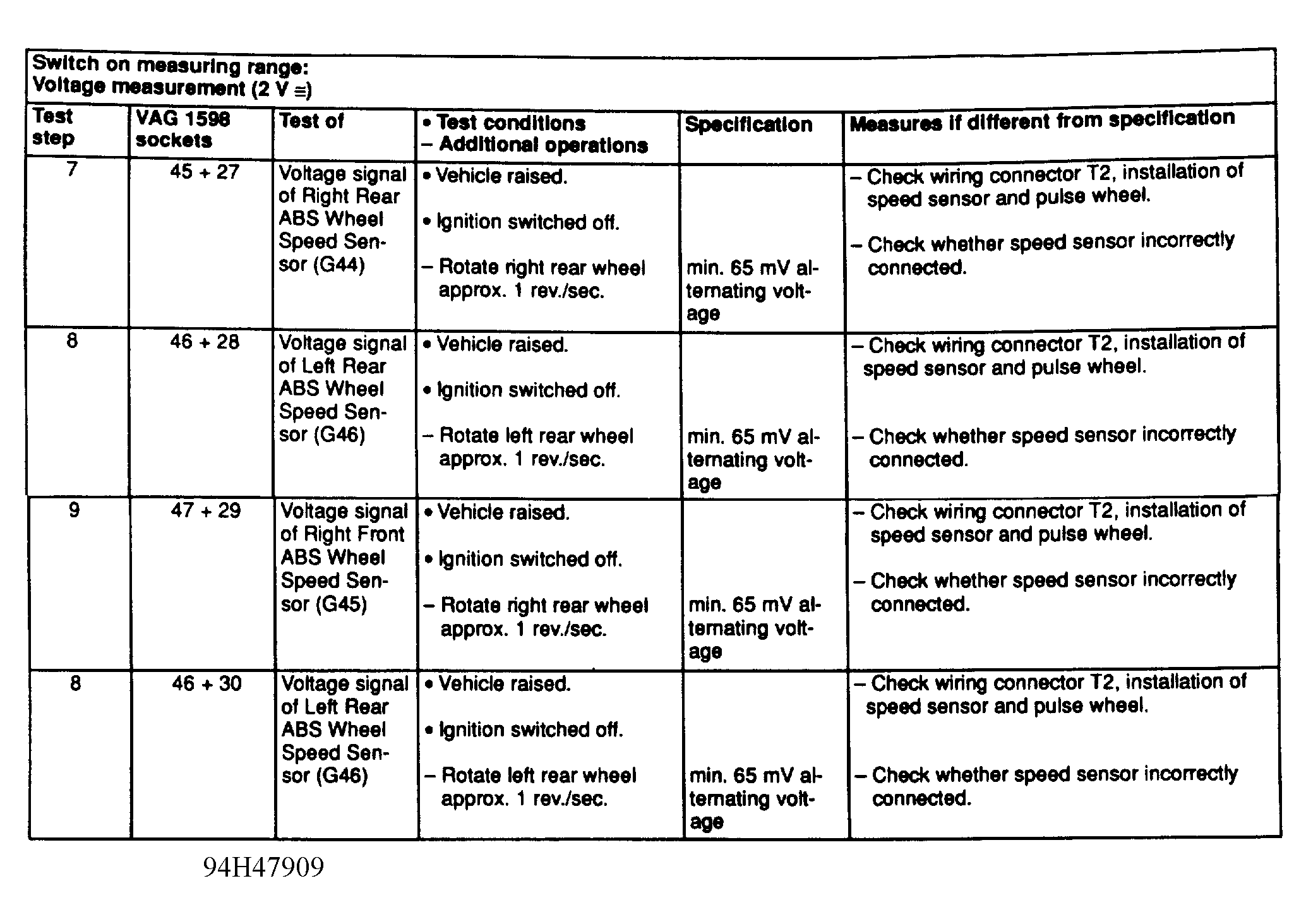

Fig 2: Test Steps 7-8 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

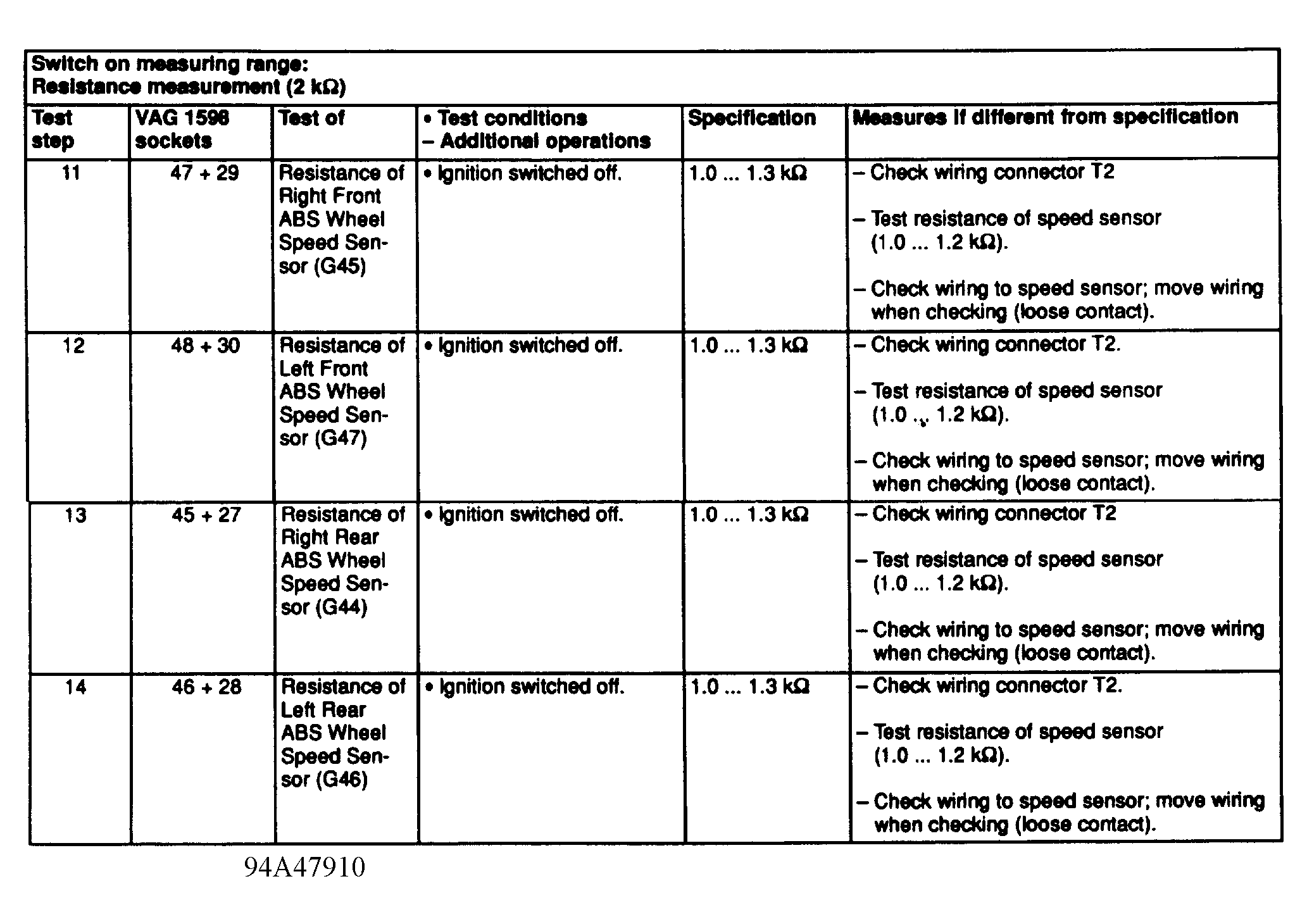

Fig 3: Test Steps 11-14 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

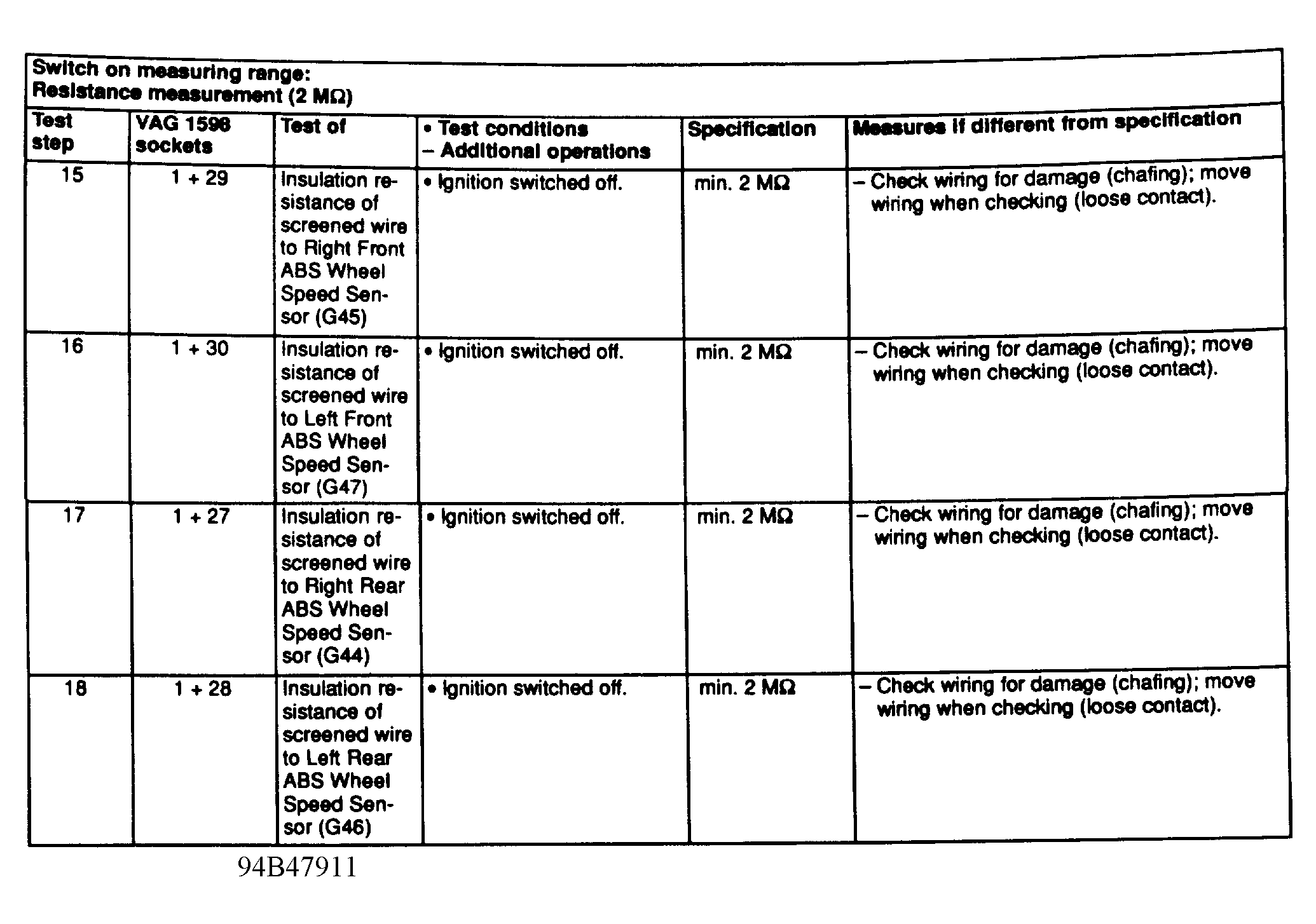

Fig 4: Test Steps 15-18 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

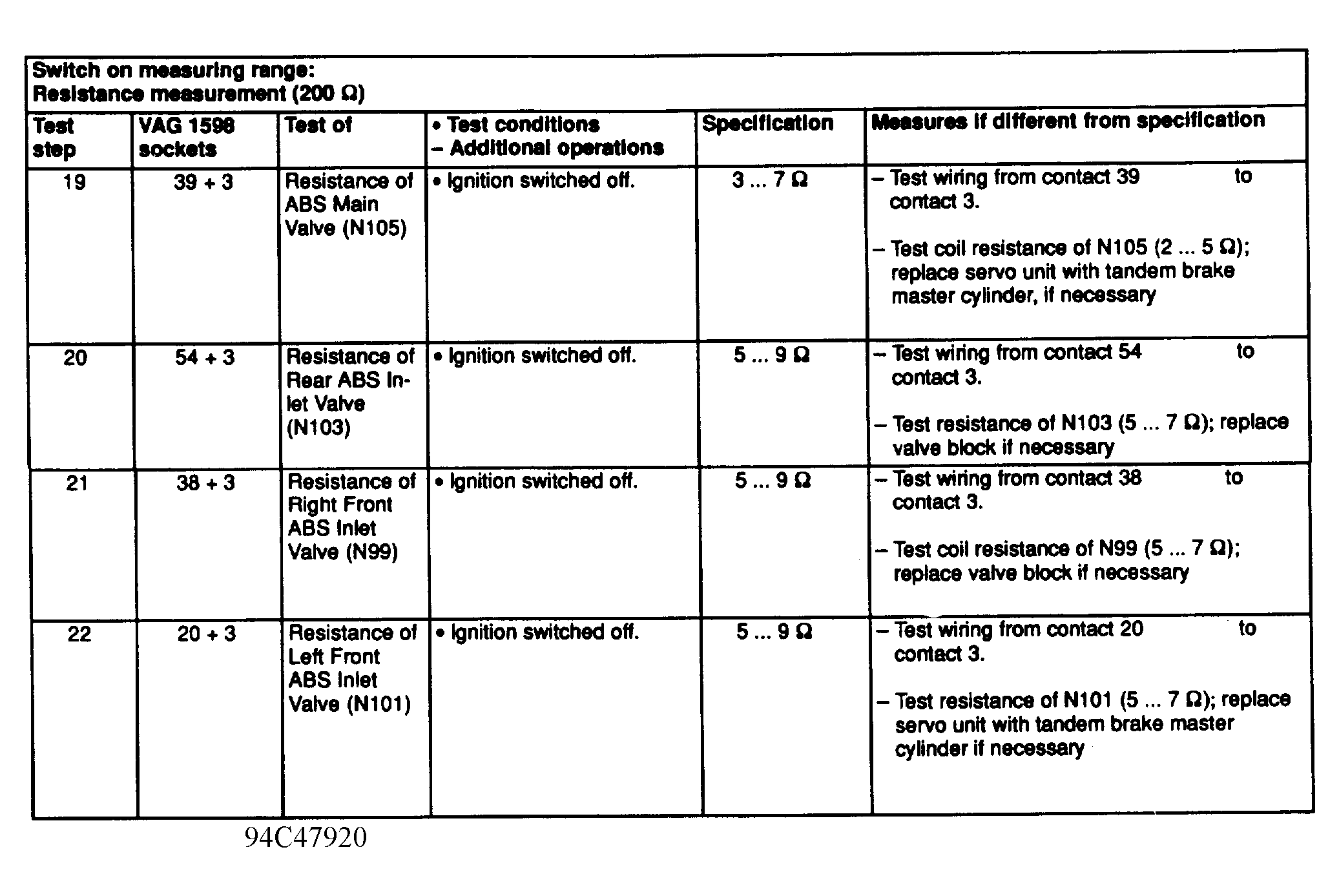

Fig 5: Test Steps 19-22 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

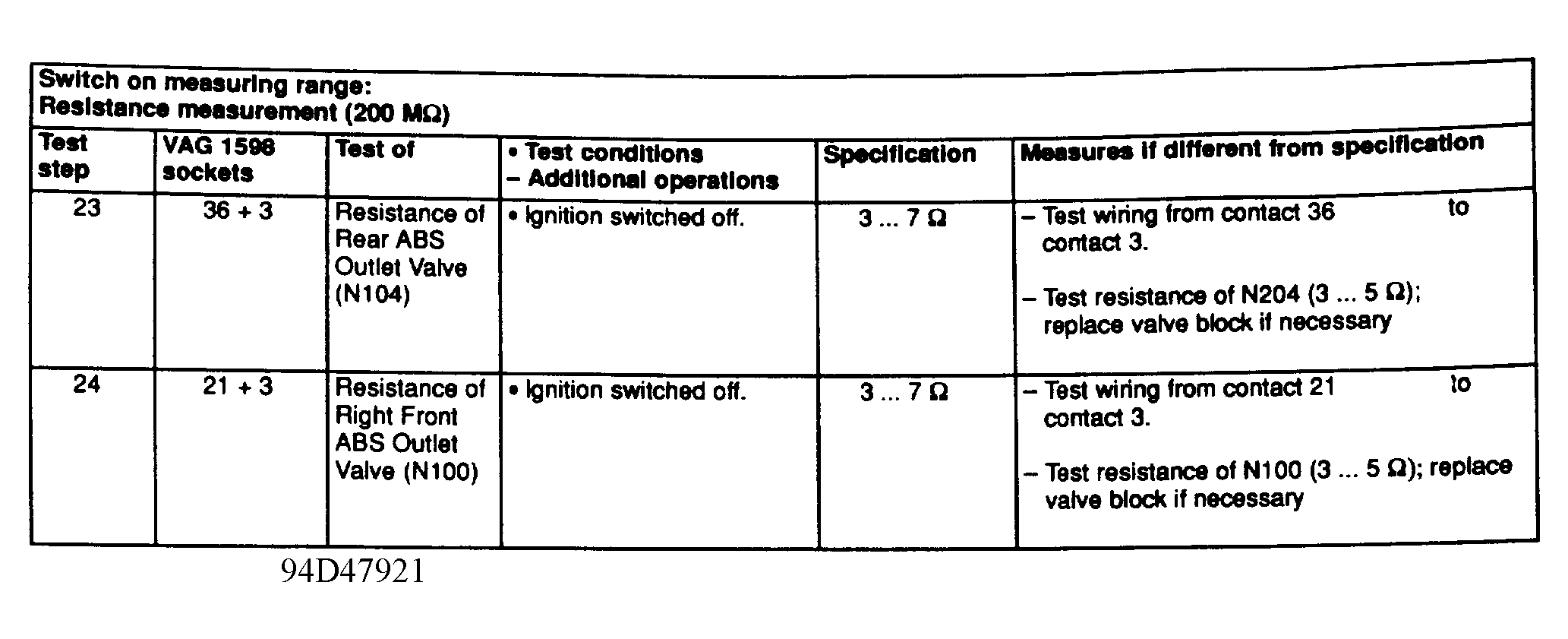

Fig 6: Test Steps 23 & 24 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

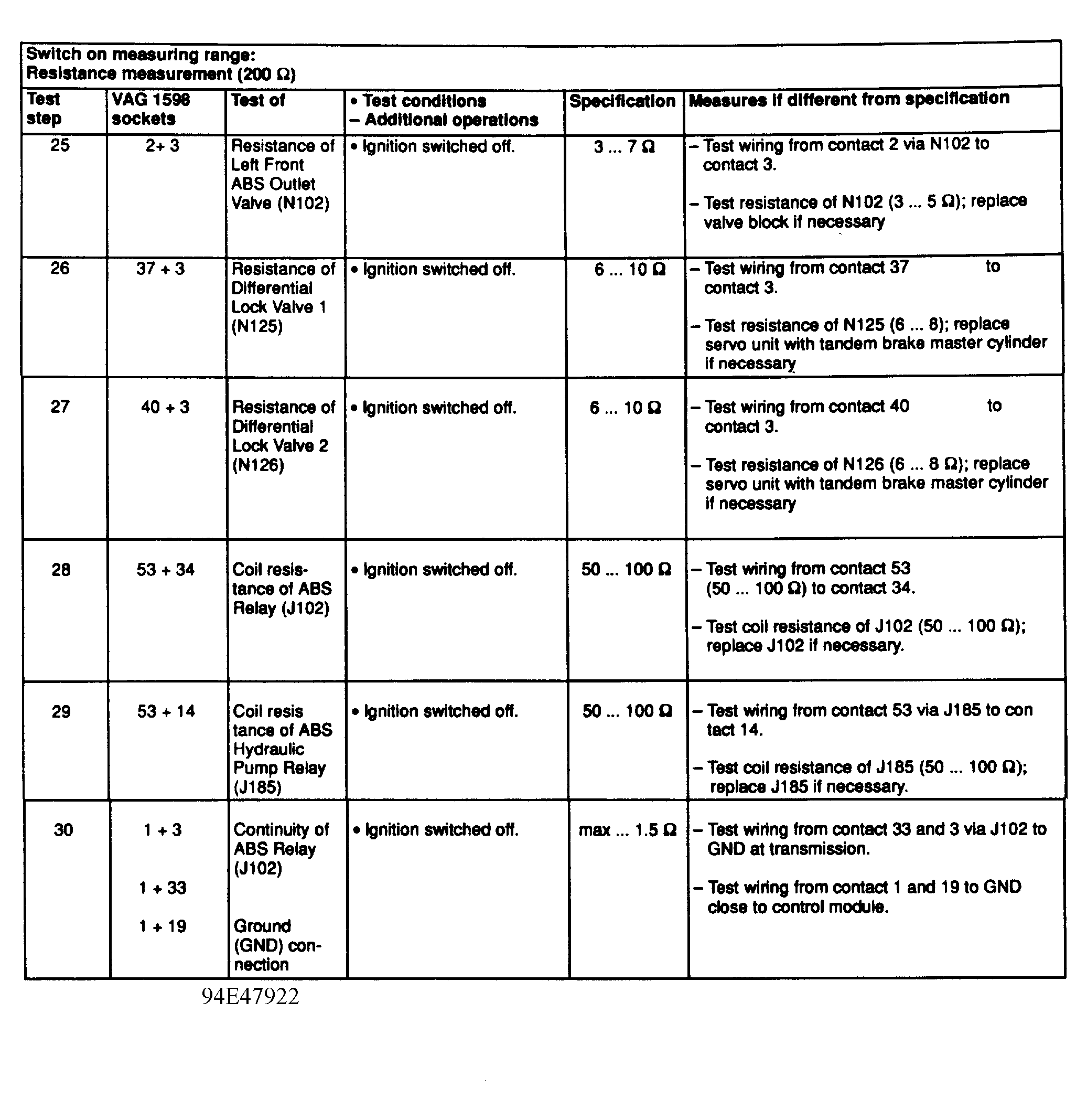

Fig 7: Test Steps 25-30 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

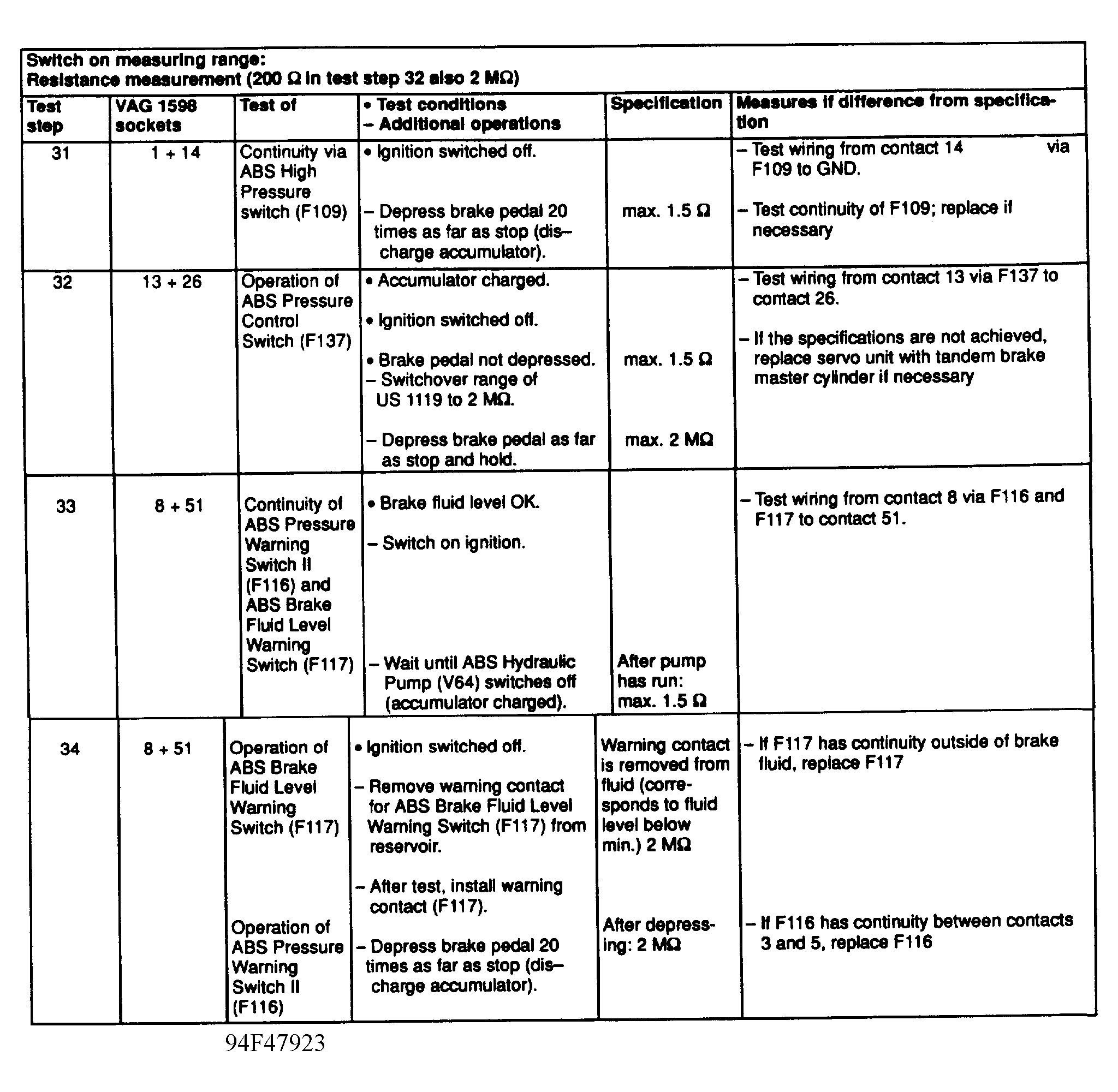

Fig 8: Test Steps 31-34 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

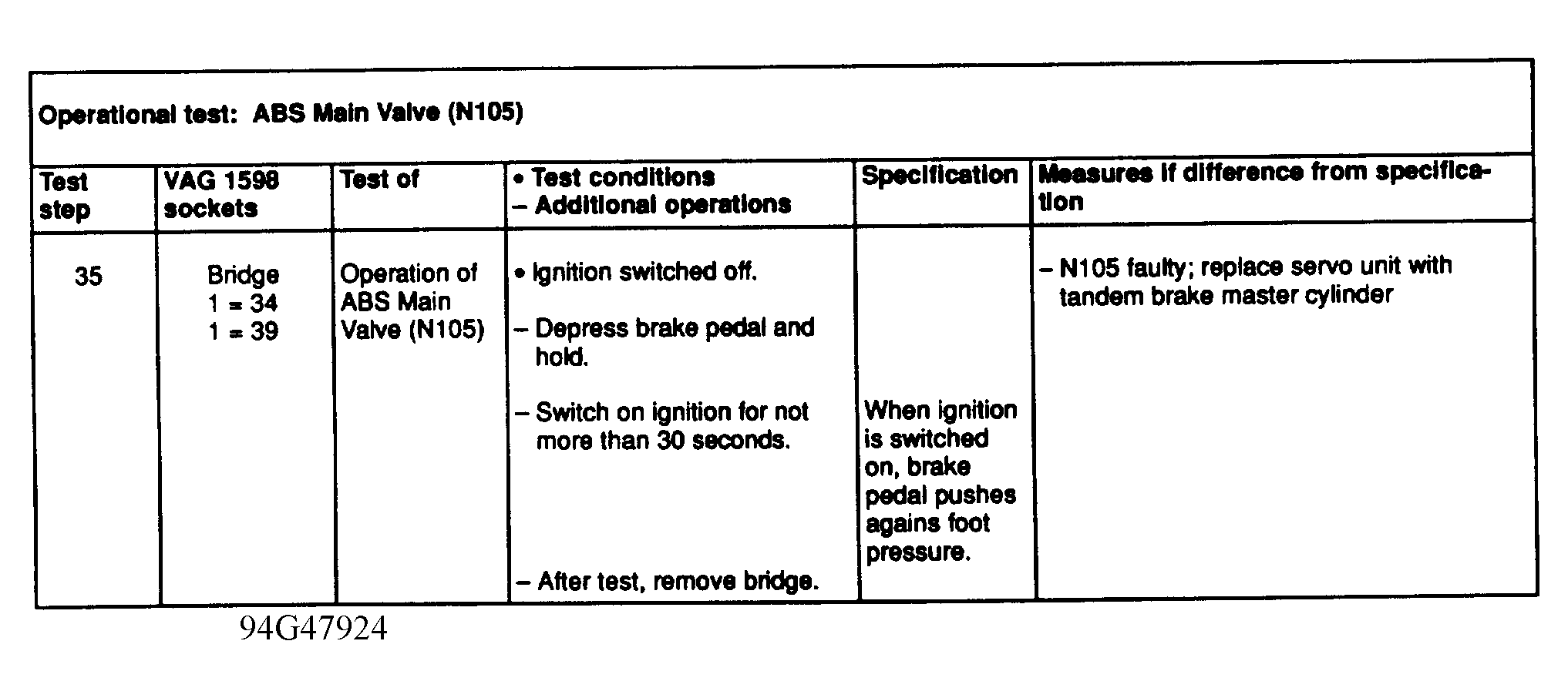

Fig 9: Test Step 35 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

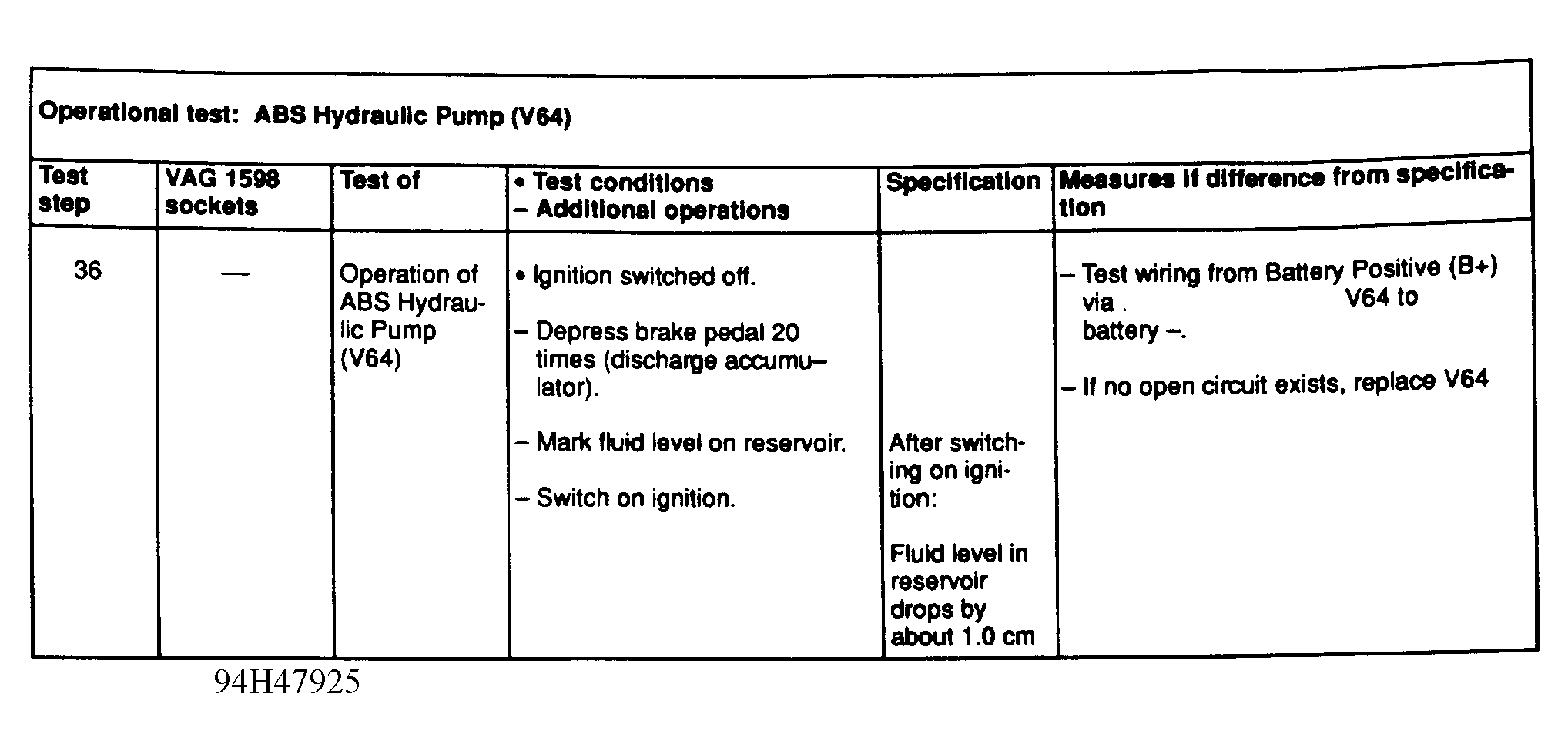

Fig 10: Test Step 36 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

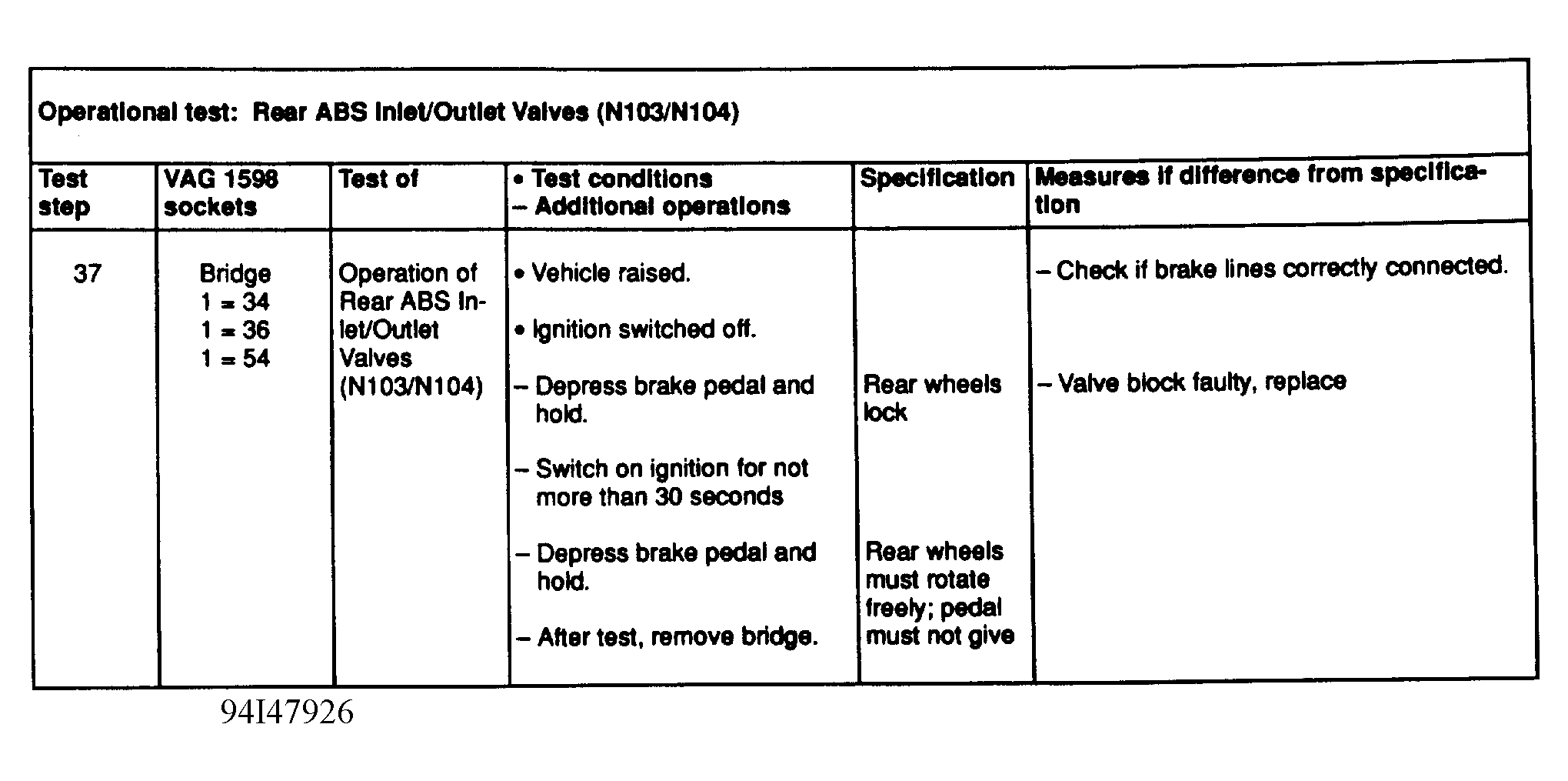

Fig 11: Test Step 37 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

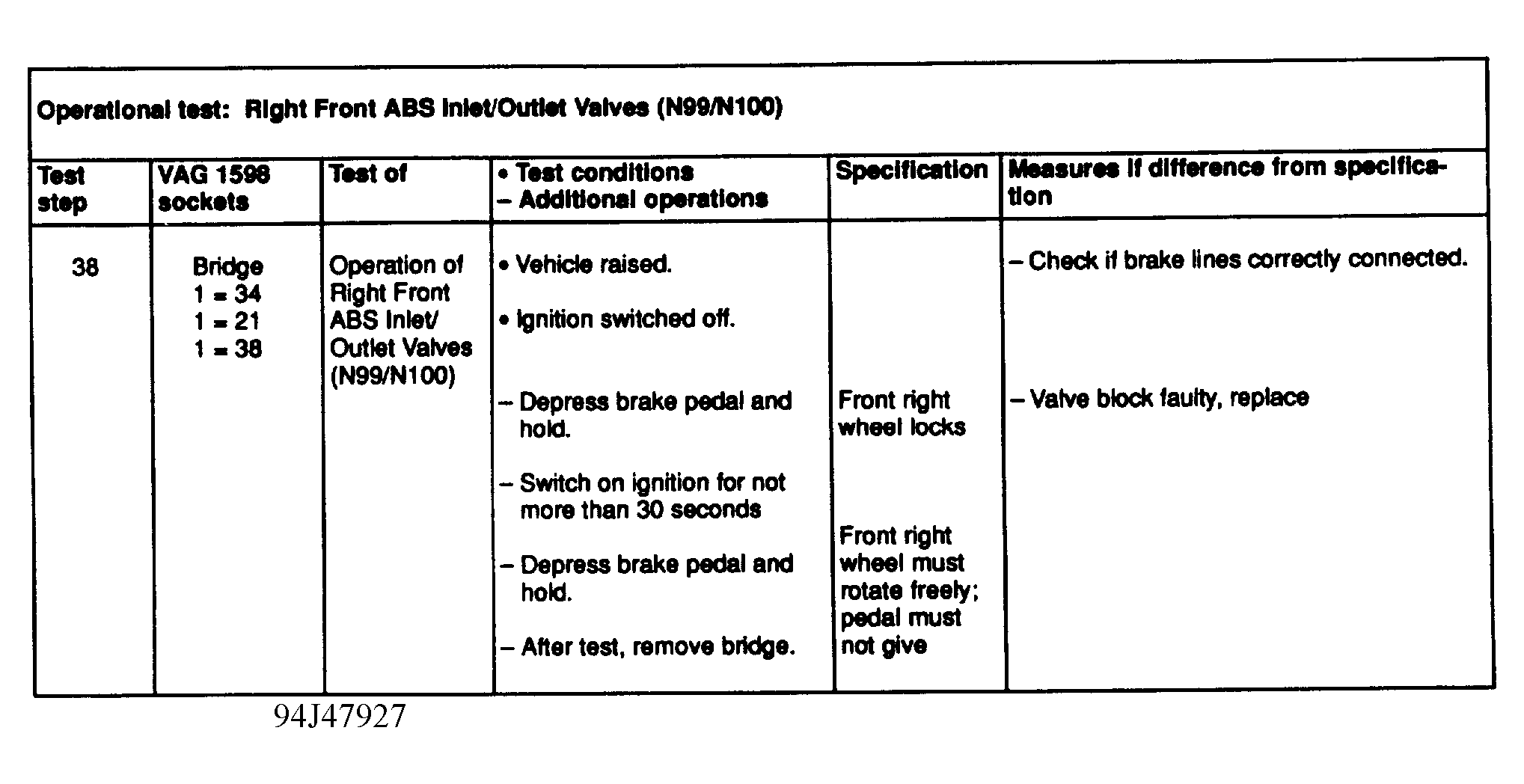

Fig 12: Test Step 38 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

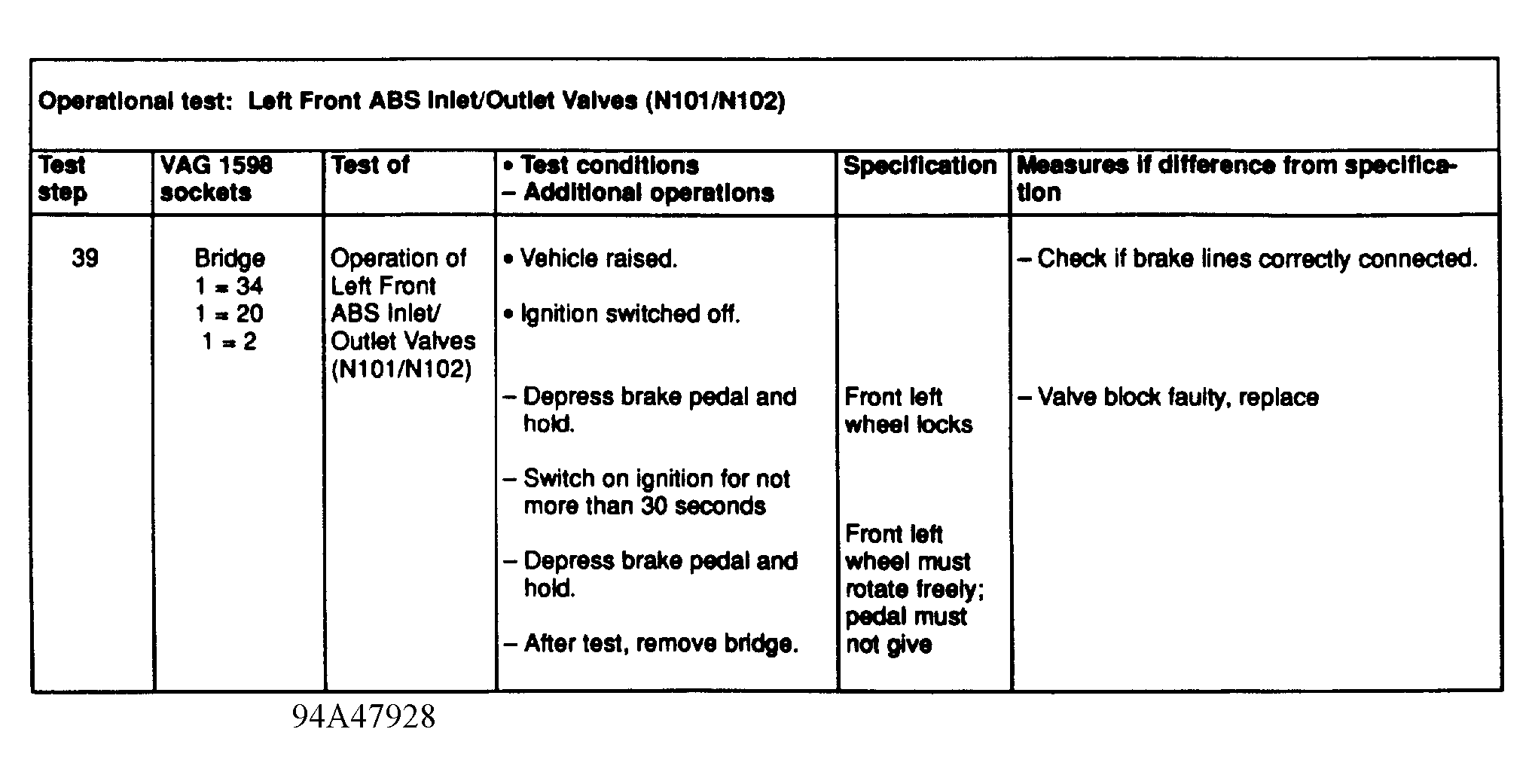

Fig 13: Test Step 39 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

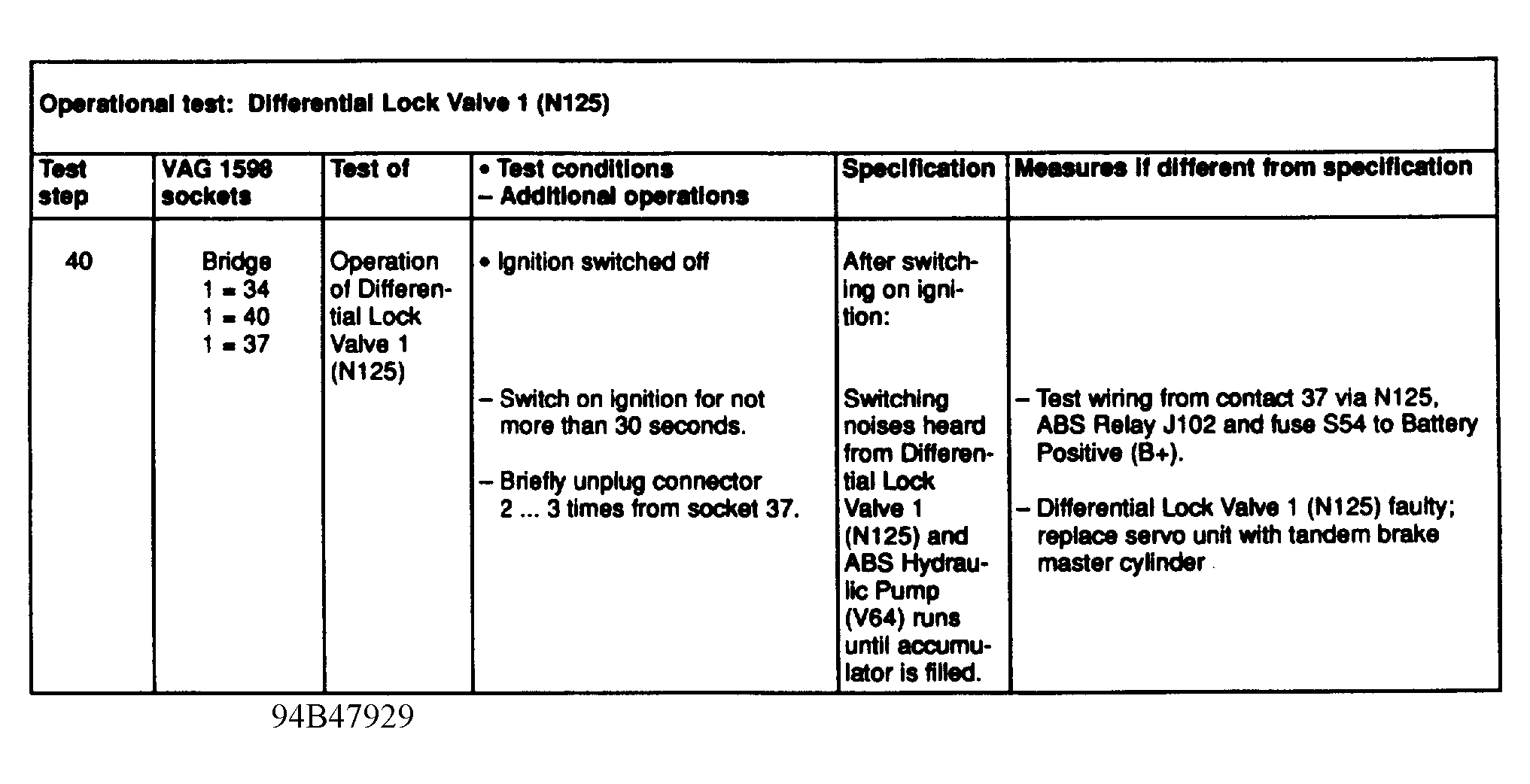

Fig 14: Test Step 40 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

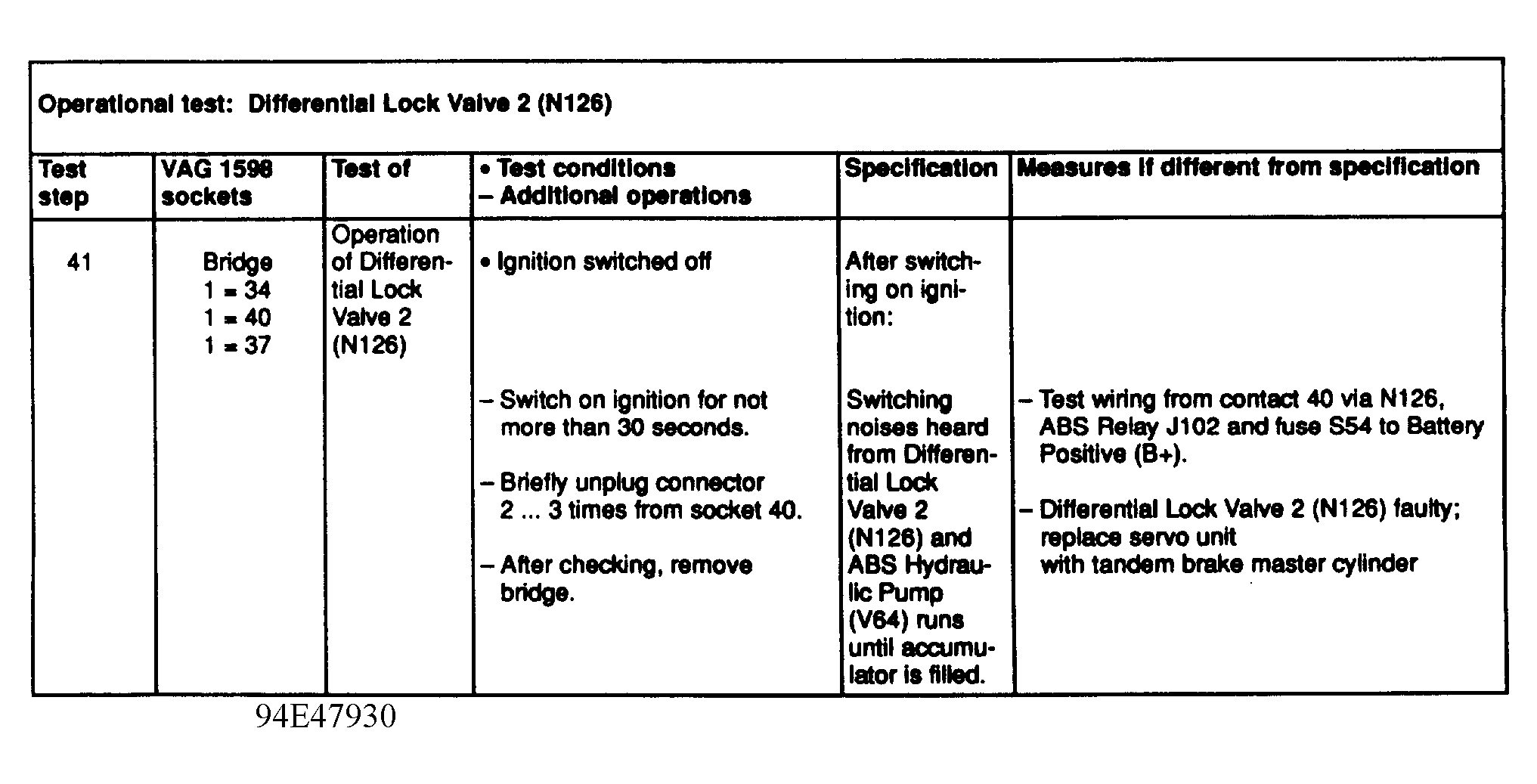

Fig 15: Test Step 41 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

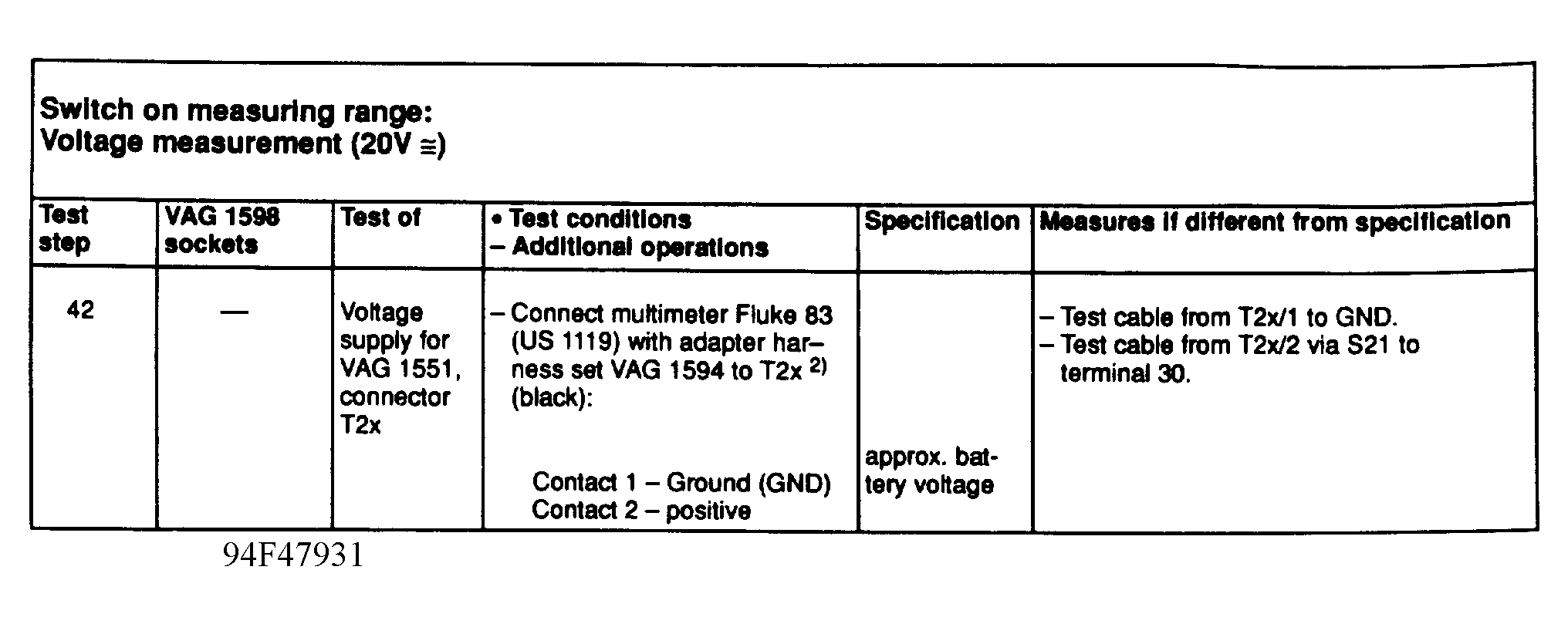

Fig 16: Test Step 42 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

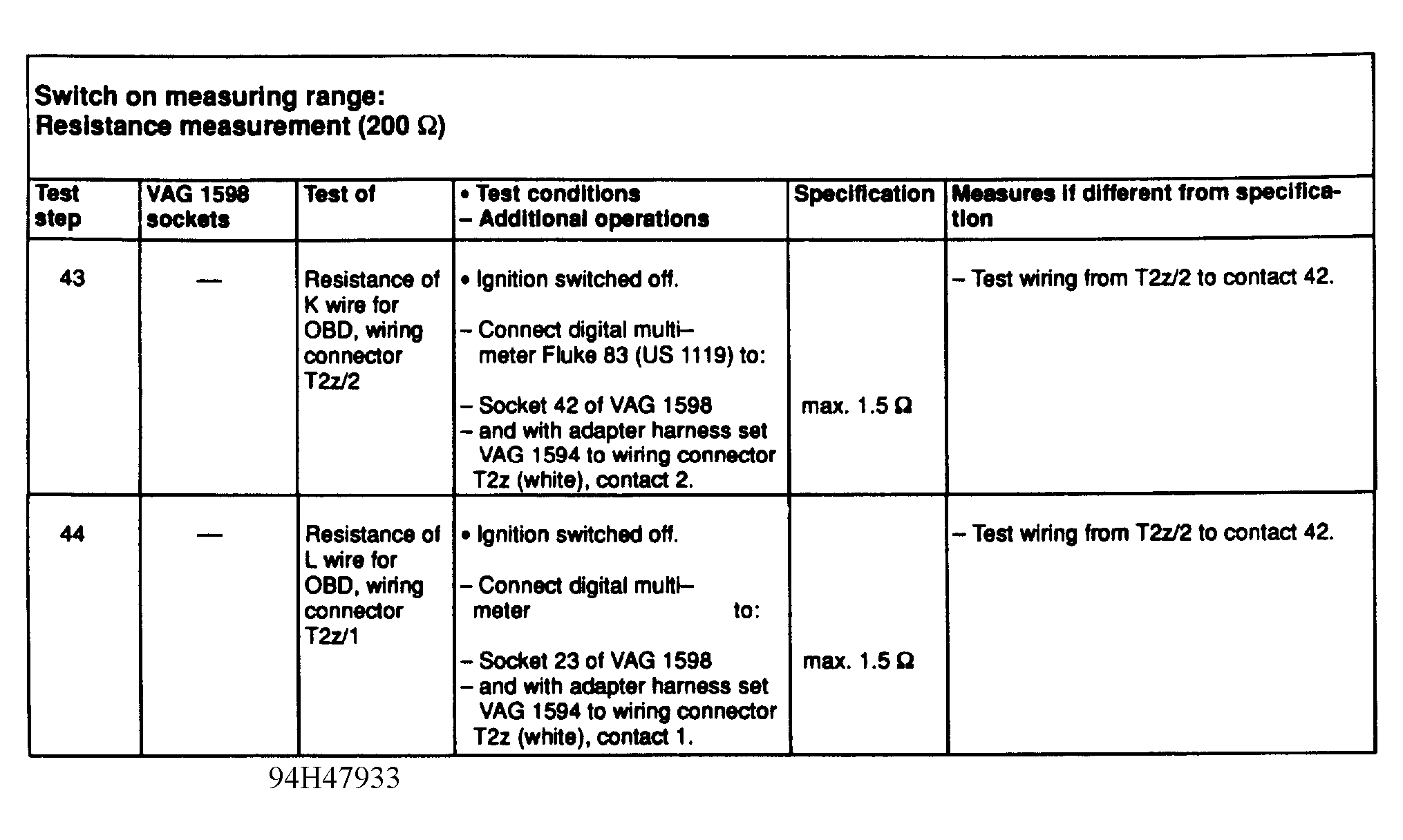

Fig 17: Test Steps 43 & 44 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

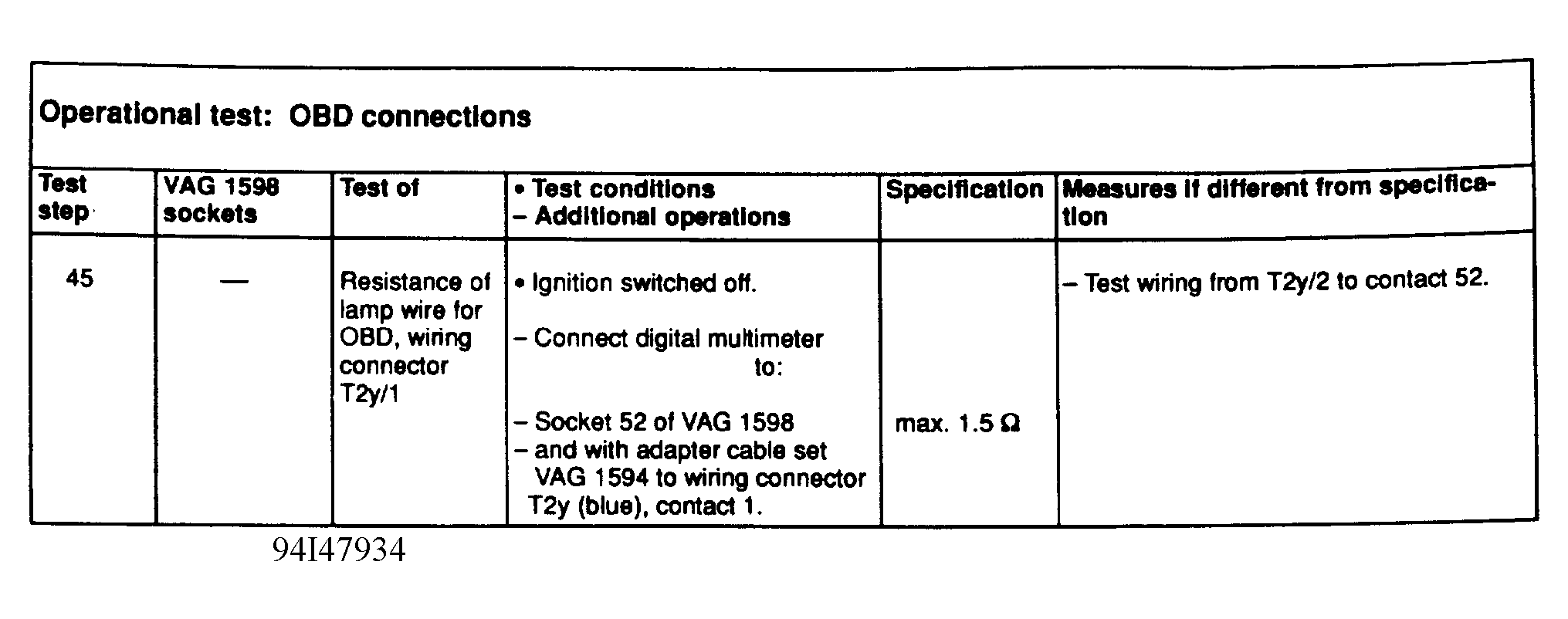

Fig 18: Test Step 45 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

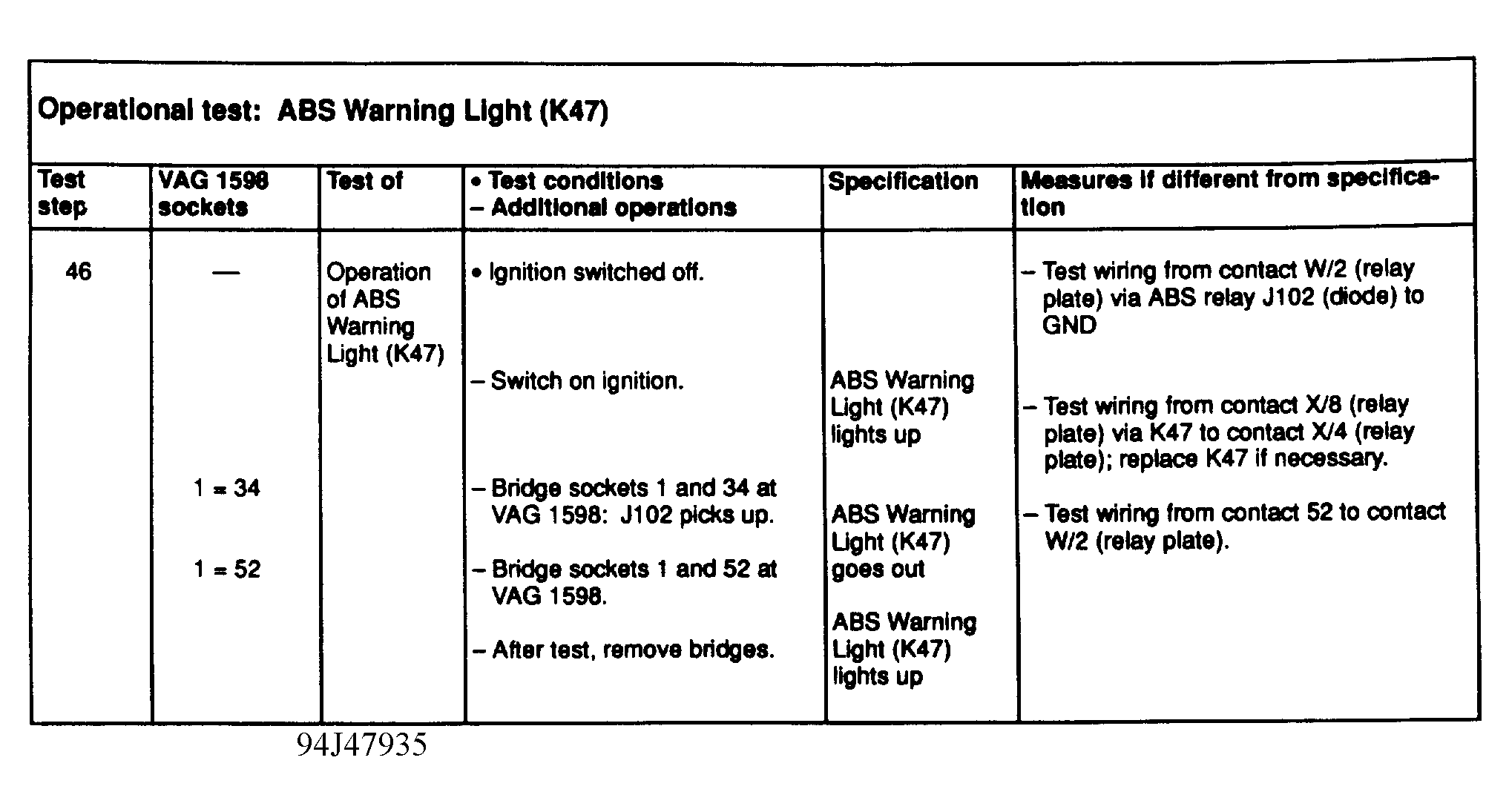

Fig 19: Test Step 46 (Corrado & Passat With 4-Cylinder Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
